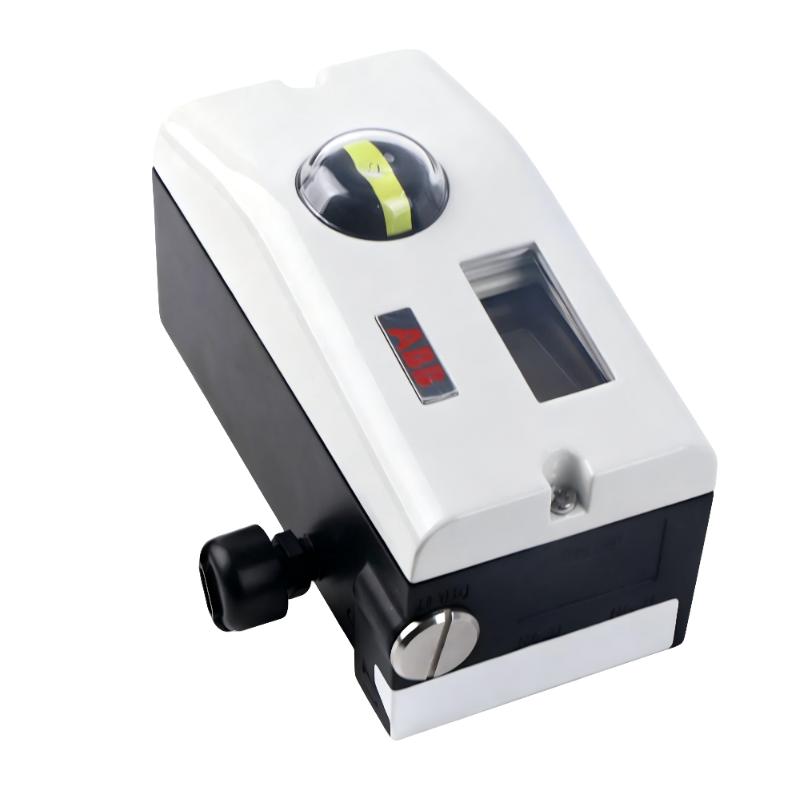

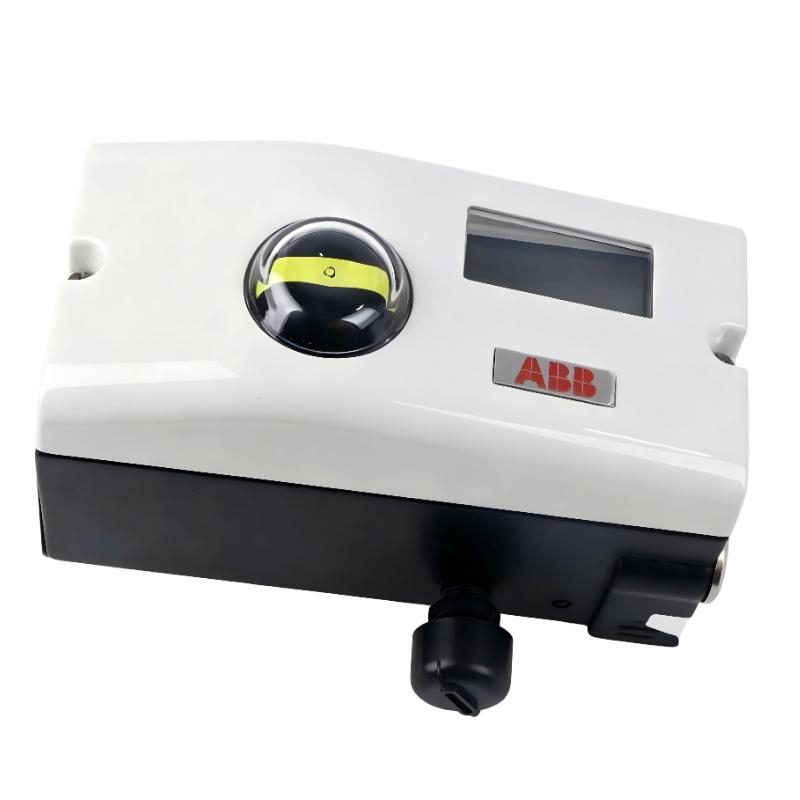

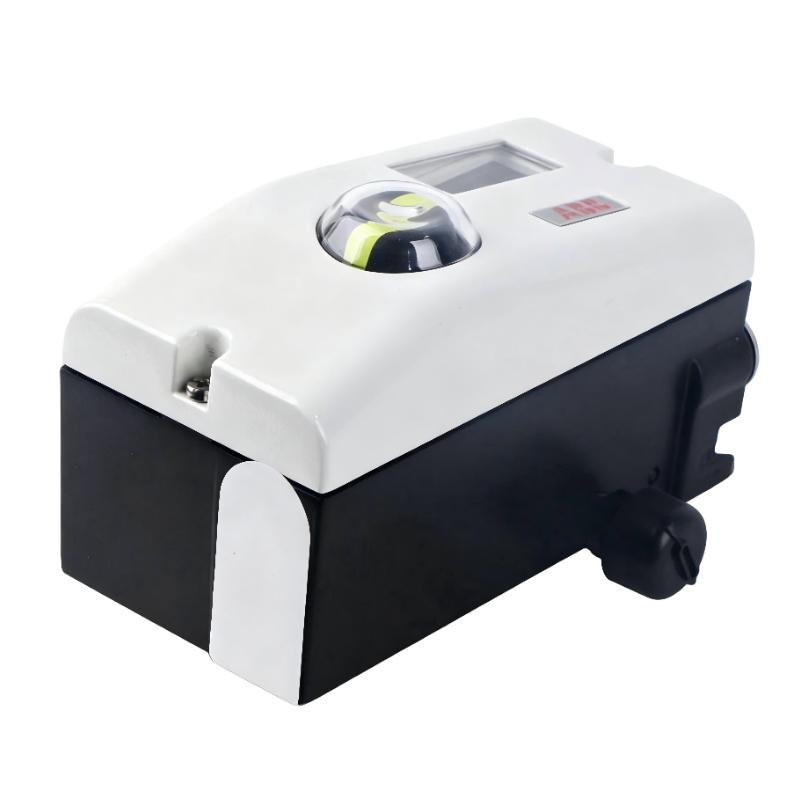

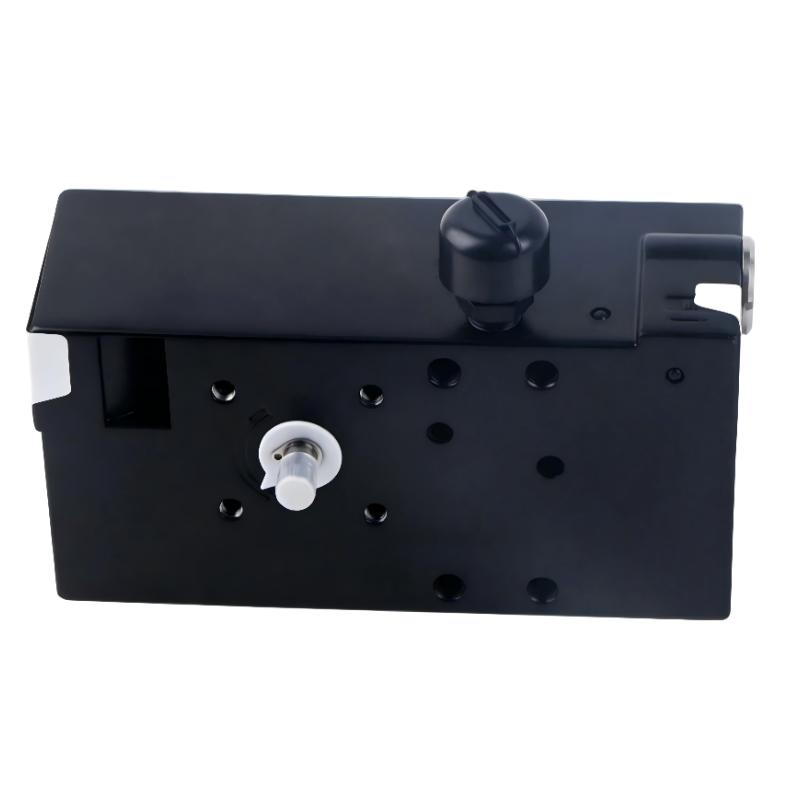

1. What is the main function of the ABB V18345-2010421001 valve positioner?

The ABB V18345-2010421001 is an intelligent electro-pneumatic valve positioner designed to control pneumatic control valves in industrial process systems. It receives a 4–20 mA command signal from a control system and adjusts the pneumatic actuator so that the valve reaches the required position. The positioner continuously compares the commanded position with the actual valve position and corrects any deviation through closed-loop control. This allows the valve to respond more accurately to changing process commands and helps maintain stable process operation. The double-acting fail-safe configuration is suitable for applications where controlled actuator movement and defined behavior during signal or power-related failures are required.

2. What type of input signal does the V18345-2010421001 use?

The V18345-2010421001 uses a 4–20 mA two-wire input signal. This allows it to be connected directly to common PLC, DCS and industrial process-control loops. The current value represents the desired valve position, while the positioner converts the electrical command into a corresponding pneumatic actuator response. During commissioning, the complete current loop should be checked to ensure that the signal remains stable across the operating range. Incorrect wiring, poor loop power, signal interference or incorrect scaling in the control system can cause inaccurate valve positioning. Verifying the input signal before changing the positioner’s parameters is an important step in troubleshooting.

3. Does the V18345-2010421001 support HART communication?

Yes. The V18345-2010421001 supports HART communication, allowing technicians to access device configuration and diagnostic information in addition to the conventional analog control signal. HART communication can be useful for commissioning because parameters can be checked and adjusted without relying entirely on mechanical adjustments. It can also provide additional information when troubleshooting valve-position errors, unstable operation or abnormal responses. During maintenance, technicians can use compatible HART communication equipment to review device status and configuration. Before communication is attempted, the current loop should be checked to ensure correct wiring and stable operating conditions.

4. What type of actuator can be used with the V18345-2010421001?

This model is configured for double-acting pneumatic actuators. It supports applications involving suitable linear and rotary actuators when the mechanical mounting arrangement and feedback mechanism are compatible. Linear actuator installations can use DIN / IEC 534 or NAMUR mounting arrangements, while rotary actuator applications can use the VDI / VDE 3845 mounting interface. The actuator’s movement direction, mechanical connection and feedback linkage should be checked carefully before commissioning. The two pneumatic outputs must also be connected to the correct actuator chambers. Incorrect pneumatic connections may result in reversed movement, incomplete valve travel or poor positioning performance.

5. What should be checked if the valve does not follow the 4–20 mA command correctly?

Troubleshooting should begin with the electrical input signal. Measure the current loop and confirm that the actual signal corresponds to the command generated by the PLC or DCS. Next, inspect the instrument-air supply and verify that pressure is stable and suitable for the pneumatic actuator. Since this model uses a double-acting configuration, both pneumatic output paths should be checked for correct connection, pressure response and possible leakage. The valve and actuator should also be inspected for mechanical resistance, sticking or excessive friction. If these areas are normal, check the position feedback system and the positioner’s configuration parameters. HART diagnostics can provide additional operating information and help determine whether the problem is associated with the input signal, actuator, valve mechanism or positioner.

6. How should the V18345-2010421001 be commissioned?

Commissioning should begin with a mechanical inspection to confirm that the positioner is securely installed and that the feedback mechanism moves correctly with the actuator. The 4–20 mA loop and pneumatic connections should then be checked before applying normal operating conditions. Verify that the instrument-air supply is clean, stable and within the required operating range. The actuator should be operated through its complete travel to confirm that there is no mechanical obstruction. The positioner can then be configured through the local interface or HART communication. The actuator configuration, movement direction, travel parameters and control settings should match the actual installation. After configuration, several command points should be tested to verify that the actual valve position follows the requested position smoothly and accurately.

7. What are common causes of unstable valve positioning?

Unstable positioning can originate from the electrical control loop, pneumatic system, mechanical valve assembly, feedback mechanism or positioner configuration. A fluctuating 4–20 mA signal can make the positioner continuously correct the actuator position. Unstable instrument-air pressure or air leakage can produce inconsistent actuator movement. Mechanical friction, valve-stem sticking, actuator wear or an incorrectly installed feedback linkage can also cause repeated position corrections. With a double-acting actuator, incorrect pneumatic connection or pressure imbalance between the two actuator chambers may further affect stability. If the electrical, pneumatic and mechanical systems are confirmed to be normal, the positioner’s configuration and calibration should be reviewed. Diagnostic information obtained through HART communication can help identify abnormal operating conditions.

8. What checks should be performed after replacing the V18345-2010421001?

After replacing the positioner, the complete control loop should be inspected before the valve is returned to automatic process control. First verify the model and configuration, then check the mechanical mounting and feedback linkage. Inspect the 4–20 mA wiring and confirm that the control system can provide a stable input signal. The pneumatic connections should be checked carefully because the double-acting configuration requires correct connection of both actuator outputs. Verify the actuator movement direction and confirm that the valve can travel through its complete operating range. The positioner’s configuration and calibration should then be checked using the local interface or HART communication. Test the valve at multiple control points and compare the commanded position with the actual position. Finally, review diagnostic information and control-system feedback to confirm that no persistent alarms, communication problems or abnormal positioning behavior remain.
