1. What is the main function of the ABB V18348-10111310110 TZIDC-200?

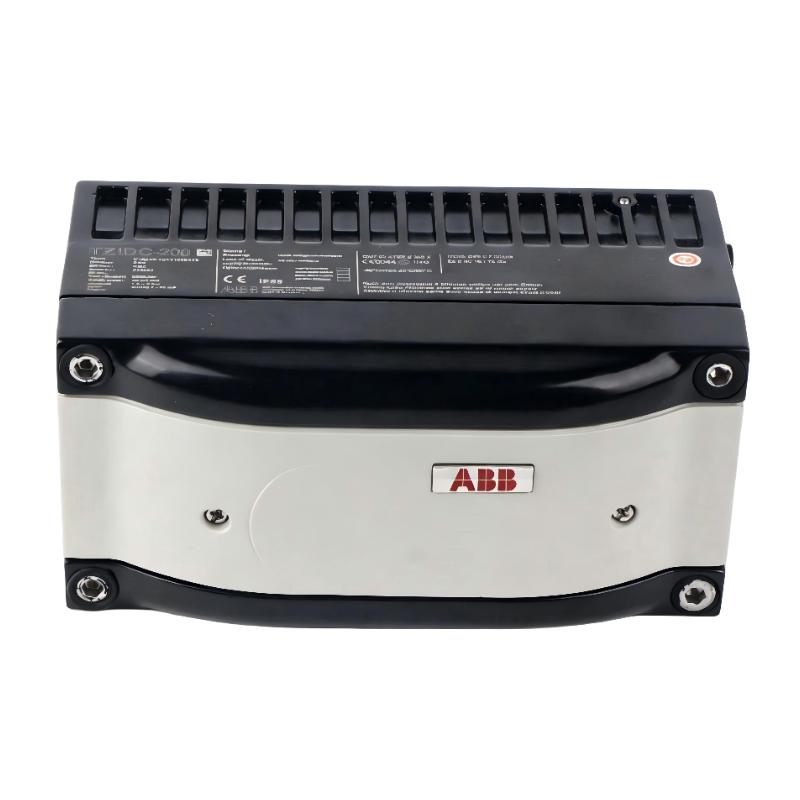

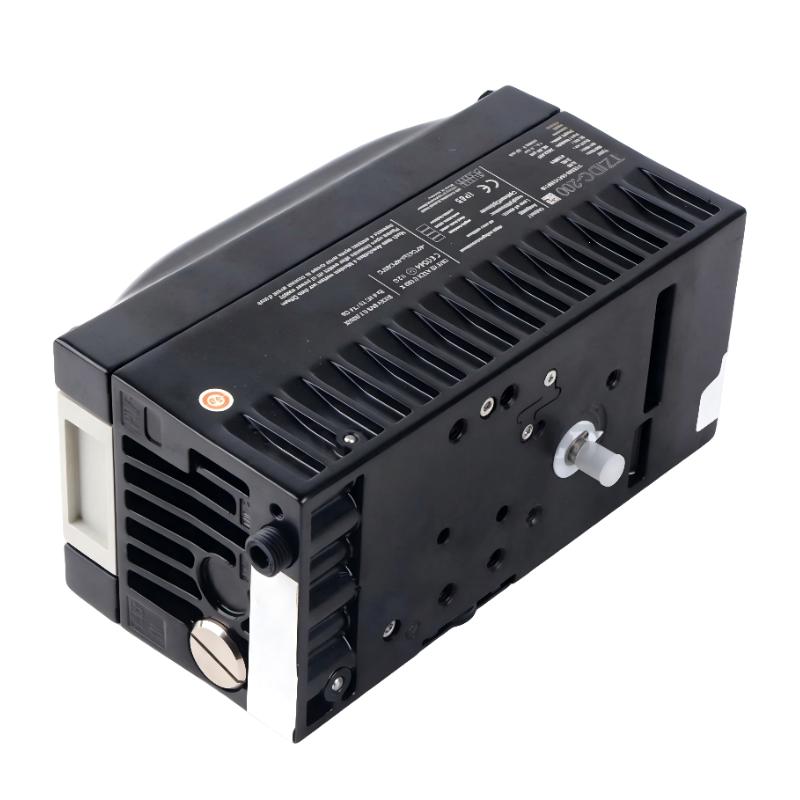

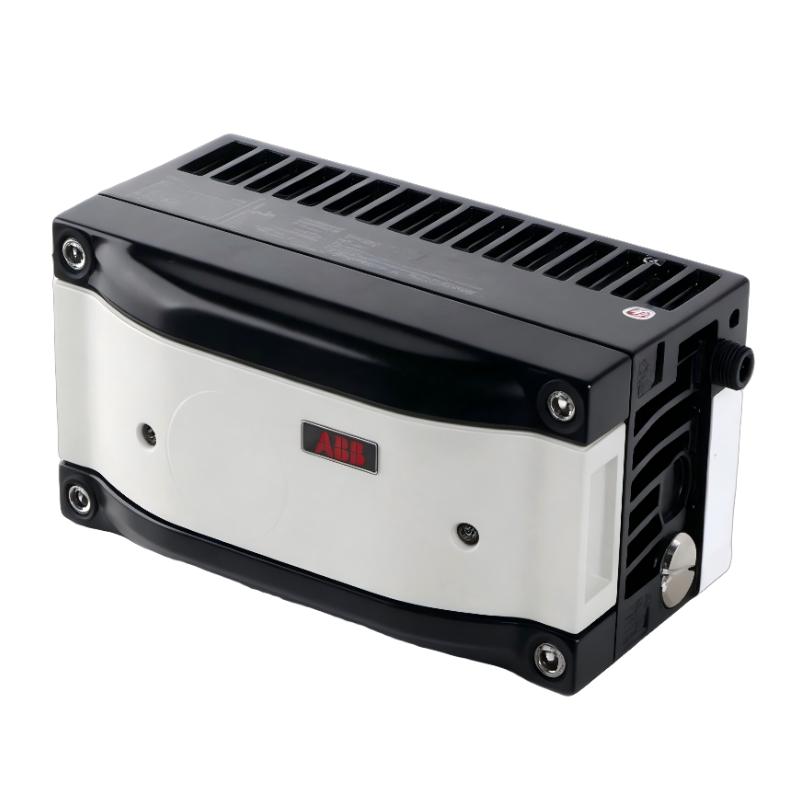

The ABB V18348-10111310110 is a digital electro-pneumatic positioner designed to provide accurate positioning and closed-loop control of pneumatic valves. It receives a 4–20 mA command from a PLC, DCS, or other process controller and compares the requested position with the actual valve position. If a deviation is detected, the positioner adjusts the pneumatic output to move the actuator toward the required position. This continuous feedback control helps maintain stable valve operation during changing process conditions.

2. What input signal does the V18348-10111310110 use?

The positioner uses a 4–20 mA two-wire input signal. The current value represents the required valve position, allowing the device to continuously regulate the pneumatic actuator. HART communication provides additional access to configuration parameters, device status, and diagnostic information. During commissioning, the control loop should be checked for correct polarity, stable loop power, proper wiring, and accurate current transmission from the PLC or DCS.

3. What types of actuators are compatible with the TZIDC-200?

The TZIDC-200 platform supports compatible pneumatic linear and rotary actuators. Linear actuator installations can use DIN, IEC 534, or NAMUR mounting arrangements, while rotary actuator installations can use VDI/VDE 3845 interfaces. The mechanical linkage and position feedback must be correctly matched to the actuator. Incorrect mounting or feedback adjustment can cause inaccurate valve positioning, incomplete travel, or unstable operation.

4. How does HART communication help with the V18348-10111310110?

HART communication provides digital access to configuration and diagnostic functions while the 4–20 mA signal continues to provide the normal control command. Maintenance personnel can use HART to review device status, access supported parameters, monitor operating conditions, and assist with troubleshooting. It is particularly useful during commissioning when the valve does not follow the expected command or when abnormal positioning behavior needs to be investigated.

5. How should the V18348-10111310110 be commissioned?

Before commissioning, inspect the mechanical mounting, actuator linkage, pneumatic tubing, instrument air supply, and electrical loop. Confirm that the actuator can move freely and that the position feedback system is correctly connected. Configure the actuator type, action direction, valve travel, and other application parameters as required. The automatic commissioning function can then be used to determine suitable control parameters and adapt the positioner to the connected valve. After the automatic procedure, test several command points throughout the operating range to confirm accurate positioning and stable response.

6. What can cause unstable valve positioning?

Unstable positioning may be caused by fluctuating instrument air pressure, pneumatic leakage, valve friction, actuator problems, incorrect feedback adjustment, loose mechanical connections, unstable 4–20 mA signals, or unsuitable control parameters. Start by checking the air supply and pneumatic tubing. Then inspect the actuator and valve for mechanical resistance or sticking. Measure the actual input current to rule out PLC or DCS output fluctuations. If these conditions are normal, review the positioner configuration and commissioning parameters.

7. What should be checked if the positioner does not respond to the 4–20 mA signal?

First measure the actual 4–20 mA current at the positioner input and confirm that the PLC or DCS is producing the correct signal. Check loop power, wiring polarity, terminal connections, and cable continuity. If the electrical signal is correct, inspect the instrument air supply and confirm that the actuator is not mechanically blocked. The positioner’s operating mode, actuator direction, and configuration parameters should also be checked. HART communication can be used to review device status and configuration. If all external conditions are normal, the electronic or pneumatic section of the positioner may require further inspection.

8. What should be checked before replacing the V18348-10111310110?

Before replacement, verify that the fault is actually caused by the positioner rather than the PLC/DCS output, 4–20 mA loop, instrument air supply, actuator, valve mechanism, or feedback system. Record the existing configuration parameters before removing the unit, including input settings, actuator direction, valve travel, characteristic curve, and communication parameters. If the device is installed in a hazardous area, ensure that the replacement unit has the appropriate protection configuration for the installation. After replacement, check all electrical and pneumatic connections, perform automatic commissioning, and test multiple valve positions to confirm correct input response, position feedback, actuator movement, communication, and fail-safe operation.
