1. What is the main function of the ABB V18348-10113300110 TZIDC-200?

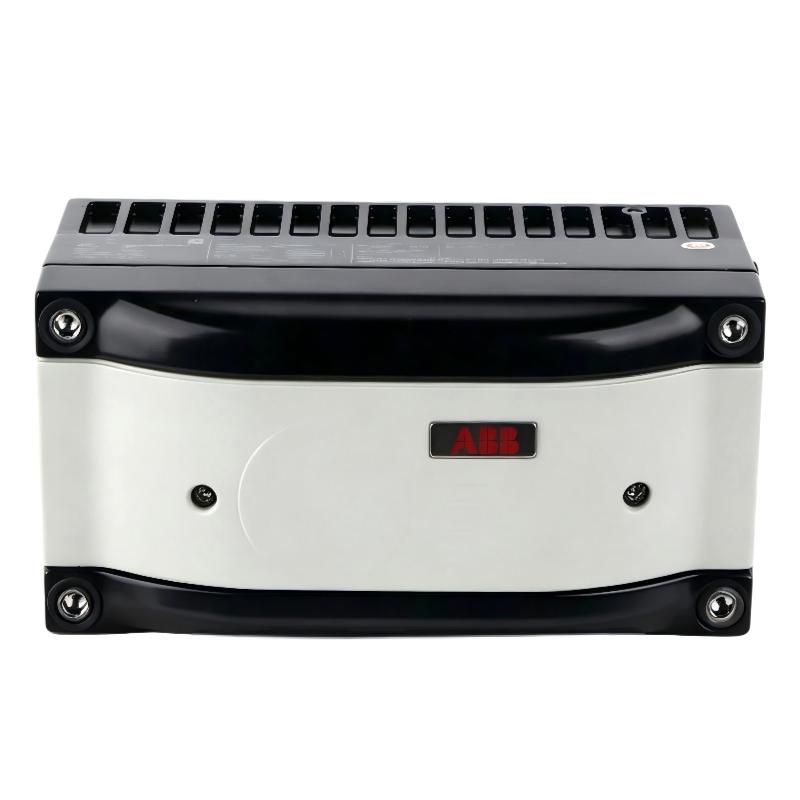

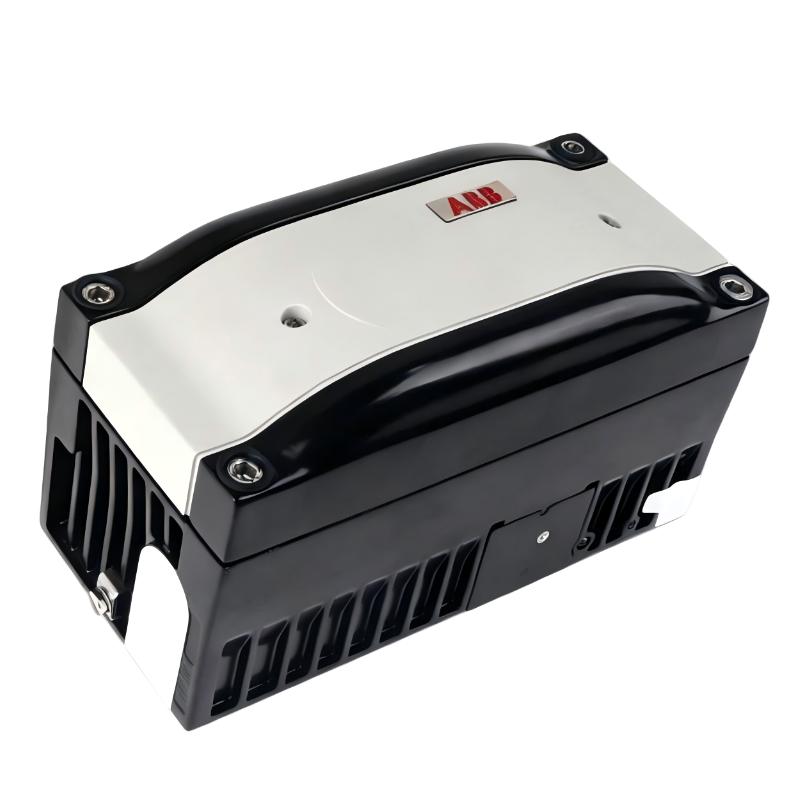

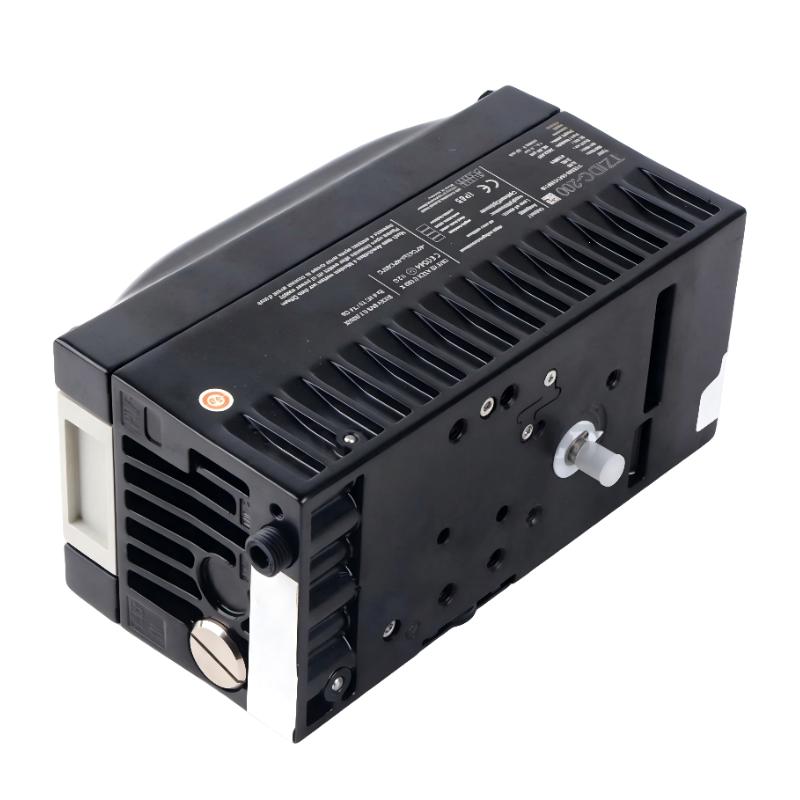

The ABB V18348-10113300110 is a TZIDC-200 digital electro-pneumatic positioner designed for accurate positioning and closed-loop control of pneumatic valves. It receives a 4–20 mA command from a PLC, DCS, or other process controller and compares the required valve position with the actual position. When a deviation occurs, the positioner adjusts the pneumatic output to move the actuator toward the required position. This closed-loop operation helps maintain stable valve control during changing process conditions.

2. What type of actuator is suitable for the V18348-10113300110?

The TZIDC-200 platform is designed for compatible pneumatic linear and rotary actuators. Linear actuator installations can use DIN, IEC 534, or NAMUR mounting arrangements, while rotary actuator installations can use VDI/VDE 3845 interfaces. The V18348-10113300110 configuration uses a double-acting, fail-safe output arrangement. Correct mechanical linkage and accurate position feedback are important for reliable valve positioning.

3. What input and communication signals does this positioner support?

The V18348-10113300110 uses a 4–20 mA two-wire input and supports HART communication. The analog current signal represents the required valve position, while HART provides digital access to configuration, operating status, diagnostics, and maintenance functions. During installation, the control-loop power supply, polarity, wiring, and actual input current should be checked to ensure reliable operation.

4. How does the HART function help with troubleshooting?

HART communication allows maintenance personnel to access digital information from the positioner without replacing the normal 4–20 mA control signal. It can be used to review device parameters, operating status, and diagnostic information. When the valve does not reach the commanded position or operates irregularly, HART can help determine whether the problem is related to configuration, input signals, position feedback, or the positioner itself.

5. How should the V18348-10113300110 be commissioned after installation?

First check the mechanical mounting, actuator linkage, pneumatic tubing, instrument air, and 4–20 mA control loop. Confirm that the actuator can move smoothly through its complete operating range and that the position feedback is correctly connected. Configure the actuator direction and other application parameters as required, then perform the automatic commissioning procedure. The positioner can automatically determine suitable control parameters and adapt its operation to the connected valve and actuator. After commissioning, test several valve positions to verify correct response and feedback.

6. What can cause unstable valve positioning?

Unstable valve positioning can result from fluctuating instrument air pressure, pneumatic leakage, excessive valve friction, actuator problems, incorrect feedback adjustment, loose mechanical connections, unstable 4–20 mA signals, or unsuitable control parameters. Troubleshooting should begin with the pneumatic supply and tubing. Next, inspect the valve and actuator for mechanical resistance or sticking. Measure the actual input current to rule out PLC or DCS output problems. If the external systems are normal, check the positioner’s configuration and commissioning parameters.

7. What should be checked if the V18348-10113300110 does not respond to the control signal?

Measure the 4–20 mA signal directly at the positioner input and verify that the PLC or DCS is generating the expected signal. Check loop power, wiring polarity, terminals, and cable continuity. If the electrical signal is correct, inspect the instrument air supply and confirm that the double-acting actuator is not mechanically blocked. The operating mode, actuator direction, and configuration parameters should also be checked. HART communication can be used to review device status and configuration. If all external conditions are normal, further inspection of the positioner’s electronic and pneumatic sections may be necessary.

8. What should be checked before replacing the V18348-10113300110?

Before replacement, verify that the problem is actually caused by the positioner rather than the PLC/DCS output, 4–20 mA loop, instrument air supply, actuator, valve mechanism, or feedback system. Record the existing configuration parameters before removing the unit, including input settings, actuator direction, valve travel, characteristic curve, and communication parameters. If the device is installed in a hazardous area, confirm that the replacement unit has the appropriate protection configuration and certification. After installation, check all electrical and pneumatic connections, perform automatic commissioning, and test multiple valve positions to verify input response, position feedback, actuator movement, communication, and fail-safe operation.
