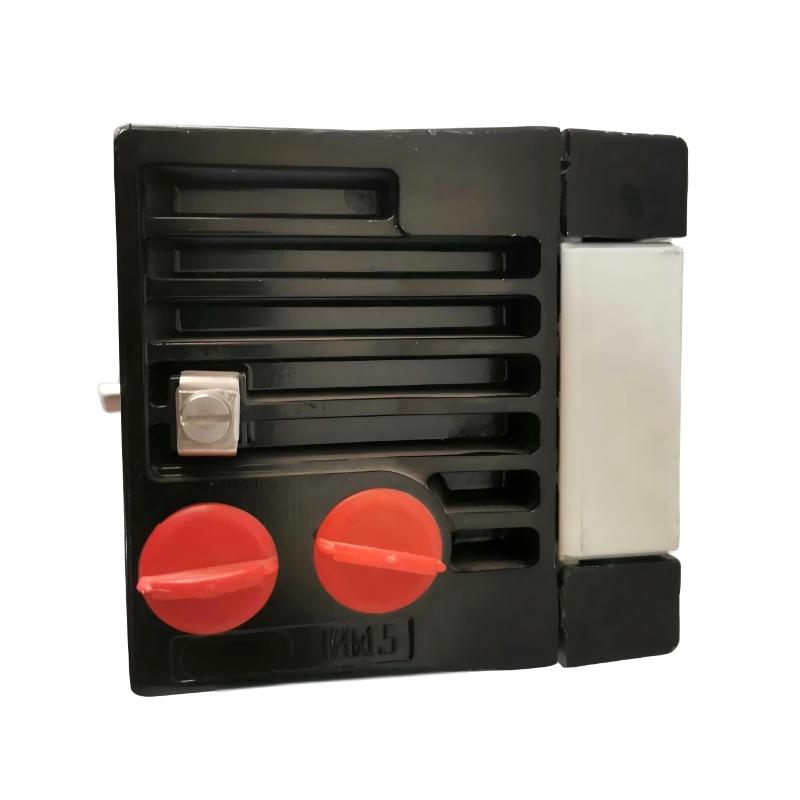

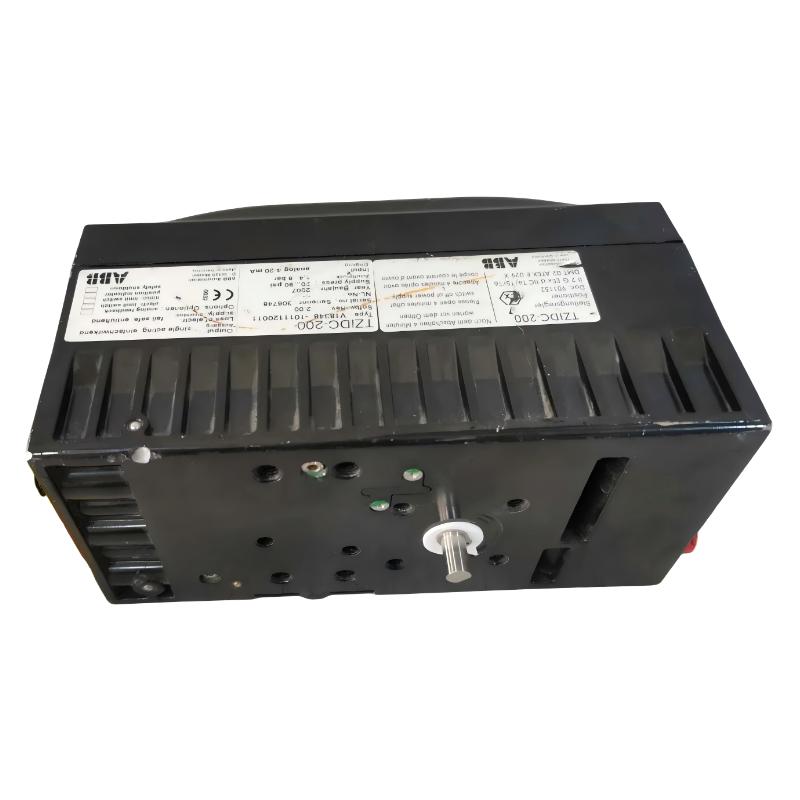

1. What is the main function of the ABB V18348-10114300110 TZIDC-200 Digital Positioner?

The ABB V18348-10114300110 is an intelligent TZIDC-200 digital positioner designed to provide accurate and continuous control of pneumatic control valves. It receives a 4–20 mA command signal from a process controller, PLC, DCS, or other control system and compares the requested valve position with the actual position detected by its feedback mechanism. When a position deviation is detected, the positioner automatically adjusts the pneumatic output to the actuator until the required valve position is reached. This closed-loop control principle helps maintain stable valve positioning even when process pressure, load, or other operating conditions change. The unit also supports HART communication, allowing technicians to access configuration parameters, operating information, diagnostic data, and maintenance functions. This makes the positioner suitable for demanding process automation applications where accurate positioning, reliable operation, and convenient diagnostics are required.

2. What communication method does the V18348-10114300110 support?

The V18348-10114300110 uses a 4–20 mA two-wire control signal with HART communication capability. The 4–20 mA loop provides the primary analog position command, while HART adds digital communication capabilities without requiring a separate communication network for basic configuration and diagnostics. Through HART, technicians can access device parameters, operating status, diagnostic information, and other maintenance data. This combination is particularly useful in industrial process-control systems because it allows the positioner to work with conventional analog control infrastructure while still providing intelligent digital functions. During commissioning and maintenance, HART communication can also reduce troubleshooting time because technicians can inspect internal operating information directly instead of relying exclusively on physical measurements and local adjustments.

3. What types of actuators can the ABB TZIDC-200 control?

The TZIDC-200 is designed for use with pneumatic linear and rotary actuators. Depending on the selected mechanical mounting arrangement and configuration, the positioner can monitor actuator movement and continuously regulate pneumatic output to achieve the required valve position. Correct mechanical coupling between the positioner and actuator is extremely important because the feedback mechanism must accurately represent the actual valve movement. If the linkage is incorrectly installed, loose, mechanically restricted, or incorrectly adjusted, the positioner may report inaccurate feedback or fail during automatic commissioning. After mechanical installation, the actuator should move smoothly throughout its operating range. The positioner can then perform its automatic adjustment procedure to determine the relevant movement characteristics and establish suitable positioning parameters.

4. How does the automatic adjustment function of the TZIDC-200 work?

The automatic adjustment function is intended to simplify the commissioning of the digital positioner after it has been mechanically and pneumatically installed. During the adjustment procedure, the positioner evaluates the connected actuator and valve movement and determines important characteristics required for closed-loop positioning. This reduces the amount of manual tuning normally required during initial commissioning. A successful automatic adjustment should result in the positioner correctly recognizing the operating travel or rotation range and establishing appropriate control behavior. However, automatic adjustment should not be treated as a substitute for mechanical inspection. Before starting the procedure, technicians should verify that the actuator can move freely, the feedback linkage is correctly installed, the pneumatic supply is stable, and the valve is mechanically capable of completing its required travel. After automatic adjustment, several command positions should be tested to confirm accurate and stable response.

5. What should be checked if the valve position controlled by the V18348-10114300110 is unstable?

An unstable valve position can result from pneumatic, mechanical, electrical, feedback, or configuration-related problems, so troubleshooting should be performed systematically. First, check the instrument-air supply and confirm that pressure remains stable during actuator movement. Inspect pneumatic tubing, fittings, and connections for leakage, blockage, contamination, or moisture. The valve and actuator linkage should then be checked for excessive friction, mechanical looseness, sticking, or incorrect adjustment. If the mechanical and pneumatic systems are normal, measure the 4–20 mA command signal and position feedback to determine whether either signal is fluctuating. An unstable feedback signal can cause the positioner to continuously interpret normal movement as a position error and repeatedly correct the actuator. HART diagnostic information should also be reviewed because stored operating data or active diagnostic conditions may help identify the cause. If necessary, commissioning parameters should be reviewed and the automatic adjustment procedure repeated after the physical cause has been eliminated.

6. What should be checked if the TZIDC-200 does not respond to the 4–20 mA input signal?

Troubleshooting should begin by measuring the actual current in the control loop and confirming that the control system is generating the expected command. Check the polarity and wiring of the two-wire loop and verify that the positioner is receiving adequate operating power through the loop. If the input current is correct, inspect the pneumatic supply and confirm that the actuator receives sufficient air pressure to move. Mechanical components should also be checked for sticking, excessive friction, blocked movement, or incorrect linkage installation. The positioner’s local display and HART communication should be examined for active alarms, configuration errors, or diagnostic conditions. If the input signal and electrical system are functioning correctly but there is still no actuator movement, the pneumatic output stage or actuator itself may require further investigation. A complete diagnosis should therefore distinguish between an input-loop problem, configuration problem, pneumatic problem, mechanical problem, and internal positioner fault before replacing the device.

7. What is the purpose of the explosion protection and fail-safe functions of the V18348-10114300110?

Explosion protection is important when the positioner is installed in an industrial area where flammable gases or other hazardous substances may be present. The appropriate explosion-protection configuration allows the positioner to be used in specified hazardous-area applications when installed according to the applicable requirements. The exact certification and protection level must always be verified against the complete product configuration and nameplate before installation. In addition to hazardous-area considerations, the control system should also evaluate the required fail-safe behavior of the associated valve and actuator. If a loss of control signal, power, or pneumatic supply occurs, the valve may need to move toward a predetermined process-safe condition. The actual fail position depends on the actuator arrangement, valve design, process requirements, and overall safety strategy. These functions should therefore be tested during commissioning under controlled conditions rather than assumed to be correct solely from the normal operating response.

8. How should the ABB V18348-10114300110 be commissioned after installation?

Commissioning should begin with a complete inspection of the mechanical, pneumatic, and electrical installation. Confirm that the TZIDC-200 is securely connected to the pneumatic actuator and that the feedback linkage accurately follows the valve movement. Check all pneumatic connections and verify that the instrument-air supply is clean, stable, and within the required pressure range. The 4–20 mA control loop should be checked for correct wiring, polarity, and signal values before applying operating commands. After powering the positioner, inspect the local display and communication status, then initiate the appropriate automatic adjustment procedure. The positioner should be allowed to determine the actuator movement characteristics before normal control is started. Following automatic adjustment, apply several different 4–20 mA command values and confirm that the valve moves smoothly and reaches the corresponding positions without excessive overshoot or instability. HART communication can then be used to review configuration parameters and diagnostic information. Finally, verify the complete control loop, including the controller output, positioner, actuator, valve feedback, and required fail-safe behavior, before placing the system into normal process operation.
