1. What is the main function of the ABB XC08L1 1SBP260102R1001?

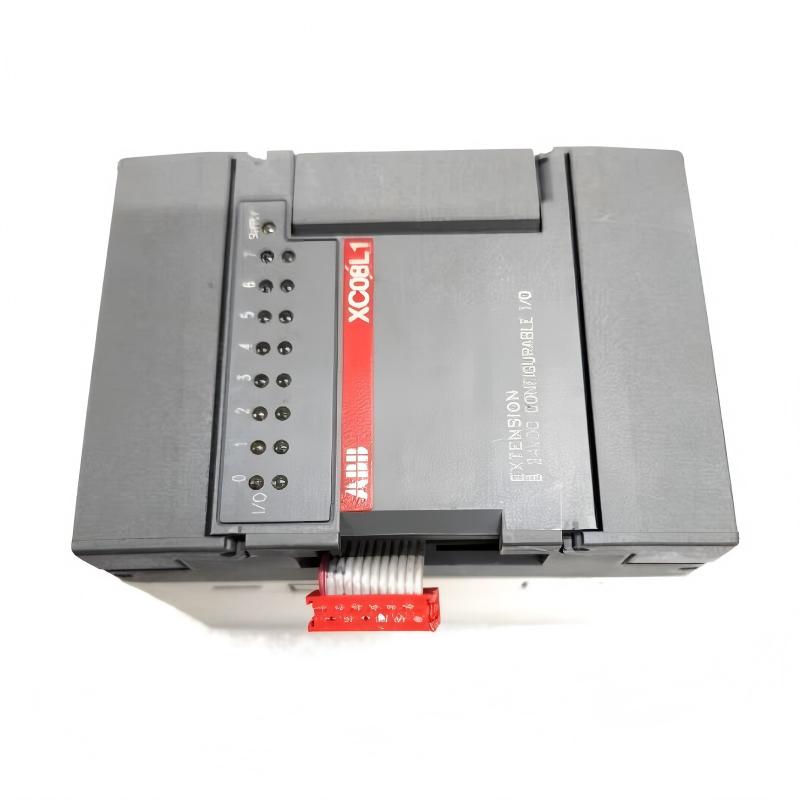

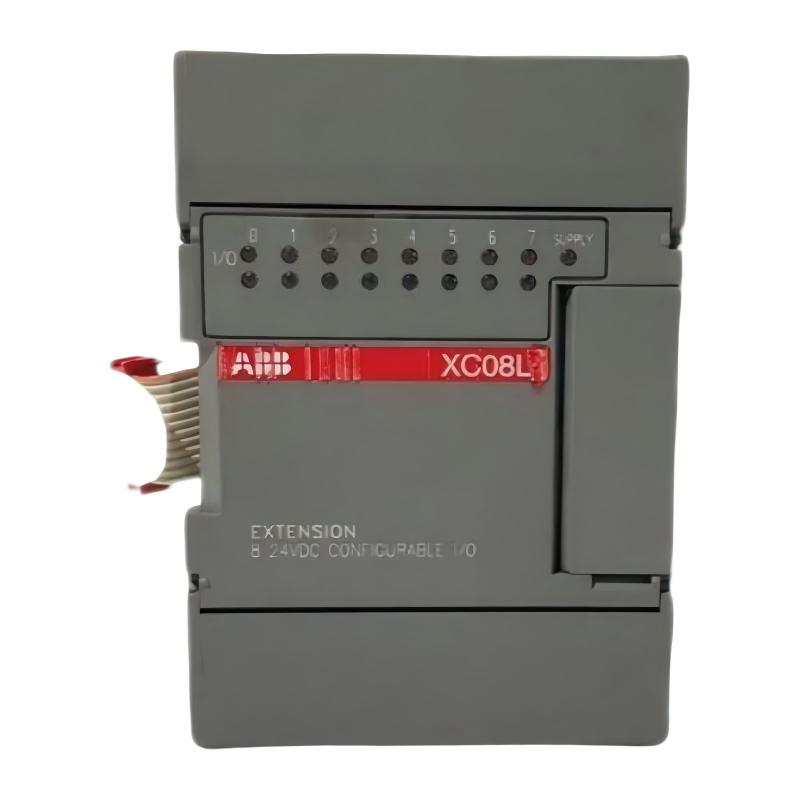

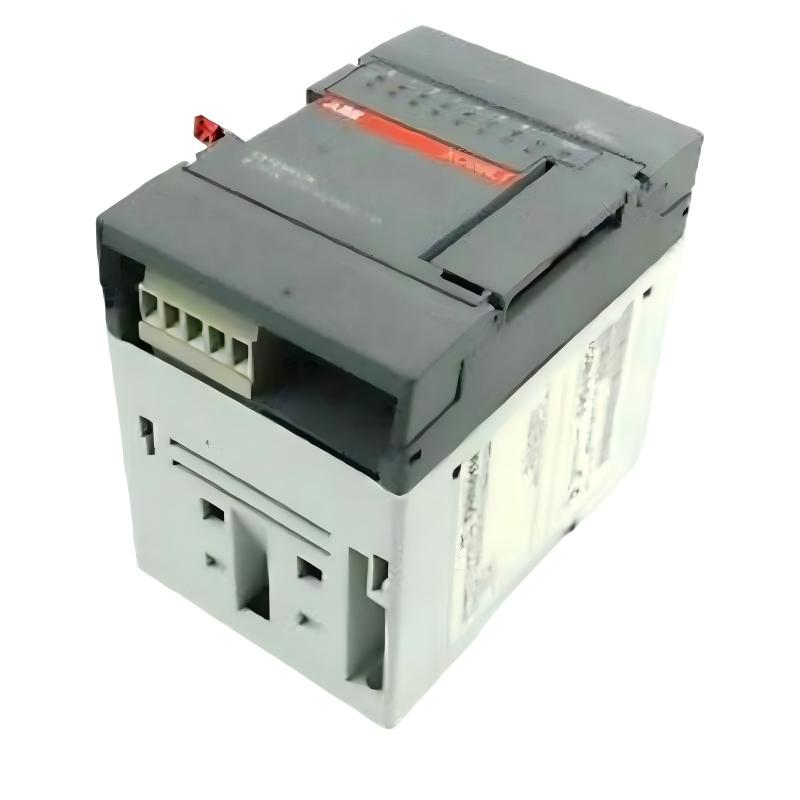

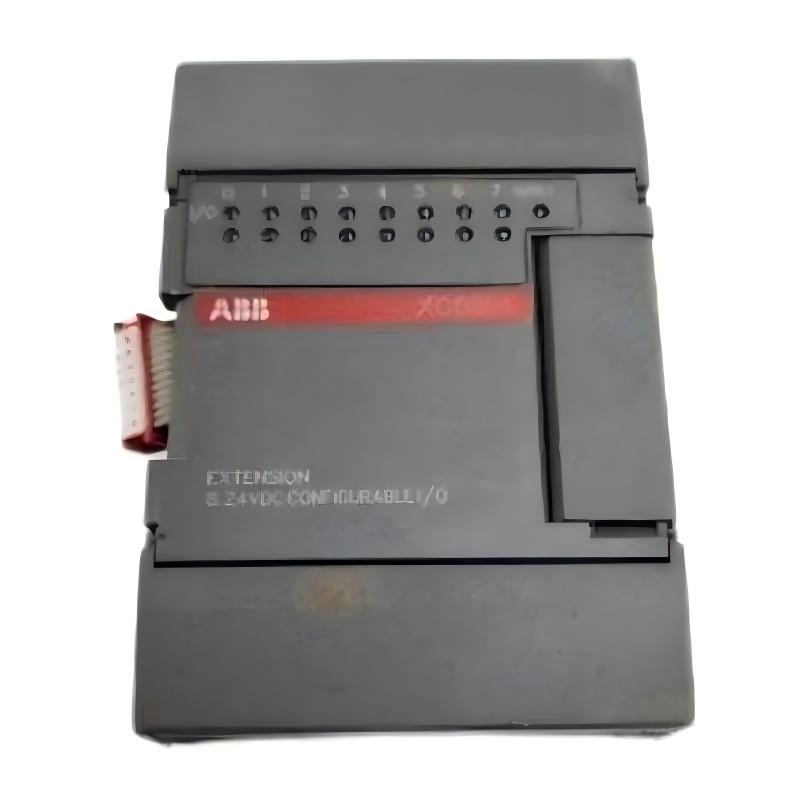

The ABB XC08L1 is a configurable digital I/O expansion module designed for ABB AC31 control systems. Its primary purpose is to increase the number of available digital input and output points in an automation system. The module provides eight configurable channels, allowing the channels to be assigned according to the requirements of the application. Digital inputs can be used to monitor field devices such as push buttons, proximity sensors, limit switches, and other 24 V DC switching signals. Digital transistor outputs can be used to control devices such as solenoid valves, indicator lamps, relay interfaces, and other suitable DC loads. This configurable structure gives engineers greater flexibility when designing or modifying control panels and can reduce the need for separate input and output modules in applications with mixed I/O requirements.

2. How can the eight channels of the XC08L1 be configured?

The eight I/O channels of the XC08L1 can be configured according to the requirements of the control application. A channel intended to monitor a field device can be configured as a digital input, while a channel required to operate a DC load can be configured as a transistor output. For example, inputs may be assigned to emergency push buttons, limit switches, proximity sensors, or machine-status contacts, while outputs may be used for solenoid valves, indicator lamps, or relay interfaces. The channel configuration should be coordinated with the PLC program and the actual field wiring. Before commissioning, technicians should verify that every channel’s software configuration corresponds to its physical application. Incorrect configuration can cause an expected input signal to be interpreted incorrectly or may result in an output channel being used in an unsuitable operating mode.

3. What type of signals can the ABB XC08L1 digital inputs handle?

The digital inputs are intended for 24 V DC industrial switching signals. They can be connected to devices such as proximity switches, limit switches, push buttons, selector switches, and other field devices that provide an appropriate DC switching signal. When the input changes state, the XC08L1 communicates that status to the control system, allowing the PLC program to use the information for sequence control, interlocking, machine-status monitoring, start/stop logic, and other automation functions. During installation, the field voltage and wiring arrangement should be checked carefully to ensure compatibility with the input configuration. If an input signal remains permanently ON, remains OFF, or changes state unexpectedly, technicians should check the field device, wiring, common connections, power supply, and electrical interference before concluding that the input channel itself has failed.

4. What devices can be controlled by the XC08L1 transistor outputs?

The transistor outputs are designed for suitable 24 V DC loads, with an output capability of up to 0.5 A per channel. Typical applications include controlling solenoid valves, indicator lamps, relay coils, and other low-power DC actuators used in industrial automation systems. Before connecting a load, its operating voltage and current should be checked against the output requirements. Particular attention should be given to inductive loads such as relay coils and solenoid valves because switching these devices can generate electrical transients. Appropriate suppression measures should be considered where required by the application. Loads exceeding the permitted output capability should not be connected directly to the module. Instead, an intermediate relay, contactor interface, or suitable power interface should be used. Proper load selection helps prevent excessive output stress and improves long-term system reliability.

5. How should an XC08L1 input channel be diagnosed if it does not detect a field signal?

Troubleshooting should begin with the field device and then proceed toward the I/O module. First verify that the connected sensor, switch, or other field device is actually producing the expected 24 V DC signal. Measure the voltage at the corresponding input terminal rather than relying only on the PLC program indication. If the field device produces the correct signal but the PLC does not detect it, inspect the wiring, terminal connections, common connection, and cable continuity. If necessary, the signal can be compared with another known-good input channel under controlled conditions to help determine whether the problem is associated with the field wiring or the module channel. If several input channels fail simultaneously, the module power supply, common circuit, and system expansion connection should be checked first. This systematic approach helps avoid unnecessary replacement of an otherwise functional I/O module.

6. What should be checked if an XC08L1 transistor output cannot operate its load?

Start by checking the PLC program and confirming that the corresponding output command is actually being generated. Then check the module status indication and measure the output voltage under the appropriate operating condition. The module supply should also be verified to ensure that the required DC power is available and stable. Next, inspect the connected load for an open circuit, short circuit, excessive current consumption, or mechanical failure. The load current must remain within the permitted output capability of the channel. For inductive loads, technicians should also investigate possible switching transients or insufficient suppression, which can affect output reliability. If the PLC command is correct, the power supply and wiring are normal, and the load itself is functional, the output channel can then be investigated for a possible hardware fault. Comparing the behavior with another properly configured channel can provide useful diagnostic information.

7. How does the XC08L1 work with an ABB AC31 control system?

The XC08L1 is intended to operate as an I/O expansion component within an ABB AC31 control system. After installation, it exchanges I/O data with the associated control unit through the appropriate system expansion connection. Digital input states are transferred to the controller, where the PLC program can process them for control logic, sequencing, monitoring, and interlocking. Output commands generated by the control program are transferred back to the appropriate configurable output channels to operate field devices. During system configuration, the physical module arrangement and I/O addressing must correspond to the PLC configuration. After installation, technicians should verify individual input and output points one by one to confirm that the physical terminals, software addresses, channel configuration, and control logic are correctly matched.

8. What should be considered when installing and commissioning the ABB XC08L1?

Before installation, confirm that the XC08L1 model and 1SBP260102R1001 order number match the required AC31 system configuration. Power should be isolated before field wiring is performed, and the electrical drawings should be checked carefully to identify the 24 V DC supply, input signals, output loads, and system expansion connections. Because the eight channels are configurable, each channel’s intended function should be confirmed before wiring and software configuration. After power is restored, check the module’s supply and status indications before testing the I/O points. Digital inputs should be tested individually by activating the associated field devices and confirming that the PLC receives the correct status. Outputs should then be tested individually while confirming that the connected loads operate correctly and remain within the permitted electrical limits. After individual I/O testing, the complete machine sequence, interlocks, alarms, and abnormal operating conditions should be tested to ensure that the XC08L1, PLC program, and field devices operate together correctly and reliably.
