1. What is the main function of the ABB XV C517 AE10 Gate Driver Unit?

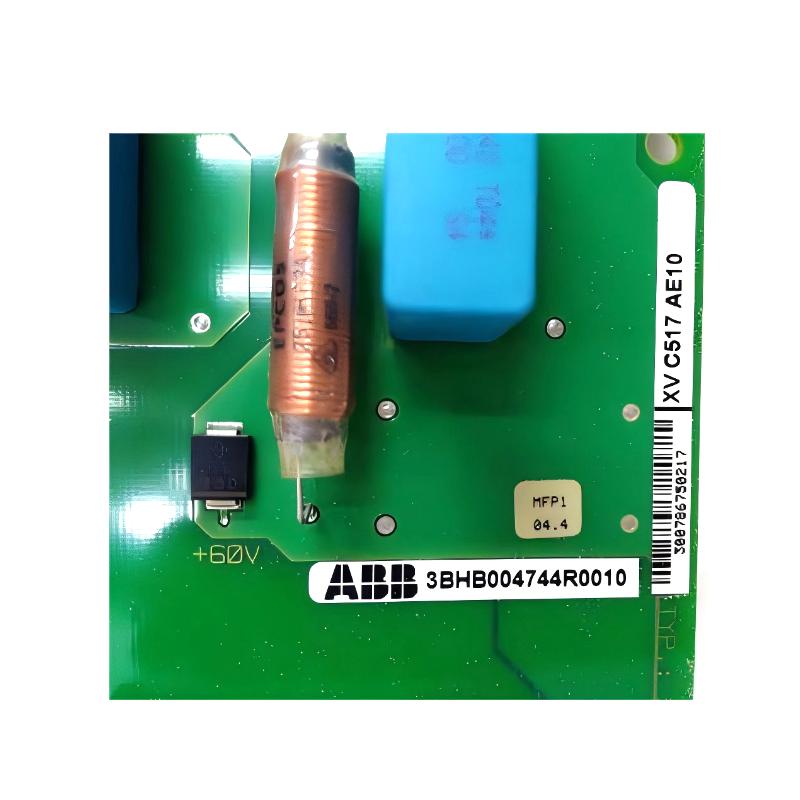

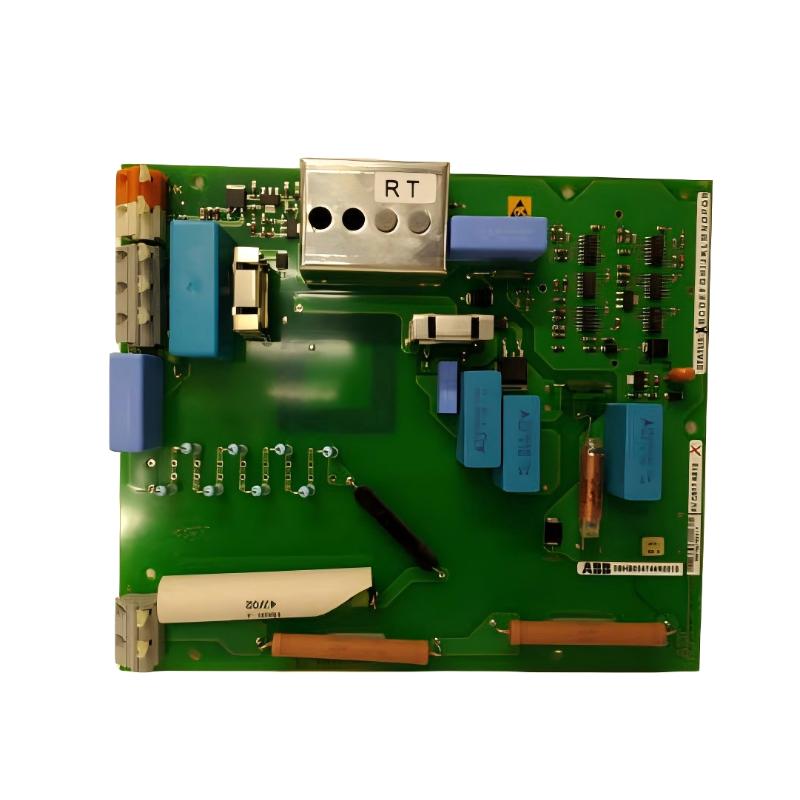

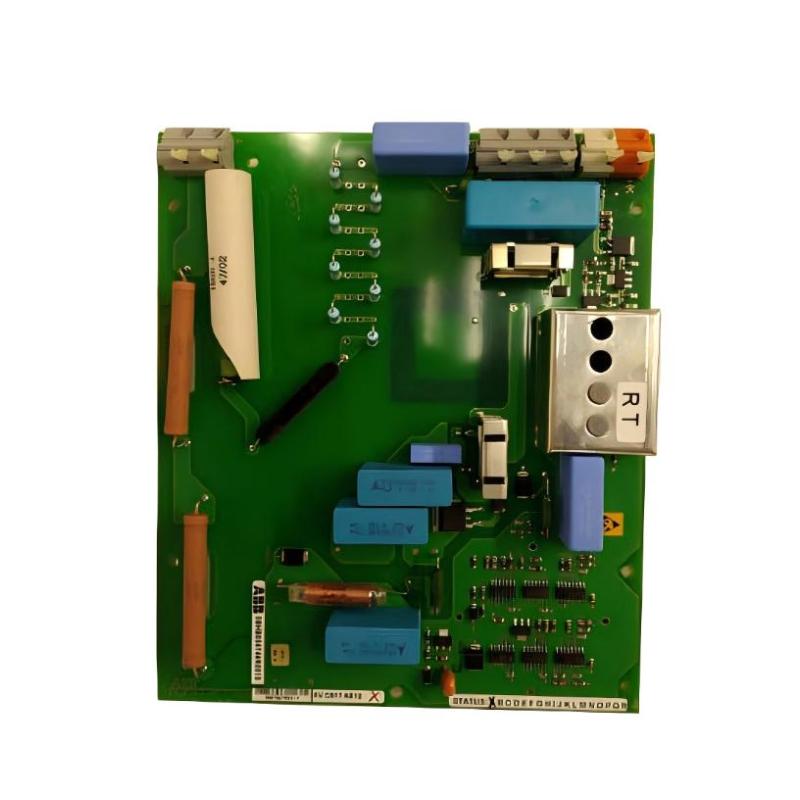

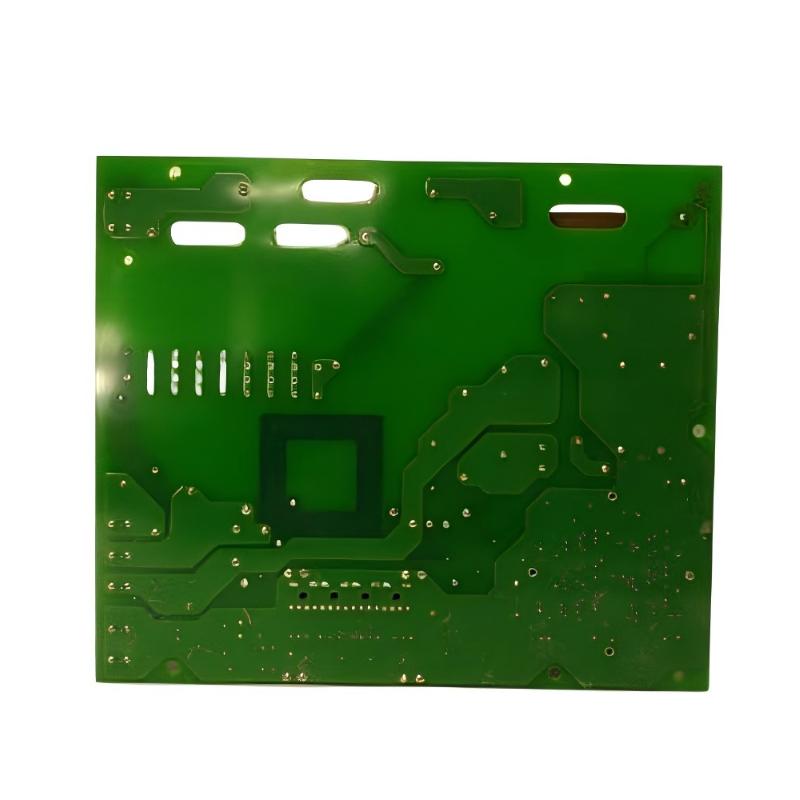

The ABB XV C517 AE10 is a gate driver unit designed to provide the required drive and control signals for power semiconductor switching devices used in industrial power-electronics systems. It serves as an interface between the control electronics and the high-power switching section. The unit receives control commands from the relevant control circuitry and converts them into appropriate gate-drive signals for the connected power semiconductor devices.

In medium-voltage drive applications, precise switching timing and reliable signal transmission are essential because incorrect gate control can affect the power output, switching performance, and protection behavior of the complete converter. The XV C517 AE10 therefore forms an important part of the power-control chain, helping the control system operate the high-power semiconductor stage in a controlled and coordinated manner.

2. What type of power semiconductor devices can the ABB XV C517 AE10 control?

The XV C517 AE10 is intended to operate as part of a compatible ABB power-electronics system and provide gate-drive control for the power semiconductor devices used within that system. Gate driver technology is commonly used with high-power semiconductor devices such as IGBTs and other advanced power switching components.

The exact semiconductor compatibility depends on the specific ABB drive or converter architecture in which the unit is installed. For this reason, the XV C517 AE10 should not be considered a universal gate driver. Before replacement, technicians should verify the complete drive configuration, original hardware identification, connector arrangement, and approved replacement information. Using an incompatible gate driver can result in incorrect switching signals, protection trips, or potentially serious damage to the power stage.

3. Why is the XV C517 AE10 important in a medium-voltage drive system?

The gate driver provides a critical connection between low-power control electronics and high-power semiconductor switching devices. The control board normally cannot directly provide the electrical conditions required to operate the power semiconductor gates, particularly in a medium-voltage environment where electrical isolation and precise switching control are essential.

The XV C517 AE10 helps transmit the required switching commands while maintaining the appropriate interface between the control and power sections. Reliable gate-drive operation allows the semiconductor devices to switch at the required times and helps the drive maintain the intended output characteristics. A malfunctioning gate driver can therefore affect the entire power-conversion process and may cause the drive to generate protection alarms, fail during startup, or stop operating under load.

4. What symptoms may indicate a faulty ABB XV C517 AE10 Gate Driver Unit?

A gate-driver problem can produce different symptoms depending on the actual failure mechanism and the architecture of the associated drive. Possible indications include gate-drive-related alarms, failure of the drive to start, repeated power-stage protection trips, abnormal switching behavior, or unexpected shutdown when the power section is enabled.

In some cases, the drive controller may not identify the gate driver directly. Instead, it may report a power semiconductor fault, switching fault, protection fault, or another related diagnostic condition. Therefore, a single alarm should not automatically be interpreted as proof that the XV C517 AE10 has failed.

A proper diagnosis should consider the gate-driver power supply, control signals, connectors, associated semiconductor devices, protection circuits, and other related electronics. Comparing the timing and conditions under which the fault occurs can also help determine whether the driver is actually responsible.

5. How should the XV C517 AE10 be diagnosed when the drive reports a gate-related fault?

Troubleshooting should begin with the drive’s diagnostic information and stored fault history. Determine whether the fault occurs immediately during initialization or only when the power stage is commanded to switch. This distinction can provide useful information about whether the problem is related to initialization, auxiliary power, control signaling, or the power semiconductor stage.

The gate driver’s associated supply circuits and connectors should then be inspected for abnormal conditions, loose connections, damaged wiring, or signs of overheating. Where the drive provides diagnostic feedback from the gate-drive system, those indications should be evaluated carefully.

The power semiconductor stage should also be considered because a shorted or damaged semiconductor can trigger protection functions that appear similar to a gate-driver fault. If the same fault repeatedly occurs after the associated connections and external circuits have been verified, the XV C517 AE10 can then be investigated as a possible failed component.

6. What precautions should be taken before replacing the ABB XV C517 AE10?

The XV C517 AE10 is associated with power-electronics equipment, so replacement must be performed under appropriate electrical safety procedures by qualified personnel. Before accessing the drive, all relevant power sources must be isolated and the manufacturer’s required discharge and verification procedures must be completed.

Technicians must verify that dangerous electrical energy has been safely removed before working inside the equipment. The original unit’s connectors, wiring, mounting position, and orientation should be carefully identified before removal. It is advisable to document the connection arrangement so that the replacement unit can be installed correctly.

The replacement must match the required hardware configuration. The model and ordering information should be checked before installation, and the new unit should not be substituted with an apparently similar component unless compatibility has been confirmed. After installation, all connections should be inspected carefully before the equipment is returned to service.

7. What should be checked if a replacement XV C517 AE10 does not operate correctly?

If the replacement gate driver does not operate correctly, first verify that the installed component is the correct ABB XV C517 AE10 with the required ordering number 3BHB004744R0010. Next, inspect all connectors and wiring to ensure that they are fully inserted, correctly positioned, and free from mechanical damage.

The relevant auxiliary power supplies and control interfaces should then be checked according to the equipment’s maintenance procedure. If the supply and connections are correct, the original fault should be reconsidered. A damaged power semiconductor, control board, auxiliary power circuit, or protection circuit can produce symptoms that resemble a gate-driver failure.

If the same alarm appears immediately after replacement, repeatedly installing another gate driver may not resolve the problem. The associated power stage and control circuits should be investigated to determine whether an external fault caused the original driver failure or is preventing the replacement unit from operating correctly.

8. How can the reliability of an ABB XV C517 AE10 Gate Driver Unit be maintained?

The reliability of the XV C517 AE10 depends heavily on the condition of the complete drive system. Regular maintenance should include inspection of cooling paths, cabinet ventilation, electrical connections, auxiliary power supplies, and the general condition of the electronic assemblies.

Excessive heat, dust accumulation, poor ventilation, loose connections, and repeated electrical stress can negatively affect electronic components over time. Stored fault records should also be reviewed during planned maintenance. Repeated gate-drive alarms or power-stage protection events should be investigated rather than simply reset.

Maintaining the surrounding control electronics and power semiconductor stage is particularly important because faults in those circuits can place additional stress on the gate driver. Keeping the cooling system clean, connections secure, and operating conditions within the equipment’s specified limits can help reduce unnecessary thermal and electrical stress and improve the long-term reliability of the XV C517 AE10.
