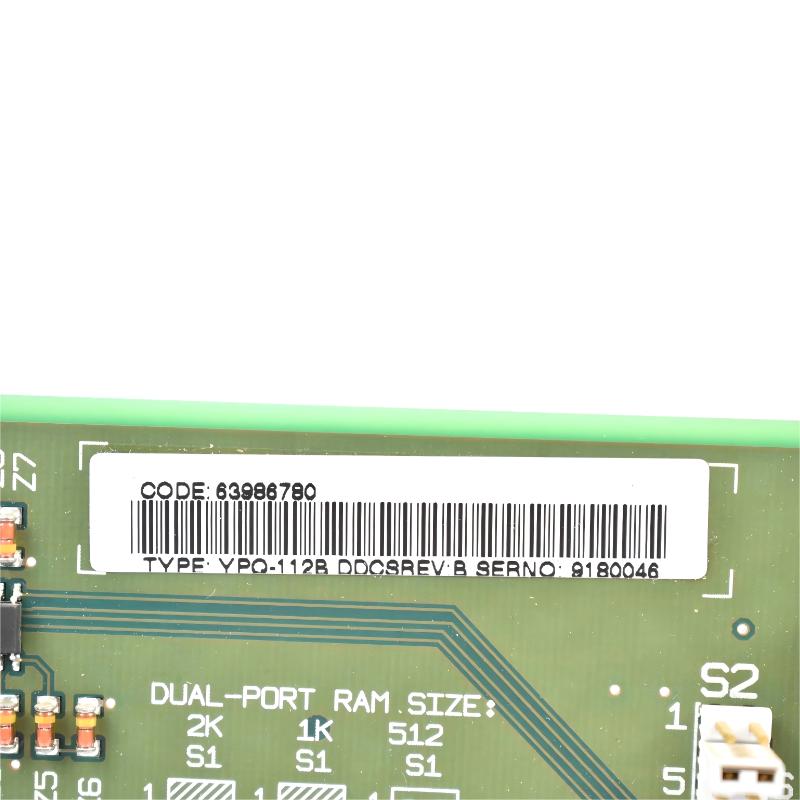

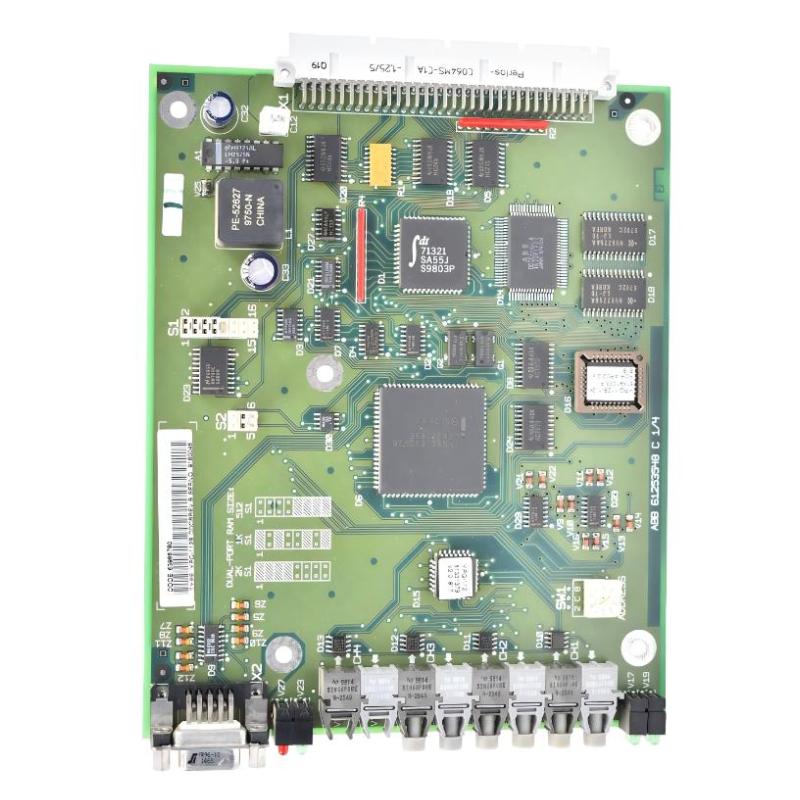

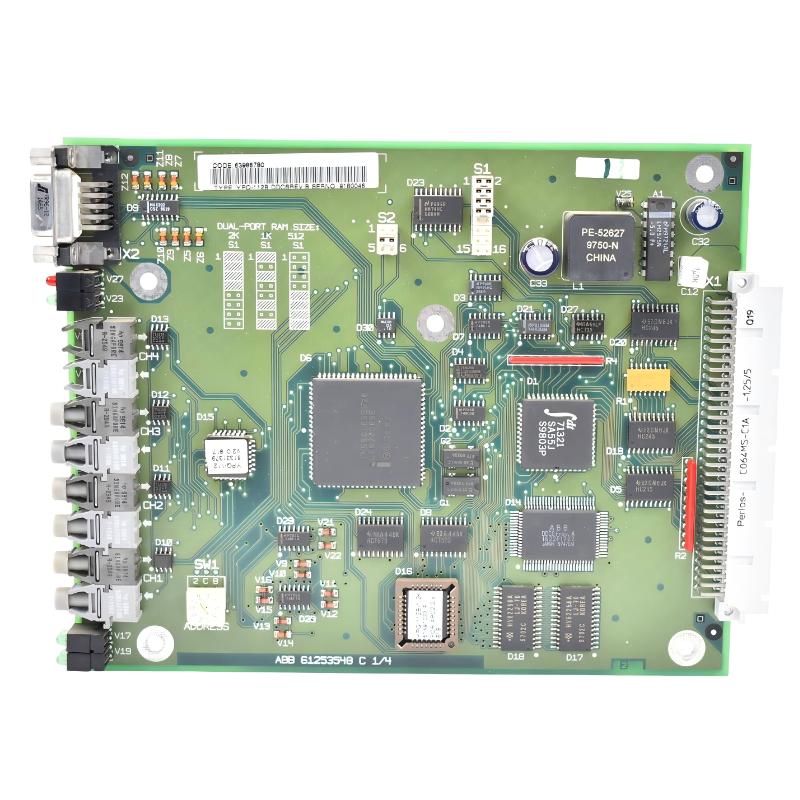

ABB YPQ-112B 63986780 Interface Adapter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | DDCS Interface Adapter |
| Model | YPQ-112B |
| Order Number | 63986780 |
| Main Function | Provides optical DDCS communication between an APC control system and compatible ABB drives |
| Communication Protocol | ABB DDCS |
| Communication Medium | Plastic optical fiber |
| Optical Channels | 4 |
| Typical Application | APC control systems and ABB drive modernization applications |
| Compatible Drive Systems | ABB DCS600 and selected ACS600/drive applications |
| Installation | Installed in an available APC rack slot |
| Communication Topology | Individual optical communication links between the controller and drives |
| Optical Cable Length | 0.2–20 m in documented DCS600 applications |
| Drive Assignment | Channels can be assigned to individual drives through the APC configuration |
| System Configuration | Requires corresponding YPQ112B configuration in the APC control application |
| Typical Use | Drive control, DDCS communication expansion, and retrofit projects |
| Dimensions | 150 × 100 × 25 mm |
| Weight | 0.181 kg |
FAQ
1. What is the ABB YPQ-112B 63986780 used for?
The ABB YPQ-112B is a DDCS interface adapter used to provide optical communication between an APC control system and compatible ABB drives. It is primarily used where the control system needs additional DDCS communication channels for drive control and data exchange.
2. How many optical communication channels does the YPQ-112B provide?
The YPQ-112B provides four optical DDCS channels. In a typical configuration, the channels can be assigned to individual drives. When more drives are required, additional YPQ112B boards can be installed if the APC rack and control application support the configuration.
3. What communication protocol does the YPQ-112B use?
The YPQ-112B uses ABB DDCS communication over plastic optical fiber. This provides electrical isolation and helps maintain reliable communication in industrial environments where drives and power equipment can generate significant electromagnetic interference.
4. Can the YPQ-112B be used with ABB DCS600 drives?
Yes. ABB documentation describes the YPQ112B in DCS600 and APC communication applications. The four channels can be assigned to drives according to the APC configuration, with the drive number and communication parameters configured in the corresponding control software.
5. Can the YPQ-112B be used with ACS600 drive systems?
It can be used in compatible ABB drive configurations where DDCS communication and the required APC interface architecture are supported. Before replacement or retrofit, the exact drive type, controller version, communication architecture, and application software should be checked.
6. How is the YPQ-112B installed in an APC system?
The YPQ-112B is installed in an available slot in the compatible APC rack. The board must be correctly seated, and the optical communication cables should then be connected to the appropriate channels. The APC control application must also be configured to recognize and use the board.
7. What should be checked if a drive does not communicate through the YPQ-112B?
Check the optical fiber connection first, including connector seating, cable condition, and the assigned communication channel. Then verify the drive number, DDCS settings, APC configuration, and control-system application parameters. If several drives communicate correctly but one channel does not, the affected optical channel and its associated cable should be tested separately.
8. Can the YPQ-112B be used for ABB drive retrofit projects?
Yes. The YPQ112B is suitable for retrofit applications where an existing APC control system needs DDCS communication with compatible ABB drives. In retrofit work, the existing APC rack, available slots, drive communication protocol, optical cabling, and control software configuration should all be verified before commissioning.
ABB YPQ-112B 63986780 Interface Adapter is in stock. Please contact us for a quick quote and competitive pricing.
