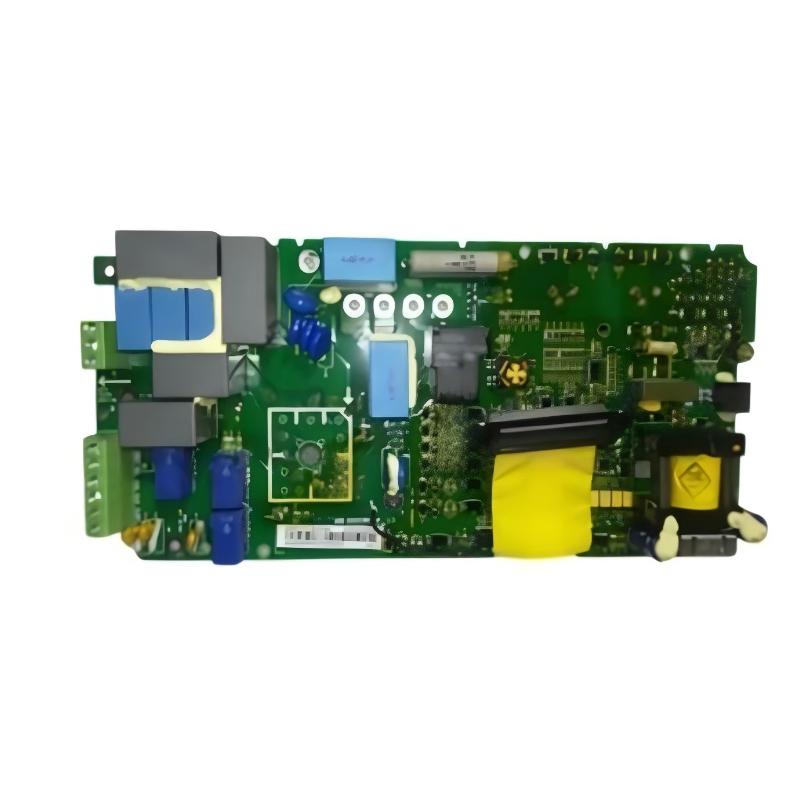

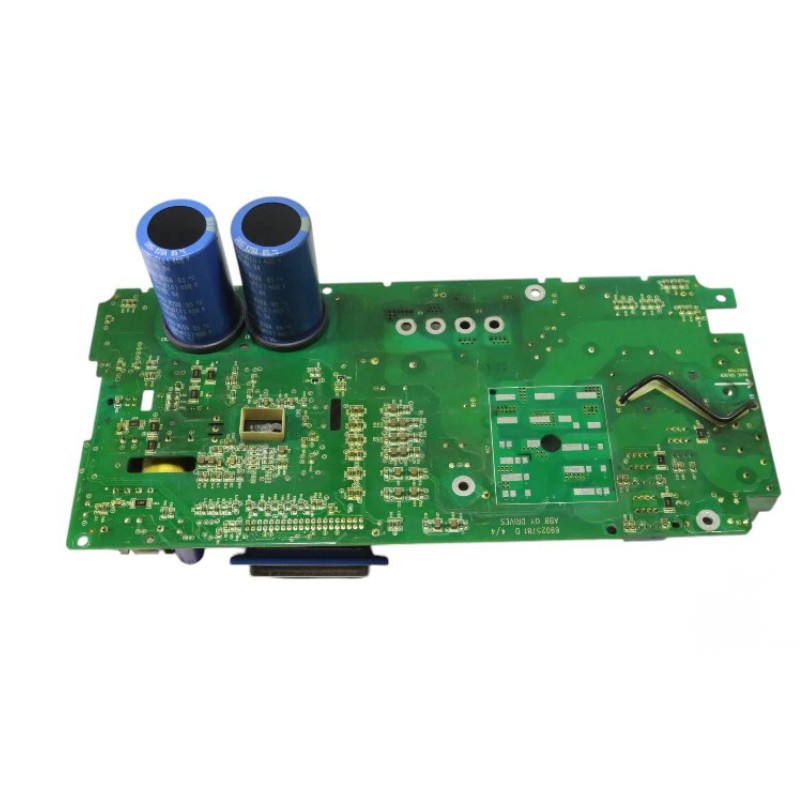

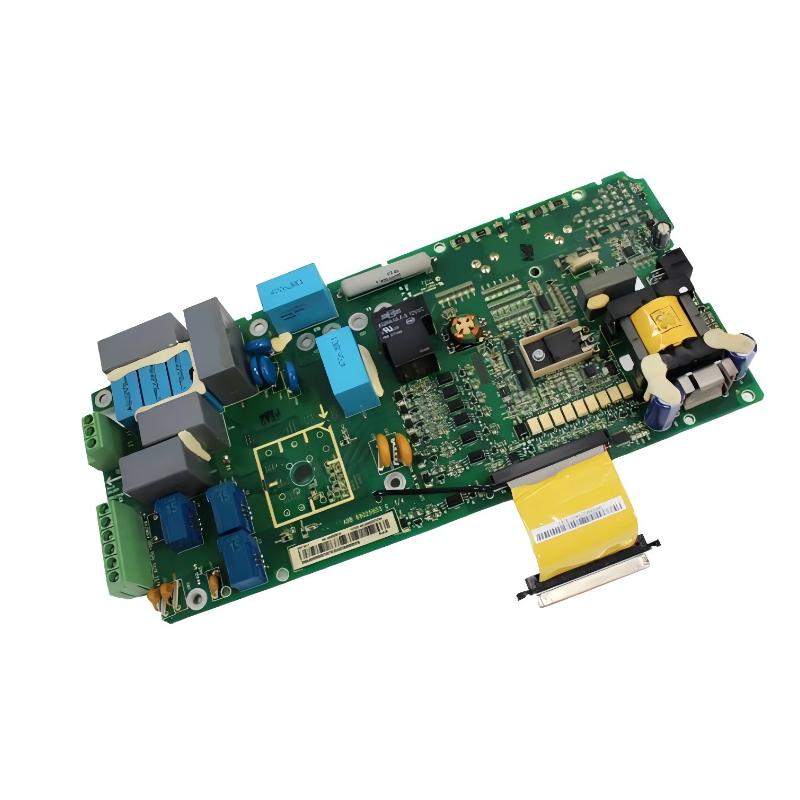

ABB ZINT-511 3AUA0000070792 Inverter Power Drive Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | Inverter Power Drive Board |
| Model | ZINT-511 |
| Order Number | 3AUA0000070792 |
| Drive Platform | ABB ACS880 |
| Board Category | Power Board |
| Main Function | Power-stage control and interface within the drive |
| Application | ABB ACS880 drive systems and related service or replacement applications |
| Installation | Installed inside the compatible ABB drive assembly |
| System Role | Interfaces with the drive power section and associated control circuitry |
| Service Application | Drive maintenance, board replacement, and system restoration |
| Compatibility | Must be matched with the applicable ACS880 drive type and hardware configuration |
| Replacement Requirement | Verify board type and order number before installation |
| Configuration | Drive-specific configuration and commissioning procedures should be followed after replacement |
| Dimensions | 189 × 100 × 40 mm |
| Weight | 0.5 kg |
FAQ
1. What is the ABB ZINT-511 3AUA0000070792 used for?
The ZINT-511 is a power board used in compatible ABB ACS880 drive systems. It forms part of the drive power-stage electronics and works with the associated control and power circuitry to support normal drive operation.
2. Is ZINT-511 a control board or a power board?
ZINT-511 is classified as a power board. It should not be treated as a general-purpose control board or communication module. Its function is associated with the drive’s power-stage circuitry.
3. Which ABB drive platform is the ZINT-511 associated with?
The ZINT-511, order number 3AUA0000070792, is listed among ABB ACS880 spare power boards. The exact compatible drive model should always be checked against the drive hardware configuration before ordering or replacement.
4. Can ZINT-511 be replaced directly with another ZINT-series board?
Not necessarily. ABB uses different ZINT board variants for different drive configurations. A board such as ZINT-512, ZINT-521, or another ZINT-series part should not be considered a direct substitute simply because the product family is the same. The exact order number and drive configuration must be verified.
5. What should be checked before replacing a ZINT-511?
Confirm the original board marking, order number 3AUA0000070792, applicable ACS880 drive model, hardware revision, connectors, and surrounding power-stage components. The replacement board should match the original configuration before it is installed.
6. What precautions are required when installing the ZINT-511?
The drive must be completely isolated from the power supply before opening the enclosure or accessing the power electronics. The DC bus must be allowed to discharge, and the absence of hazardous voltage should be verified with appropriate test equipment before handling the board.
7. What can cause a newly installed ZINT-511 to operate incorrectly?
Incorrect board selection, loose connectors, damaged wiring, incompatible hardware revisions, power-stage faults, or problems elsewhere in the drive can prevent correct operation. A replacement board should therefore be tested as part of the complete drive system rather than assumed to be the only possible source of a fault.
8. What should be done after replacing the ZINT-511?
After installation, verify all connectors and mechanical fixings, inspect the power section for visible damage, and perform the applicable ABB commissioning and diagnostic procedures. Fault codes, DC-bus behavior, power-stage status, and motor operation should be checked before returning the drive to normal service.
ABB ZINT-511 3AUA0000070792 Inverter Power Drive Board is in stock. Please contact us for a quick quote and competitive pricing.
