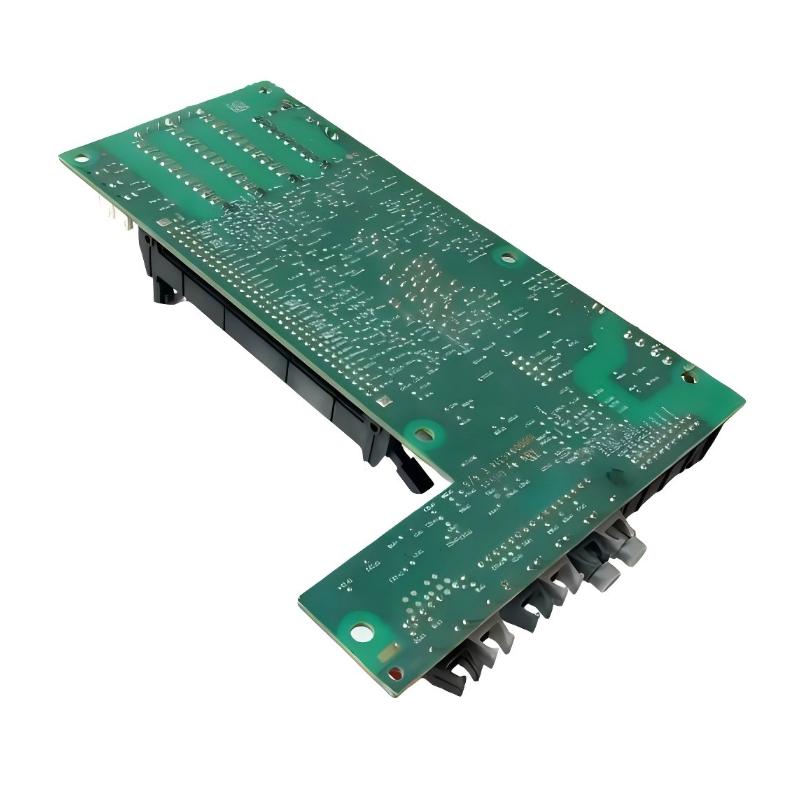

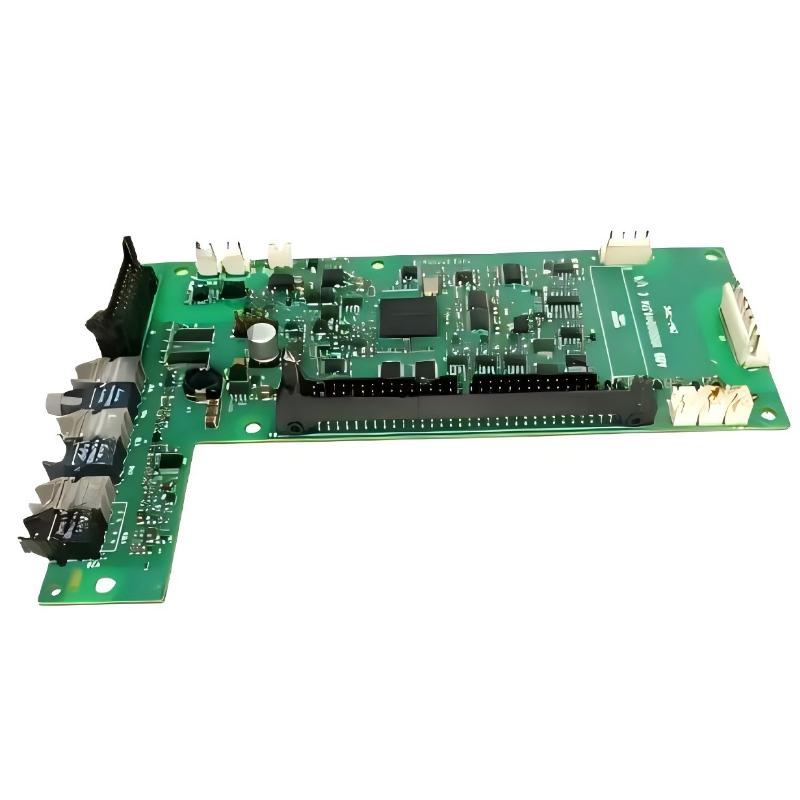

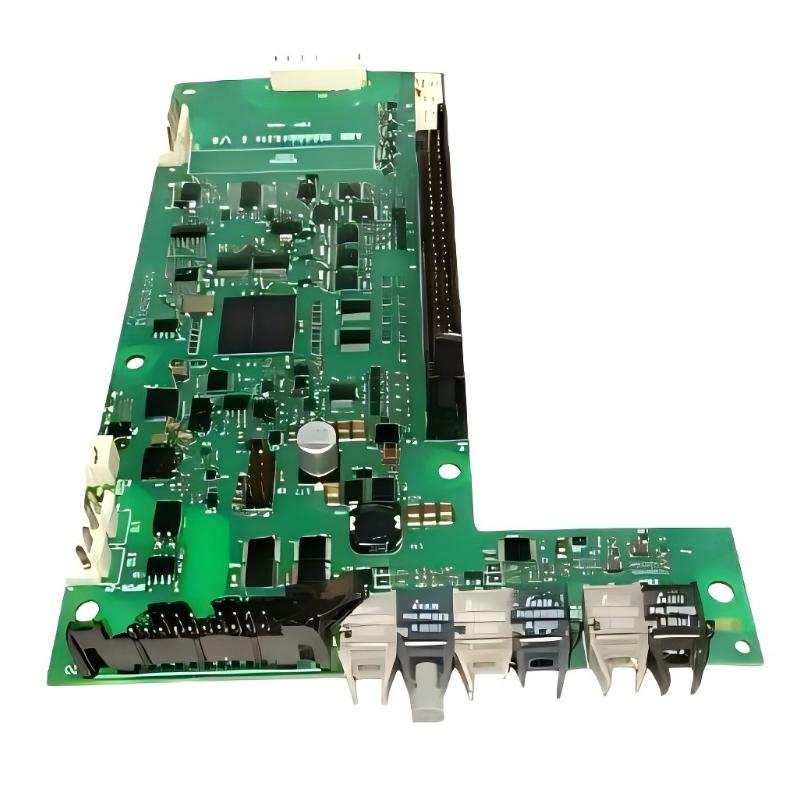

ABB ZINT-7B1C+N8205 3AXD50000004365 MC Interface Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Model | ZINT-7B1C +N8205 |
| Order Number | 3AXD50000004365 |
| Product Type | MC Interface Board |
| Product Description | NON-RATED ZCU SP MC Interface Board |
| Product Family | ABB Drive Spares |
| Compatible Drive Series | ACS880-04 |
| Applicable Drive Configuration | ACS880-04 XT, depending on drive configuration |
| Control Unit | ZCU |
| Main Function | Provides the interface and signal connection between the ZCU control unit and the drive main circuit |
| Board Application | Main circuit interface and spare-part replacement for applicable ACS880-04 drives |
| Rating Status | NON-RATED; PU Type and Rating ID are not preloaded |
| Parameter Configuration | PU Type and Rating ID must be configured according to the actual drive |
| Firmware Compatibility | Applicable ACS880 configurations with firmware 2.30 or later |
| Programming Requirement | Requires configuration of the appropriate PU Type and Rating ID after installation |
| Programming Access | Configuration may require ABB service tools and appropriate service-level access |
| Interface Functions | Transfers control signals, status feedback, and main-circuit-related interface signals |
| Installation Position | Installed in the designated MC Interface Board position inside the ACS880-04 drive module |
| Typical Applications | Industrial variable-speed drives, AC motor control, and ACS880-04 drive system maintenance |
| Spare-Part Type | Main Circuit Interface Board |
| Installation Method | Installed inside the applicable ACS880-04 drive module |
| Compatibility Verification | Drive model, serial number, control unit, firmware, and rating configuration should be verified before replacement |
| Dimensions | 205 × 78 × 30 mm |
| Weight | 0.2 kg |
FAQ
1. What is the ABB ZINT-7B1C +N8205 3AXD50000004365?
It is an ABB MC Interface Board designed for applicable ACS880-04 variable frequency drives. The board provides interface and signal connections between the ZCU control unit and the internal main-circuit and control circuitry.
2. What is the difference between ZINT-7B1C +N8205 and 3AXD50000004365?
ZINT-7B1C +N8205 identifies the board model and configuration, while 3AXD50000004365 is the ABB order number used to identify the specific spare-part version.
3. Which ABB drives use the ZINT-7B1C +N8205 board?
The board is primarily associated with ABB ACS880-04 drive configurations, including applicable XT configurations. Compatibility should be confirmed against the exact drive type, control unit, rating, and hardware configuration before replacement.
4. What does “NON-RATED” mean for this MC Interface Board?
NON-RATED means that the board does not have a specific PU Type and Rating ID preloaded. After installation, the appropriate rating information must be configured according to the target ACS880-04 drive.
5. Does the ZINT-7B1C +N8205 require programming after replacement?
Yes. Because 3AXD50000004365 is a NON-RATED spare-part version, the correct PU Type and Rating ID need to be configured after installation. Appropriate ABB service tools and access rights may be required.
6. Which firmware version is associated with the ZINT-7B1C +N8205?
The ZINT-7B1C configuration is associated with applicable ACS880 firmware version 2.30 or later. The actual drive firmware and ZCU compatibility should be checked before installing the replacement board.
7. Why should the drive model or serial number be checked before ordering 3AXD50000004365?
Because the board is supplied without preloaded rating information, the correct PU Type and Rating ID depend on the actual drive configuration. Checking the drive model and serial number helps verify hardware compatibility and determine the required configuration.
8. What should be checked when replacing the ZINT-7B1C +N8205 board?
Verify the complete order number 3AXD50000004365, ACS880-04 drive model, ZCU control unit, firmware version, PU Type, Rating ID, and existing connector arrangement. After installation, verify controller recognition, internal communication, rating configuration, and drive fault diagnostics before returning the drive to normal operation.
ABB ZINT-7B1C+N8205 3AXD50000004365 MC Interface Board is in stock. Please contact us for a quick quote and competitive pricing.
