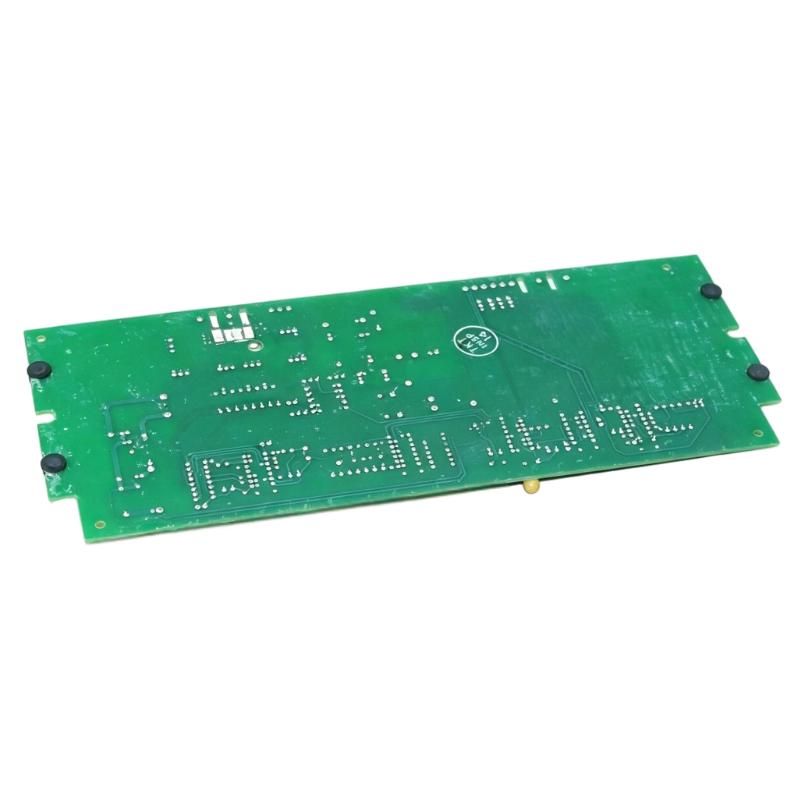

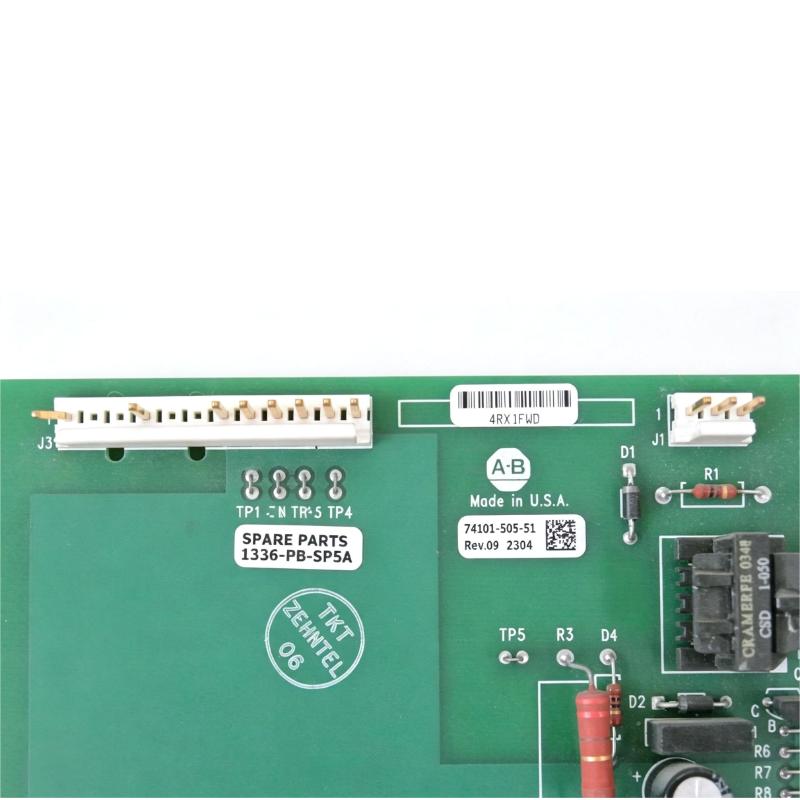

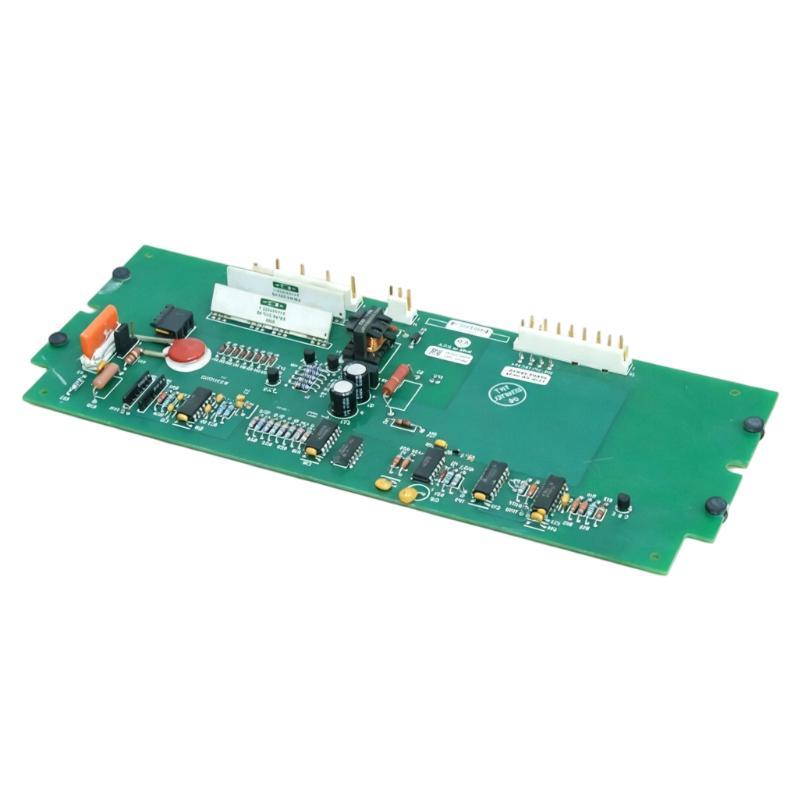

Allen Bradley 1336-PB-SP5A Pre-Charge Circuit Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | Pre-Charge Circuit Board |
| Product Family | 1336 Series |
| Catalog Number | 1336-PB-SP5A |
| Circuit Board Type | Pre-Charge Control PCB |
| Primary Function | Controls the pre-charge process of the DC bus in an AC drive |
| Application | Allen-Bradley 1336 series adjustable frequency AC drives |
| Drive Configuration | Common Bus applications |
| Pre-Charge Function | Limits inrush current during DC bus charging |
| Main Purpose | Protects DC bus capacitors and power components during drive startup |
| Installation Location | Internal drive control/power section |
| Typical Application | Replacement of a failed or damaged pre-charge circuit board |
| Related Drive Configuration | 1336STEF and applicable 1336 series configurations |
| Circuit Role | Coordinates the initial charging sequence of the DC bus |
| Maintenance Type | Internal drive component replacement |
| Dimensions | 130 × 25 × 100 mm |
| Weight | 0.16 kg |
FAQ
1. What is the main function of the Allen-Bradley 1336-PB-SP5A?
The 1336-PB-SP5A is a pre-charge circuit board used in Allen-Bradley 1336 series AC drives. Its primary function is to control the initial charging of the DC bus and limit the inrush current that occurs when the drive is energized.
2. Why is the pre-charge circuit important in a 1336 AC drive?
The DC bus contains large capacitors that can draw a high current when power is first applied. The pre-charge circuit limits this initial current and allows the DC bus voltage to build up in a controlled manner, reducing stress on capacitors, switching devices, and other power components.
3. What type of drive application is the 1336-PB-SP5A associated with?
The 1336-PB-SP5A is associated with Allen-Bradley 1336 series adjustable frequency AC drives and is used in applicable common-bus configurations. Compatibility should be confirmed against the complete drive catalog number and hardware revision before replacement.
4. What symptoms can indicate a problem with the 1336-PB-SP5A?
Possible symptoms include failure of the drive to complete its startup sequence, abnormal DC bus charging, pre-charge-related faults, or abnormal behavior when the drive is energized. These symptoms can also be caused by other components in the pre-charge circuit, so the entire circuit should be checked.
5. How can a suspected 1336-PB-SP5A fault be diagnosed?
First disconnect all power sources and verify that the DC bus has been safely discharged. Inspect the PCB for burnt components, discoloration, damaged terminals, loose connectors, or other visible abnormalities. The associated pre-charge resistor, contactor, wiring, DC bus capacitors, and control circuits should also be tested before replacing the board.
6. Can a defective pre-charge circuit board prevent the drive from starting?
Yes. If the pre-charge sequence is not controlled correctly, the DC bus may fail to reach the required operating condition. The drive can then remain in a fault or non-operational state to protect its power circuitry.
7. What should be checked before installing a replacement 1336-PB-SP5A?
Verify the complete drive catalog number, voltage class, power rating, drive series, common-bus configuration, and the identification markings on the original PCB. The surrounding pre-charge components and wiring should also be inspected to make sure an external fault will not damage the replacement board.
8. Why should the cause of the original failure be identified before replacing the PCB?
Replacing only the circuit board may not solve the underlying problem. A failed pre-charge resistor, damaged contactor, deteriorated DC bus capacitor, wiring fault, or control-circuit problem can cause a replacement PCB to fail again. Checking the complete pre-charge circuit helps ensure reliable operation after the repair.
Allen Bradley 1336-PB-SP5A Pre-Charge Circuit Board is in stock. Please contact us for a quick quote and competitive pricing.
