1. What is the function of the Allen-Bradley 1336-QOUT-SP12B?

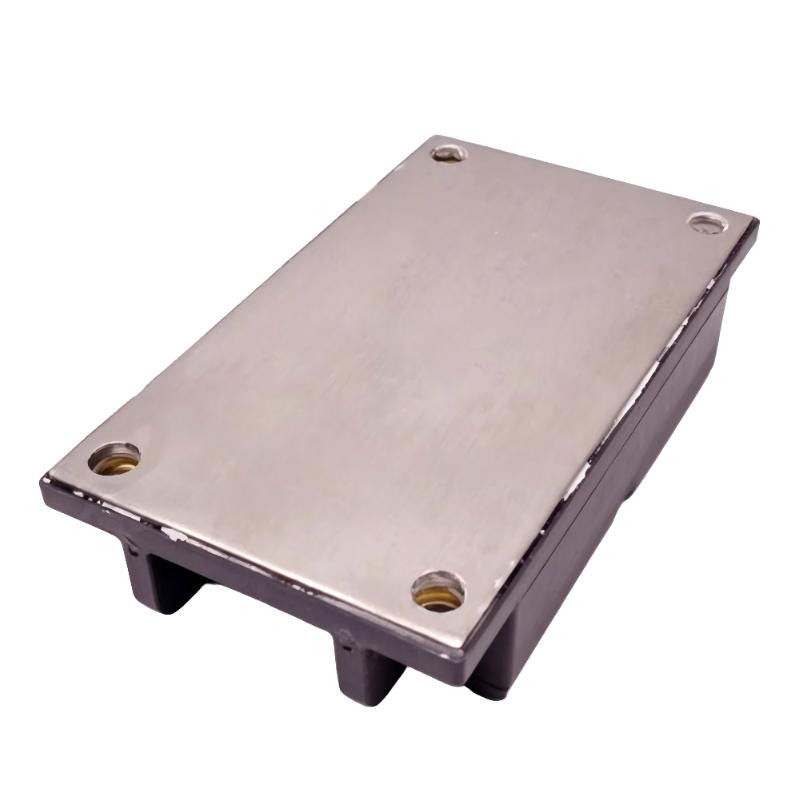

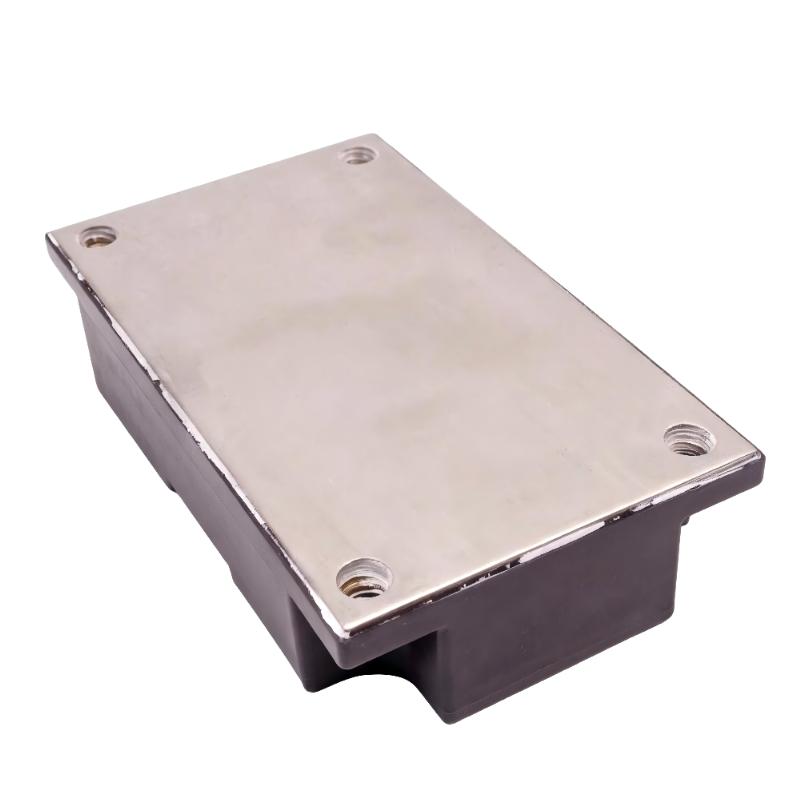

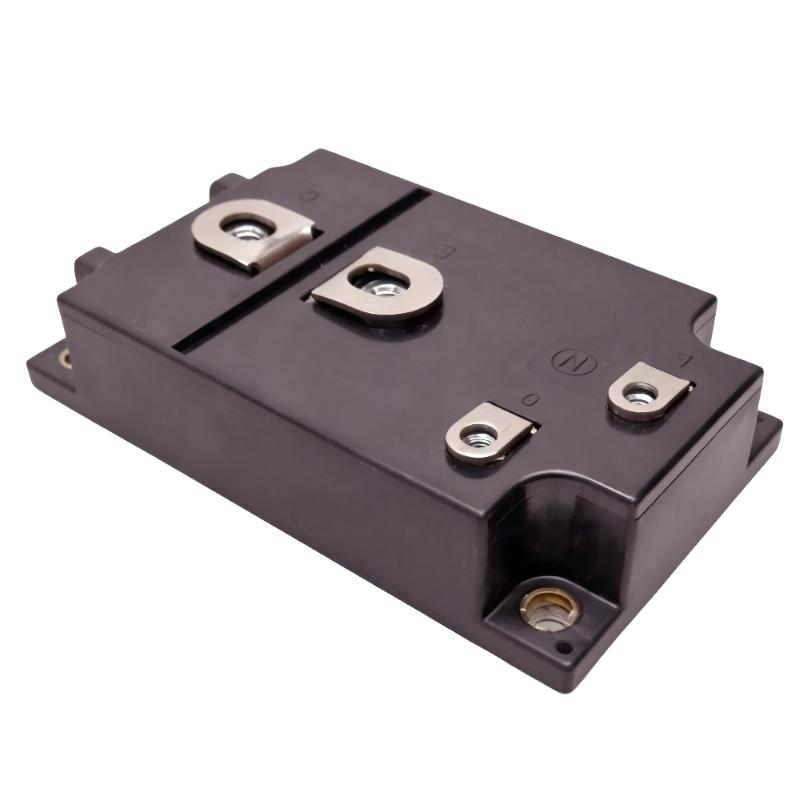

The 1336-QOUT-SP12B is an output transistor assembly used in Allen-Bradley 1336-series adjustable frequency AC drives. It forms part of the inverter output stage and switches DC bus energy to create the controlled three-phase output required by the motor. When the original output transistor assembly is damaged, this component can be used as a replacement to restore the drive’s power switching function.

2. Which Allen-Bradley 1336 drives are compatible with the 1336-QOUT-SP12B?

The 1336-QOUT-SP12B is associated with 1336STEF drive configurations. The spare-parts documentation identifies this part for 230 V, 40 HP applications and also for 460 V, 60–75 HP Series B and later configurations. Because the same catalog number can appear in different drive configurations, the complete drive catalog number, voltage class, horsepower rating, and series should be checked before ordering or installing the replacement assembly.

3. What type of transistor technology is used in the 1336-QOUT-SP12B?

The assembly uses bipolar junction transistor (BJT) technology for the drive’s power switching stage. These transistors perform high-speed switching between the DC bus and motor output circuits. Their switching action is controlled by the drive’s gate interface circuitry to generate the required motor voltage and frequency. Proper gate-drive signals and correct transistor installation are essential for reliable inverter operation.

4. What are the common symptoms of a failed output transistor assembly?

Typical symptoms include an output phase fault, overcurrent trip immediately after starting, DC-bus charging followed by a power-stage fault, abnormal motor current, or a motor that fails to rotate correctly. A shorted transistor can also produce an unusually low resistance between power terminals when the drive is completely isolated from power. However, transistor failure should be confirmed with appropriate electrical tests because similar symptoms can result from damaged gate interface boards, motor cables, or the motor itself.

5. How should the 1336-QOUT-SP12B be checked when an output transistor is suspected to be damaged?

The drive must first be completely disconnected from all power sources, and the DC bus must be allowed to discharge to a verified safe level. A qualified technician can then inspect the power connections and perform appropriate semiconductor checks using the manufacturer’s service procedures and suitable test equipment. Look for short circuits between the relevant power terminals and compare the readings between phases. A failed transistor assembly should not be diagnosed solely from a single resistance measurement.

6. Can a damaged 1336-QOUT-SP12B cause repeated overcurrent faults?

Yes. A shorted or electrically damaged output transistor can cause excessive current when the inverter attempts to energize the motor. Repeated overcurrent faults can also be caused by a shorted motor cable, motor winding failure, incorrect drive parameters, mechanical overload, or a defective gate interface circuit. Before installing a replacement transistor assembly, the motor, output wiring, gate-drive circuitry, and DC-bus condition should be checked so that the new component is not damaged by an unresolved fault.

7. What should be checked before installing a replacement output transistor assembly?

Before replacement, verify the exact drive model, voltage class, horsepower rating, and series revision to ensure that the 1336-QOUT-SP12B is the correct assembly. Inspect the mounting surfaces and electrical connections for signs of overheating, arcing, or contamination. The associated gate interface circuitry should also be checked because a faulty gate signal can damage a new transistor assembly. After installation, all power connections should be tightened according to the applicable service procedure and the drive should be tested under controlled conditions.

8. Why is correct thermal installation important for the 1336-QOUT-SP12B?

The output transistor assembly handles significant switching power and can generate substantial heat during normal operation. Poor thermal contact, inadequate mounting, contamination, or restricted cooling airflow can increase junction temperature and shorten component life. During replacement, the mounting condition, thermal interface, cooling path, and surrounding drive components should be inspected carefully. If the original transistor failed because of overheating, simply replacing the assembly without correcting the underlying thermal problem can result in another failure.
