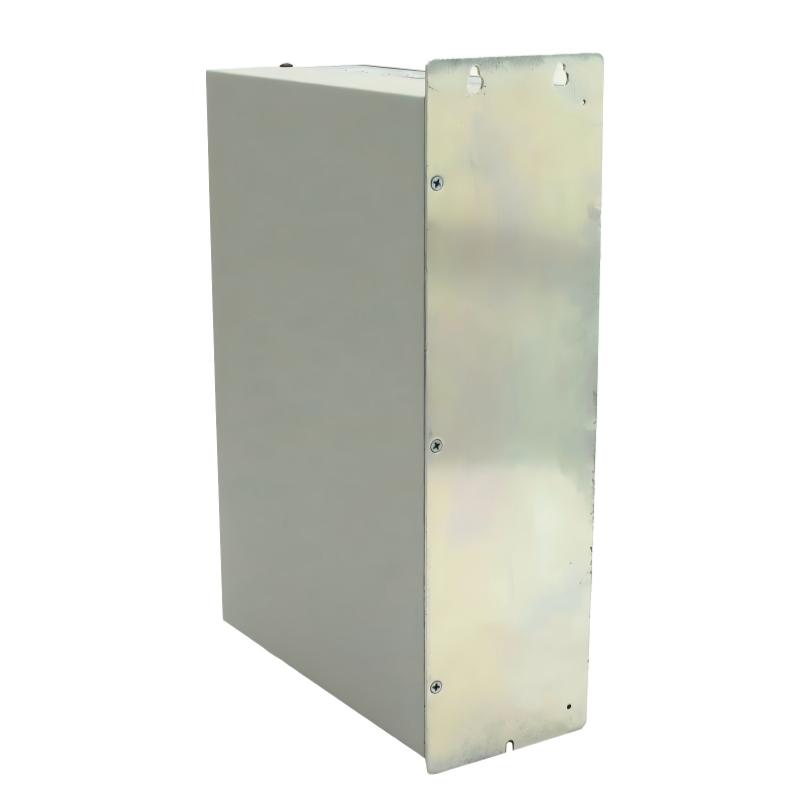

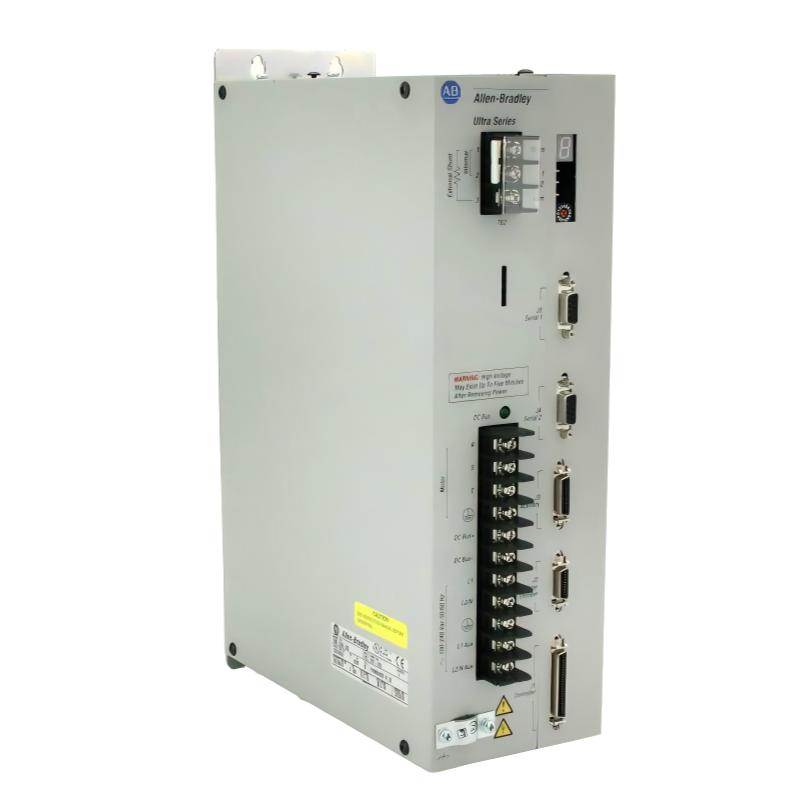

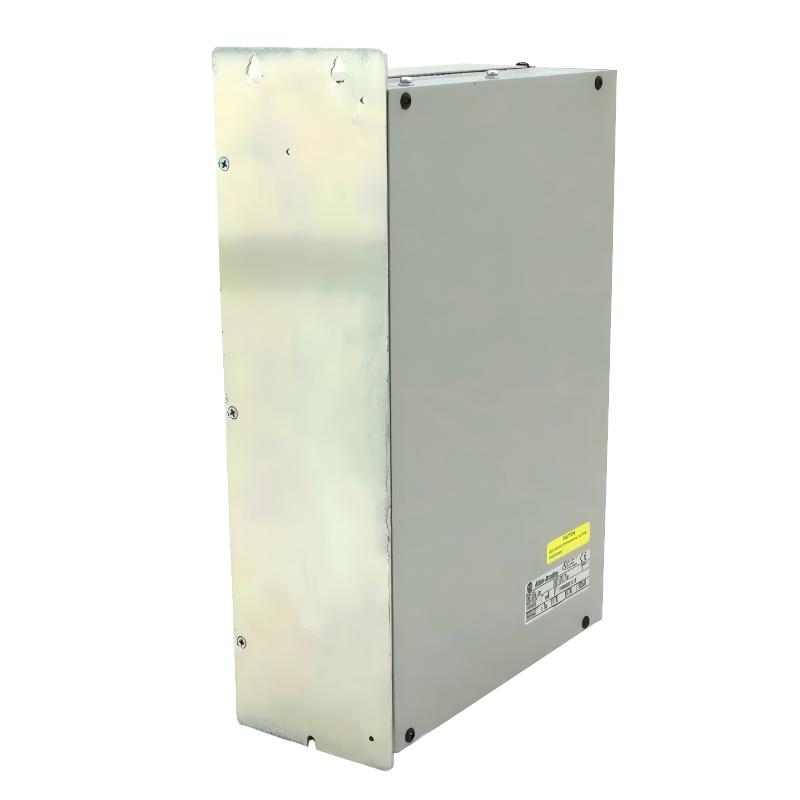

Allen Bradley 1398-DDM-030 Ultra 200 Digital Servo Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | Universal Digital Servo Drive |
| Product Family | ULTRA 200 |
| Catalog Number | 1398-DDM-030 |
| Drive Type | Single-Axis Digital Servo Drive |
| Input Voltage | 100–240 VAC RMS, single phase |
| Input Frequency | 47–63 Hz |
| AC Input Current | 28 A RMS |
| DC Bus Voltage | 141–339 VDC |
| Continuous Output Current | 15 A |
| Peak Output Current | 30 A |
| Continuous Output Power | 1.8 kW at 120 VAC; 3.0 kW at 240 VAC |
| Peak Output Power | 3.75 kW at 120 VAC; 7.5 kW at 240 VAC |
| Motor Type | Brushless AC Servo Motor |
| Control Functions | Digital current, velocity, and position control |
| Control Technology | Integral microcontroller with digital PWM control |
| Analog Command Interface | ±10 VDC configurable analog input |
| Encoder Interface | Quadrature encoder feedback |
| Step/Direction Interface | Supported |
| Step Up/Step Down Interface | Supported |
| Serial Communication | RS-232 / RS-485 |
| RS-485 Connection | Supports multi-drive communication applications |
| Auto-Tuning | Supported |
| Shunt Regulator | Integrated |
| Power Supply | Integrated drive power supply |
| Protection Functions | Overcurrent, short circuit, overtemperature, bus overvoltage, bus undervoltage, overspeed and fault diagnostics |
| Safety Monitoring | Multiple watchdog timers |
| Operating Temperature | 0–55 °C |
| Mounting | Panel mounting |
| Application | Single-axis servo motion control |
| Product Status | Discontinued |
| Dimensions | 360.6 × 104.1 × 243.8 mm |
| Weight | 6.48 kg |
FAQ
1. What is the main function of the Allen-Bradley 1398-DDM-030?
The 1398-DDM-030 is a ULTRA 200 universal digital servo drive designed for single-axis motion applications. It uses digital control of current, velocity, and position loops to provide precise control of compatible brushless AC servo motors.
2. What input power does the 1398-DDM-030 require?
The drive accepts 100–240 VAC RMS single-phase input at 47–63 Hz. The input supply should be properly protected and sized according to the installation requirements and the drive’s rated input current.
3. What are the continuous and peak current ratings of the 1398-DDM-030?
The drive has a continuous output current rating of 15 A and a peak output current rating of 30 A. The peak rating is intended for short-duration dynamic operation, such as acceleration or high transient torque demands.
4. What output power can the 1398-DDM-030 provide?
The continuous output power is approximately 1.8 kW at 120 VAC and 3.0 kW at 240 VAC. Peak output capability is higher and depends on the operating voltage and duration of the demand.
5. What type of motor is compatible with the 1398-DDM-030?
The 1398-DDM-030 is designed for brushless AC servo motors. Proper motor selection requires matching the motor voltage, current, feedback configuration, continuous torque, peak torque, and application requirements with the drive.
6. What feedback and command interfaces are supported?
The drive supports quadrature encoder feedback and provides configurable analog control through a ±10 VDC interface. It also supports step/direction and step-up/step-down interfaces for applicable motion-control applications.
7. What communication interfaces are available on the 1398-DDM-030?
The drive provides a serial communication port that can be configured for RS-232 or RS-485. RS-232 is generally suitable for point-to-point communication, while RS-485 can be used for multi-drive communication within an appropriate control architecture.
8. What should be checked if the 1398-DDM-030 develops a servo fault?
Start by checking the drive fault indication, input voltage, DC bus voltage, motor power connections, encoder feedback, and control signals. Also inspect the motor and mechanical load for excessive torque demand or binding. If the fault involves overcurrent, overtemperature, overspeed, or bus voltage, the corresponding power and feedback circuits should be tested before replacing the drive.
