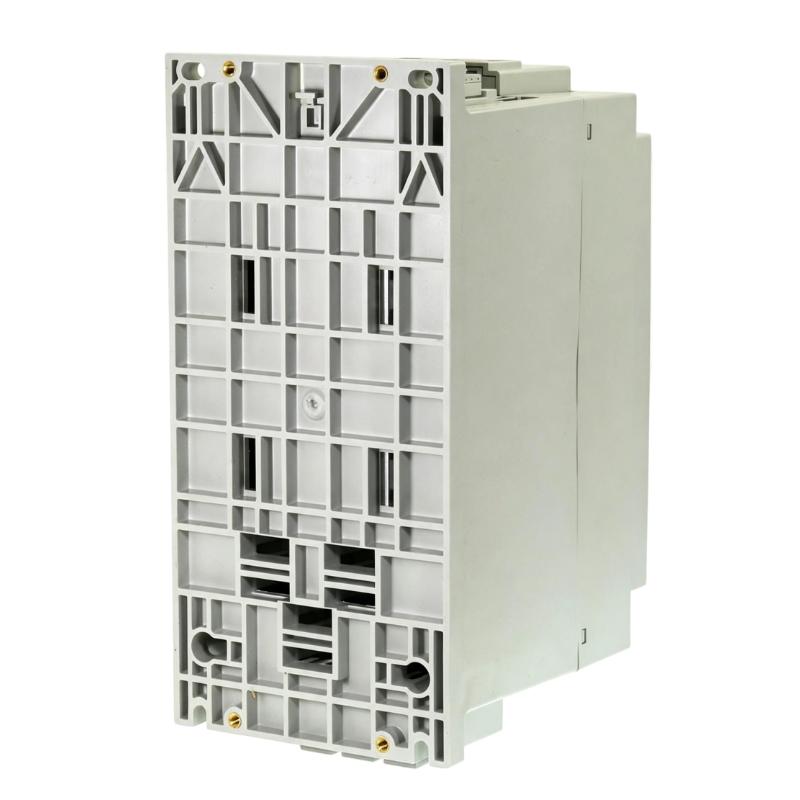

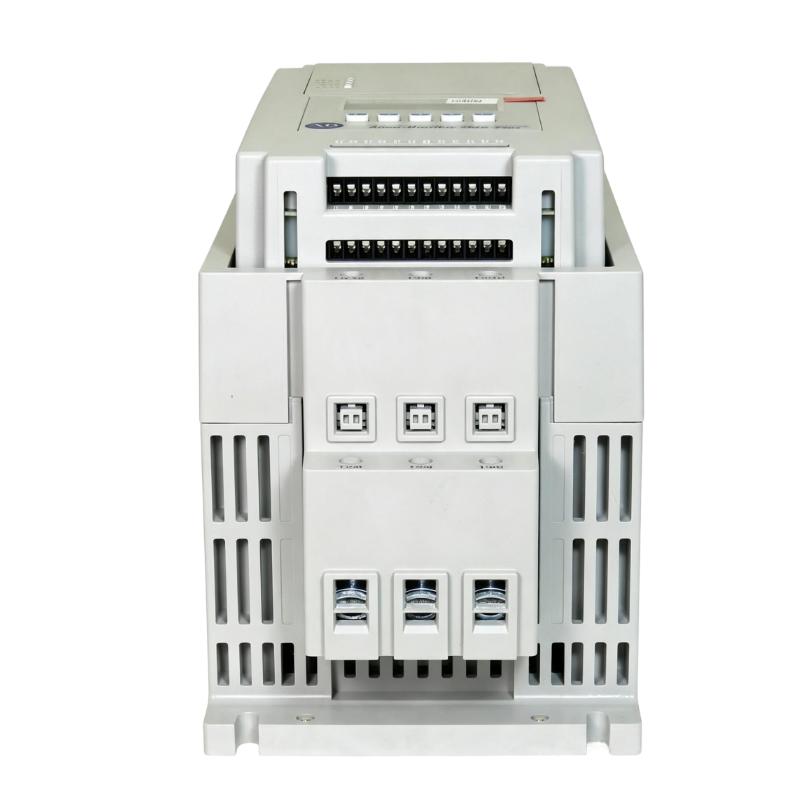

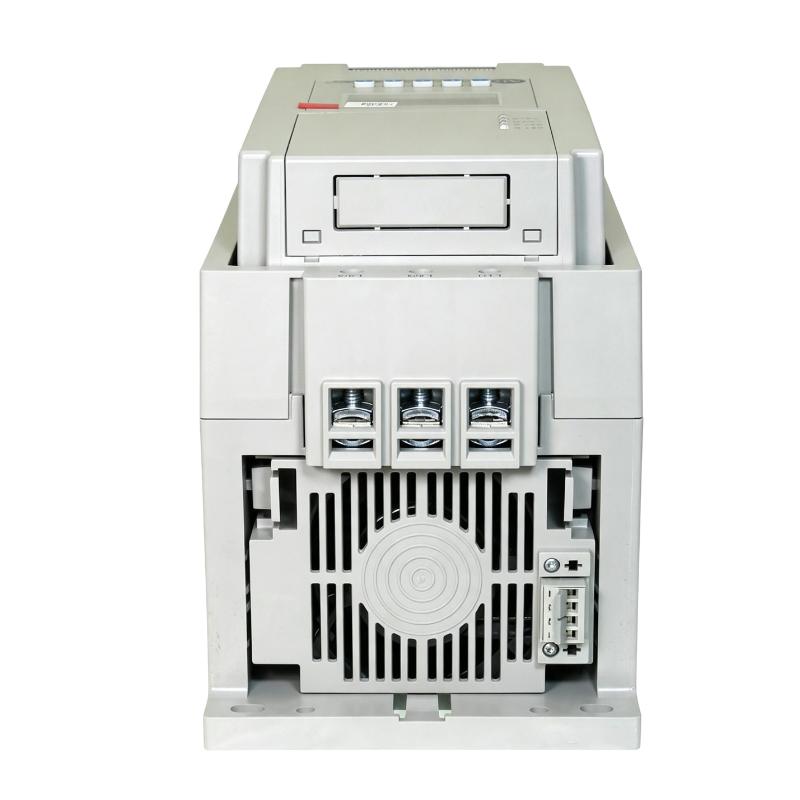

Allen Bradley 150-F85NBD SMC Flex Smart Motor Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | SMC Flex Smart Motor Controller |
| Bulletin | Bulletin 150 |
| Model / Catalog Number | 150-F85NBD |
| Controller Type | Solid-State Soft Starter |
| Controller Rating | 85 A |
| Rated Operating Voltage | 200–480 V AC |
| Input Power | 3-phase AC |
| Operating Frequency | 50/60 Hz |
| Control Voltage | 100–240 V AC, 50/60 Hz |
| Motor Power Rating | 15–60 HP at 460 V AC |
| Maximum Motor Power | 75 HP at 575 V AC, 60 Hz, 3-phase |
| Line-Connected Motor Current | 17–85 A |
| Delta-Connected Motor Current | 29.4–147 A at 500/575 V AC |
| Control Method | Solid-State SCR Soft Starting |
| Starting Function | Reduced-voltage motor starting |
| Internal Bypass | Integrated |
| Motor Overload Protection | Integrated electronic motor overload protection |
| Trip Classes | 10, 15, 20, 30 |
| Trip Current Rating | 117% of motor full-load current |
| Motor Control Function | Single direction |
| Control Options | None |
| Auxiliary Contacts | Up to 4 programmable auxiliary contacts |
| PTC Sensor Input | Supports up to 6 sensors |
| PTC Reset Resistance | 1600 Ω ±100 Ω |
| PTC Response Resistance | 3400 Ω ±150 Ω |
| PTC Response Time | 800 ms |
| dV/dt Protection | RC snubber network |
| Short-Circuit Protection | Fuse or circuit-breaker protection according to application requirements |
| Standard Available Fault Current | Up to 10 kA at 200–600 V |
| High-Capacity Available Fault Current | Up to 70 kA at 600 V with specified protection |
| Power Pole Construction | Heatsink thyristor modular design |
| Power Circuit Insulation Voltage | 500 V IEC |
| Rated Impulse Voltage | 6000 V IEC |
| Repetitive Peak Inverse Voltage | 1400 V |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | Down to -20 °C |
| Humidity | 5–95%, non-condensing |
| Maximum Altitude | 2000 m |
| Enclosure Type | Open |
| Protection Rating | IP20 for power circuit |
| Number of Poles | 3 |
| Heat Dissipation | Approximately 129 W with control and fan power |
| Power Terminal Tightening Torque | 14.7 Nm |
| Mounting | Panel mounting |
| Dimensions | 321 × 150 × 203 mm |
| Weight | 5.7 kg |
FAQ
1. What is the Allen-Bradley 150-F85NBD used for?
The Allen-Bradley 150-F85NBD is an SMC Flex solid-state motor controller designed for controlled starting and stopping of three-phase induction motors. It reduces the electrical and mechanical stress associated with direct-on-line starting by controlling motor voltage during acceleration.
2. What motor current is supported by the 150-F85NBD?
The controller is rated at 85 A for line-connected motor applications. For delta-connected configurations, the applicable motor current range can reach 29.4–147 A at 500/575 V AC. Motor and controller sizing should be based on the actual motor full-load current and connection method.
3. What input voltage does the 150-F85NBD require?
The power circuit accepts 200–480 V AC, three-phase, at 50/60 Hz. The control supply is 100–240 V AC, making the controller suitable for a wide range of industrial control-panel configurations.
4. Does the 150-F85NBD provide motor overload protection?
Yes. The SMC Flex controller includes integrated electronic motor overload protection. Selectable trip classes include 10, 15, 20, and 30, allowing the overload response to be matched more appropriately to the motor and application.
5. Does the 150-F85NBD have an internal bypass?
Yes. The controller includes an integrated bypass function. After the motor reaches the appropriate operating condition, the bypass arrangement can reduce continuous power losses in the solid-state switching section during normal running.
6. What protection functions are available on the 150-F85NBD?
The controller incorporates motor overload protection and power-circuit dV/dt protection through an RC snubber network. Proper external short-circuit protection using the specified fuse or circuit-breaker arrangement is also required for the installation.
7. What should be checked if the 150-F85NBD does not start the motor?
First verify the three-phase input supply, control voltage, motor wiring, motor full-load-current settings, and control signals. Also check for an active overload or protection condition. If the controller receives the correct control command but the motor remains inactive, inspect the SCR power section, control wiring, and motor circuit for abnormal conditions.
8. Can the 150-F85NBD be used for frequent motor starting and stopping?
It can be applied to controlled starting and stopping, but the permissible starting frequency depends on motor characteristics, load inertia, ambient conditions, controller thermal loading, and the selected starting profile. For applications with frequent cycling, the thermal duty and starting requirements should be evaluated before commissioning.
Allen Bradley 150-F85NBD SMC Flex Smart Motor Controller is in stock. Please contact us for a quick quote and competitive pricing.
