Technical Specifications

FAQ

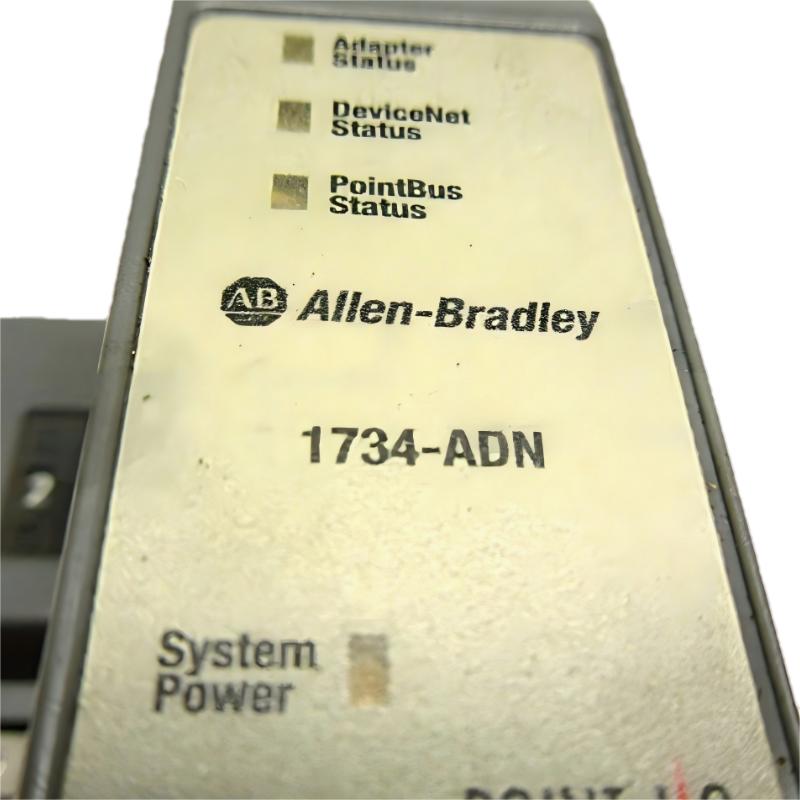

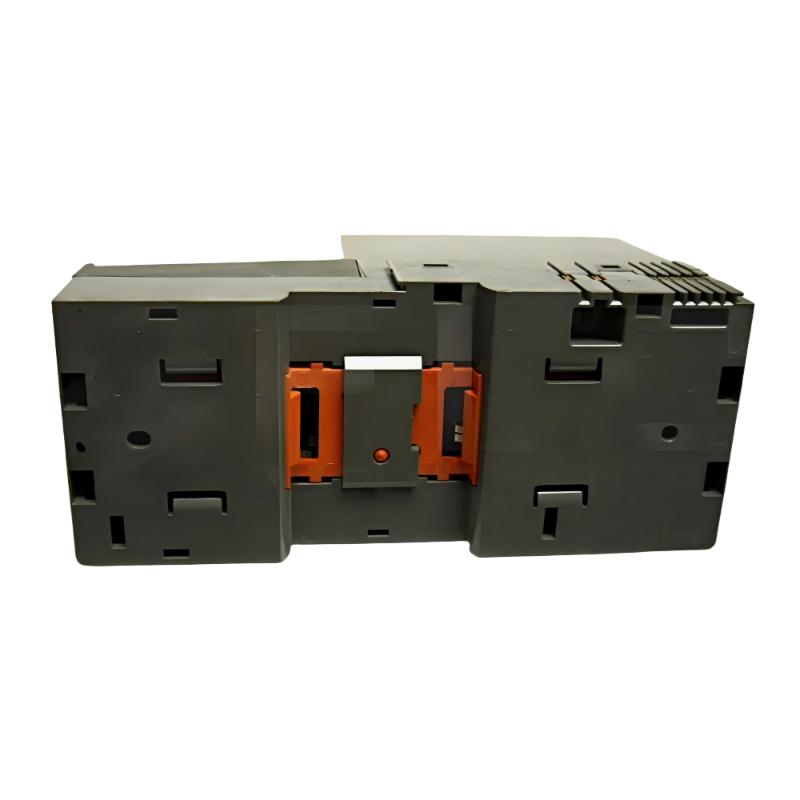

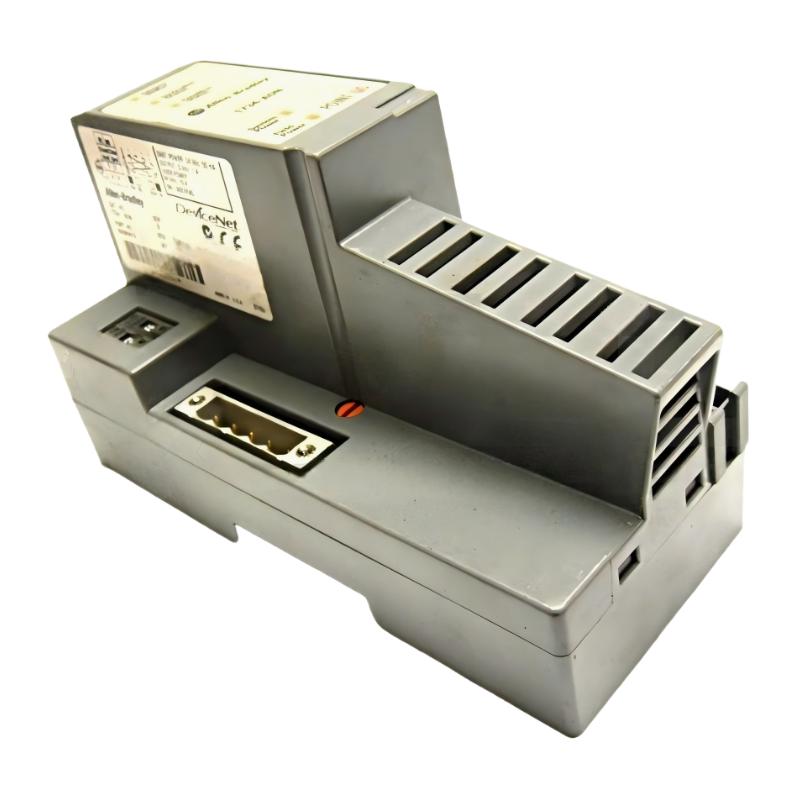

Q1. What is the main function of the Allen-Bradley 1734-ADN/B DeviceNet adapter module?
The 1734-ADN/B is designed to act as a communication interface between POINT I/O modules and a DeviceNet industrial network. Its main function is to aggregate input and output data from multiple distributed I/O modules and transmit that data to a PLC or controller over the DeviceNet network. In the opposite direction, it also receives control commands from the PLC and distributes them to the appropriate I/O modules. This makes it a critical communication gateway in distributed automation architectures.

Q2. How does this module work within a POINT I/O system?
In a POINT I/O system, multiple I/O modules (digital input, digital output, analog input, etc.) are mounted together on a terminal base. The 1734-ADN/B sits at the head of this assembly and acts as the communication master for the local node. It continuously scans the attached modules, collects their status data, and packages it for transmission over the DeviceNet network to the controller.

Q3. What is DeviceNet and why is it used in this module?
DeviceNet is an industrial fieldbus network based on the CIP (Common Industrial Protocol). It is used for real-time communication between industrial devices such as sensors, actuators, and I/O modules. In the 1734-ADN/B, DeviceNet provides a standardized and reliable communication backbone that allows distributed I/O systems to be integrated into larger automation networks with predictable timing and structured data exchange.

Q4. Why are distributed I/O systems important in industrial automation?
Distributed I/O systems reduce the need for long and complex wiring from field devices back to a central PLC cabinet. Instead, I/O modules are placed closer to the equipment, and only network communication is routed back to the controller. This reduces installation cost, improves signal reliability, simplifies maintenance, and makes system expansion much easier.

Q5. How is the 1734-ADN/B configured in a DeviceNet network?
Configuration is typically performed using Rockwell Automation software tools. Each module must be assigned a unique node address on the DeviceNet network. Communication parameters such as baud rate and scan list are also configured to define how the adapter communicates with the controller. Once configured, the adapter automatically manages cyclic data exchange with the PLC.

Q6. What types of industrial applications commonly use this module?
This module is widely used in automotive manufacturing lines, packaging systems, material handling equipment, assembly automation, and general process industries. It is especially useful in systems where machinery is distributed across large physical areas and centralized wiring would be inefficient or impractical.

Q7. How does this module ensure reliable operation in industrial environments?
The 1734-ADN/B is built with industrial-grade EMC protection to withstand electrical noise, voltage fluctuations, and harsh environmental conditions. Its robust communication design ensures stable data exchange even in environments with heavy motors, drives, and switching equipment that typically generate electromagnetic interference.

Q8. How does this module improve system performance and maintenance efficiency?
By decentralizing I/O and enabling network-based communication, the module significantly reduces wiring complexity and troubleshooting time. Maintenance becomes easier because individual I/O modules can be replaced without rewiring the entire system. Additionally, diagnostics provided through the network help operators quickly identify faults, improving overall system uptime and operational efficiency.
