Technical Specifications

FAQ

1. What is the main function of the 1746-HSTP1/E Stepper Motor Controller Module?

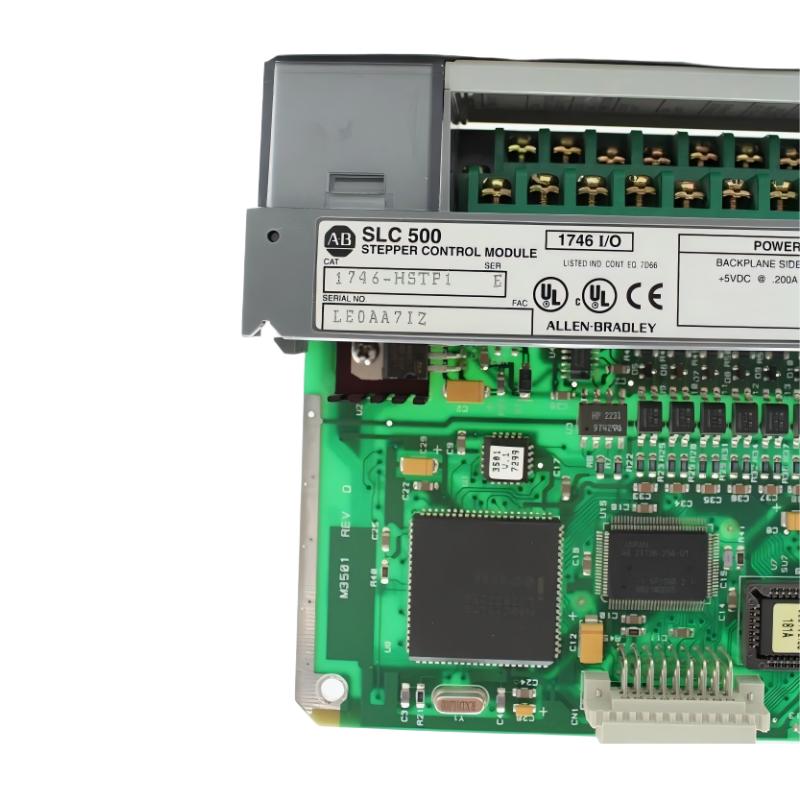

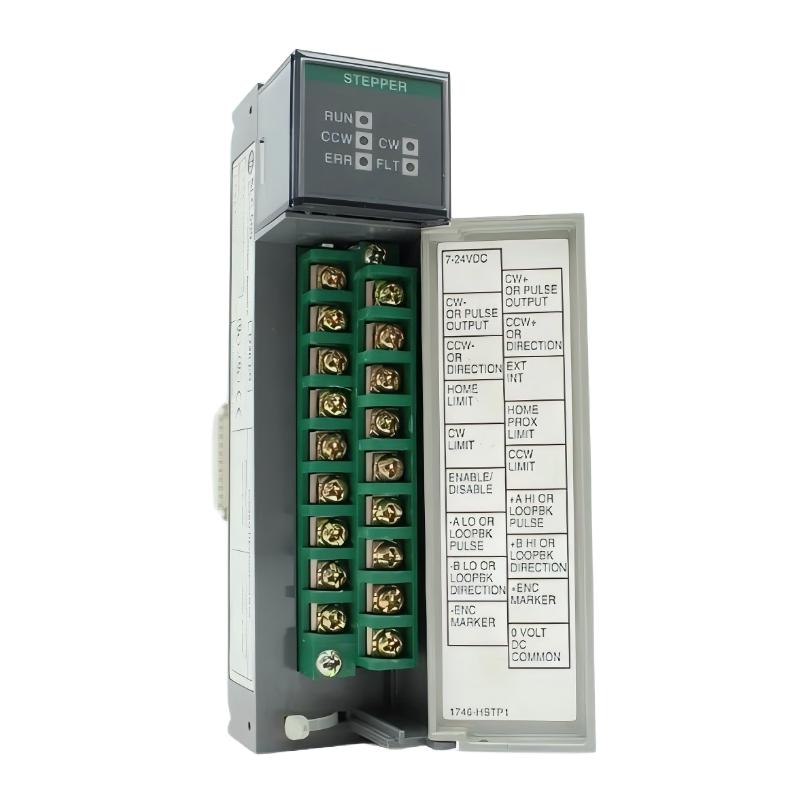

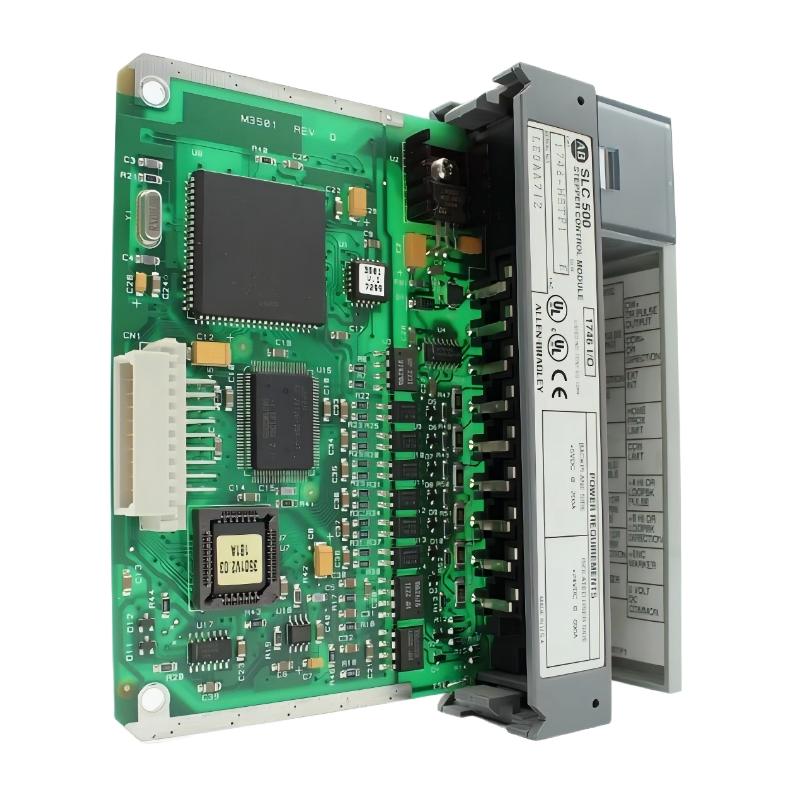

The 1746-HSTP1/E Stepper Motor Controller Module is designed to provide precise stepper motor control capability for Allen Bradley SLC 500 automation systems.

The module generates high-speed pulse signals and direction commands required for controlling stepper motor drives. By receiving control instructions from the SLC 500 PLC, it can manage motor movement, positioning operations, and speed adjustments according to the programmed application requirements.

This module is commonly used in applications where accurate positioning and repeatable motion control are required, such as automated machinery, indexing systems, and material handling equipment.

By integrating motion control directly into the PLC architecture, the 1746-HSTP1/E helps simplify system design and improves coordination between machine control logic and motor operation.

2. What types of applications are suitable for the 1746-HSTP1/E?

The 1746-HSTP1/E is suitable for industrial applications that require controlled stepper motor movement and accurate positioning.

Typical applications include packaging machines, assembly equipment, labeling systems, indexing mechanisms, semiconductor manufacturing equipment, and automated production systems.

The module is especially useful in applications where motors need to move a specific distance, rotate at a controlled speed, or execute repeated motion sequences.

For example, it can control a stepper motor used for positioning components on a production line or adjusting mechanical parts with high repeatability.

Its integration with the SLC 500 platform allows engineers to combine machine logic control and motion control within a single automation system.

3. How does the 1746-HSTP1/E communicate with an SLC 500 PLC system?

The 1746-HSTP1/E communicates with the SLC 500 PLC through the system backplane.

The PLC sends configuration parameters and motion commands to the module through the backplane communication interface.

After receiving instructions, the module processes the control information and generates the required pulse and direction signals for the connected stepper motor drive.

The PLC program can control parameters such as motor movement commands, positioning operations, and motion sequences.

This communication method allows the motion control module to work as an integrated part of the automation system rather than operating as an independent controller.

4. What type of motor can be controlled by the 1746-HSTP1/E?

The 1746-HSTP1/E is designed primarily for controlling stepper motor systems through compatible stepper motor drives.

The module itself typically provides pulse and direction signals rather than directly powering the motor.

A separate stepper motor driver receives the pulse commands from the module and supplies the required current and voltage to the motor.

This architecture allows the system to support different stepper motor sizes and mechanical configurations depending on application requirements.

Before installation, engineers should verify compatibility between the module, stepper motor drive, and motor specifications to ensure reliable motion performance.

5. How can positioning problems with the 1746-HSTP1/E be diagnosed?

When positioning problems occur, troubleshooting should begin by checking the PLC program, module configuration, and communication status.

Engineers should verify that motion parameters are correctly configured and that the module is receiving valid commands from the SLC 500 controller.

The next step is to inspect pulse and direction signal wiring between the module and the stepper motor drive.

Common causes of positioning issues include incorrect configuration settings, improper wiring, excessive mechanical load, incorrect motor tuning, or step loss caused by acceleration settings.

Checking module diagnostic information and monitoring system operation can help identify the source of the problem.

A structured troubleshooting process helps restore accurate motion control performance quickly.

6. What should be considered when installing the 1746-HSTP1/E?

During installation, engineers should confirm that the 1746-HSTP1/E is compatible with the existing SLC 500 control system configuration.

The module should be installed correctly in the PLC chassis and securely connected through the backplane.

Signal wiring between the module and stepper motor drive should follow recommended installation practices to reduce electrical noise and signal interference.

The motor drive, power supply, and control wiring should be properly arranged to prevent unwanted disturbances during operation.

After installation, system testing should be performed to verify communication, pulse output, motor response, and positioning accuracy.

Proper installation ensures stable operation and improves overall motion control reliability.

7. Can the 1746-HSTP1/E be used for upgrading existing automation systems?

Yes, the 1746-HSTP1/E can be used in existing Allen Bradley SLC 500 automation systems that require additional stepper motor control capability.

Many industrial facilities use this type of module to upgrade machine functions by adding precise motion control without replacing the entire PLC system.

By integrating the module into an existing SLC 500 platform, engineers can improve equipment positioning performance and expand automation capabilities.

It is commonly used for machine upgrades, production line improvements, and replacement of older motion control solutions.

The modular design of the SLC 500 platform makes integration and system expansion more convenient.

8. How can the long-term reliability of the 1746-HSTP1/E be maintained?

To maintain reliable long-term operation of the 1746-HSTP1/E, proper installation, regular inspection, and preventive maintenance are recommended.

Maintenance personnel should periodically check PLC diagnostics, module status, wiring connections, and communication performance.

The control cabinet environment should be maintained properly to avoid problems caused by dust, moisture, vibration, or excessive temperature conditions.

Motor drive connections and control cables should also be inspected regularly to ensure stable signal transmission.

During system modifications or PLC program updates, configuration parameters should be backed up and verified before returning the equipment to operation.

With correct maintenance practices, the 1746-HSTP1/E can provide stable and accurate stepper motor control for industrial automation systems over long-term operation.
