1. What is the main function of the 1746-OBP8/B module?

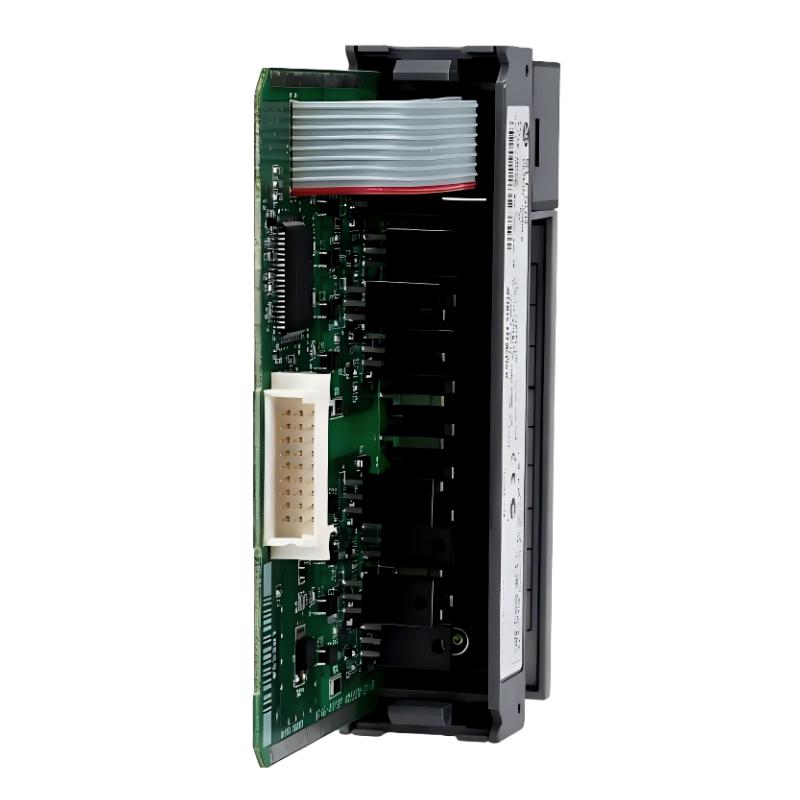

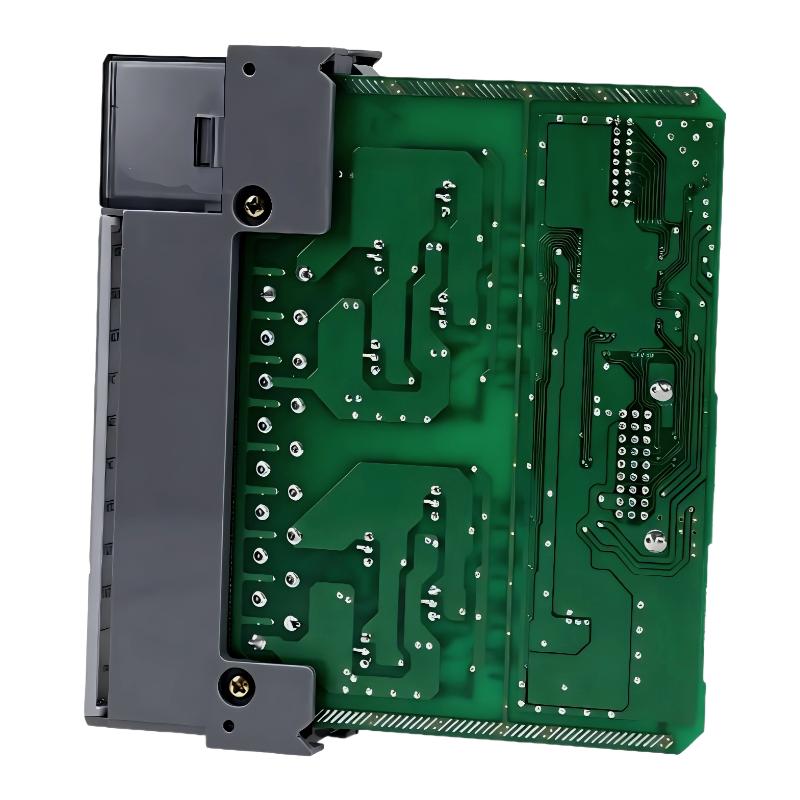

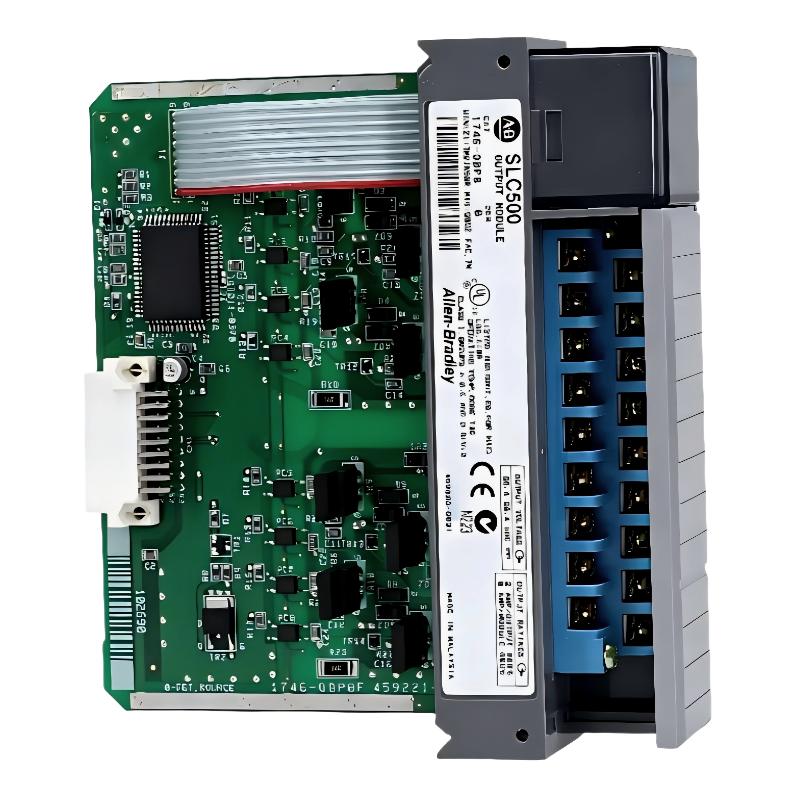

The 1746-OBP8/B is a digital DC output module used in the SLC 500 PLC system. Its primary function is to convert control signals from the PLC processor into physical ON/OFF output signals that drive field devices such as solenoids, relays, indicator lamps, and other DC-powered actuators. It acts as a key interface between control logic and real-world industrial equipment.

2. What types of industrial applications is this module used in?

This module is widely used in manufacturing automation, packaging systems, material handling lines, chemical processing, water treatment facilities, and building automation systems. It is suitable for any application requiring reliable discrete DC output control.

3. What are the advantages of transistor-based DC outputs compared to relay outputs?

Transistor outputs provide faster switching speed, longer service life, and no mechanical wear. They are better suited for high-frequency switching applications and offer higher reliability in continuous operation compared to mechanical relay outputs.

4. How does this module communicate with the PLC system?

The module communicates with the SLC 500 processor through the backplane bus. It receives output commands from the CPU and converts them into corresponding electrical signals to control field devices in real time.

5. What should be considered during installation?

Installation should be performed with power removed from the system. The module must be properly seated in the rack to ensure stable communication. Load wiring should comply with rated specifications, and signal cables should be separated from power lines to minimize electrical noise.

6. What factors can affect output stability?

Output stability may be affected by power fluctuations, excessive load, poor wiring connections, electromagnetic interference, and high operating temperatures. Faulty field devices or short circuits may also impact module performance.

7. Is this module suitable for high-speed switching applications?

Yes, the transistor output design makes it well-suited for high-speed switching applications such as automated production lines and sorting systems. However, loads must remain within rated limits to ensure reliable long-term operation.

8. How can overall system reliability be improved?

System reliability can be improved by ensuring proper grounding, using shielded cables, separating power and signal wiring, performing regular terminal inspections, and maintaining proper cabinet ventilation. In critical systems, redundancy strategies and diagnostic monitoring can further enhance operational stability and fault tolerance.
