1. What is the main function of the 1746-OW4 relay output module?

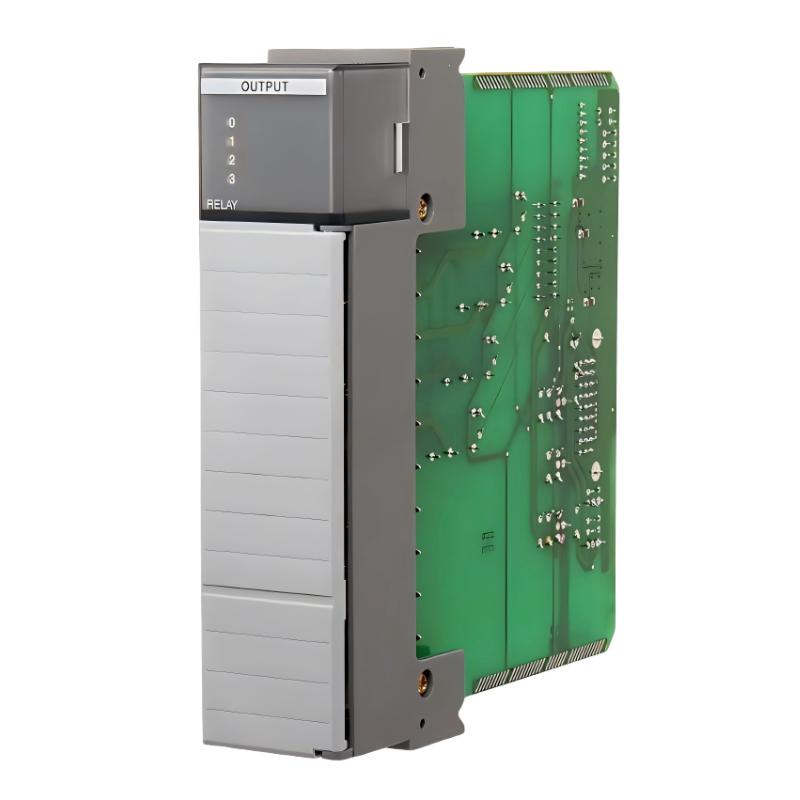

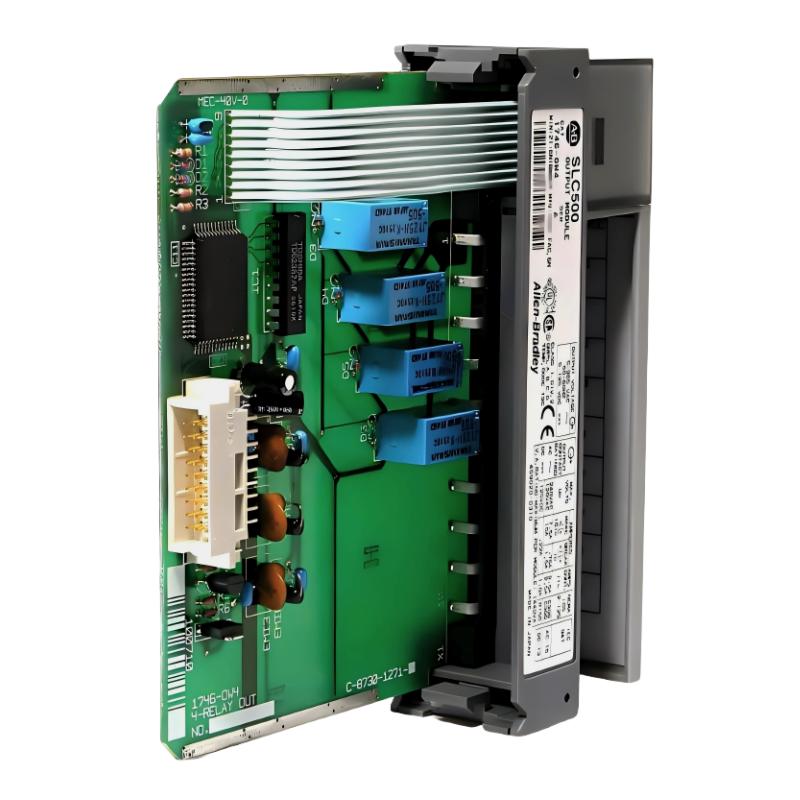

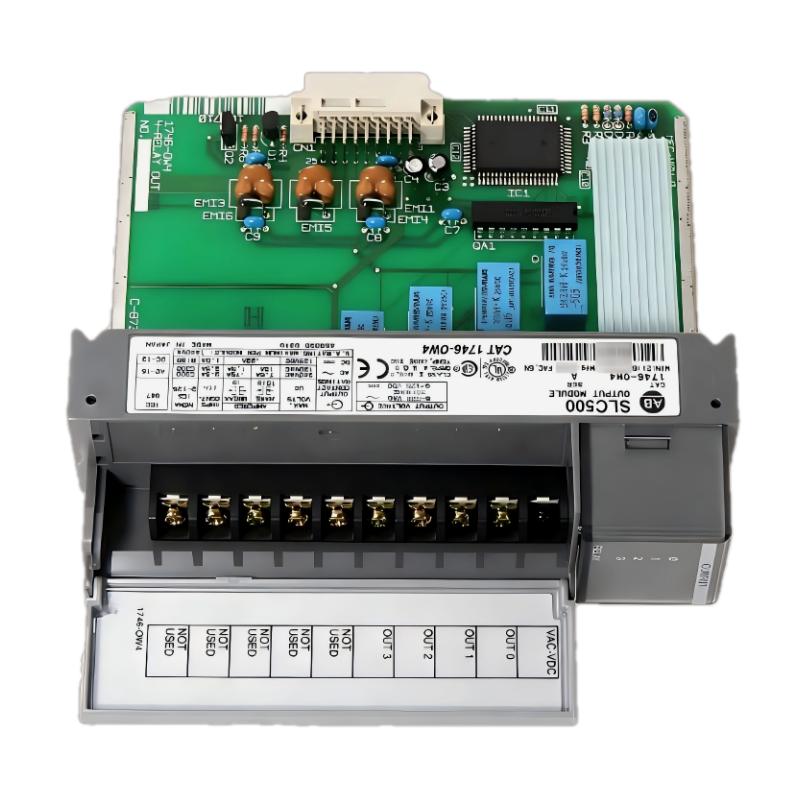

The 1746-OW4 is a relay-based output module designed for the SLC 500 PLC system. Its primary function is to convert low-level control signals from the PLC processor into physical switching actions through electromechanical relay contacts. These contacts are used to turn external industrial loads ON or OFF, such as motors, solenoids, alarms, lighting systems, and other field devices. Because it uses mechanical relays, it is suitable for applications requiring electrical isolation and the ability to switch both AC and DC loads.

2. What types of industrial applications commonly use this module?

This module is widely used in industrial automation environments such as manufacturing lines, packaging systems, conveyor control, HVAC systems, water treatment facilities, and general machinery control. It is particularly useful in applications where mixed-load control (both AC and DC) is required, or where electrical isolation between the control system and field devices is important for safety and reliability.

3. What are the advantages of relay outputs compared to transistor outputs?

Relay outputs offer greater flexibility because they can switch both AC and DC loads, whereas transistor outputs are typically limited to DC only. They also provide strong electrical isolation between the control circuit and the field wiring. This makes relay modules suitable for interfacing with a wide range of industrial devices. However, relay outputs are mechanical in nature, meaning they are slower and subject to wear over time, especially in high-frequency switching applications.

4. How does the 1746-OW4 module operate within the SLC 500 system?

The module communicates with the SLC 500 processor through the system backplane. When the PLC logic sends an output command, the module energizes or de-energizes the corresponding relay coil. This action mechanically opens or closes the relay contacts, which in turn control the connected external devices. The process is deterministic and synchronized with the PLC scan cycle, ensuring predictable control behavior.

5. What should be considered during installation and wiring?

Installation should always be performed with power removed from the system to ensure safety. The module must be properly seated in the rack to ensure reliable backplane communication. Field wiring should follow industrial best practices, including separating power wiring from signal wiring to reduce electromagnetic interference. It is also important to ensure that the load does not exceed the relay’s rated current and voltage limits.

6. What factors can affect relay performance and lifespan?

Relay lifespan is influenced by several factors, including switching frequency, load type, inrush current, and arc suppression quality. High inrush loads such as motors or inductive devices can generate electrical arcing, which gradually wears down the relay contacts. Excessive switching cycles or operation near maximum rated load can also significantly shorten service life. Environmental conditions such as heat and vibration may further accelerate mechanical wear.

7. Is the module suitable for continuous industrial operation?

Yes, the 1746-OW4 is designed for continuous industrial operation within control systems. It is robust enough for 24/7 use in industrial environments when operated within its rated electrical and mechanical limits. However, because it relies on mechanical contacts, it is more suitable for moderate switching frequency applications rather than extremely high-speed switching scenarios.

8. How can system reliability be improved when using this module?

System reliability can be improved by ensuring proper load matching, avoiding overload conditions, and using appropriate surge suppression devices such as RC snubbers or flyback diodes for inductive loads. Good cabinet design practices such as proper grounding, thermal management, and clean wiring layouts also help maintain stability. In critical applications, distributing loads across multiple relay channels or implementing redundancy strategies can further reduce stress on individual contacts and extend overall system lifetime.
