1. What is the primary function of the 1746-OX8/A module?

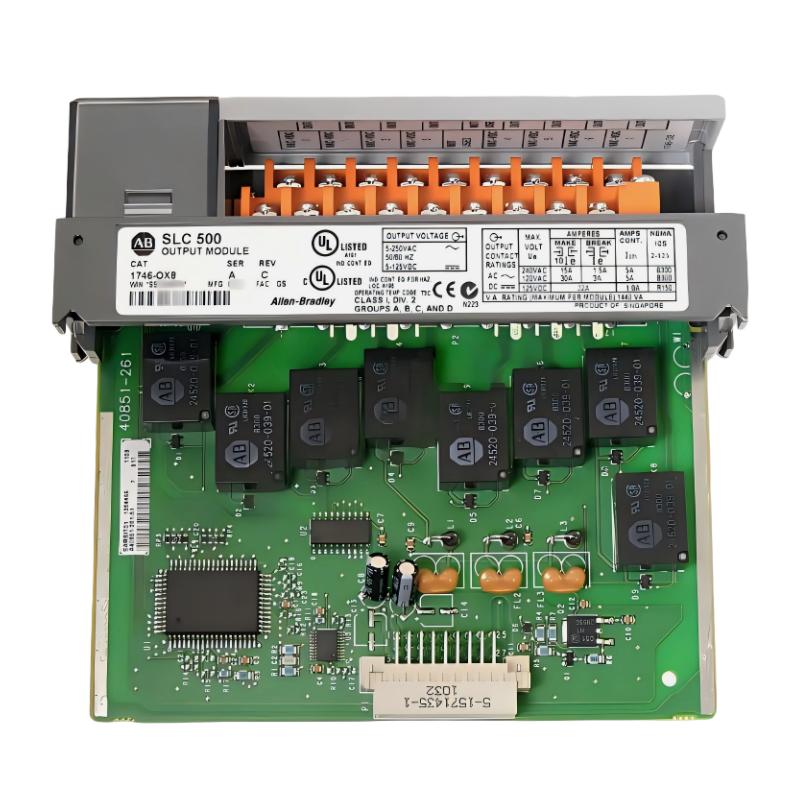

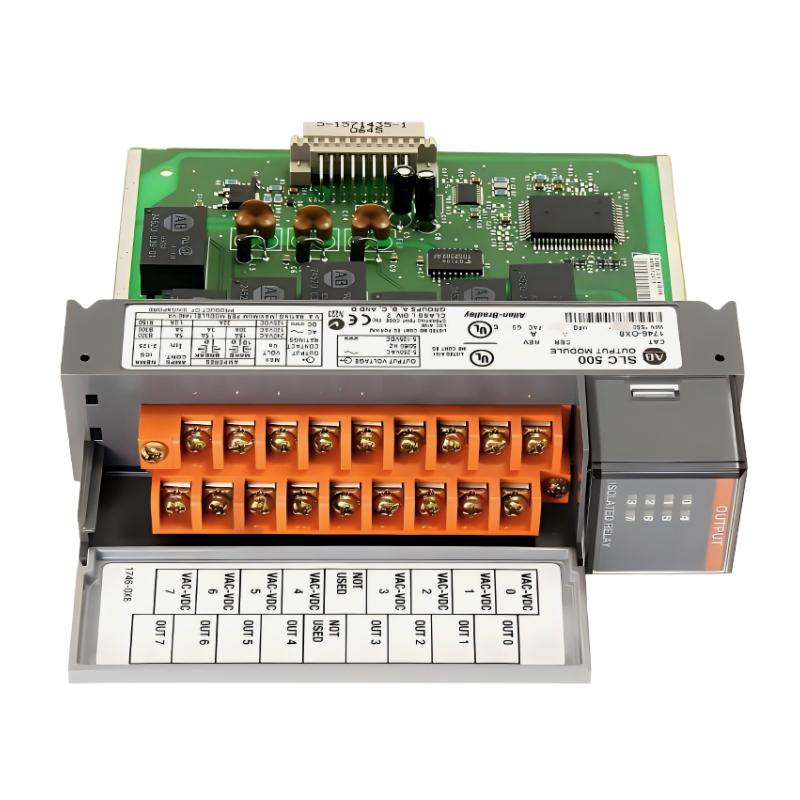

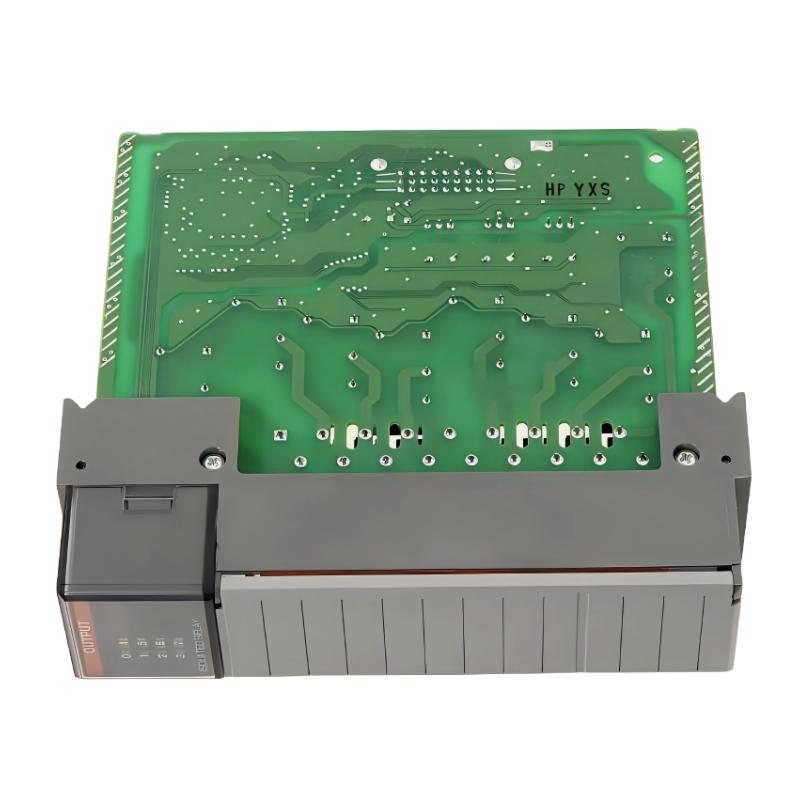

The 1746-OX8/A is an isolated relay output module used in the SLC 500 PLC system. Its primary function is to convert control signals from the PLC into physical switching actions through eight individually isolated relay outputs. Each channel can independently control external field devices such as motors, solenoids, alarms, and lighting systems. The isolation design improves safety and reduces the risk of electrical interference between channels.

2. What does “isolated relay output” mean in this module?

Isolated relay output means that each output channel is electrically separated from the others. This isolation prevents electrical faults, noise, or voltage spikes on one channel from affecting the others. It enhances system reliability and safety, especially in environments where mixed or high-energy loads are present.

3. What types of loads can this module control?

This module can control a wide range of AC and DC loads due to its mechanical relay design. It is commonly used for switching inductive loads like contactors, solenoids, motor starters, and resistive loads such as lamps or heaters. Its flexibility makes it suitable for general-purpose industrial control applications.

4. How does the module operate within the SLC 500 system?

The module communicates with the SLC 500 processor through the system backplane. When the PLC logic triggers an output, the module energizes the corresponding relay coil, causing the mechanical contacts to open or close. This action directly switches the connected field device according to the control program.

5. What installation practices are recommended?

Installation should always be performed with system power removed. The module must be securely inserted into the correct rack slot to ensure proper communication. Field wiring should be routed separately from power lines to minimize electromagnetic interference. It is also important to verify that all loads are within rated specifications before operation.

6. What factors affect relay lifespan in this module?

Relay lifespan is primarily affected by switching frequency, load type, and electrical stress. Inductive loads that generate arcing during switching can significantly reduce contact life. Operating near maximum rated load or frequent switching cycles can also accelerate wear. Proper surge suppression can help extend relay durability.

7. Is this module suitable for continuous operation?

Yes, the 1746-OX8/A is designed for continuous industrial operation within its rated specifications. It is suitable for 24/7 use in automation systems, provided that load conditions and environmental factors remain within recommended limits. However, it is not intended for ultra-high-speed switching applications.

8. How can system reliability be improved when using this module?

System reliability can be improved by using proper load matching, installing surge suppression devices for inductive loads, ensuring good grounding practices, and maintaining clean wiring separation between power and signal lines. Regular inspection of relay contacts and avoiding overloading each channel also helps extend system life and improve overall stability.
