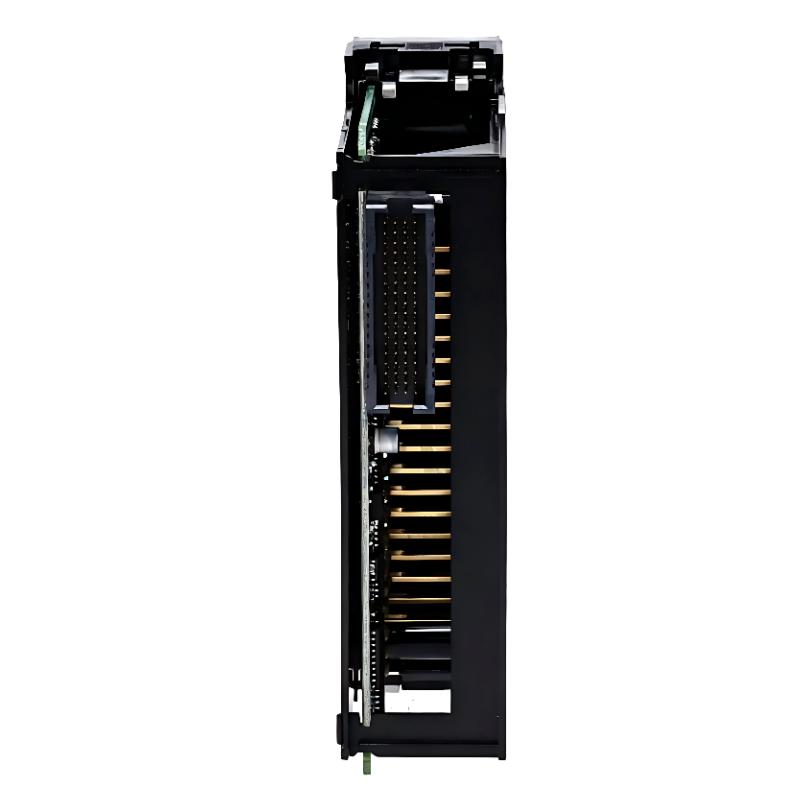

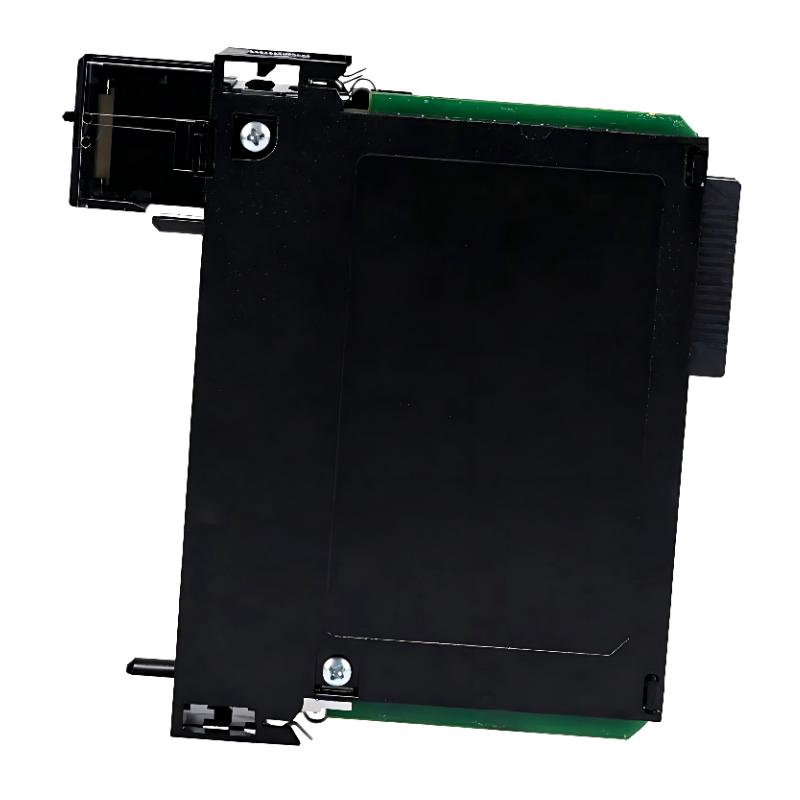

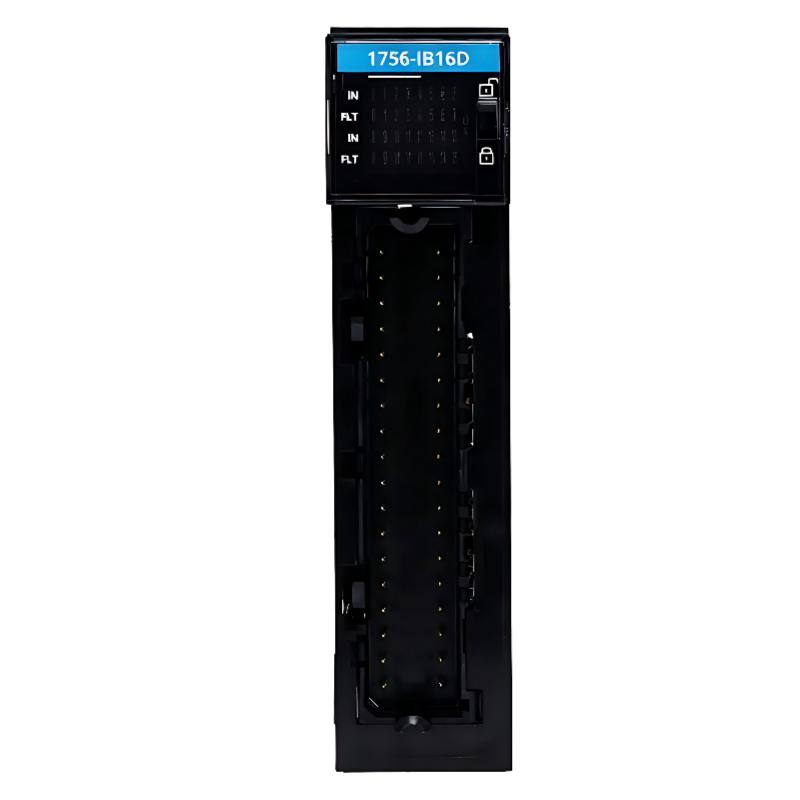

Allen Bradley 1756-IB16D ControlLogix Diagnostic Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlLogix Diagnostic Digital Input Module |
| Brand | Allen-Bradley |
| Model | 1756-IB16D |
| Product Type | Diagnostic Digital Input Module |
| Series | ControlLogix |
| Main Function | Collects digital input signals with per-channel diagnostics |
| Input Type | DC digital input |
| Number of Inputs | 16 channels |
| Diagnostic Capability | Detects open circuit, short circuit, and field wiring faults |
| Signal Processing | On/Off state detection with enhanced diagnostic evaluation |
| Input Voltage Range | Industrial DC input signal range |
| Channel Isolation | Channel-to-channel electrical isolation |
| Response Time | High-speed input scanning |
| Status Indication | Per-channel LED status indicators |
| Fault Detection | Real-time wiring and load diagnostics |
| System Compatibility | ControlLogix platform |
| Communication Method | Backplane communication with ControlLogix CPU |
| Installation Method | ControlLogix chassis slot mounting |
| EMC Protection | Industrial-grade electromagnetic compatibility design |
| Operating Environment | Industrial automation environments |
| Structure Type | Plug-in module design |
| Application Type | Safety monitoring and equipment status detection |
| Maintenance Design | Modular quick replacement design |
| Reliability Design | Designed for high-integrity diagnostic applications |
| Dimensions | 144.57 × 22 × 105.42 mm |
| Weight | 0.15 kg |
FAQ
1. What is the main function of the 1756-IB16D diagnostic input module?
The 1756-IB16D is designed to read 16 digital DC input signals while also providing advanced diagnostic capabilities. Unlike standard input modules, it can detect wiring faults such as open circuits, short circuits, and abnormal field conditions. This allows the control system to not only read signals but also verify their integrity.
2. Why are diagnostic input modules important in industrial systems?
Diagnostic input modules significantly improve system reliability and maintenance efficiency. They help identify wiring issues or device failures early, reducing unexpected downtime and preventing incorrect control actions caused by faulty input signals.
3. How does the module communicate with the ControlLogix controller?
The module connects directly to the ControlLogix backplane, transmitting both input states and diagnostic information to the controller in real time. This enables the PLC to make immediate decisions based on both signal status and signal health.
4. What types of applications is this module best suited for?
It is commonly used in safety-related systems, critical equipment monitoring, alarm systems, interlocking logic, and any application where input signal reliability is essential for safe and stable operation.
5. How does channel-level diagnostics improve maintenance?
Channel-level diagnostics allow maintenance personnel to quickly identify exactly which input channel has a fault, such as wiring disconnection or short circuit. This eliminates the need for manual point-by-point troubleshooting, greatly reducing repair time and operational downtime.
6. What happens when a fault is detected on an input channel?
When a fault is detected, the module sends diagnostic status information to the controller. The control system can then trigger alarms, execute safety logic, or isolate affected processes depending on the programmed response strategy.
7. Is this module suitable for safety-related control systems?
Yes, it is widely used in safety-related applications due to its diagnostic capabilities. However, overall safety integrity depends on the complete system design, including controller logic, wiring architecture, and safety certification requirements.
8. What installation and wiring practices are recommended?
The module should be securely installed in a ControlLogix chassis with proper grounding. Signal wiring should be separated from high-power cables to reduce interference. Regular inspection of diagnostic indicators is recommended to ensure long-term reliable operation.
Allen Bradley 1756-IB16D ControlLogix Diagnostic Input Module is in stock. Please contact us for a quick quote and competitive pricing.
