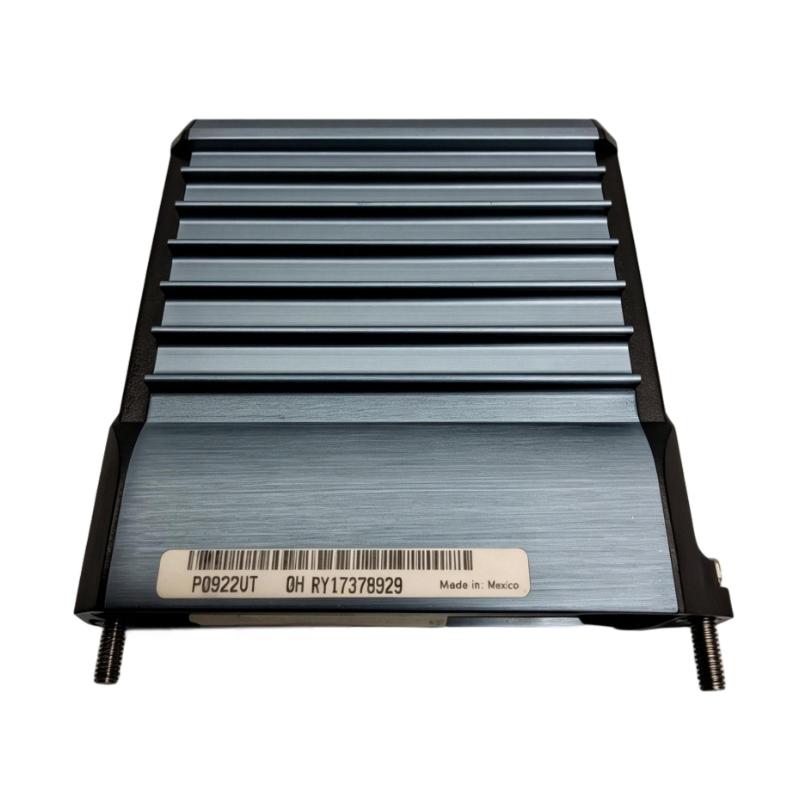

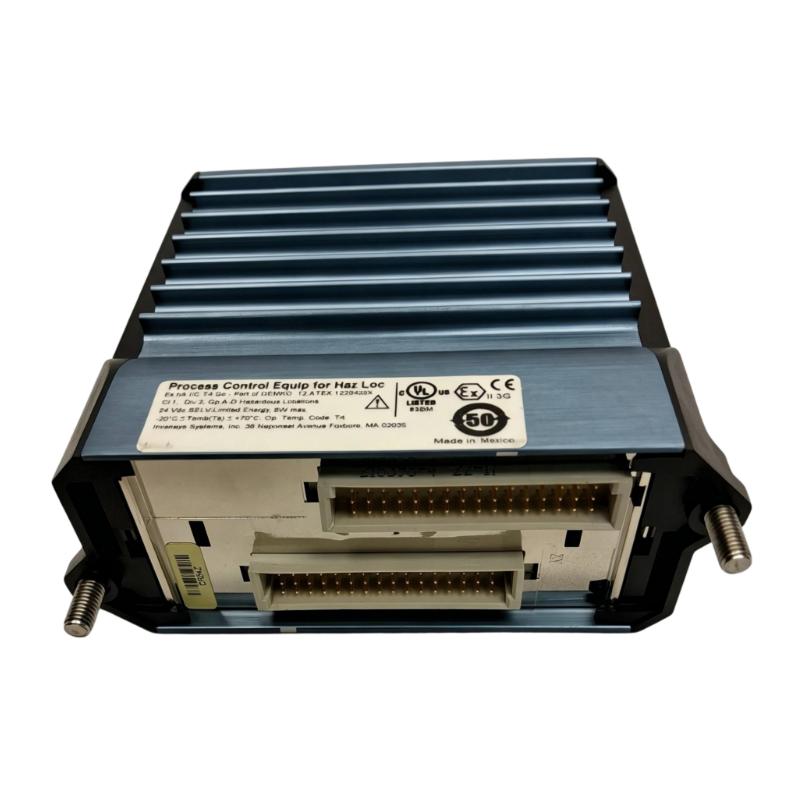

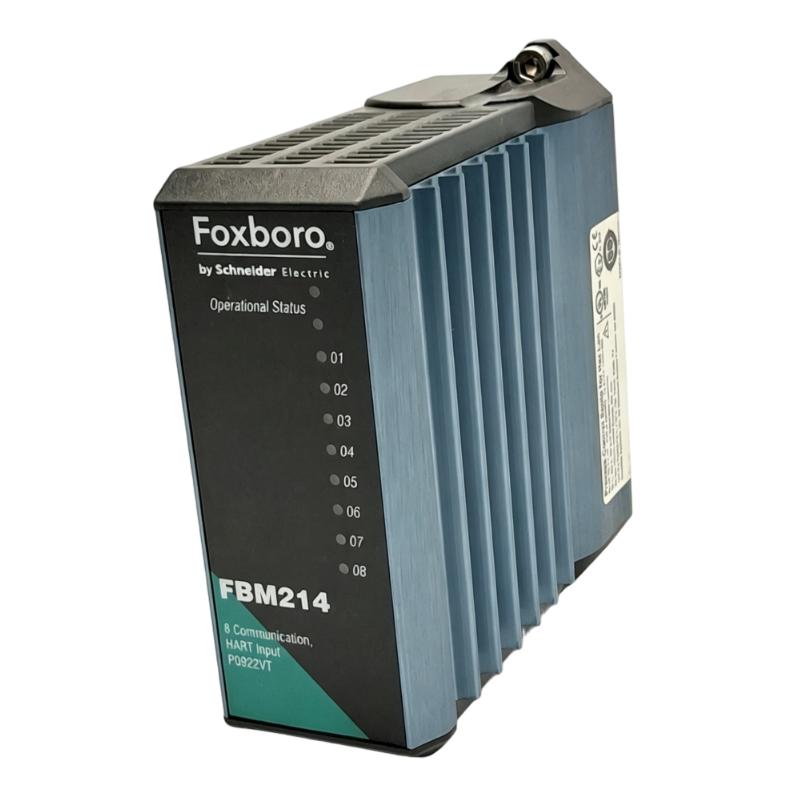

Foxboro FBM214 P0922VT Communication Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Product Name | HART Communication Input Interface Module |
| Model Number | FBM214 |
| Order Number | P0922VT |
| Product Series | I/A Series |
| Product Type | Analog Input and HART Communication Module |
| Number of Input Channels | 8 |
| Input Signal | 4–20 mA analog signal |
| Communication Protocol | HART |
| HART Communication | Supports bidirectional communication with compatible HART field devices |
| Analog-to-Digital Conversion | Sigma-delta conversion |
| Resolution | 15-bit |
| Measurement Accuracy | ±0.03% of full scale, including nonlinearity |
| Channel Isolation | Eight input channels isolated as a group from ground and module logic |
| Module Power Supply | 24 V DC ±5%, redundant supply |
| Maximum Power Consumption | 7 W |
| Mounting Method | Modular baseplate; DIN rail or 19-inch rack installation with appropriate mounting hardware |
| Field Connection | Compatible termination assembly connected through a 25-pin D-sub cable |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
Q1: What is the main function of the Foxboro FBM214 P0922VT module?
The FBM214 is an input interface module designed for Foxboro I/A Series distributed control systems. It collects analog signals from field transmitters and supports HART communication, allowing the control system to access both process measurements and supported digital information from intelligent instruments.
Q2: How many input channels does the FBM214 support?
The FBM214 provides eight analog input channels. Each channel can accept a standard 4–20 mA signal or a compatible HART signal superimposed on the 4–20 mA current loop, making it suitable for installations that combine conventional and smart field instruments.
Q3: Can the FBM214 communicate with HART smart transmitters?
Yes. The module supports bidirectional HART communication with compatible field devices. This allows the control system to access supported device information and diagnostic data in addition to receiving the analog process value.
Q4: What is the difference between a standard 4–20 mA transmitter and a HART transmitter when used with the FBM214?
A standard 4–20 mA transmitter provides a process measurement through the current signal. A HART transmitter carries additional digital communication over the same current loop. When correctly configured, the FBM214 can acquire the analog measurement and communicate with supported HART devices.
Q5: Is the FBM214 compatible with every Foxboro DCS system?
Compatibility depends on the installed I/O hardware, modular baseplate, termination assembly, controller configuration, and system software. Before replacing or adding a module, check the existing system documentation and confirm that model FBM214, order number P0922VT, is supported by the target configuration.
Q6: What should be checked if the FBM214 does not receive a valid input signal?
Check the field transmitter’s power supply, loop wiring, polarity, termination connections, and current output. Also inspect module seating, system configuration, and any reported channel or module diagnostics. If the problem affects multiple channels, examine the common wiring and power arrangements as well.
Q7: What is the purpose of channel isolation in the FBM214?
The module provides group isolation between its eight input channels and ground and module logic. This helps reduce the effects of electrical interference and ground-potential differences on signal acquisition. It does not mean that every input channel is individually isolated from every other channel.
Q8: What precautions should be taken when replacing an FBM214 module?
Verify the model and order number, confirm compatibility with the installed baseplate and termination assembly, and check the wiring documentation before replacement. Follow the site’s electrical safety and shutdown procedures, observe electrostatic discharge precautions, and verify channel readings and HART communication after installation.
Foxboro FBM214 P0922VT Communication Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
