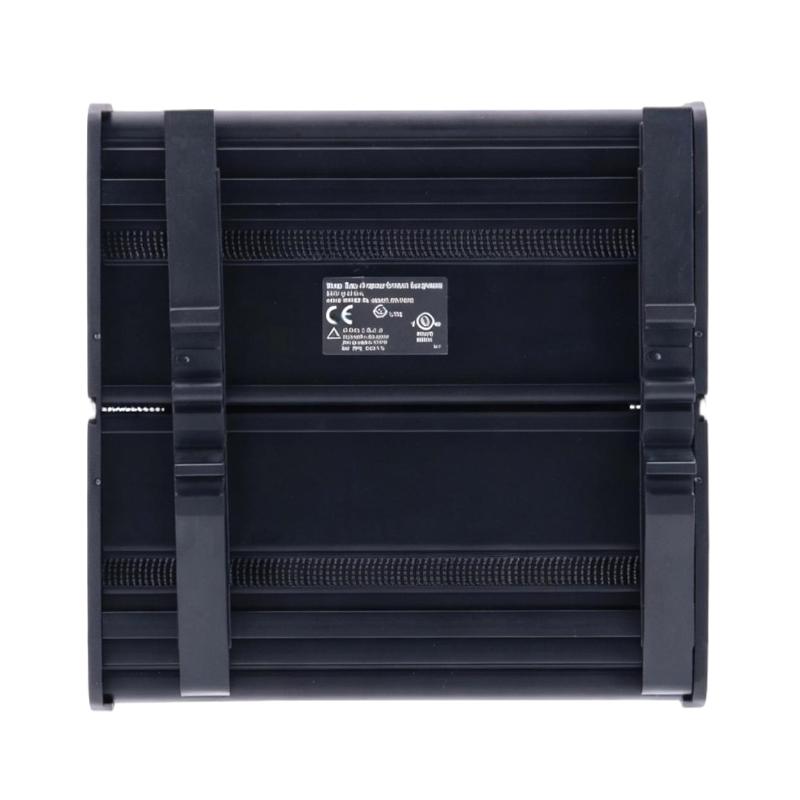

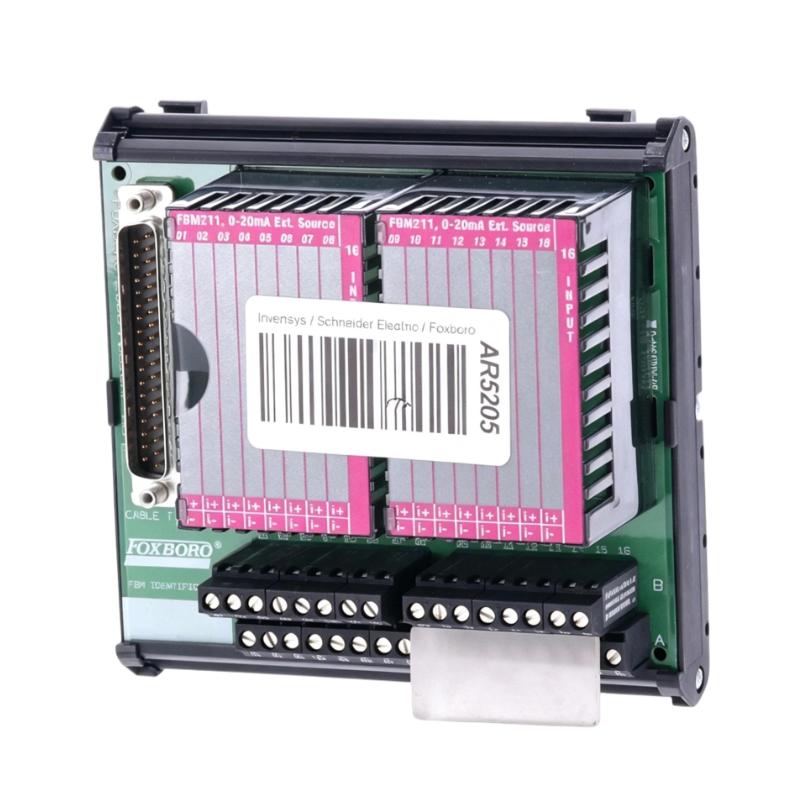

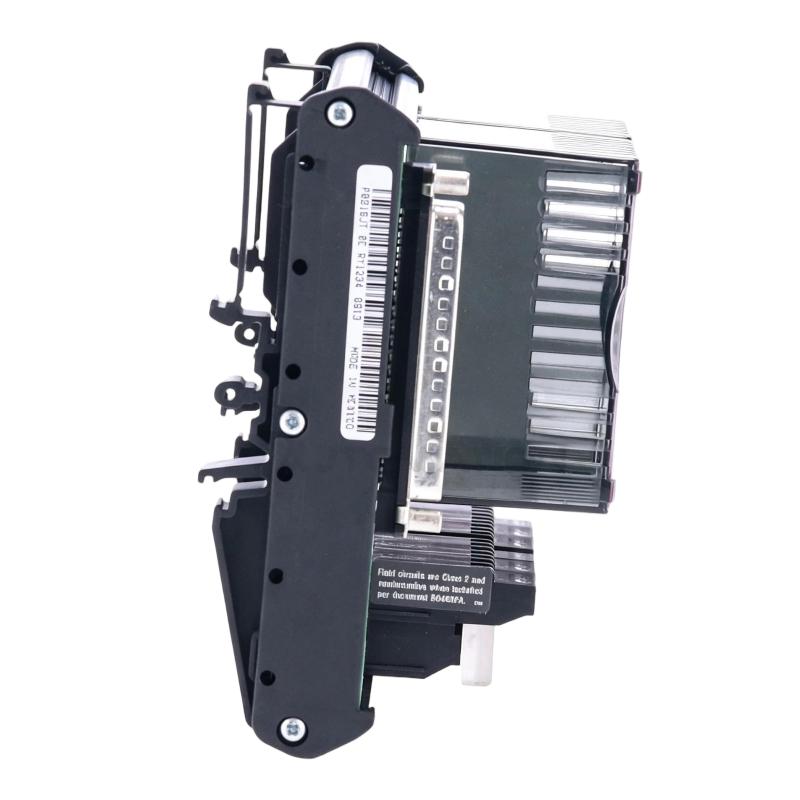

Foxboro FBM211 P0916JT Compression Terminal Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM211 |
| Ordering Number | P0916JT |
| Product Name | Compression Terminal Assembly |
| Product Type | DCS Field Termination Assembly |
| Compatible Module | Foxboro FBM211, 0–20 mA Input Module |
| Main Function | Provides field wiring termination and signal connections between field devices and the FBM211 module |
| Input Signal Type | 0–20 mA analog input |
| Channel Capacity | Supports 16 two-wire analog input signals |
| Terminal Type | Compression screw terminals |
| Loop Power Supply | External DC power supply for field devices |
| Connection to FBM | Connected through a compatible termination cable and baseplate |
| Mounting Method | DIN rail mounting |
| Terminal Wiring Range | Solid wire: 0.2–4 mm²; stranded wire: 0.2–2.5 mm² |
| Termination Assembly Material | Polyvinyl chloride (PVC) version |
| Operating Temperature | -20 to +50°C for the PVC termination assembly |
| Dimensions | 127 × 80 × 125 mm |
| Weight | 0.272 kg |
FAQ
Q1: What is the main function of the Foxboro FBM211 P0916JT Compression Terminal Assembly?
A: The P0916JT provides field wiring termination for the Foxboro FBM211 analog input module. It connects field signals to the control system through the appropriate termination cable and baseplate, helping organize wiring and simplify installation and maintenance.
Q2: Which Foxboro module is compatible with the P0916JT?
A: The P0916JT is designed for use with the FBM211, a 0–20 mA analog input module in the Foxboro 200 Series system. Confirm the module version, baseplate, and termination cable before installation.
Q3: Does the P0916JT provide power to connected field devices?
A: The P0916JT configuration is intended for applications where field-device loop power comes from a customer-supplied external DC power supply. The external supply and wiring must meet the requirements of the connected instruments and control system.
Q4: How many analog input signals can the FBM211 termination assembly support?
A: The FBM211 termination arrangement supports up to 16 two-wire analog input signals. Correct field wiring and channel assignment are essential for accurate signal acquisition and reliable process monitoring.
Q5: What type of wiring terminals does the P0916JT use?
A: The P0916JT uses compression screw terminals. The applicable wiring range includes solid conductors from 0.2 to 4 mm² and stranded conductors from 0.2 to 2.5 mm². Ferrules, where used, must comply with the manufacturer’s terminal specifications.
Q6: What should be checked if an analog input signal is missing or unstable?
A: Check the field-device power supply, loop wiring polarity, terminal tightness, cable connections, and signal current. If the field wiring is correct, inspect the termination cable, baseplate connection, and FBM211 channel status to determine whether the issue originates in the field circuit or control system.
Q7: Can the P0916JT be replaced with another FBM211 termination assembly?
A: Replacement depends on the power arrangement, terminal style, cable connection, and required certification. Other FBM211 termination assemblies may be designed for different loop-power configurations or ring-lug connections, so verify the exact part number and application before substitution.
Q8: What precautions should be taken when installing or replacing the P0916JT?
A: Isolate the relevant power sources and follow the site’s electrical safety procedures before working on field wiring. Label conductors before removal, verify terminal assignments, inspect the cable and connectors, and confirm that the assembly is securely mounted. After installation, check signal readings and channel status before returning the system to normal operation.
Foxboro FBM211 P0916JT Compression Terminal Assembly is in stock. Please contact us for a quick quote and competitive pricing.
