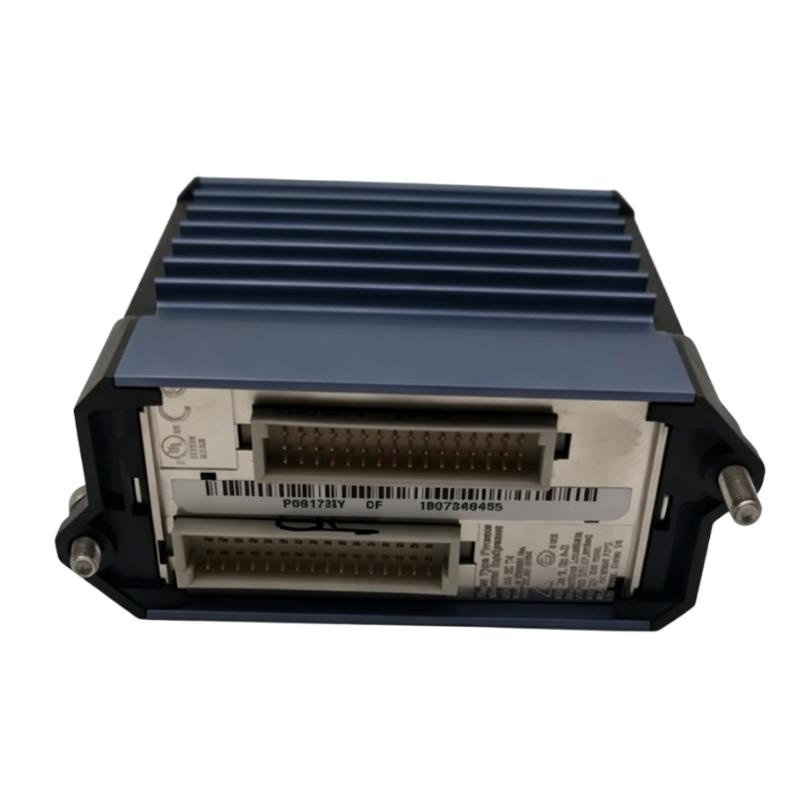

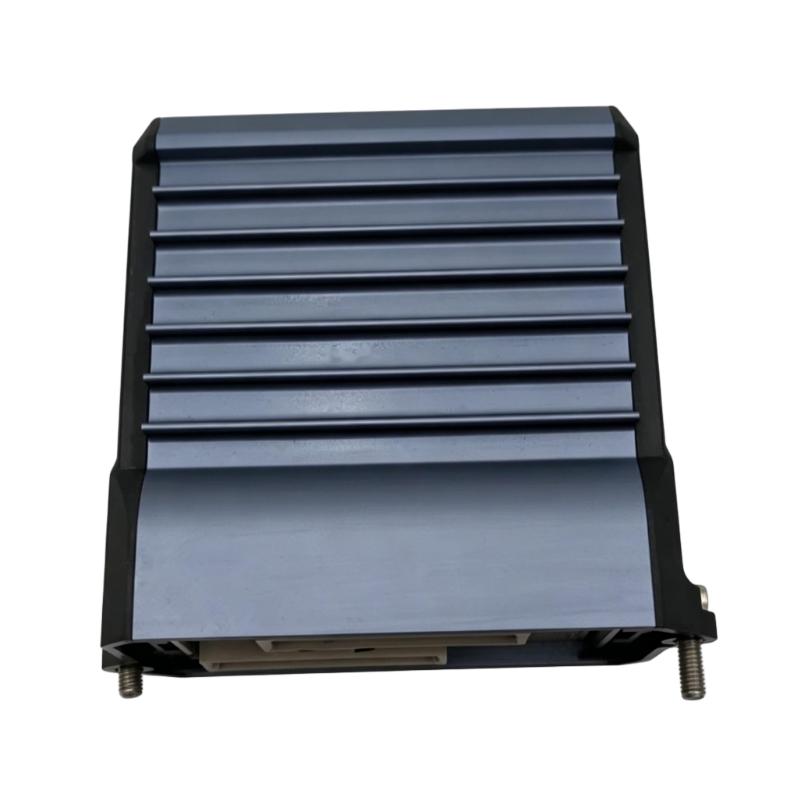

Foxboro FBM207c RH917GY Contact-Sensing Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model Number | FBM207c |
| Ordering Number | RH917GY |
| Product Type | Contact-Sensing Input Interface Module |
| Product Series | I/A Series / Compact 200 Series |
| Input Type | 48 V DC contact-sensing input |
| Number of Channels | 16 isolated, independent input channels |
| Contact Input Status | Detects open (OFF) and closed (ON) contact states |
| Open-Circuit Voltage | 48 V DC ±15% |
| Short-Circuit Current | 3.2 mA typical |
| ON-State Resistance | 1.0 kΩ maximum |
| OFF-State Resistance | 100 kΩ minimum |
| Input Filtering | Configurable: no filtering, 4, 8, 16, or 32 ms |
| Pulse Counting | No missing pulses at pulse rates from 0 to 250 Hz |
| Communication Interface | Redundant 2 Mbps module Fieldbus to the associated FCM or FCP |
| Power Supply | 24 V DC (+5%, −10%) |
| Power Consumption | 5 W maximum |
| Mounting | Modular baseplate installation |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
Q1: What is the main function of the Foxboro FBM207c RH917GY module?
A: The FBM207c is a contact-sensing input module used to monitor the ON/OFF status of field contacts. It collects discrete signals from compatible switches and contact devices and transfers the status information to the Foxboro control system.
Q2: How many input channels does the FBM207c provide?
A: The module provides 16 isolated, independent input channels. This allows multiple field contact signals to be monitored through a single module.
Q3: What type of input signals does the FBM207c support?
A: The FBM207c is designed for 48 V DC contact-sensing applications. Each channel detects whether the connected contact is open or closed. Confirm that the field signal and wiring arrangement match the module specifications before connecting it.
Q4: How does the FBM207c communicate with the control system?
A: It communicates with its associated Fieldbus Communication Module (FCM) or Fieldbus Control Processor (FCP) through a redundant 2 Mbps module Fieldbus. Correct configuration and compatible system hardware are required for reliable communication.
Q5: Can the input filtering time be configured?
A: Yes. The supported filter or debounce settings are no filtering, 4 ms, 8 ms, 16 ms, and 32 ms. The appropriate setting depends on the field device and the need to suppress contact bounce or short-duration signal changes.
Q6: What should be checked if the module does not detect a contact signal?
A: Check the field wiring, contact condition, input voltage, terminal connections, and module status indicators. Also verify the channel configuration and confirm that the signal is within the specified electrical limits.
Q7: What are the common causes of communication problems with the FBM207c?
A: Possible causes include loose Fieldbus connections, incorrect module installation, incompatible configuration, power supply problems, or faults in the associated FCM/FCP. Check the module status and network connections before replacing hardware.
Q8: What precautions should be taken when replacing the FBM207c module?
A: Follow the site’s electrical safety procedures and the Foxboro system maintenance manual. Confirm the correct model and ordering number, verify the mounting and termination arrangements, and check module configuration and Fieldbus communication after replacement.
Foxboro FBM207c RH917GY Contact-Sensing Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
