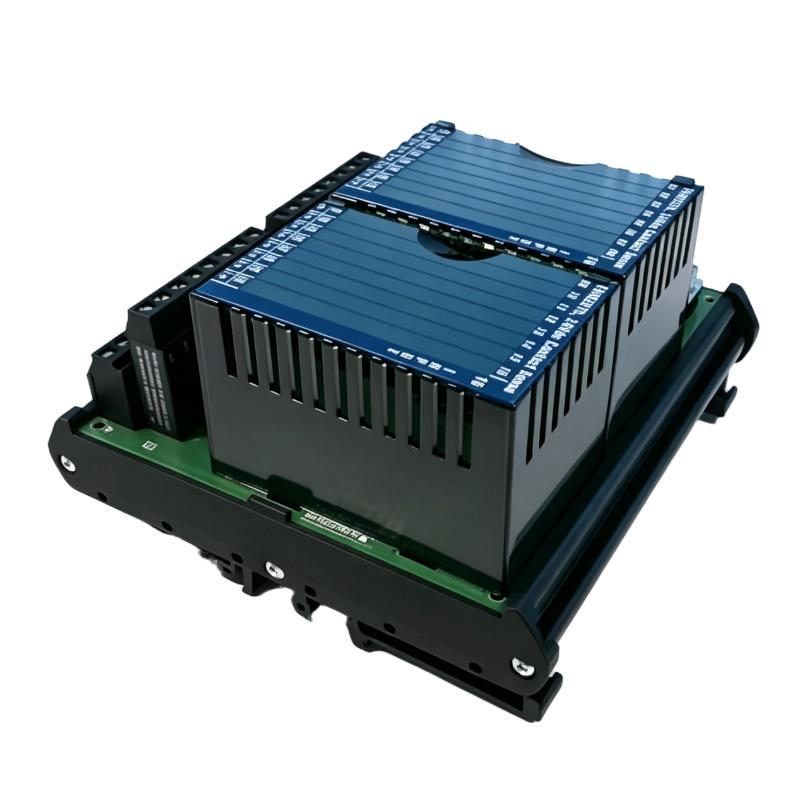

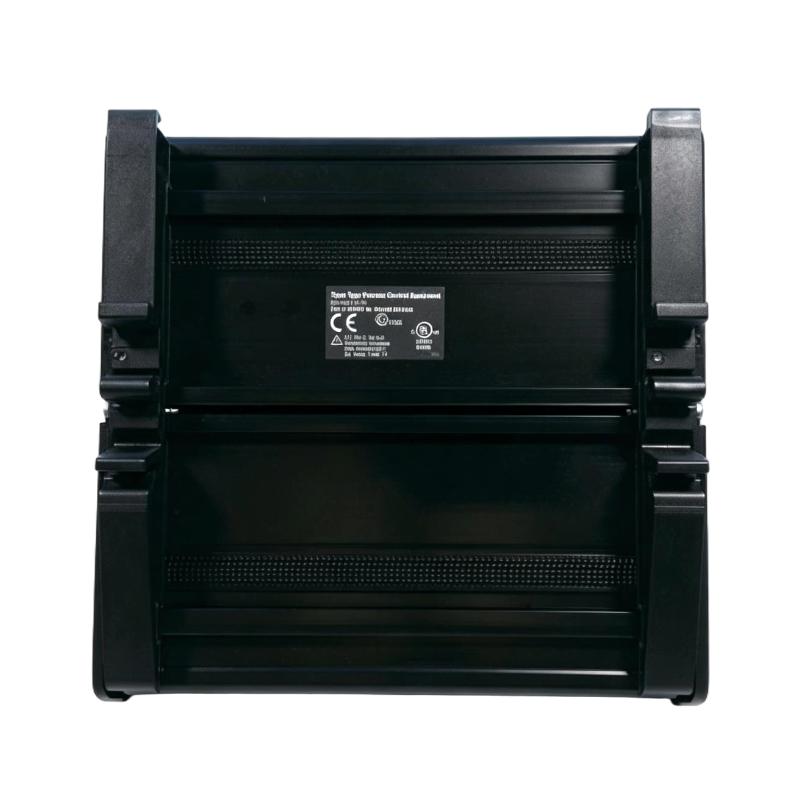

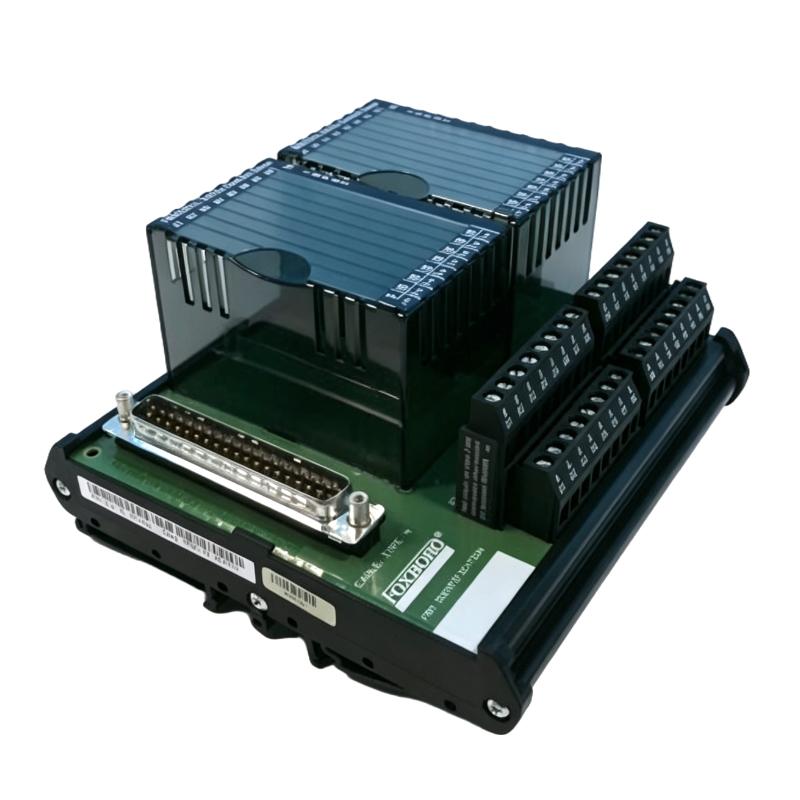

Foxboro FBM207b P0916JS Contact-Sensing Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Foxboro |
| Model Number | FBM207b |
| Ordering Number | P0916JS |
| Product Name | Contact-Sensing Input Interface Module |
| Product Type | Contact-Sensing Termination Assembly |
| Product Series | Foxboro I/A Series 200 |
| Number of Channels | 16 contact-sensing input channels |
| Input Type | 24 V DC contact sensing |
| Contact Wetting Voltage | 24 V DC ±15% |
| Typical Short-Circuit Current | 3.2 mA |
| On-State Resistance | 1 kΩ maximum |
| Off-State Resistance | 100 kΩ minimum |
| Channel Isolation | Galvanic isolation between input channels, according to the FBM207b system specification |
| Input Filtering | Configurable debounce time: no filtering, 4 ms, 8 ms, 16 ms, or 32 ms |
| Communication Interface | Compatible FBM207b module communicates with the control system through the 2 Mbps module Fieldbus |
| Mounting Type | Compatible termination assembly mounting; verify the installed configuration |
| Application | Industrial DCS discrete contact monitoring, including relay status and switch feedback |
| Compatibility | Designed for use with the compatible Foxboro FBM207b input system |
| Dimensions | 127 × 80 × 125 mm |
| Weight | 0.272 kg |
FAQ
Q1: What is the primary function of the Foxboro FBM207b P0916JS module?
A1: The FBM207b system is designed to monitor discrete contact signals from field devices. The P0916JS is associated with the 24 V DC contact-sensing termination arrangement, providing the field-wiring interface for the compatible input module.
Q2: How many input channels does the FBM207b system support?
A2: The FBM207b supports 16 independent contact-sensing input channels. These channels can be used to monitor contact states from switches, relays, and other compatible field devices.
Q3: What type of input signal does the P0916JS support?
A3: The P0916JS termination arrangement is intended for 24 V DC contact-sensing applications with the compatible FBM207b. Confirm the field wiring and signal requirements before connecting equipment.
Q4: What is the purpose of the contact wetting voltage?
A4: The contact wetting voltage provides a small electrical current through a contact to help maintain reliable state detection. It can help reduce the effects of contact oxidation or contamination in suitable applications.
Q5: Can the FBM207b be used to monitor relay and limit-switch status?
A5: Yes. With the correct termination assembly and wiring, it can monitor discrete states such as relay contacts, limit switches, and equipment status contacts in industrial control systems.
Q6: How can input signal filtering improve system performance?
A6: Configurable filtering helps suppress brief electrical disturbances and contact bounce that might otherwise cause false state changes. The filter setting should balance noise rejection against the response time required by the application.
Q7: What should be checked if an input channel does not change state correctly?
A7: Check the field contact, wiring continuity, terminal connections, and compatibility of the termination assembly. Also verify the channel configuration and filter setting in the control system. Follow the site’s electrical safety procedures before inspecting wiring.
Q8: What should be verified before replacing or installing the P0916JS?
A8: Confirm the part number, FBM207b compatibility, 24 V DC contact-sensing requirement, terminal arrangement, and field wiring. The P0916JS is a termination assembly associated with the FBM207b system, so it should not be treated as interchangeable with termination assemblies designed for other signal types.
Foxboro FBM207b P0916JS Contact-Sensing Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
