1. What are the main features of the MPL-A1510V-HJ74AA servo motor?

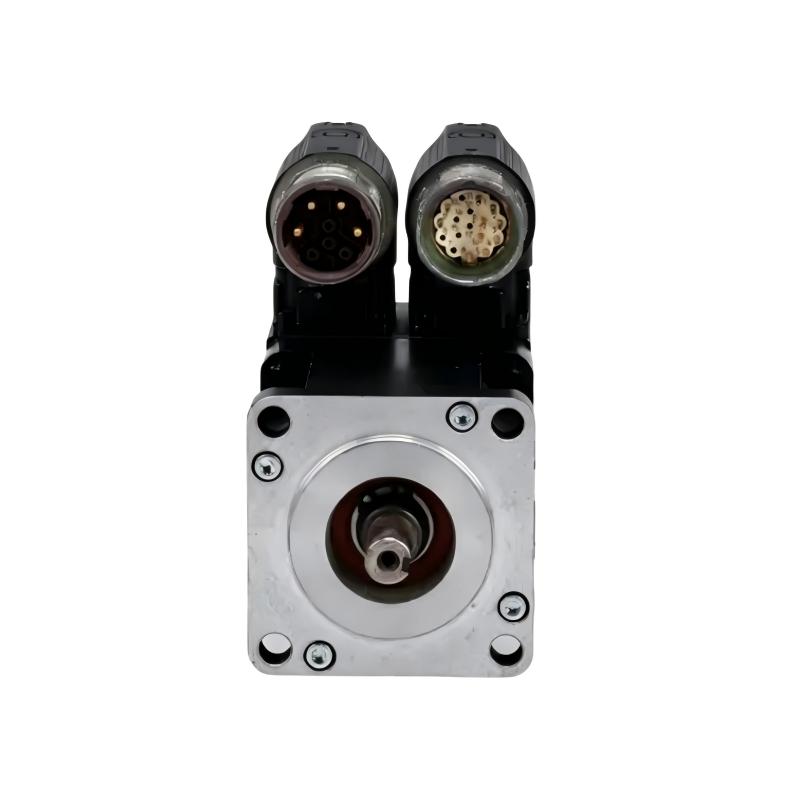

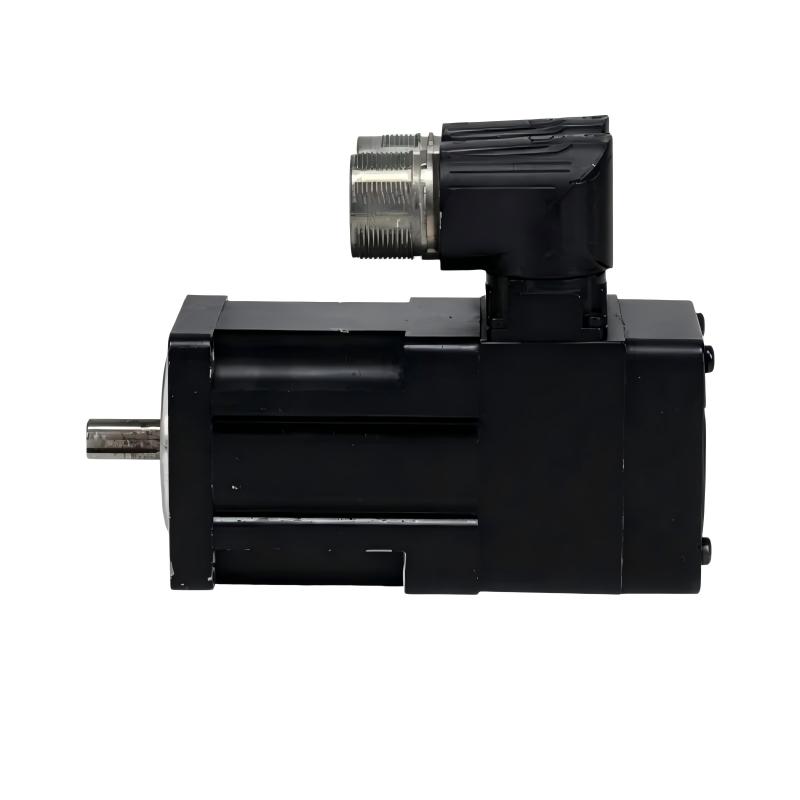

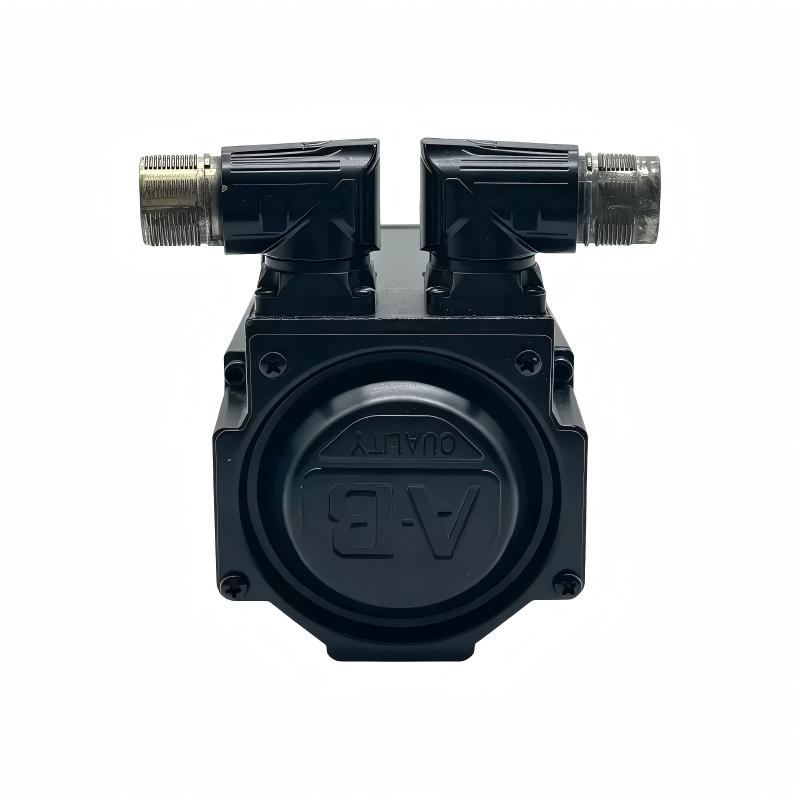

The MPL-A1510V-HJ74AA is an Allen-Bradley MP-Series low-inertia brushless AC rotary servo motor designed for industrial motion control applications. It features a 63 mm frame, a 25.4 mm magnet stack, and a rated speed of 8000 rpm. Its low-inertia design supports rapid acceleration and deceleration, making it suitable for machinery that requires responsive motion and accurate positioning. The motor also incorporates a high-resolution single-turn encoder, a keyed shaft extension, and a 24V DC holding brake. When paired with a compatible servo drive, it can support precise and repeatable motion in automated production equipment.

2. Which servo drive is compatible with the MPL-A1510V-HJ74AA?

The motor should be paired with an Allen-Bradley servo drive that explicitly supports its electrical characteristics and feedback configuration. Selection should take into account the 230V AC motor voltage rating, rated speed, torque requirements, encoder interface, and application duty cycle. Compatibility with a particular Kinetix or Ultra series drive should be confirmed using the manufacturer’s motor and drive compatibility documentation. Before commissioning, verify the complete catalog number, power wiring, feedback connections, drive firmware, and motor configuration parameters. Correct drive selection helps prevent feedback errors, unexpected shutdowns, and unstable motion.

3. What is the function of the single-turn high-resolution encoder?

The encoder provides position feedback to the servo drive, allowing the controller to compare the commanded position with the motor’s actual position. This information enables closed-loop control of position and speed and helps the system respond to changing loads. Single-turn absolute feedback identifies the angular position within one revolution. The machine’s full position reference after a power interruption depends on the overall control architecture and configuration. During installation, ensure that the feedback connector is securely connected and that the drive recognizes the encoder correctly. Faulty wiring or incorrect configuration can cause feedback alarms, positioning errors, or interruptions to normal operation.

4. What is the purpose of the 24V DC holding brake?

The 24V DC holding brake is designed to hold the motor shaft when the brake is engaged, helping prevent unwanted movement when the motor is not actively producing torque. It is particularly useful in positioning applications where the load must remain stationary during certain operating conditions. The brake is primarily intended for holding rather than repeatedly stopping a moving load. Its supply voltage, wiring, and control sequence must comply with the manufacturer’s specifications. For vertical axes or gravity-loaded machinery, additional risk assessment and suitable safety measures are necessary to prevent unexpected movement if the brake or control system fails.

5. What should be considered when installing the keyed shaft extension?

The keyed shaft extension provides a mechanical connection for compatible couplings, pulleys, gearboxes, and other driven components. During installation, verify that the key and mating component fit correctly and that the motor shaft aligns with the driven shaft. Incorrect alignment, excessive radial or axial loading, or an improperly fitted key can cause vibration, wear, and premature bearing failure. The connected load must remain within the manufacturer’s specified mechanical limits. Once installed, check coupling security and shaft alignment before operating the motor. Initial testing should be performed at a controlled speed to identify unusual noise or vibration before the equipment enters normal production.

6. How can positioning errors in the MPL-A1510V-HJ74AA be diagnosed?

Positioning errors may result from incorrect drive parameters, encoder signal problems, excessive load inertia, mechanical backlash, shaft misalignment, or unsuitable acceleration settings. Begin by checking the drive’s fault history and comparing commanded motion with actual feedback. Inspect the encoder cable, connectors, and motor configuration, and confirm that the drive recognizes the correct motor model. If the feedback system is functioning properly, examine the mechanical transmission for looseness, friction, or binding. Review the motion profile to determine whether acceleration and deceleration demands are appropriate for the application. Identifying the underlying cause before changing parameters helps restore accurate positioning and prevent recurring faults.

7. What causes overheating or abnormal vibration during operation?

Overheating may be caused by excessive loading, frequent acceleration and deceleration, inadequate heat dissipation, or increased mechanical resistance. Abnormal vibration can indicate shaft misalignment, loose mounting hardware, coupling problems, bearing wear, or inappropriate control settings. Check the drive’s alarm history, motor current, operating temperature, and load conditions. Inspect the connected mechanism for binding and verify that the operating cycle remains within the motor’s capabilities. If overheating or vibration continues, stop the equipment and investigate the cause before restarting. Prolonged operation under abnormal conditions may reduce bearing life and damage the motor’s insulation or other components.

8. How should the MPL-A1510V-HJ74AA be maintained?

Regular maintenance should include checking mounting bolts, shaft couplings, power cables, feedback connectors, and brake wiring for looseness or damage. Keep the motor and surrounding installation area clean, and monitor operating temperature, vibration, noise, and servo drive alarms. Confirm that the mechanical load moves freely and does not exceed the motor’s permitted operating limits. The holding brake should be inspected according to the manufacturer’s maintenance procedures to ensure that it engages and releases correctly. Before maintenance, isolate the power supply and secure the machinery against unexpected movement. Any replacement parts must be compatible with the exact motor configuration, and the system should be tested safely before returning to service.
