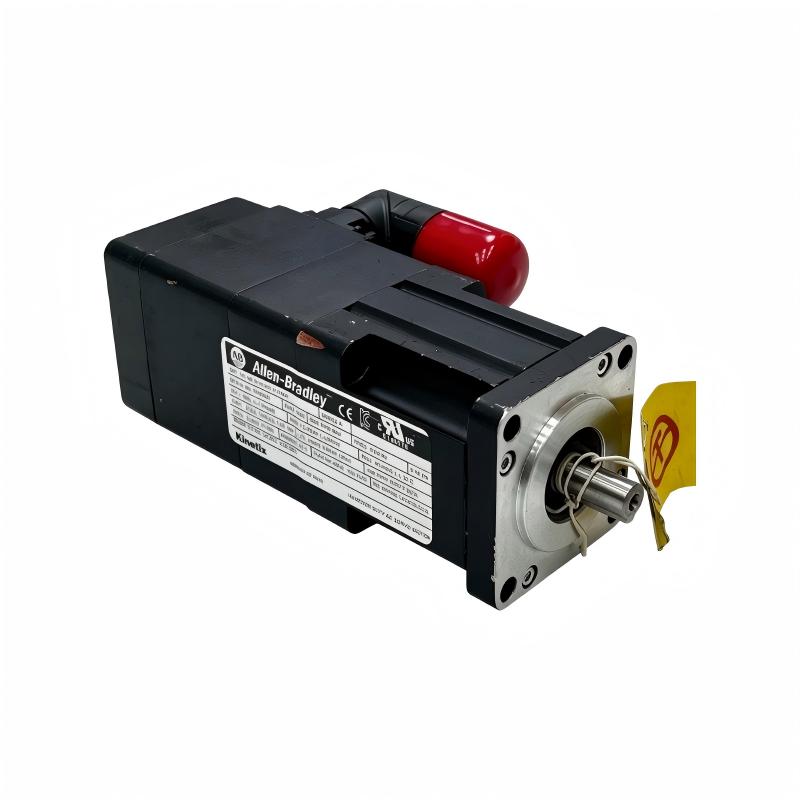

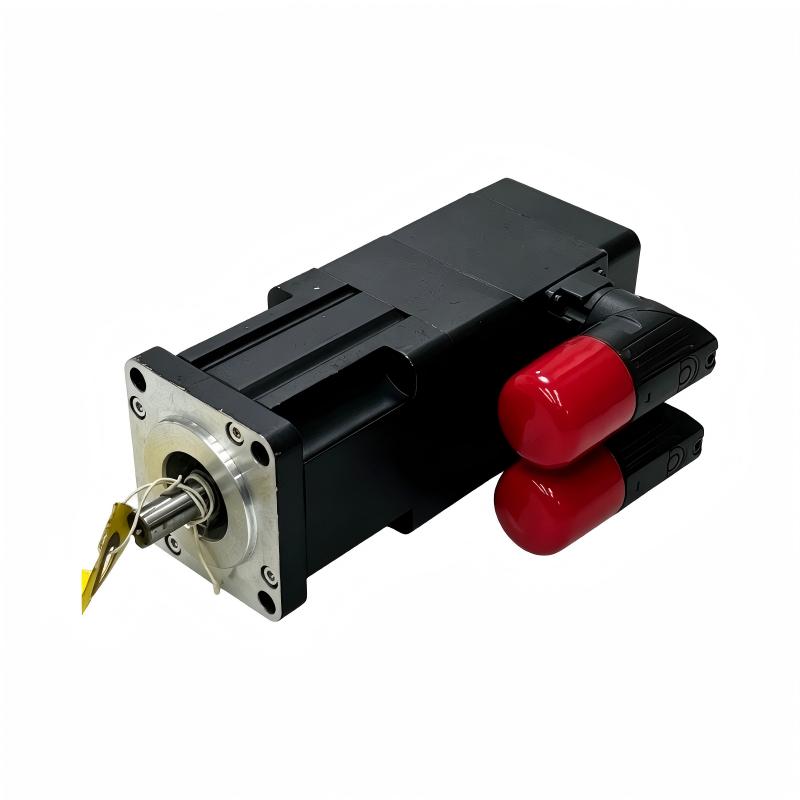

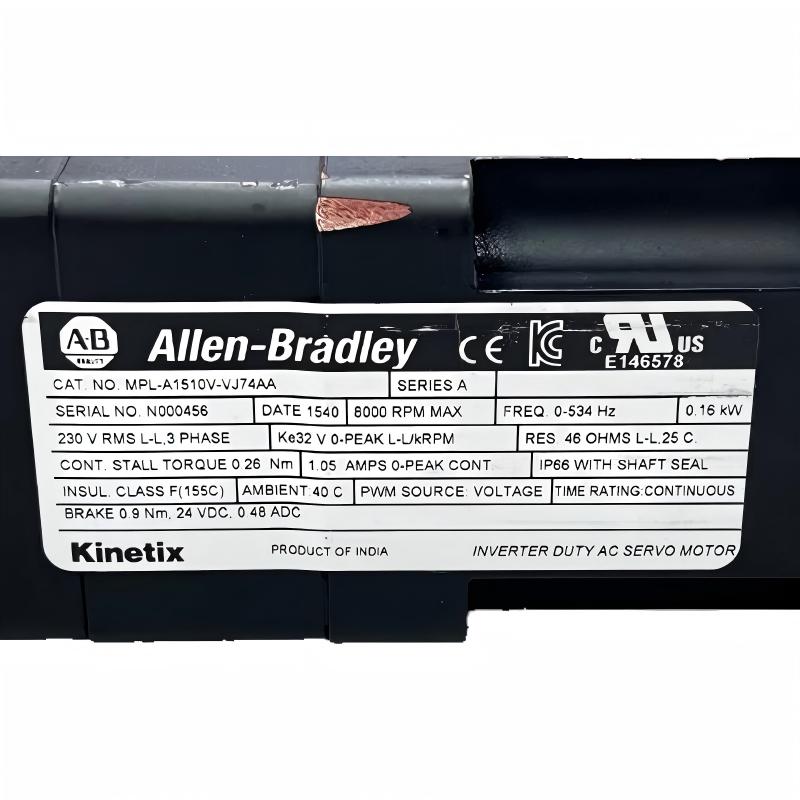

Allen Bradley MPL-A1510V-VJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MPL-A1510V-VJ74AA |
| Product Type | Low-Inertia Servo Motor |
| Manufacturer | Allen-Bradley |
| Rated Voltage | 230 V AC |
| Voltage Class | 200 V |
| Rated Power | 0.16 kW |
| Continuous Stall Torque | 0.26 Nm |
| Peak Stall Torque | 0.77 Nm |
| Continuous Stall Current | 1.1 A |
| Peak Stall Current | 3.4 A |
| Maximum Speed | 8000 rpm |
| Frame Size | 63 mm |
| Magnet Stack Length | 25.4 mm |
| Feedback Device | High-resolution multi-turn absolute encoder |
| Feedback Interface | Hiperface |
| Shaft Type | Keyed shaft |
| Shaft Seal | Not included |
| Connector Type | SpeedTEC DIN circular connector |
| Connector Orientation | Right-angle, rotatable 180° |
| Holding Brake | 24 V DC brake |
| Mounting Type | IEC metric flange |
| Protection Rating | IP50 without shaft seal; up to IP66 with optional shaft seal and environmentally sealed connectors |
| Operating Temperature | 0–40°C |
| Weight | 1 kg |
FAQ
1. What is the primary application of the MPL-A1510V-VJ74AA servo motor?
The Allen-Bradley MPL-A1510V-VJ74AA is designed for precision motion-control applications requiring fast response, accurate positioning, and reliable speed regulation. Typical applications include automated assembly equipment, packaging machinery, material handling systems, and industrial production lines. Its low-inertia design supports rapid acceleration and deceleration.
2. Which servo drive is compatible with the MPL-A1510V-VJ74AA?
Compatibility depends on the drive’s voltage class, continuous and peak current ratings, feedback interface, and motor configuration. The drive must support the motor’s Hiperface feedback system and the appropriate 200 V-class power supply. Always verify the motor catalog number against the servo drive’s compatibility documentation before installation.
3. What type of feedback system does this motor use?
This motor uses a high-resolution multi-turn absolute encoder with a Hiperface interface. The feedback system provides position and speed information to the servo drive, enabling precise closed-loop motion control. Multi-turn absolute feedback can retain multi-turn position information, subject to the encoder’s specifications and backup-power requirements.
4. What is the function of the integrated holding brake?
The 24 V DC holding brake is intended to hold the motor shaft in position when the motor is stopped or when the system requires holding torque. It is not designed to serve as the primary dynamic stopping device during normal operation. The brake’s release voltage, wiring, and operating sequence should follow the manufacturer’s instructions.
5. Can the MPL-A1510V-VJ74AA operate at speeds up to 8000 rpm?
The motor’s specified maximum speed is 8000 rpm. Actual operating speed depends on the connected servo drive, load inertia, acceleration profile, supply conditions, and application requirements. The system should be configured within the motor’s permitted operating limits to avoid excessive heating or mechanical stress.
6. What should be checked before installing this servo motor?
Before installation, verify the mounting dimensions, shaft and coupling compatibility, motor-drive pairing, feedback wiring, brake wiring, grounding, and power connections. Inspect the motor and connectors for transport damage. Ensure that the driven machine can rotate freely and that the mounting surface provides adequate rigidity and alignment.
7. What protection rating does this motor provide?
The motor is rated IP50 without a shaft seal. With the appropriate optional shaft seal and environmentally sealed connectors, protection can reach IP66 under the applicable configuration. The actual protection level depends on the accessories installed and the integrity of the connectors and seals. Confirm the required protection level for environments exposed to dust, moisture, or washdown.
8. What maintenance practices help extend the motor’s service life?
Inspect connectors, cables, mounting hardware, shaft coupling alignment, and the surrounding environment at regular intervals. Monitor operating temperature, vibration, abnormal noise, and servo-drive alarms. Keep contaminants away from electrical connections and replace damaged seals or cables promptly. Follow the manufacturer’s maintenance guidance and verify brake operation as part of scheduled servicing.
Allen Bradley MPL-A1510V-VJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
