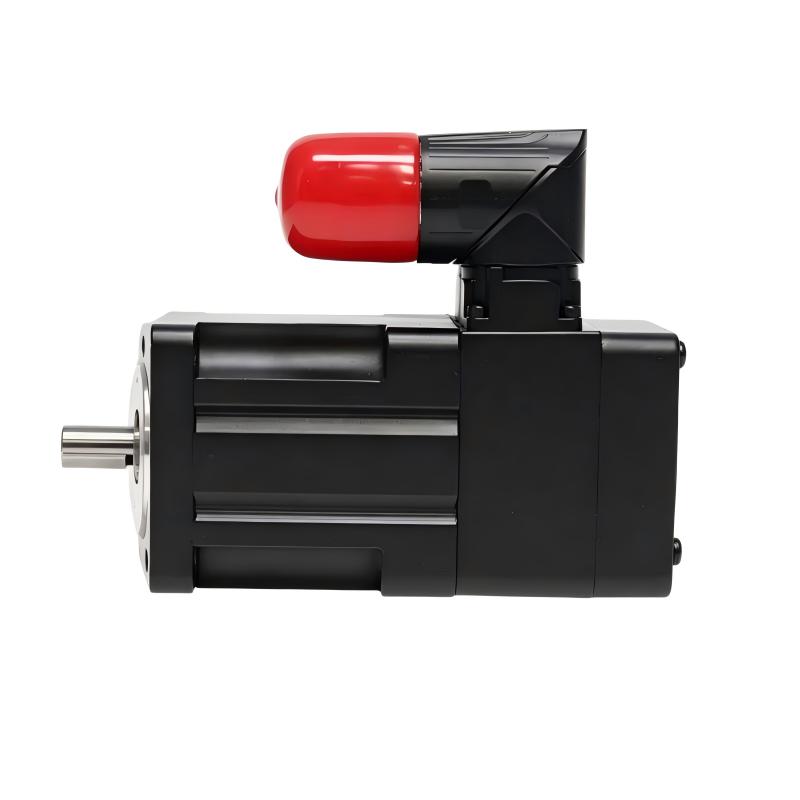

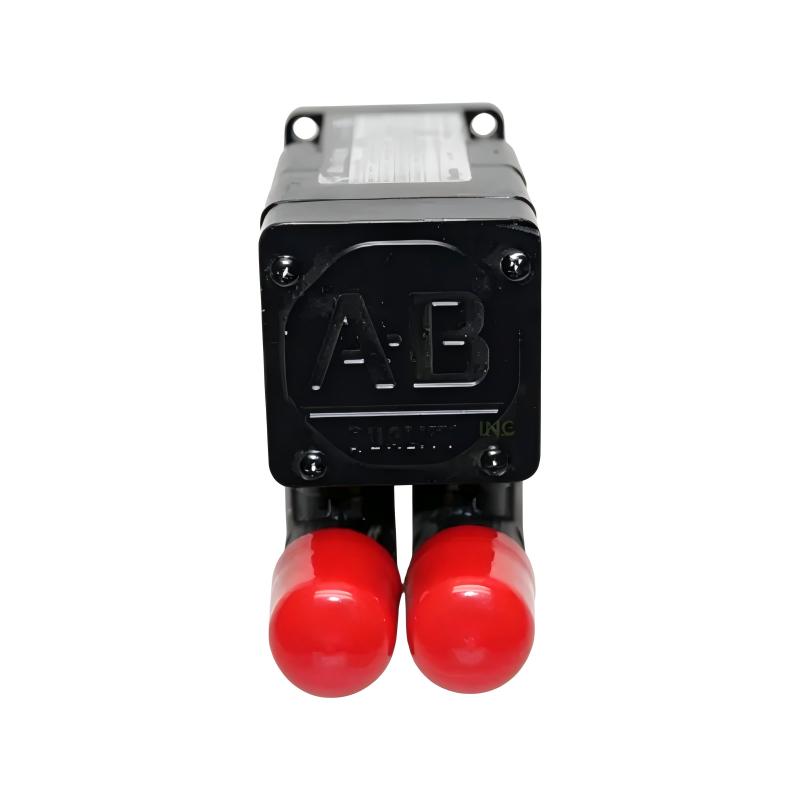

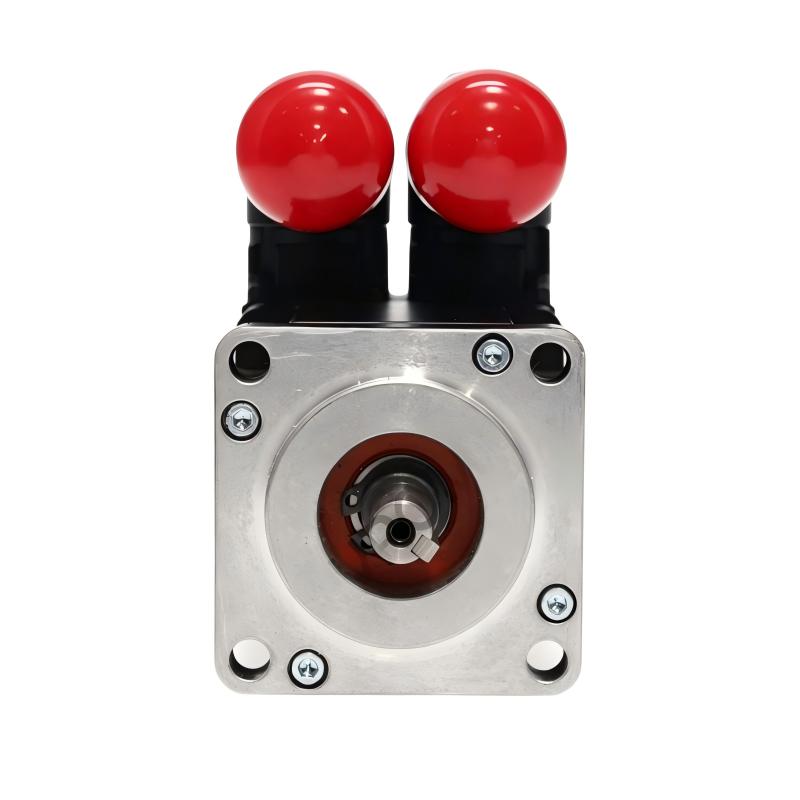

Allen Bradley MPL-A1520U-EJ42AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1520U-EJ42AA |
| Product Type | Low-Inertia AC Servo Motor |
| Series | MP-Series / MPL |
| Voltage Class | 200 V |
| Rated Voltage | 230 V AC |
| Rated Power | 0.27 kW |
| Rated Speed | 7000 rpm |
| Continuous Stall Torque | 0.49 Nm |
| Peak Stall Torque | 1.58 Nm |
| Continuous Stall Current | 1.8 A |
| Peak Stall Current | 6.1 A |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Interface | Hiperface |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | Not Included |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Brake | No Brake |
| Mounting Type | IEC Metric Flange |
| Operating Temperature | 0–40°C |
| Weight | 1.2 kg |
FAQ
1. What are the main applications of the MPL-A1520U-EJ42AA servo motor?
The MPL-A1520U-EJ42AA is designed for industrial motion-control systems requiring accurate positioning, controlled speed, and responsive acceleration. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and production machinery. Its low-inertia design supports frequent speed changes and precise motion control.
2. Which servo drive is suitable for this motor?
The motor requires a compatible 200 V-class servo drive designed for a 230 V AC motor system. The drive must support the motor’s single-turn high-resolution absolute encoder and Hiperface feedback interface. Verify the motor and drive catalog numbers together before installation to ensure correct electrical and feedback compatibility.
3. What feedback system does the MPL-A1520U-EJ42AA use?
This model uses a single-turn high-resolution absolute encoder with a Hiperface interface. The encoder supplies position feedback to the servo drive for closed-loop control. Because it is a single-turn encoder, its absolute position information applies within one mechanical revolution; it should not be confused with a multi-turn encoder.
4. Does the MPL-A1520U-EJ42AA include a holding brake?
No. The EJ42AA configuration is supplied without an integrated holding brake. If the application requires the shaft to remain stationary when power is removed, an external holding mechanism or a suitable motor configuration with a brake may be necessary. Confirm the machine’s safety and load-holding requirements before selecting the motor.
5. What is the maximum rated speed of this servo motor?
The specified rated speed is 7000 rpm. Actual operating speed and acceleration depend on the selected servo drive, load inertia, supply conditions, and motion profile. The motor should be operated within its published performance limits, with appropriate tuning to prevent excessive vibration, current, or temperature.
6. How should the motor’s keyed shaft be connected to the driven machine?
Use a compatible coupling or transmission component designed for a keyed shaft. Align the motor and driven shaft carefully to minimize radial and axial loads, vibration, and premature bearing wear. Avoid applying impact loads directly to the shaft during installation, and follow the coupling manufacturer’s alignment and tightening instructions.
7. What should be checked when commissioning the motor?
Confirm the motor catalog number, drive compatibility, power and feedback connections, grounding, mounting security, and shaft alignment. Check that the load moves freely before enabling the drive. Then perform the manufacturer’s recommended commissioning and tuning procedure, verify the direction of rotation, and monitor current, temperature, and fault codes during initial operation.
8. How can reliable operation be maintained over time?
Keep the motor and connectors clean, inspect cables for wear, and check mounting hardware and coupling alignment periodically. Monitor for unusual noise, vibration, overheating, or recurring servo faults. Because this model has no shaft seal, installation conditions should be selected carefully to limit exposure to moisture, dust, and contaminants that could affect motor reliability.
Allen Bradley MPL-A1520U-EJ42AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
