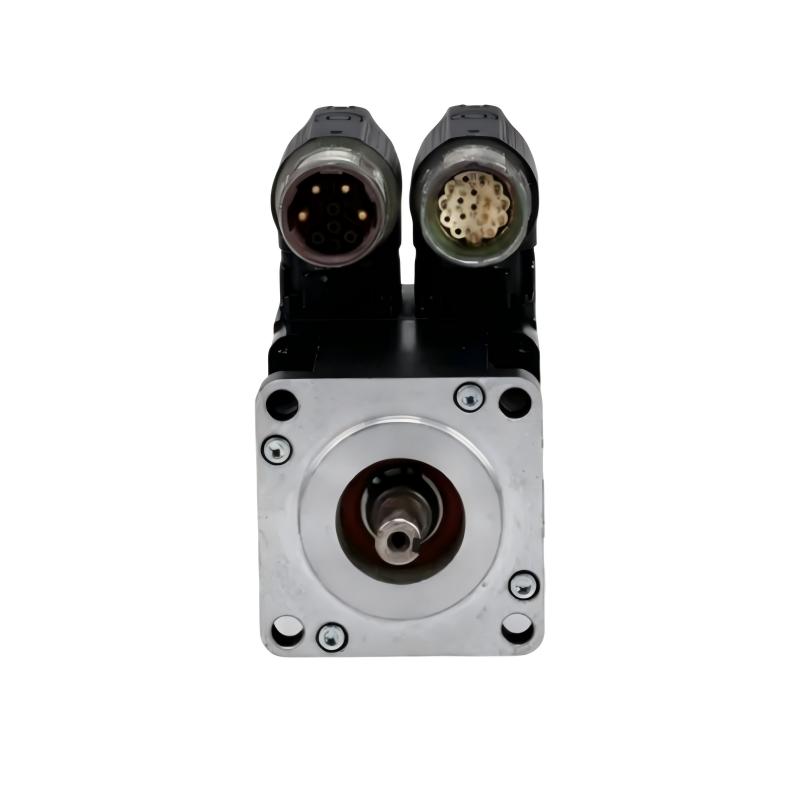

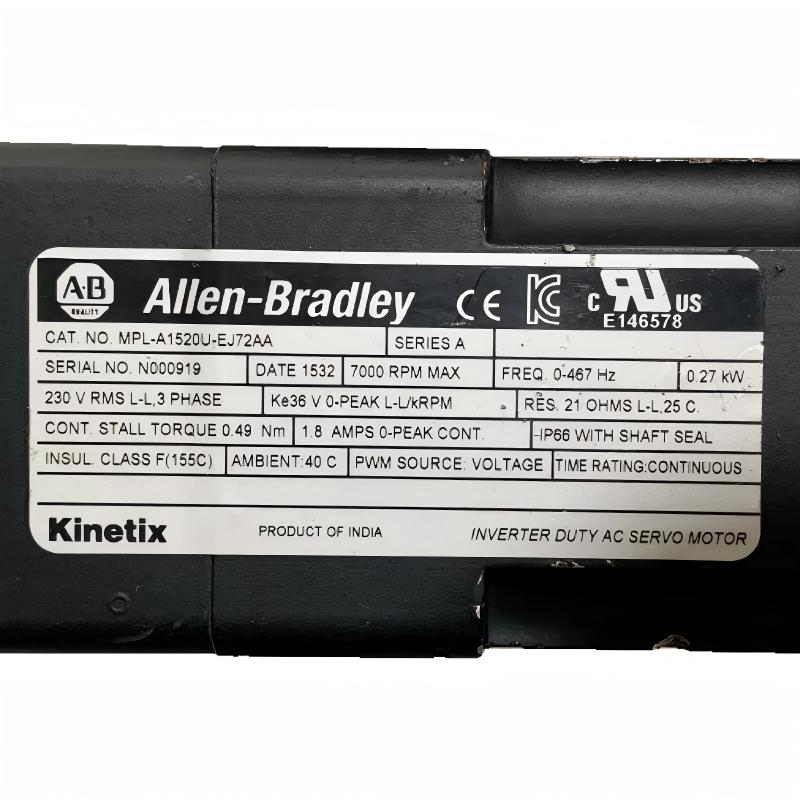

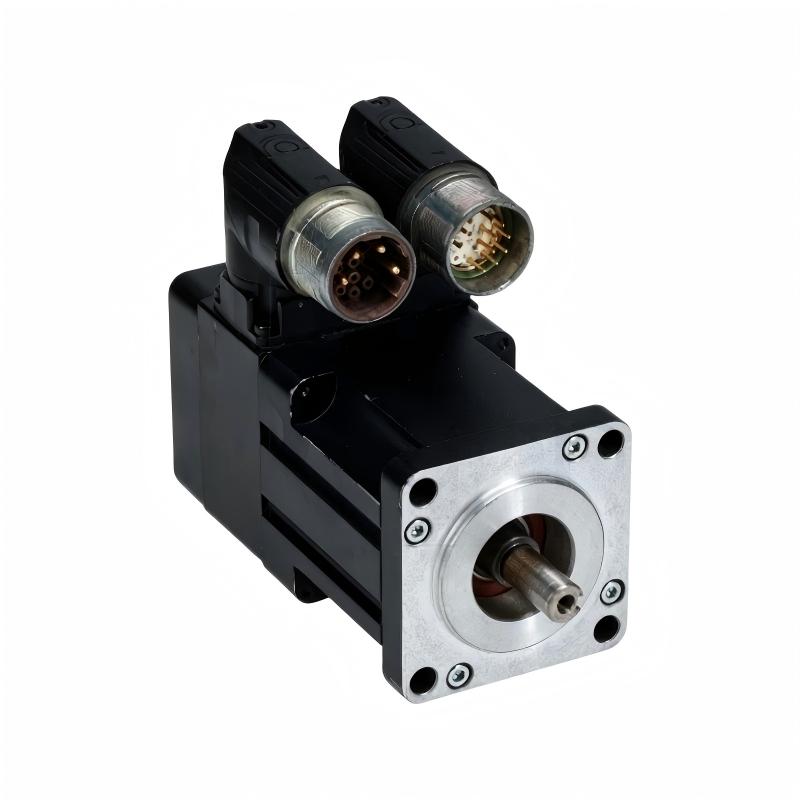

Allen Bradley MPL-A1520U-EJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1520U-EJ72AA |
| Product Type | Low-Inertia AC Servo Motor |
| Product Series | MP-Series / MPL |
| Voltage Class | 200 V |
| Rated Voltage | 230 V AC |
| Rated Power | 0.27 kW |
| Rated Speed | 7000 rpm |
| Continuous Stall Torque | 0.49 Nm |
| Peak Stall Torque | 1.58 Nm |
| Continuous Stall Current | 1.8 A |
| Peak Stall Current | 6.1 A |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback Type | High-Resolution Absolute Encoder |
| Feedback Interface | Hiperface |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | Model configuration dependent; verify the product label |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange |
| Operating Temperature | 0–40°C |
| Weight | 1.2 kg |
FAQ
1. What are the main applications of the MPL-A1520U-EJ72AA servo motor?
The Allen-Bradley MPL-A1520U-EJ72AA is intended for industrial motion-control applications that require precise positioning, responsive acceleration, and stable speed regulation. Typical applications include packaging machinery, automated assembly systems, material handling equipment, and production lines. Its low-inertia design is suitable for applications involving frequent starts, stops, and changes in operating speed.
2. Which servo drive is compatible with the MPL-A1520U-EJ72AA?
The motor must be paired with a compatible 200 V-class servo drive designed for the specified AC supply and feedback system. Before installation, verify the complete motor catalog number, drive voltage rating, current capacity, encoder compatibility, and supported motor configuration. Correct matching helps prevent feedback errors, overcurrent faults, and commissioning problems.
3. What is the function of the motor’s Hiperface feedback interface?
The Hiperface interface connects the motor’s encoder feedback system to the servo drive. It provides position information required for closed-loop motion control and allows the drive to regulate motor movement according to the commanded position or speed. Correct feedback wiring and configuration are essential for reliable startup and accurate positioning.
4. How does the motor’s low-inertia design benefit an automation system?
Low rotor inertia allows the motor to accelerate and decelerate quickly when paired with a properly sized servo drive. This can improve positioning response and reduce cycle times in machines that perform frequent movements. The final performance also depends on load inertia, mechanical rigidity, coupling alignment, and servo tuning.
5. What should be considered when selecting a servo drive for this motor?
The drive selection should account for the motor’s rated voltage, continuous and peak current requirements, speed range, feedback interface, and application load. Engineers should also consider the required acceleration profile, regenerative energy, braking requirements, and the machine’s safety functions. Confirm the exact catalog-number compatibility before purchasing or replacing a drive.
6. What installation checks are important before operating the motor?
Inspect the motor for transport damage and confirm that the mounting surface, shaft coupling, and driven equipment are properly aligned. Check the power cable, feedback cable, protective grounding, connector security, and any applicable brake wiring. Before enabling the system, ensure that the driven mechanism can move freely and that the machine’s protective measures are in place.
7. What can cause servo faults or unstable motor operation?
Common causes include incorrect drive parameters, loose feedback connections, electrical interference, excessive load inertia, poor mechanical alignment, and unsuitable acceleration settings. Overheating may also result from excessive loading or inadequate cooling. Review the drive’s alarm history and diagnostic information, then check electrical and mechanical conditions before changing control parameters.
8. How should the MPL-A1520U-EJ72AA be maintained?
Regularly inspect cables, connectors, mounting fasteners, shaft couplings, and the surrounding operating environment. Monitor temperature, vibration, noise, and drive alarms for changes that may indicate developing problems. Keep the motor free from excessive contamination and follow the manufacturer’s maintenance guidance. Confirm the exact brake and shaft-seal configuration from the motor nameplate or product documentation before performing related maintenance.
Allen Bradley MPL-A1520U-EJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
