1. What are the main features of the MPL-A1510V-EJ72AA servo motor?

The MPL-A1510V-EJ72AA is an Allen-Bradley MP-Series low-inertia brushless AC rotary servo motor designed for precision motion control. It features a 63 mm frame, a 25.4 mm magnet stack, and a rated speed of 8000 rpm. Its low-inertia design supports rapid acceleration and deceleration, making it suitable for applications that require responsive positioning and frequent changes in operating speed. The motor also incorporates a single-turn high-resolution encoder for position feedback and a keyed shaft extension for mechanical coupling. These features make it suitable for industrial automation applications when paired with a compatible servo drive.

2. Which servo drives can be used with the MPL-A1510V-EJ72AA?

The MPL-A1510V-EJ72AA is intended for compatible Allen-Bradley servo drive systems. Drive selection should be based on the motor’s electrical ratings, feedback interface, required performance, and the specific drive’s supported motor configurations. Compatibility must be verified against the applicable product documentation rather than assumed from the brand alone. Before commissioning, confirm the motor catalog number, drive firmware, power connections, feedback wiring, and configuration parameters. Correct matching helps achieve stable operation and prevents faults caused by incompatible feedback devices or electrical specifications.

3. What is the function of the single-turn high-resolution encoder?

The encoder provides position feedback to the servo drive, allowing the control system to compare commanded motion with the motor’s actual position. This feedback supports accurate positioning, speed regulation, and coordinated motion control. Single-turn absolute feedback identifies the angular position within one revolution; retaining or recovering the machine’s complete mechanical position after power loss depends on the wider control system and its configuration. During installation, check the encoder connection and drive configuration carefully. Damaged feedback cables, loose connectors, or incorrect parameters may cause position errors, unstable operation, or encoder-related alarms.

4. Does the MPL-A1510V-EJ72AA include a holding brake?

No. The MPL-A1510V-EJ72AA configuration is specified without a holding brake. This is an important consideration when selecting the motor for vertical axes, gravity-loaded mechanisms, or applications that must hold a position while the motor is not producing torque. If a brake is required, verify whether an appropriate alternative motor configuration is available. The machine may also require an independently engineered holding mechanism or other safety provisions. Do not assume that a servo drive’s electrical braking functions can replace a mechanical holding brake.

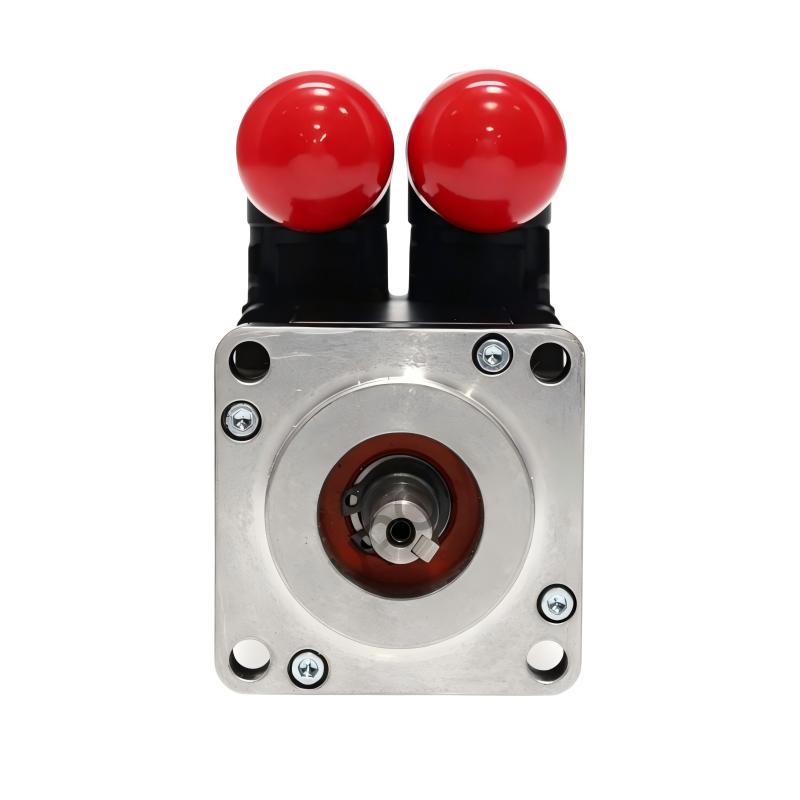

5. What should be considered when installing the motor’s keyed shaft extension?

The keyed shaft extension provides a mechanical interface for connecting the motor to a compatible coupling, pulley, gearbox, or other driven component. During installation, ensure that the key and mating component fit correctly and that the coupling is aligned with the motor shaft. Excessive radial or axial loading, misalignment, or an improperly fitted key can lead to vibration, premature bearing wear, and mechanical damage. The driven load should remain within the manufacturer’s permitted shaft-load limits. After installation, check the coupling security and mechanical alignment before operating the motor at its normal speed.

6. What causes the MPL-A1510V-EJ72AA to experience positioning errors?

Positioning errors may result from incorrect drive parameters, feedback signal problems, excessive load inertia, mechanical backlash, shaft coupling misalignment, or an unsuitable motion profile. Begin troubleshooting by reviewing the servo drive’s alarm history and comparing commanded position with actual feedback. Inspect the encoder cable and connectors, verify the configured motor model, and confirm that the drive recognizes the feedback device correctly. If the feedback system is operating normally, inspect the mechanical transmission for looseness, binding, or excessive friction. Acceleration and deceleration settings should also be checked against the actual load. Changing parameters without identifying the cause may conceal the problem rather than resolve it.

7. How should overheating or abnormal vibration be diagnosed?

Overheating can indicate excessive loading, an unsuitable duty cycle, inadequate heat dissipation, or increased mechanical friction. Abnormal vibration may be associated with shaft misalignment, loose mounting hardware, damaged couplings, bearing wear, or inappropriate control settings. Check drive alarms, motor current, operating temperature, and machine behavior under normal conditions. Inspect the mounting structure and connected transmission components, and verify that the load is within the motor’s rated capabilities. If the motor continues to overheat or vibrate abnormally, stop operation and carry out a systematic inspection before returning the equipment to service.

8. What maintenance practices help extend the service life of the MPL-A1510V-EJ72AA?

Regular maintenance should include inspecting mounting bolts, shaft couplings, connectors, and cables for looseness, wear, or damage. Keep the motor and its installation environment clean, and monitor temperature, vibration, operating noise, and drive fault history for changes that may indicate developing problems. Check that the driven mechanism moves freely and does not impose excessive loads on the motor shaft. Because this configuration has no holding brake, any external load-holding mechanism should also be inspected where applicable. Before maintenance, isolate the power supply and secure the machine against unexpected movement. Replacement components and subsequent drive configuration should be verified for compatibility with the exact motor model.
