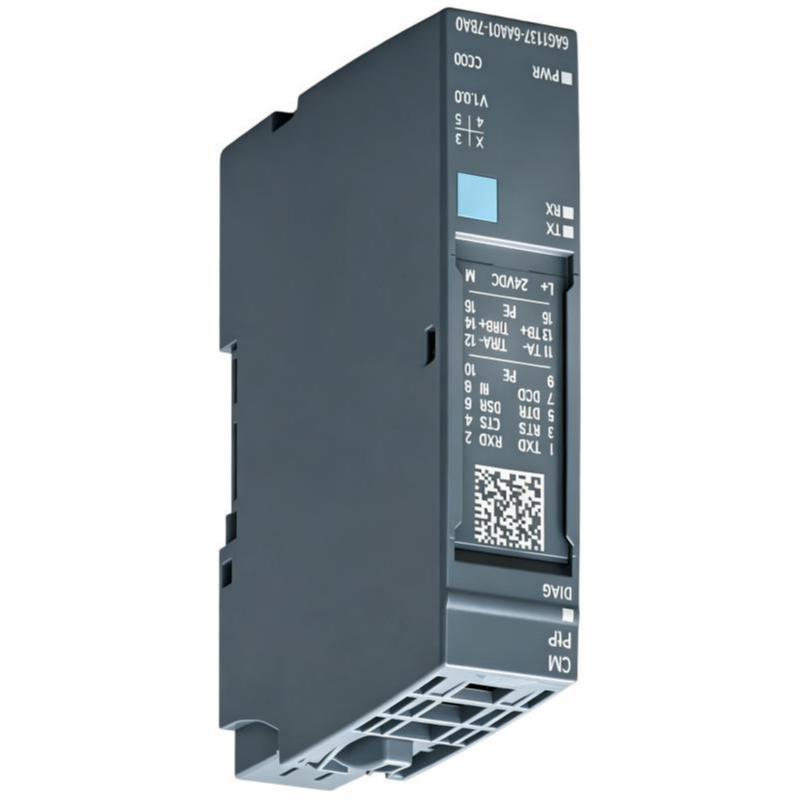

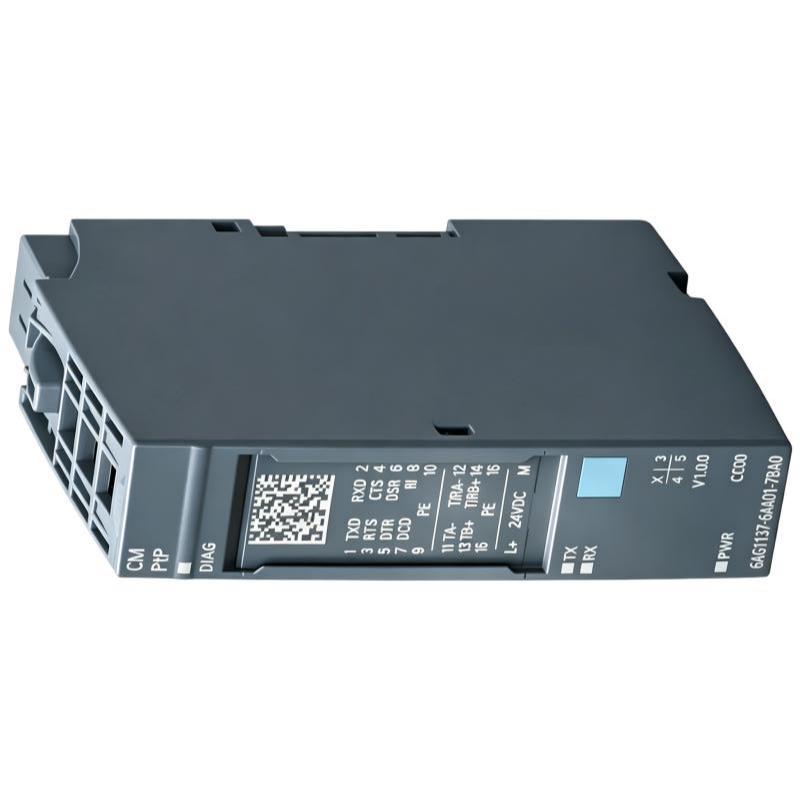

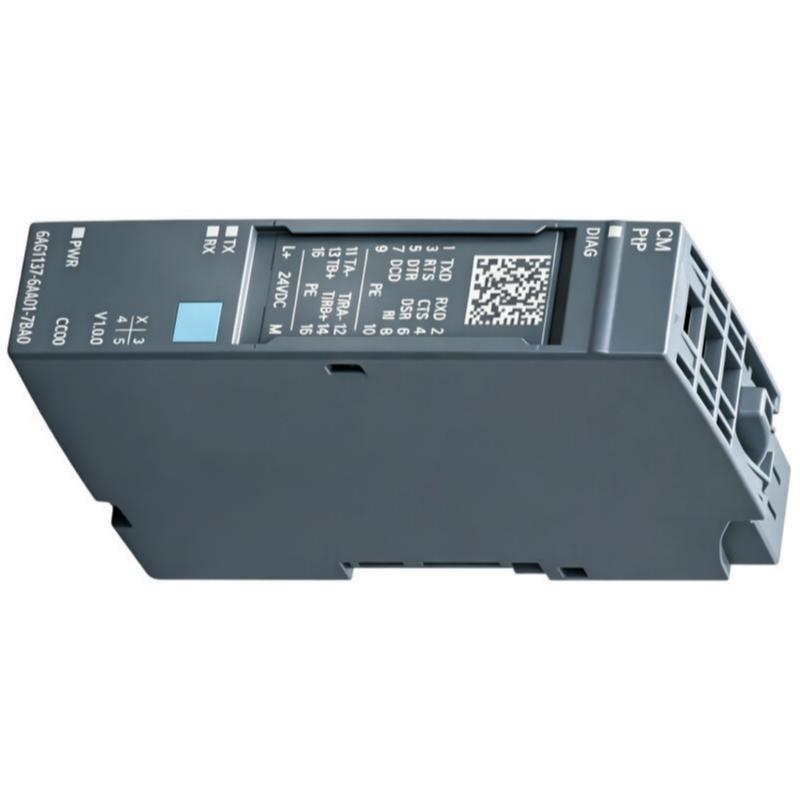

Siemens 6AG1137-6AA01-7BA0 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1137-6AA01-7BA0 |
| Product Series | SIPLUS ET 200SP |
| Product Type | CM PtP Communication Module |
| Base Model | 6ES7137-6AA01-0BA0 |
| Communication Type | Point-to-Point Serial Communication |
| Supported Interfaces | RS-232, RS-422, RS-485 |
| Supported Protocols | Freeport, 3964(R), USS, Modbus RTU Master/Slave |
| Maximum Transmission Rate | RS-485: 250 kbit/s; RS-232 and RS-422: 115.2 kbit/s |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Rated Current Consumption | 31 mA |
| Maximum Current Consumption | 35 mA |
| Typical Power Loss | 0.7 W |
| Input Address Space | 8 bytes; 32 bytes in performance mode |
| Output Address Space | 0 bytes; 32 bytes in performance mode |
| Maximum RS-232 Cable Length | 15 m |
| Maximum RS-422 Cable Length | 1,200 m |
| Maximum RS-485 Cable Length | Up to 1,200 m, depending on transmission rate |
| Maximum Telegram Length | 2 KB in standard operating mode |
| Telegram Buffer | 4 KB |
| Connection Type | Push-in terminals |
| Compatible BaseUnit | Type A0 |
| Reverse Polarity Protection | Yes |
| Diagnostic Functions | Wire-break detection, diagnostic alarms, module status monitoring |
| Status Indicators | PWR, DIAG, RxD and TxD LEDs |
| Electrical Isolation | Galvanic isolation between backplane bus and serial interface |
| Conformal Coating | Yes |
| Operating Temperature | -40°C to +70°C for horizontal installation; up to +50°C for vertical installation |
| Protection Rating | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.03 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1137-6AA01-7BA0 communication module?
A: This SIPLUS ET 200SP CM PtP module enables serial data exchange between a SIMATIC automation system and external devices. It is suitable for connecting PLCs, drives, meters, controllers and other industrial equipment that use compatible serial communication interfaces.
Q2: Which serial interfaces are supported by this module?
A: The module supports RS-232, RS-422 and RS-485. RS-232 is commonly used for point-to-point connections over shorter distances, while RS-422 and RS-485 support longer-distance communication and, depending on the configuration, multipoint networks.
Q3: Which communication protocols can be configured?
A: Supported protocols include Freeport, 3964(R), USS and Modbus RTU in master and slave modes. The appropriate protocol must be selected and configured to match the connected device and the PLC application.
Q4: What is the maximum communication speed?
A: The maximum transmission rate is 250 kbit/s for RS-485 and 115.2 kbit/s for RS-232 and RS-422. The actual rate depends on the selected interface, cable characteristics, network topology and communication settings.
Q5: Which BaseUnit is compatible with the module?
A: The module is designed for an ET 200SP BaseUnit of type A0. Confirm the BaseUnit part number, terminal assignment and station configuration before installation to ensure correct electrical connections.
Q6: Can this module operate in harsh industrial environments?
A: Yes. The SIPLUS version features conformal coating and an extended operating temperature range. It supports -40°C to +70°C for horizontal installation and up to +50°C for vertical installation, subject to the specified operating conditions.
Q7: How can communication faults be diagnosed?
A: Check the 24 V DC supply, terminal wiring, interface selection, cable shielding, grounding and communication parameters at both ends. Verify baud rate, parity, data bits, stop bits and protocol settings. The PWR, DIAG, RxD and TxD LEDs, together with PLC diagnostic messages, can help identify the cause.
Q8: Can the module communicate with Modbus RTU devices as both master and slave?
A: Yes. The module supports Modbus RTU master and slave communication. The corresponding PLC instructions, device address, serial parameters and register mapping must be configured correctly. For reliable communication, ensure that all connected devices use compatible settings and that RS-485 wiring and termination are appropriate.
Siemens 6AG1137-6AA01-7BA0 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
