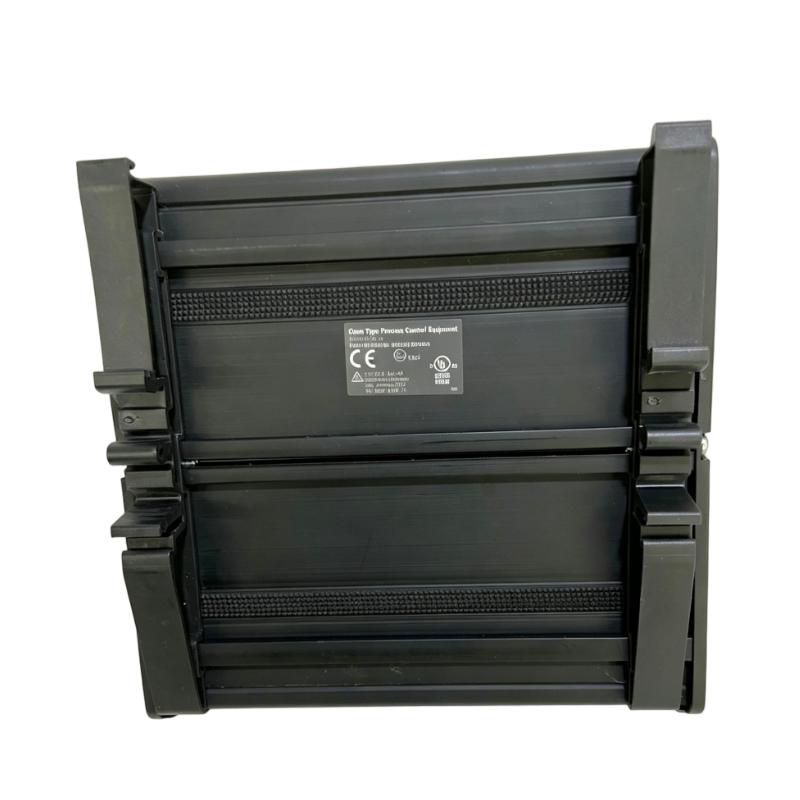

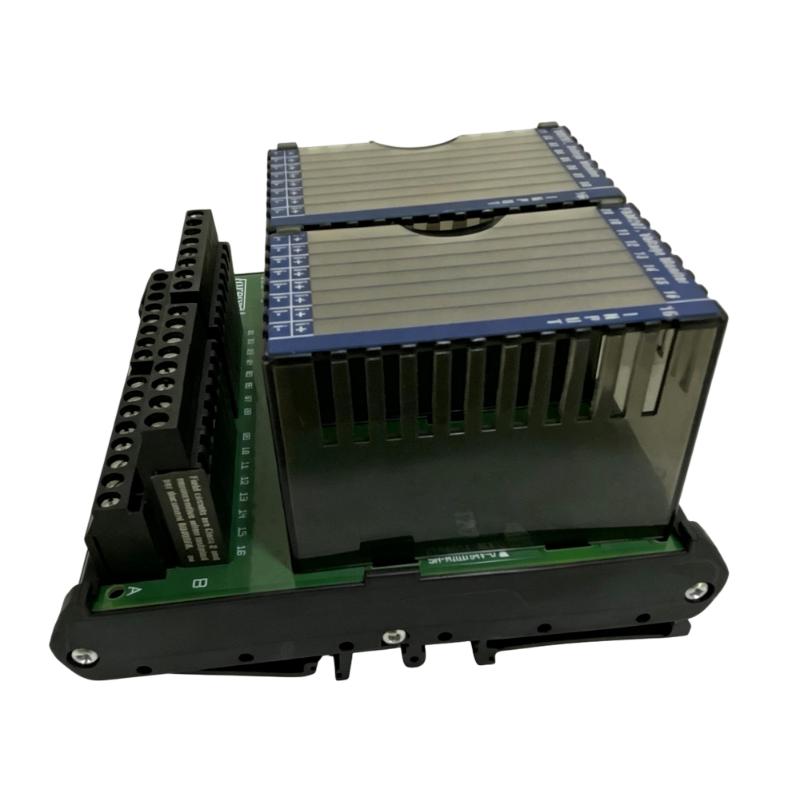

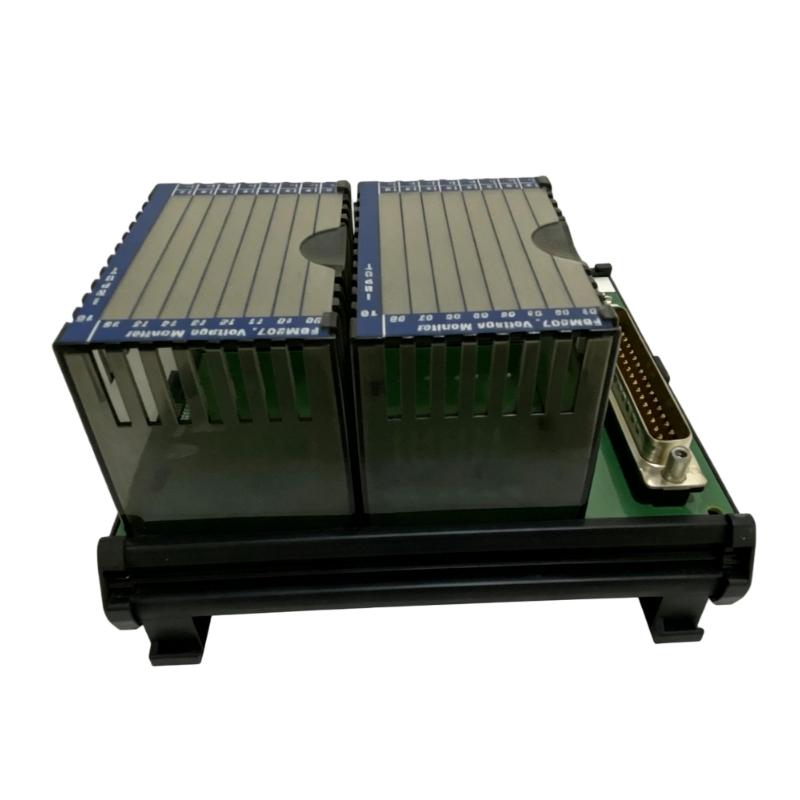

Foxboro FBM207 P0916XN Compression Terminal Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | FBM207 |
| Order Number | P0916XN |
| Product Type | Compression Terminal Assembly |
| Product Series | Foxboro 200 Series |
| Application | Industrial process control and automation |
| Function | Field wiring termination and signal interfacing |
| Compatible Module | FBM207 voltage monitor/contact sense input module |
| Input Configuration | Compatible with the selected FBM207 input configuration |
| Termination Type | Compression screw terminal |
| Terminal Arrangement | Two-tier terminal blocks; configuration depends on the assembly |
| Field Wiring | Solid or stranded conductors, subject to terminal specifications |
| Mounting Type | DIN rail |
| System Integration | Compatible Foxboro control-system architecture |
| Installation Environment | Industrial control cabinet |
| Dimensions | 127 × 80 × 125 mm |
| Weight | 0.272 kg |
FAQ
1. What is the Foxboro FBM207 P0916XN used for?
The Foxboro FBM207 P0916XN is a compression terminal assembly designed to provide an organized connection point between field wiring and compatible Foxboro control-system equipment. It supports structured wiring and signal routing in industrial process-control installations.
2. What is the difference between the FBM207 model and the P0916XN order number?
FBM207 identifies the associated fieldbus module model, while P0916XN is the order number for the compression terminal assembly. When selecting replacement parts, verify both identifiers and confirm that the terminal assembly matches the installed module and wiring configuration.
3. How does the compression terminal assembly connect to the control system?
The assembly provides field-side termination points and interfaces with compatible control hardware through the designated termination cable. The cable type, connector, and pin assignments must match the system configuration. Always check the applicable Foxboro documentation before wiring.
4. Which input signals can be used with the FBM207 system?
The FBM207 family supports voltage-monitoring and contact-sensing applications, with supported input ranges depending on the module and terminal assembly configuration. Confirm the exact input type and voltage range for the installed hardware before connecting field devices.
5. What type of field wiring is supported?
Compression terminals are designed for compatible solid or stranded conductors. The acceptable conductor cross-section, use of ferrules, and wire preparation requirements depend on the specific terminal assembly. Follow the manufacturer’s wiring specifications to ensure reliable electrical contact.
6. How should the P0916XN be installed?
The terminal assembly is designed for DIN-rail mounting in a suitable industrial control cabinet. Ensure that the rail is secure, wiring is properly routed, and adequate access is available for inspection and maintenance. Disconnect hazardous electrical supplies before installation or servicing.
7. What should be checked if field signals are not reaching the controller?
Check the field wiring, terminal tightness, termination cable, connector seating, and compatibility between the terminal assembly and the installed FBM207 configuration. Verify the field-device signal and input voltage, then inspect module status indicators and controller diagnostics to narrow down the fault.
8. Can the P0916XN be used as a direct replacement for another Foxboro terminal assembly?
Not necessarily. Terminal assemblies may differ in input configuration, terminal arrangement, wiring compatibility, and associated cable requirements. Before replacement, compare the existing order number with the replacement part’s specifications and verify compatibility with the installed FBM207 module.
Foxboro FBM207 P0916XN Compression Terminal Assembly is in stock. Please contact us for a quick quote and competitive pricing.
