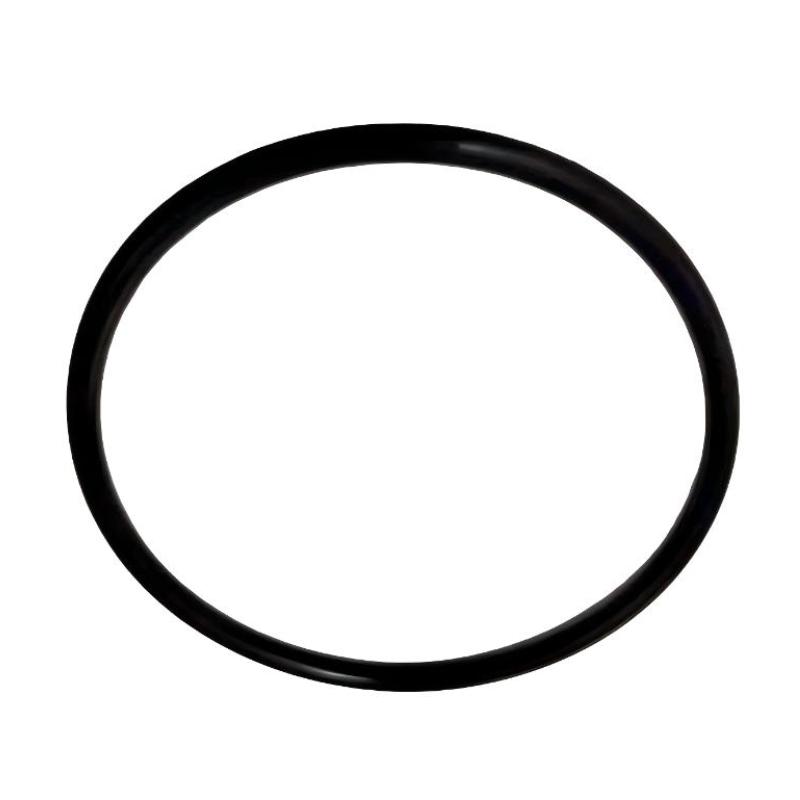

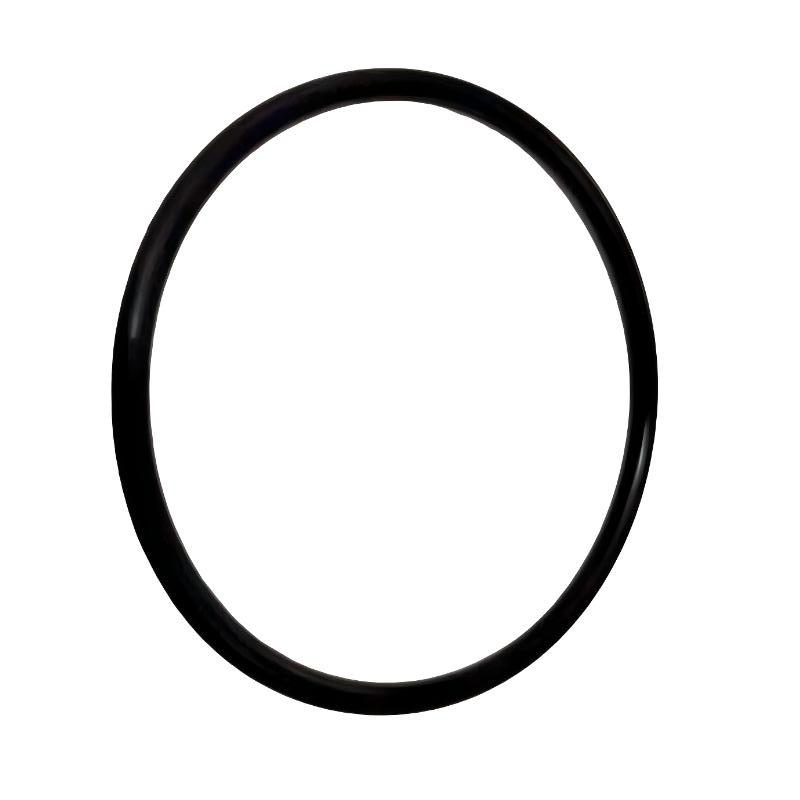

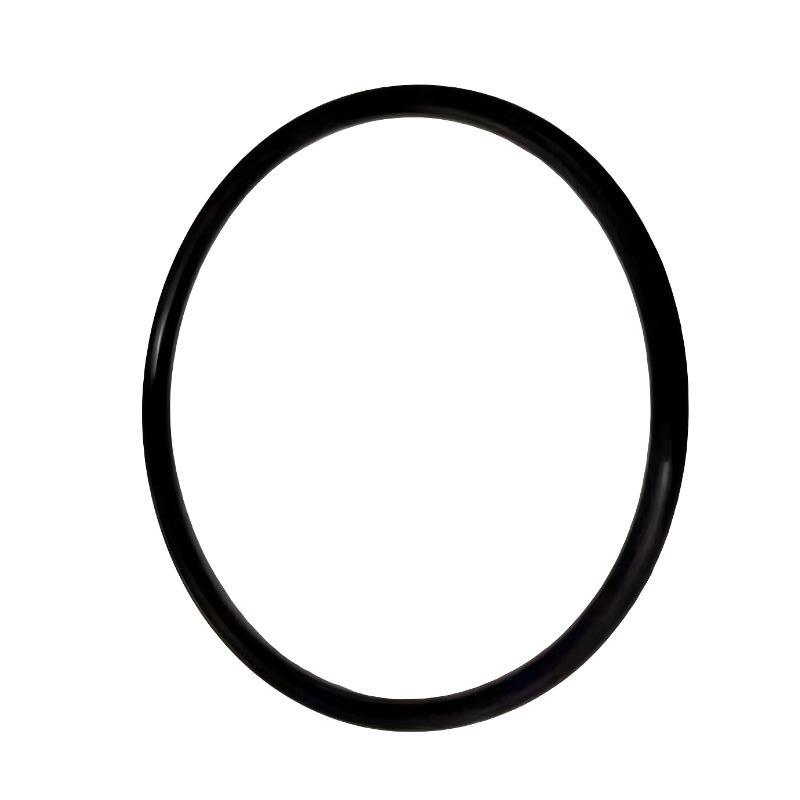

Ingersoll Rand 95439006 O-Ring
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 95439006 |
| Part Number | 95439006 |
| Product Type | O-Ring |
| Product Category | Industrial Sealing Component |
| Application | Ingersoll Rand Centac centrifugal compressors |
| Compatible Equipment | Centac C Series and CN Series, subject to equipment configuration |
| Seal Type | Static compression seal |
| Nominal Inner Diameter | 17 in |
| Nominal Outer Diameter | 17.38 in |
| Cross-Section Thickness | 0.18 in |
| Sealing Function | Prevents leakage at static mating surfaces |
| Material | Confirm with the original part specification |
| Fluid Compatibility | Depends on seal compound and operating medium |
| Installation Method | Installed in a compatible sealing groove |
| Dimensions Provided | 50 × 10 × 30 mm |
| Weight | 0.1 kg |
Note: The supplied dimensions may refer to packaging or another measurement. They do not match the listed nominal diameter of this O-ring. Verify the actual part dimensions before ordering or installation.
FAQ
1. What is the Ingersoll Rand 95439006 O-Ring used for?
The Ingersoll Rand 95439006 is a sealing component associated with Centac centrifugal compressor applications. It provides a static seal between mating components, helping prevent air, gas, or other process media from leaking through a stationary joint.
2. Which compressor models are compatible with the 95439006 O-Ring?
The part is listed for Centac C Series and CN Series compressor applications. Compatibility can vary by equipment configuration and assembly position, so confirm the part number against the compressor’s parts list and serial number before ordering.
3. What are the nominal sealing dimensions of this O-ring?
The listed nominal dimensions are a 17-inch inner diameter, a 17.38-inch outer diameter, and a 0.18-inch cross-section. These measurements should be checked against the original component and sealing groove before installation, particularly if the available product listing shows different dimensions.
4. What material is used to manufacture the 95439006 O-Ring?
The exact compound has not been independently confirmed. Industrial O-rings may use NBR, FKM, or other elastomers depending on the operating environment. The replacement material should be verified against the original specification and selected for compatibility with the process medium, temperature, and pressure.
5. Can a standard commercial O-ring replace the original part?
A standard O-ring may be suitable only if its dimensions, material, hardness, and operating ratings meet the original requirements. A similar-looking seal is not necessarily interchangeable. For compressor service, matching the original part number and equipment application is the safest approach.
6. What are the common causes of O-ring leakage?
Common causes include material aging, chemical incompatibility, excessive compression, incorrect groove dimensions, surface damage, and improper installation. Pressure fluctuations and excessive temperature can also contribute to seal deterioration or extrusion.
7. What precautions should be taken when installing the O-ring?
Isolate the compressor and release any trapped pressure according to the manufacturer’s service procedure. Clean the sealing groove and mating surfaces, inspect for scratches or corrosion, and use only a compatible assembly lubricant if required. Avoid twisting, stretching, or pinching the O-ring during installation.
8. When should the 95439006 O-Ring be replaced?
Replace the seal if it shows cracking, cuts, hardening, swelling, permanent deformation, or signs of leakage. Replacement may also be required during scheduled compressor overhauls when specified by the maintenance procedure. Inspect the groove and mating surfaces as well, since damaged sealing surfaces can cause a new O-ring to fail prematurely.
Ingersoll Rand 95439006 O-Ring is in stock. Please contact us for a quick quote and competitive pricing.
