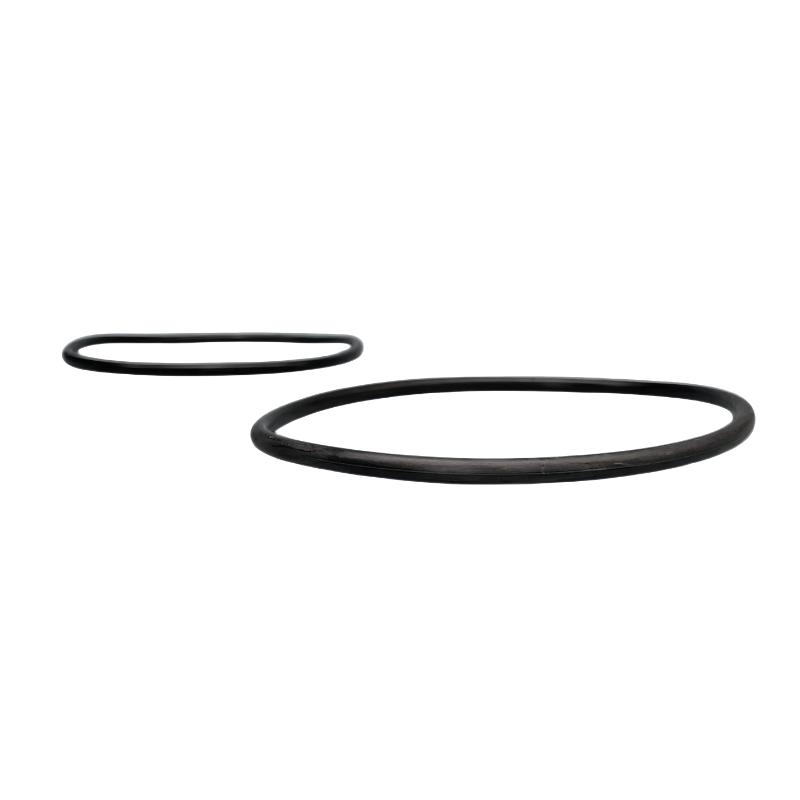

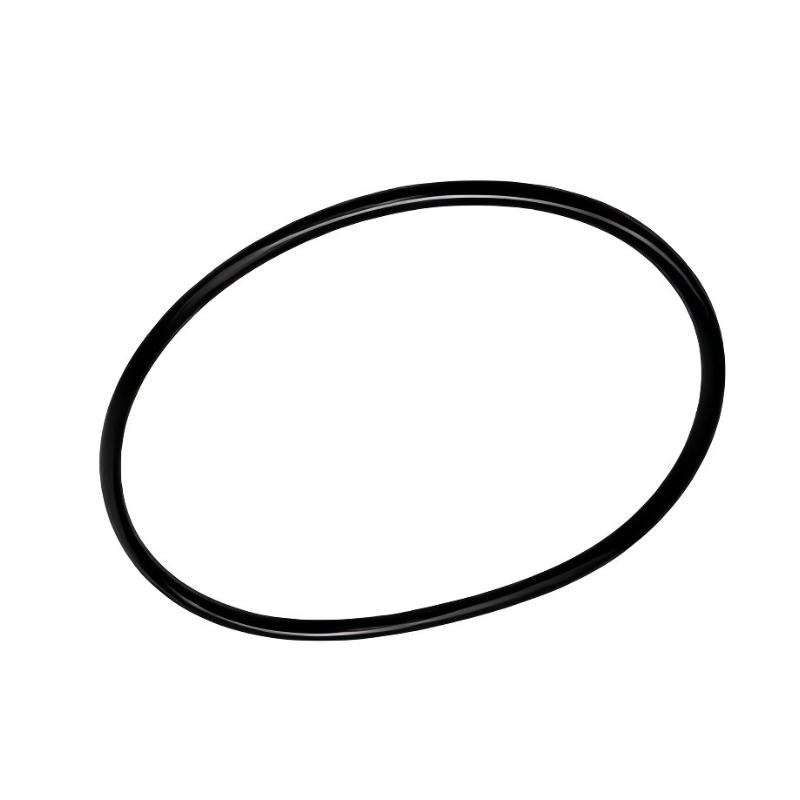

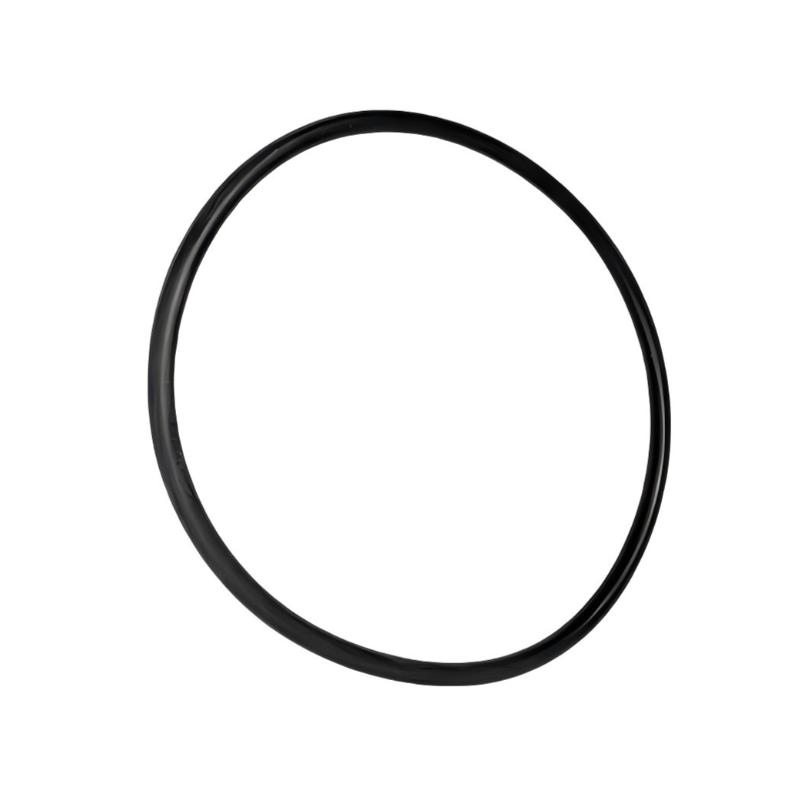

Ingersoll Rand 95026977 O-Ring
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 95026977 |
| Part Number | 95026977 |
| Product Type | Compressor O-Ring |
| Product Category | Industrial Sealing Component |
| Application | Centac centrifugal compressors |
| Sealing Type | O-ring seal |
| Nominal Inner Diameter | 5.25 in (133.35 mm) |
| Nominal Outer Diameter | 5.625 in (142.88 mm) |
| Cross-Section Thickness | 0.188 in (4.78 mm) |
| Sealing Function | Helps prevent air or process-fluid leakage at mating surfaces |
| Material | Verify against the original part specification |
| Installation Method | Installed in a compatible sealing groove |
| Operating Pressure | Depends on equipment design and seal material |
| Operating Temperature | Depends on the seal compound and operating conditions |
| Dimensions Provided | 50 × 10 × 30 mm |
| Weight | 0.1 kg |
FAQ
1. What is the Ingersoll Rand 95026977 O-Ring used for?
The Ingersoll Rand 95026977 is an O-ring used in compatible compressor assemblies to create a seal between mating components. It helps prevent leakage and supports stable equipment operation when correctly installed and maintained.
2. Which equipment is the 95026977 O-Ring designed for?
This part is listed for Ingersoll Rand Centac centrifugal compressor applications. Compatibility depends on the compressor model and the specific assembly position. Check the equipment parts list and serial number before ordering a replacement.
3. What are the nominal sealing dimensions of this O-ring?
The listed nominal dimensions are a 5.25-inch inner diameter, a 5.625-inch outer diameter, and a 0.188-inch cross-section. These specifications should be verified against the original component and the equipment’s sealing groove before installation.
4. What material is used in the 95026977 O-Ring?
The exact elastomer compound has not been confirmed. The material should be checked against the original part specification because compatibility with lubricants, process fluids, temperature, and pressure can affect sealing performance and service life.
5. Can another standard O-ring be used as a replacement?
A replacement may be suitable if its dimensions, material, hardness, and operating ratings meet the original requirements. A similar-looking O-ring is not necessarily interchangeable. For compressor maintenance, confirm the part number and equipment compatibility before installation.
6. What causes an O-ring to fail prematurely?
Common causes include material aging, chemical incompatibility, excessive compression, incorrect groove dimensions, surface damage, and improper installation. Excessive temperature or pressure can also accelerate deterioration and lead to leakage.
7. What precautions should be followed during installation?
Isolate the compressor and release stored pressure according to the manufacturer’s maintenance procedure. Clean the sealing groove, inspect mating surfaces for damage, and use a compatible assembly lubricant if required. Avoid twisting, stretching excessively, or pinching the O-ring during assembly.
8. When should the 95026977 O-Ring be replaced?
Replace the O-ring if it shows cracking, cuts, hardening, swelling, permanent deformation, or signs of leakage. Replacement may also be required during scheduled maintenance when specified by the service procedure. Inspect the groove and mating surfaces to prevent premature failure of the new seal.
Ingersoll Rand 95026977 O-Ring is in stock. Please contact us for a quick quote and competitive pricing.
