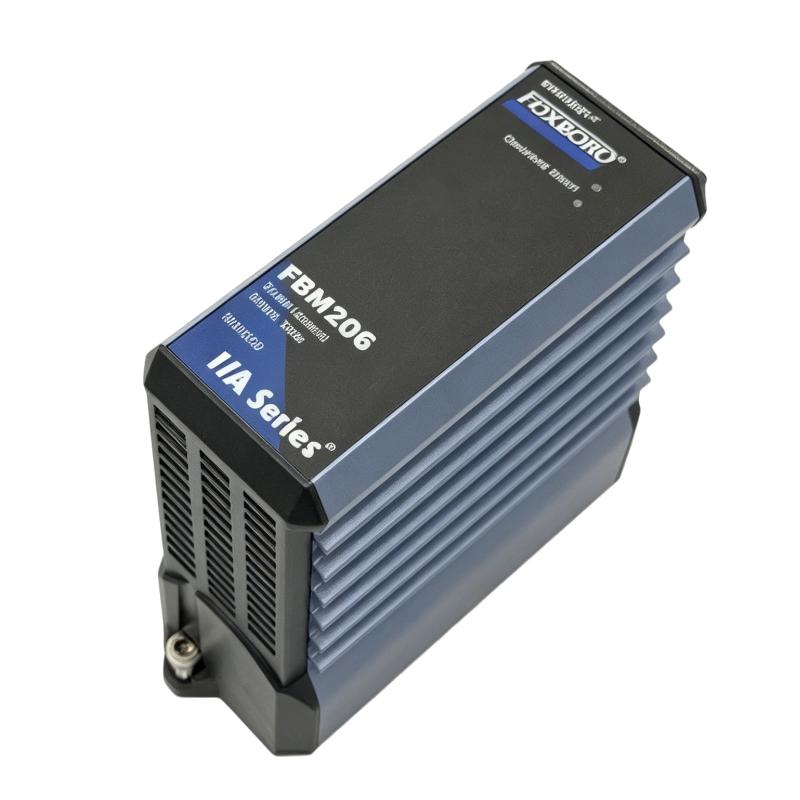

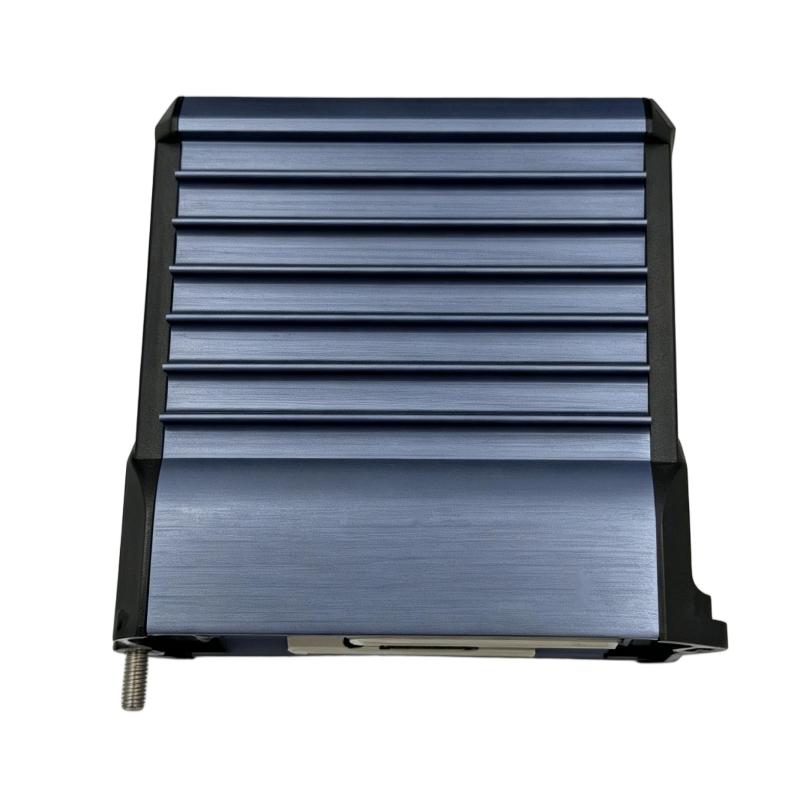

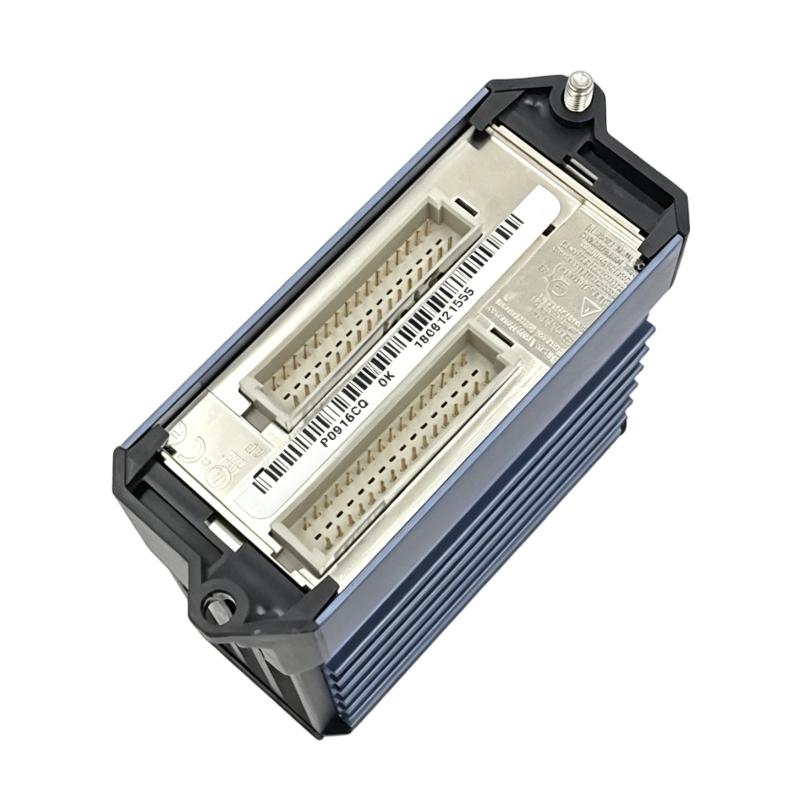

Foxboro FBM206 P0916CQ Isolated Pulse Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | FBM206 |
| Ordering Number | P0916CQ |
| Product Type | Isolated Pulse Input Module |
| Product Series | I/A Series Distributed Control System (DCS) |
| Number of Input Channels | 8 independent pulse input channels |
| Input Type | Pulse / Frequency Input |
| Input Pulse Rate | 10 Hz to 25 kHz |
| Pulse Rate Accuracy | ±0.01% of reading |
| Pulse Counting Accuracy | No missing pulses within the specified operating range |
| Input Channel Impedance | 10 kΩ |
| Input Signal Range | Refer to the module’s specified pulse characteristics |
| Channel Isolation | Galvanic isolation between channels and from ground |
| Isolation Withstand Capability | 600 V AC for 1 minute between channels or between a channel and ground |
| Field Device Power Supply | 24 V DC ±10% |
| Field Device Supply Current | 30 mA maximum per channel |
| Communication Interface | Redundant 2 Mbps module Fieldbus |
| Compatible System Components | Associated Fieldbus Communication Module (FCM) or Fieldbus Control Processor (FCP) |
| Power Consumption | Up to 7 W |
| Operating Temperature | -20 to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Environmental Suitability | Industrial environments; verify installation conditions against system documentation |
| Mounting | Compatible DCS module baseplate |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
Q1: What is the main function of the Foxboro FBM206 P0916CQ?
The Foxboro FBM206 is an isolated pulse input module designed to acquire pulse signals from field instruments and transfer the processed data to a DCS. Typical applications include flow measurement, rotational speed monitoring, pulse counting, and production totalization. Its eight independent input channels allow multiple pulse-generating devices to be monitored by one module.
Q2: How many input channels does the FBM206 provide?
The FBM206 provides eight independent, galvanically isolated pulse input channels. Each channel can receive a signal from a compatible field device. Before connecting sensors, verify their output signal characteristics and wiring requirements against the module’s technical documentation.
Q3: What pulse frequency can the FBM206 handle?
The specified input pulse frequency range is 10 Hz to 25 kHz. This makes the module suitable for applications involving pulse-based flowmeters, speed sensors, and other industrial instruments. The actual operating range must remain within the permitted signal characteristics and configuration limits.
Q4: What is the pulse measurement accuracy of this module?
The specified pulse rate accuracy is ±0.01% of the reading. The module is also designed to count pulses without missing them within its specified operating range. Actual measurement performance depends on the input signal quality, correct wiring, configuration, and operating conditions.
Q5: How does channel isolation improve system reliability?
Each input channel is galvanically isolated from the other channels and from ground. This design helps reduce interference caused by ground potential differences and electrical noise between field devices. It is particularly useful when pulse signals originate from separate instruments or equipment operating under different electrical conditions.
Q6: How does the FBM206 communicate with the DCS controller?
The module communicates with its associated Fieldbus Communication Module (FCM) or Fieldbus Control Processor (FCP) through a redundant 2 Mbps module Fieldbus. This connection transfers acquired process data to the control system. Compatibility with the installed baseplate, fieldbus configuration, and controller architecture should be verified before commissioning.
Q7: What should be checked if the module does not detect pulse signals?
Check the field device’s power supply, pulse output, signal voltage, frequency, polarity, and terminal wiring. Confirm that the input signal meets the module’s electrical requirements and that the channel is correctly configured. If the signal is valid but the DCS receives no data, inspect the module’s seating, baseplate connection, fieldbus status, and controller configuration.
Q8: What should be considered when replacing an FBM206 P0916CQ?
Verify both identifiers before replacement: FBM206 is the model, and P0916CQ is the ordering number. Confirm compatibility with the existing DCS hardware, baseplate, fieldbus, field wiring, and channel configuration. Record the existing settings before removal, follow the plant’s approved isolation and replacement procedures, and verify pulse acquisition and communication after installation.
