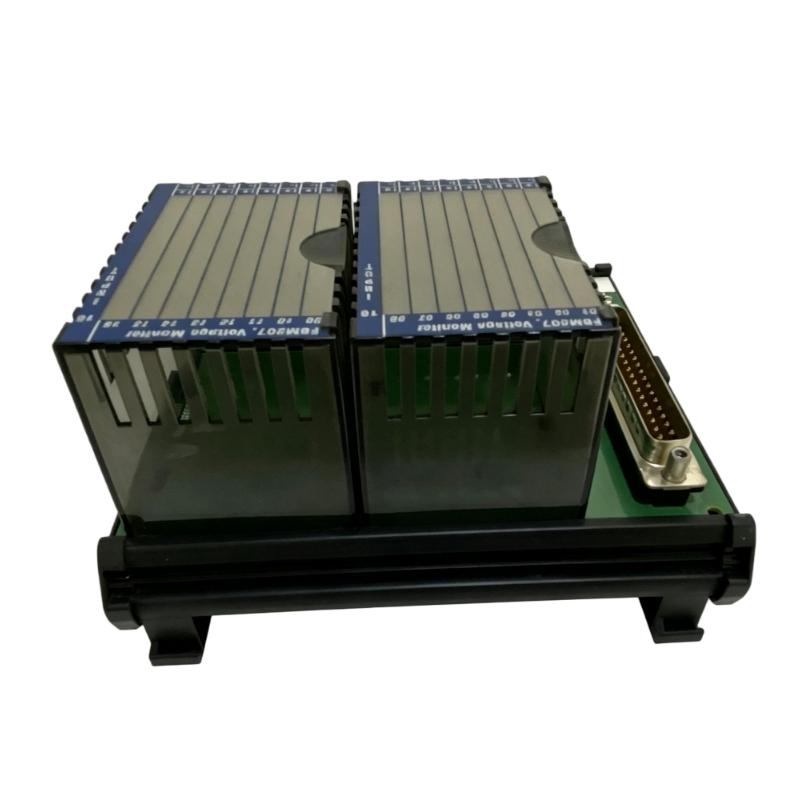

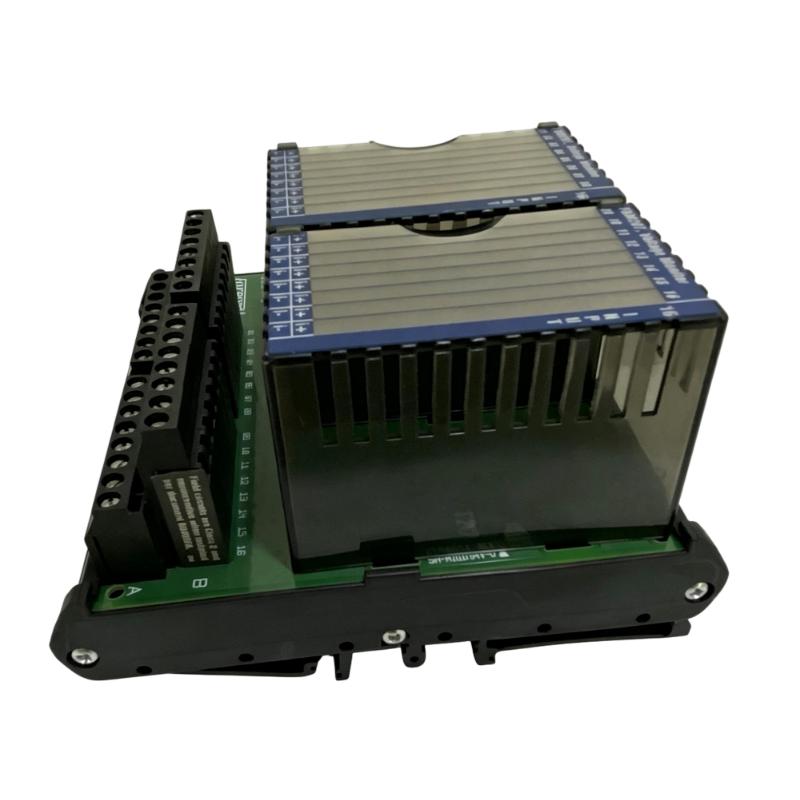

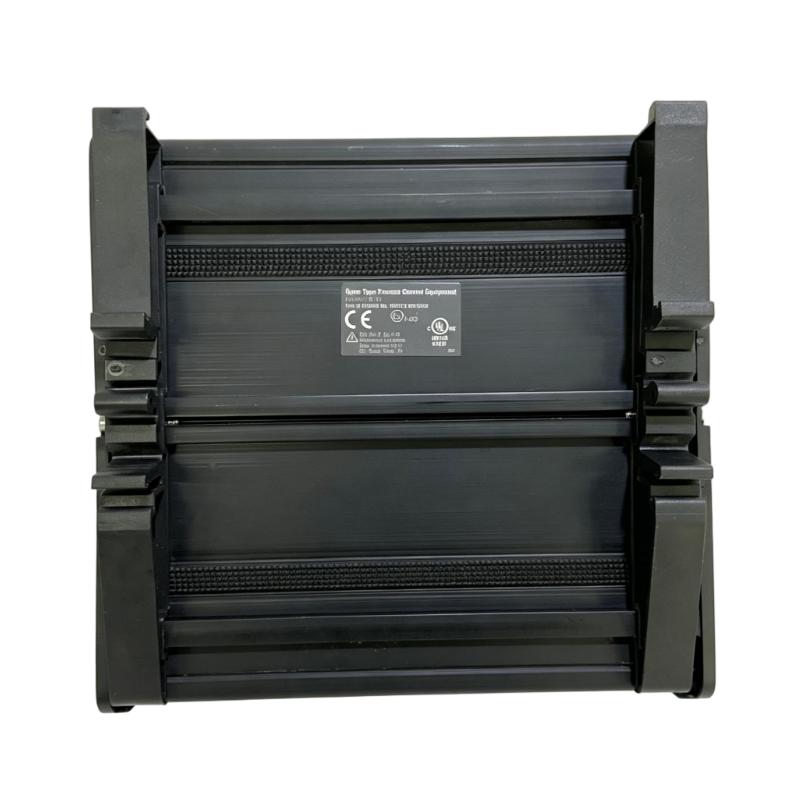

Foxboro FBM207 P0916PH Compression Terminal Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | FBM207 |
| Ordering Number | P0916PH |
| Product Type | Compression Terminal Assembly |
| System Compatibility | Foxboro I/A Series Control System |
| Application | AC Voltage Monitoring |
| Supported Input Voltage | 240 V AC |
| Input Channels | 16 |
| Logic Zero Input Range | 0–40 V AC |
| Logic One Input Range | 160–280 V AC |
| Maximum Logic One Input Current | 1.6 mA |
| Termination Type | Compression Screw Terminals |
| Terminal Assembly Material | PVC / Polyamide, depending on version |
| Mounting Type | DIN Rail Mounting |
| Cable Interface | 37-pin D-subminiature connection |
| Compatible Termination Cable Length | Up to 30 m |
| Dimensions | 127 × 80 × 125 mm |
| Weight | 0.272 kg |
FAQ
Q1: What is the main function of the Foxboro FBM207 P0916PH?
The Foxboro FBM207 P0916PH is a compression terminal assembly associated with the FBM207 voltage-monitoring input module. It provides an organized interface for connecting field wiring to compatible Foxboro I/A Series control-system equipment in industrial monitoring applications.
Q2: What type of input signals is the P0916PH designed for?
The P0916PH is associated with 240 V AC voltage-monitoring applications. The corresponding FBM207 configuration monitors input voltage states and converts them into signals that can be processed by the control system.
Q3: How many input channels does the FBM207 support?
The FBM207 is a 16-channel voltage-monitoring input module. The P0916PH terminal assembly is intended for the corresponding compatible configuration. Confirm the module version and system wiring plan before connecting field signals.
Q4: What are the logic threshold levels for the 240 V AC configuration?
For the FBM207 configuration associated with P0916PH, the specified logic-zero range is 0–40 V AC, while the logic-one range is 160–280 V AC. Signals between these ranges should not be assumed to represent a valid logic state; follow the manufacturer’s specifications when designing and testing the application.
Q5: How is the P0916PH connected to the control system?
The terminal assembly uses compression screw terminals for field wiring and connects to compatible system equipment through the designated termination cable. Verify the correct cable part number, pinout, module compatibility, and wiring diagram before installation.
Q6: What wire sizes are suitable for the compression terminals?
Foxboro documentation for compatible compression termination assemblies specifies solid conductors of 0.2–4 mm² and stranded conductors of 0.2–2.5 mm², corresponding approximately to 24–12 AWG and 24–14 AWG, respectively. Check the applicable assembly version and manufacturer’s instructions before selecting conductors and ferrules.
Q7: What should be checked if voltage-monitoring signals are incorrect or unstable?
Check the field supply voltage, terminal tightness, wiring polarity where applicable, cable connections, and the compatibility of the terminal assembly with the installed FBM207 module. Also inspect cable routing for electrical interference, particularly near high-power equipment, and review system diagnostics before replacing components.
Q8: What precautions should be taken when installing or replacing the P0916PH?
Isolate the relevant power sources and verify that the circuit is de-energized before working on the terminals. Confirm the ordering number, module compatibility, wiring diagram, terminal assignments, and DIN rail mounting. After installation, inspect all connections and carry out controlled functional testing before returning the system to service.
Foxboro FBM207 P0916PH Compression Terminal Assembly is in stock. Please contact us for a quick quote and competitive pricing.
