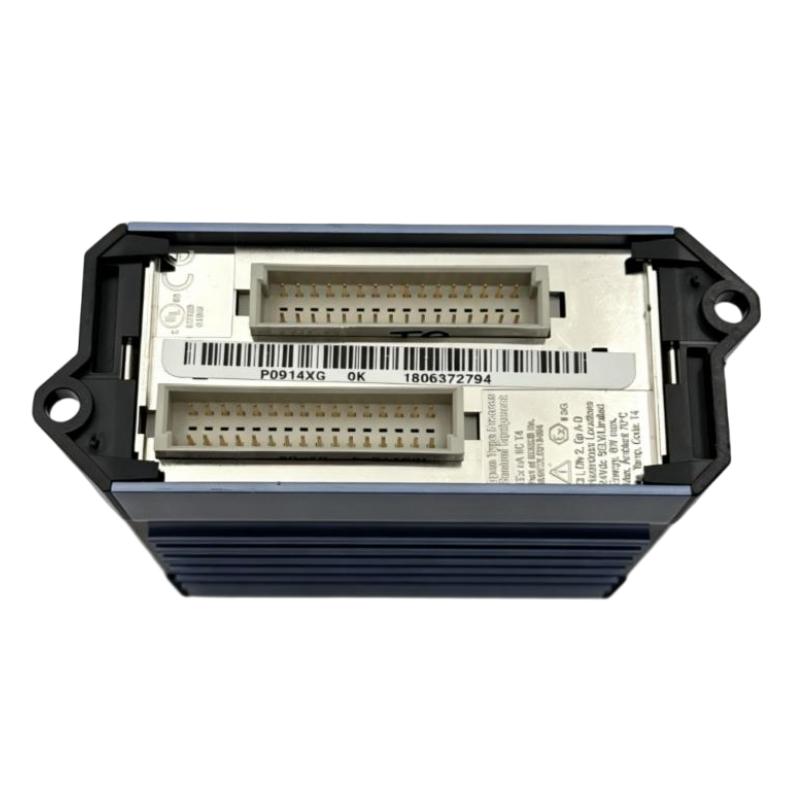

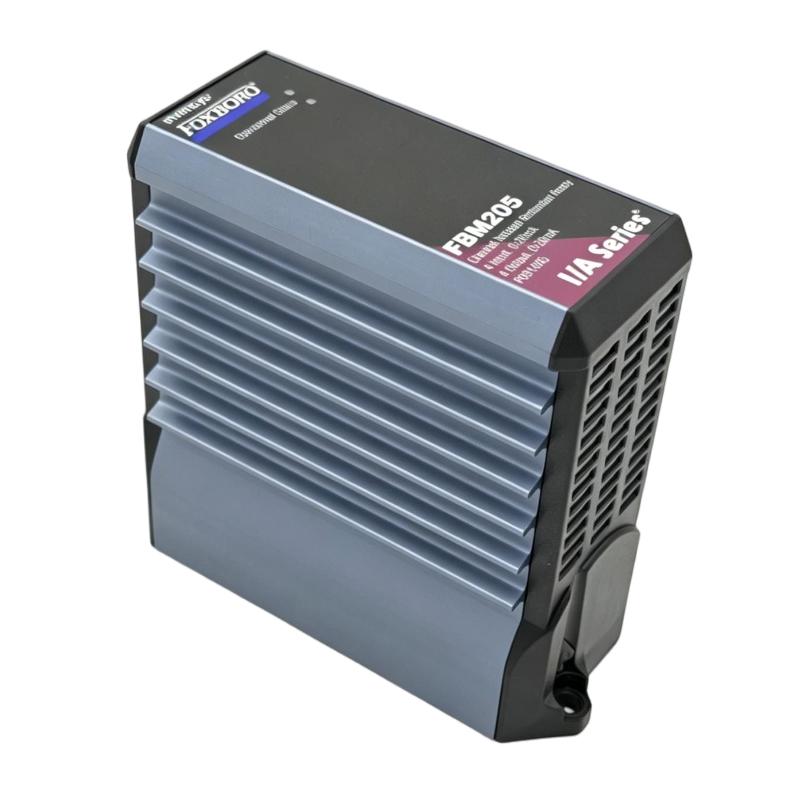

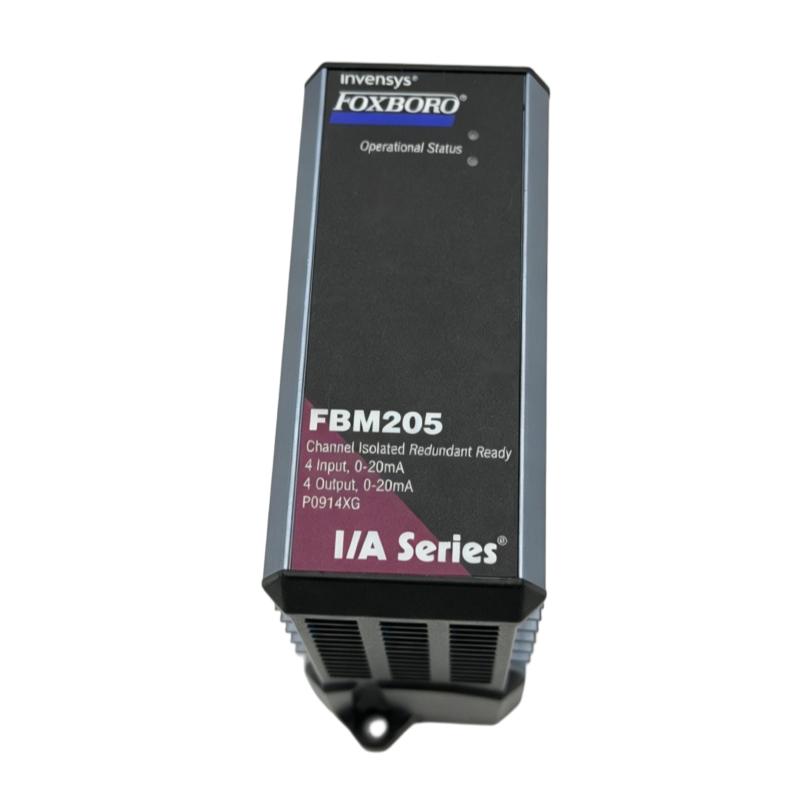

Foxboro FBM205 P0914XG Isolated I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
|
|
Manufacturer |
Schneider Electric |
|
Model |
|
|
Order Number |
|
|
Product Type |
Redundant Analog Input/Output Interface Module |
|
Product Series |
Foxboro I/A Series |
|
Analog Input Channels |
4 |
|
Analog Output Channels |
4 |
|
Input Signal Range |
0–20.4 mA DC |
|
Output Signal Range |
0–20.4 mA DC |
|
Input Channel Accuracy |
±0.3% of span |
|
Output Channel Accuracy |
±0.05% of span |
|
Input Conversion |
Sigma-delta A/D conversion |
|
Output Resolution |
13 bits |
|
Maximum Output Load |
750 Ω |
|
Output Processing Delay |
Maximum 30 ms |
|
Channel Isolation |
Galvanic isolation between channels and ground |
|
Communication Interface |
Redundant 2 Mbps module fieldbus |
|
Compatible System |
Foxboro I/A Series DCS |
|
Redundancy |
Designed for redundant-pair operation |
|
Power Supply |
24 V DC (+5%, -10%) |
|
Power Consumption |
Maximum 10 W per redundant pair |
|
Heat Dissipation |
Maximum 7 W per redundant pair |
|
HART Compatibility |
Compatible with HART high-impedance communication requirements |
|
Mounting Method |
Compact 200 Series baseplate |
|
Maximum Termination Cable Length |
30 m |
|
Operating Temperature |
-20°C to +70°C |
|
Environmental Rating |
ISA S71.04 Class G3 |
|
Dimensions |
114 × 45 × 104 mm |
|
Weight |
0.284 kg |
FAQ
1. What is the Foxboro FBM205 P0914XG used for?
The FBM205 is a redundant analog I/O interface module for Foxboro I/A Series distributed control systems. It receives analog process signals from field instruments and sends analog control signals to devices such as control valves and actuators.
2. How many analog input and output channels does the FBM205 provide?
The module provides four analog input channels and four analog output channels. Both inputs and outputs support 0–20 mA DC signals, allowing process measurements and control commands to be handled by one module.
3. Does the FBM205 support redundant operation?
Yes. The FBM205 is designed for use in a redundant pair. Two modules work with a compatible redundant adapter and termination assembly to provide module-level redundancy. The system configuration must support the required redundancy arrangement.
4. Are the analog input and output channels electrically isolated?
Yes. Each input and output channel is galvanically isolated from other channels and ground. This helps reduce ground-loop problems and interference when signals come from different field devices.
5. What power supply does the FBM205 require?
The module uses a 24 V DC supply with a specified tolerance of +5% and -10%. For a redundant pair, the maximum total power consumption is 10 W. Verify the power supply and redundancy wiring before installation.
6. Can the FBM205 work with HART field devices?
The module’s analog output channels meet the impedance requirements for high-impedance HART communication. When using a FoxCom or HART transmitter with the FBM205, an appropriate 200 Ω series resistor assembly may be required, depending on the transmitter configuration.
7. What should be checked if an analog input reading is incorrect?
Check the field transmitter’s output current, loop wiring, terminal connections, channel configuration and control-system scaling. Also inspect diagnostic information and verify that the signal remains within the supported input range.
8. What should be checked if an analog output does not control the field device correctly?
Verify the configured output value, field wiring polarity, load resistance and the receiving device’s current-input requirements. The maximum specified output load is 750 Ω. If the problem persists, review module diagnostics, termination assembly connections and the redundant-pair configuration.
Foxboro FBM205 P0914XG Isolated I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
