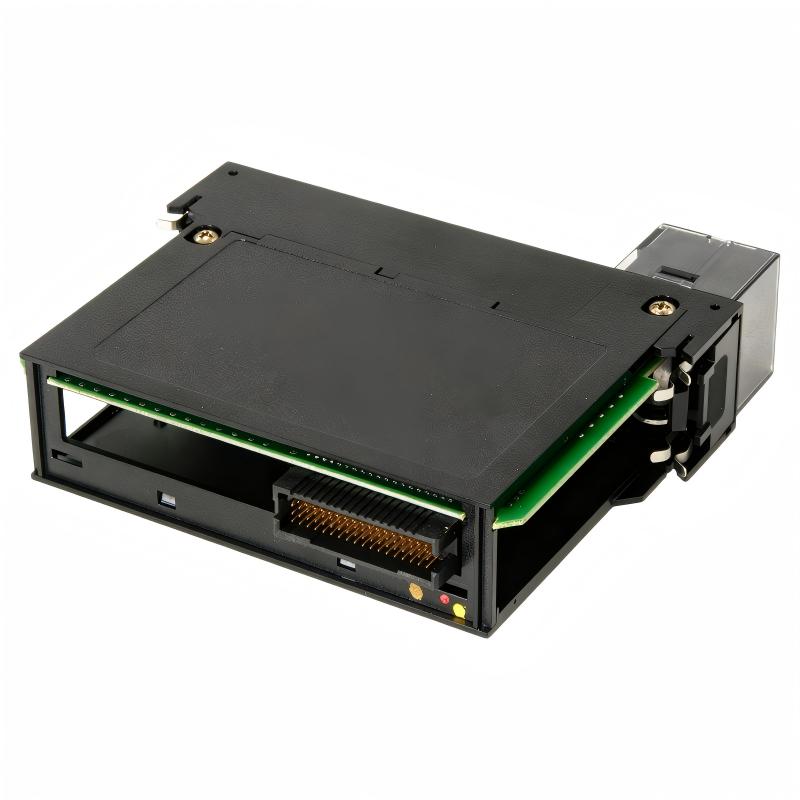

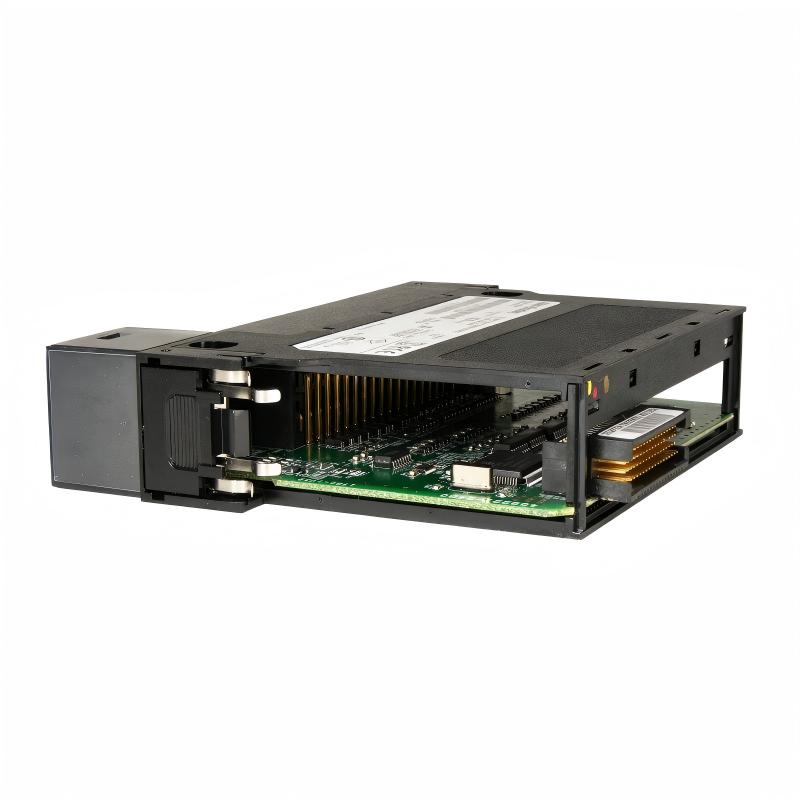

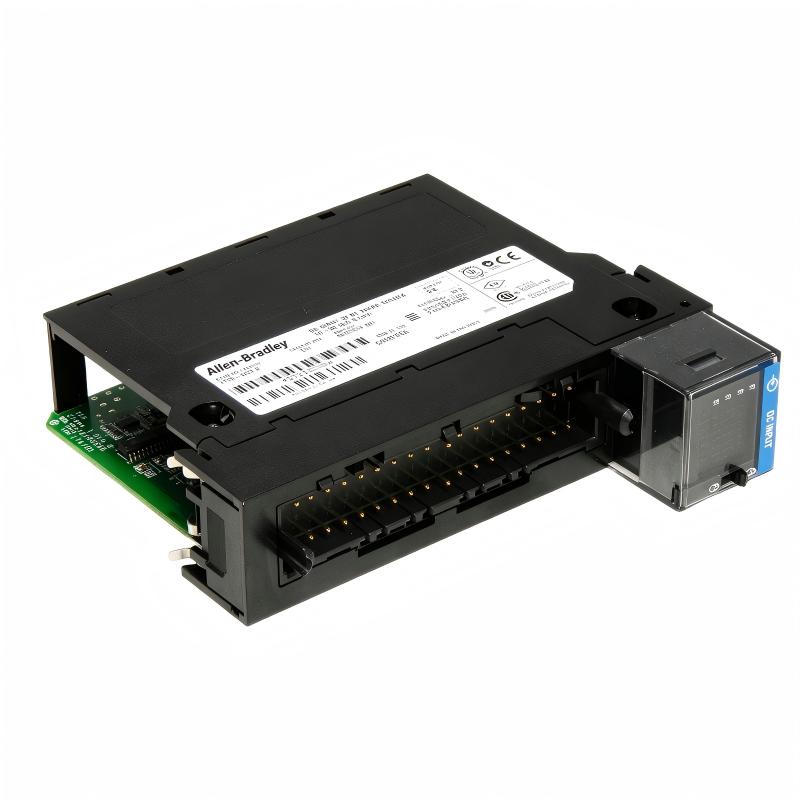

Allen Bradley 1756-IV32/A ControlLogix Sourcing Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlLogix Sourcing Input Module |
| Brand | Allen Bradley |
| Model | 1756-IV32/A |
| Product Type | Digital Input Module |
| Product Series | ControlLogix 1756 Series |
| Function | Receives and processes 24V DC digital input signals from field devices |
| Input Type | Digital DC Input |
| Number of Inputs | 32 Channels |
| Input Configuration | Sourcing Input |
| Voltage Rating | 12/24V DC |
| Input Signal Type | DC On/Off Signal |
| Communication Method | ControlLogix backplane communication |
| Installation Method | ControlLogix chassis mounting |
| Module Design | Modular plug-in I/O module |
| System Compatibility | Allen Bradley ControlLogix Programmable Automation Controllers |
| Diagnostic Function | Supports input status monitoring, module diagnostics, and fault indication |
| Isolation Type | Channel-to-backplane electrical isolation |
| Data Format | Digital input data transmitted to ControlLogix processor |
| Response Time | Fast input signal detection for real-time control applications |
| Applications | Industrial automation, manufacturing lines, machine control, process monitoring, and factory automation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | Supplied through ControlLogix chassis backplane |
| Main Function | Converts field 24V DC digital signals into processor-readable input data for ControlLogix control systems |
| Dimensions | 144.57 × 22 × 105.42 mm |
| Weight | 0.45 kg |
FAQ
1. What is the primary function of the Allen Bradley 1756-IV32/A ControlLogix Sourcing Input Module?
The Allen Bradley 1756-IV32/A ControlLogix Sourcing Input Module is designed to collect digital DC input signals from field devices and transfer the status information to a ControlLogix processor.
The module provides 32 digital input channels and is commonly used for monitoring sensors, switches, limit devices, push buttons, and other industrial control signals.
By converting field electrical signals into processor-readable data, the module enables the ControlLogix system to perform logic control, sequence management, equipment monitoring, and automated operation control.
2. How does the 1756-IV32/A sourcing input module work?
The 1756-IV32/A receives DC voltage signals from connected field devices through its input channels.
When a field device changes state, the module detects the electrical signal condition and converts it into digital data. The information is then transferred through the ControlLogix chassis backplane to the processor.
The controller uses this input information to execute programmed logic operations, control outputs, generate alarms, and manage automated processes.
Its fast signal response capability allows it to support applications requiring reliable and continuous input monitoring.
3. What types of devices can be connected to the Allen Bradley 1756-IV32/A module?
The 1756-IV32/A is suitable for connecting various industrial digital field devices, including:
- Proximity sensors
- Photoelectric sensors
- Limit switches
- Push buttons
- Selector switches
- Safety devices
- Relay contact outputs
The module is widely used in machine automation, production lines, material handling systems, and industrial control applications where reliable digital signal acquisition is required.
4. How can input signal problems be diagnosed on the 1756-IV32/A?
When an input channel does not operate correctly, first check whether the connected field device is generating the correct DC signal.
Next, inspect field wiring, terminal connections, power supply conditions, and cable integrity to ensure there are no open circuits, short circuits, or loose connections.
The ControlLogix programming software can be used to monitor input status, check module diagnostics, and identify communication or configuration problems.
If wiring and field devices are normal, verify that the module configuration parameters match the actual hardware setup.
5. What installation considerations should be followed for the 1756-IV32/A module?
Before installation, ensure that the ControlLogix chassis is properly powered down according to safety procedures.
The module should be inserted into the correct chassis slot and securely connected to the backplane.
Field wiring should follow the recommended industrial wiring practices, including proper grounding, noise protection, and separation from high-voltage power cables.
After installation, the module must be configured in the ControlLogix software environment and tested to confirm correct input operation.
6. How does the 1756-IV32/A improve industrial automation system reliability?
The 1756-IV32/A improves system reliability by providing stable and accurate digital signal acquisition for ControlLogix automation platforms.
Its diagnostic capabilities help maintenance personnel monitor module status, identify input faults, and reduce troubleshooting time.
The 32-channel design allows multiple field devices to be connected through a single module, simplifying system architecture and reducing installation complexity.
This makes it suitable for applications requiring continuous operation, fast response, and dependable control performance.
7. What should be checked if the 1756-IV32/A module is not communicating with the ControlLogix processor?
If communication problems occur, first verify that the module is properly installed in the ControlLogix chassis and recognized by the controller.
Check the module status indicators and review diagnostic information through the ControlLogix programming software.
If the module is not responding, inspect the chassis backplane connection, controller status, power supply, and module configuration.
The project configuration should also be compared with the actual installed hardware to ensure the correct module type and parameters are selected.
Following a systematic troubleshooting process can quickly restore normal communication.
8. What maintenance procedures are recommended for the Allen Bradley 1756-IV32/A module?
Routine maintenance includes checking module status indicators, reviewing controller diagnostics, and verifying input signal performance.
Maintenance personnel should regularly inspect field wiring, terminal connections, and connected devices to prevent failures caused by loose connections or damaged cables.
For critical automation systems, periodic testing of input channels and verification of sensor operation are recommended.
A preventive maintenance program combining system monitoring, wiring inspection, and functional testing can improve the service life of the 1756-IV32/A and maintain reliable ControlLogix system operation.
Allen Bradley 1756-IV32/A ControlLogix Sourcing Input Module is in stock. Please contact us for a quick quote and competitive pricing.
