1. What is the Allen Bradley 1756-L55M23/A mainly used for?

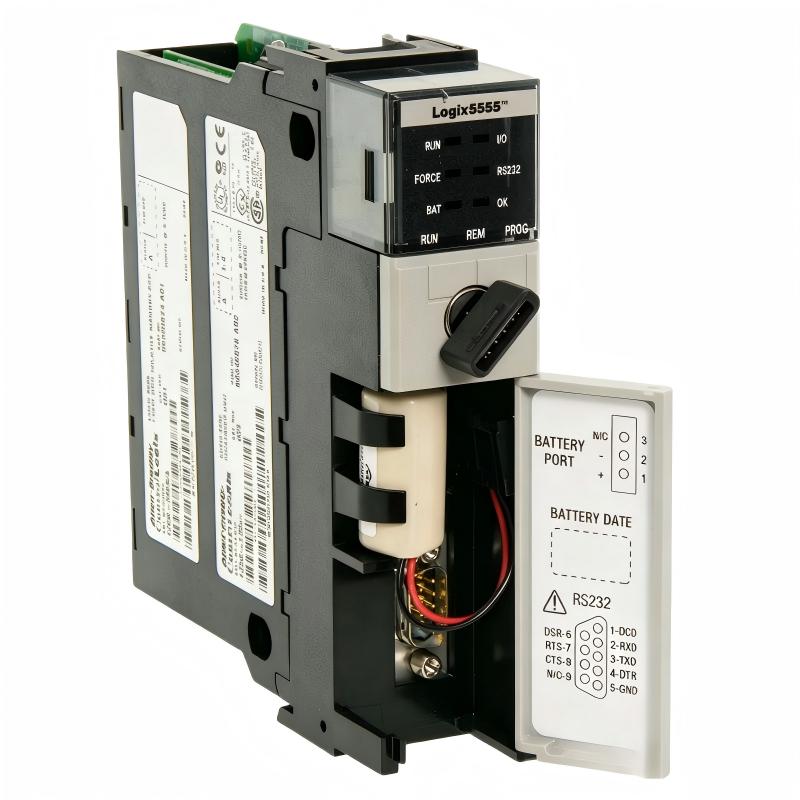

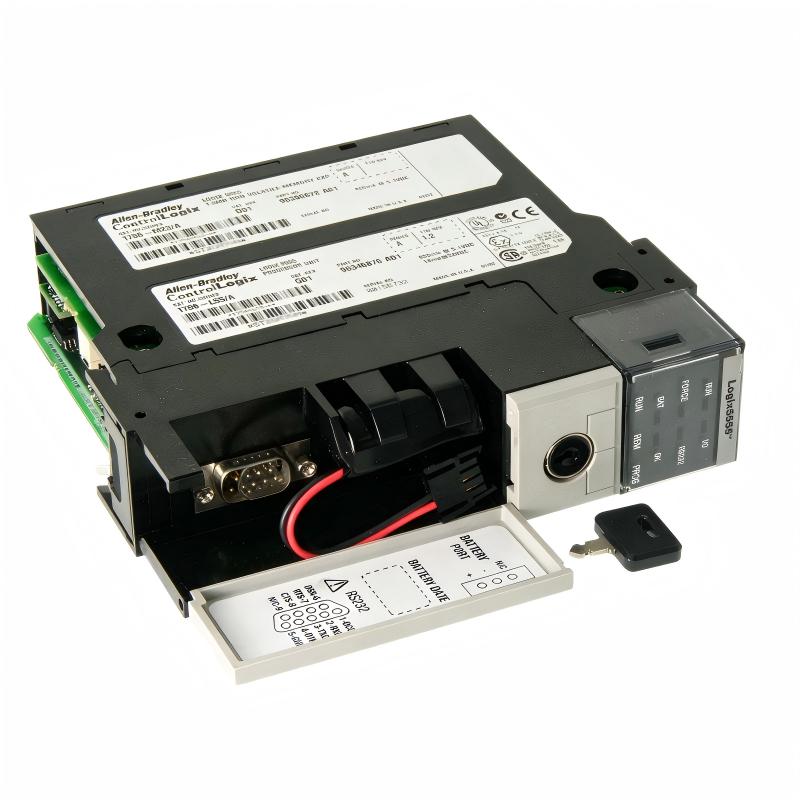

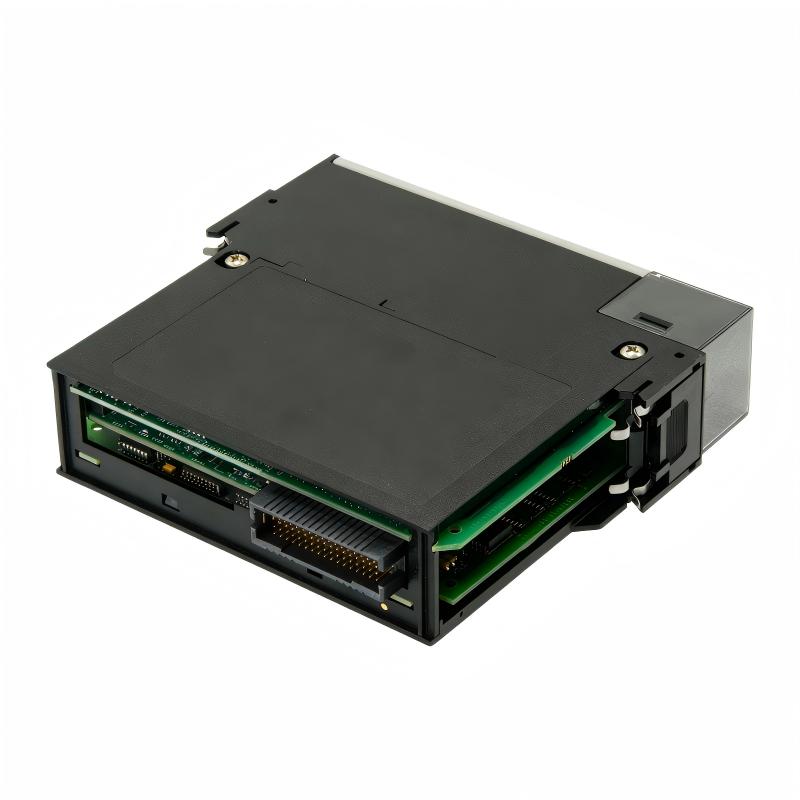

The Allen Bradley 1756-L55M23/A is a ControlLogix Logix5555 processor designed to execute industrial automation control programs and serve as a central processing unit within a ControlLogix system. It executes user-developed logic, processes I/O data, manages control tasks, and coordinates operation between different system components. Typical applications include automated production lines, machine control, sequence control, material handling, and industrial process applications. In a complete ControlLogix installation, the processor works together with I/O modules, communication modules, and other system components to acquire field data, execute programmed decisions, control equipment, and support overall automation functions.

2. Which PLC family does the 1756-L55M23/A belong to?

The 1756-L55M23/A belongs to the Allen-Bradley ControlLogix 5555 processor family and is part of the modular ControlLogix PLC platform. ControlLogix uses a chassis-based architecture that allows engineers to configure processors, digital I/O modules, analog I/O modules, communication modules, and other components according to the requirements of the automation project. Compared with fixed-function PLC platforms, this modular structure is well suited to larger industrial control systems because the hardware configuration can be expanded or adapted to meet changing application requirements. The 1756-L55M23/A serves as the processing core while other ControlLogix modules provide field I/O and communication functions.

3. What programming software is used with the 1756-L55M23/A?

The 1756-L55M23/A belongs to the Logix platform and is typically programmed and maintained using the RSLogix 5000 programming environment, with software and project compatibility determined by the controller firmware and application requirements. For maintenance environments using newer Rockwell Automation software, engineers should verify whether the applicable Studio 5000 Logix Designer version supports the controller and existing project. Programming software can be used to develop control logic, configure controller tasks and I/O, monitor tags, troubleshoot system conditions, and perform online maintenance. Software version, controller firmware, and project-file compatibility should be checked carefully before downloading or modifying a control project.

4. How does the 1756-L55M23/A work with ControlLogix I/O modules?

The 1756-L55M23/A acts as the controller processor, while the actual field signals are typically handled by I/O modules installed in the ControlLogix chassis. Digital input modules can receive signals from switches, push buttons, sensors, and other discrete devices, while digital output modules can operate relays, contactors, solenoids, and other switching devices. Analog I/O modules can be used for continuous process signals such as pressure, flow, temperature, and level. The processor exchanges data with these modules through the ControlLogix backplane and executes the programmed logic based on the acquired input data. It then sends appropriate commands to the output modules. This modular architecture allows the ControlLogix system to be configured for different machine and process automation requirements.

5. What industrial automation applications can use the 1756-L55M23/A?

The 1756-L55M23/A is suitable for industrial automation applications that require centralized control and logic processing on the ControlLogix platform. Typical applications include automated production lines, conveyor and material handling systems, packaging equipment, machine control, assembly systems, and selected process-control applications. On a production line, the processor can receive status information from sensors and I/O modules, execute sequence logic, and control motors, valves, actuators, and other equipment. When communication modules are included, the ControlLogix system can also exchange data with HMIs, other controllers, remote I/O, drives, and supervisory systems, allowing the processor to form part of a larger industrial automation network.

6. How can an abnormal 1756-L55M23/A processor condition be diagnosed?

Troubleshooting should generally proceed from the hardware and controller status toward software configuration and application logic. First, verify that the processor is correctly installed in a compatible ControlLogix chassis and inspect its status indicators for abnormal conditions. A compatible programming environment can then be used to connect to the controller and review controller status, diagnostic information, and available fault codes. If the processor itself appears to be operating normally, inspect connected I/O modules, communication modules, and network connections. If the issue is related to program execution, review tasks, programs, routines, tags, and logic conditions. Communication-related problems may require additional inspection of the applicable communication module and network configuration. Working systematically through the processor, I/O, communications, and application program helps identify whether the problem originates from hardware, configuration, communication, or user logic.

7. What should be considered when replacing the 1756-L55M23/A?

Before replacing a 1756-L55M23/A, verify the complete replacement model, controller family, firmware compatibility, and existing project requirements. The current controller program and relevant configuration should be backed up before maintenance begins. For an operating industrial machine or process, the system must be placed in an appropriate maintenance or safe condition according to site procedures to prevent unexpected equipment movement or process actions. After installing the replacement processor, verify its connection to the ControlLogix chassis and confirm that the associated modules are correctly recognized. The required user program, controller configuration, communication settings, and other project parameters should then be restored as appropriate. After startup, check controller status, I/O status, communication status, and critical control logic. Functional testing should be completed before returning the equipment to normal production.

8. What should be checked when commissioning the 1756-L55M23/A?

Commissioning should cover the processor hardware, firmware compatibility, application program, I/O configuration, communication connections, and control logic. First, confirm that the processor is installed correctly and that its status indicators show normal operation. Then verify the online connection between the programming software and controller and confirm that the correct project has been loaded. After downloading the application, check the controller operating mode, task execution status, I/O module recognition, and communication health. Systems using remote I/O or other automation equipment should also be tested to ensure reliable network data exchange. Each field input and output should then be tested against the project I/O list to confirm that sensors and other input devices are mapped to the correct tags and that output commands reach the intended equipment. Finally, verify sequence logic, interlocks, alarms, and automatic control functions during controlled operational testing before placing the system into normal service.
