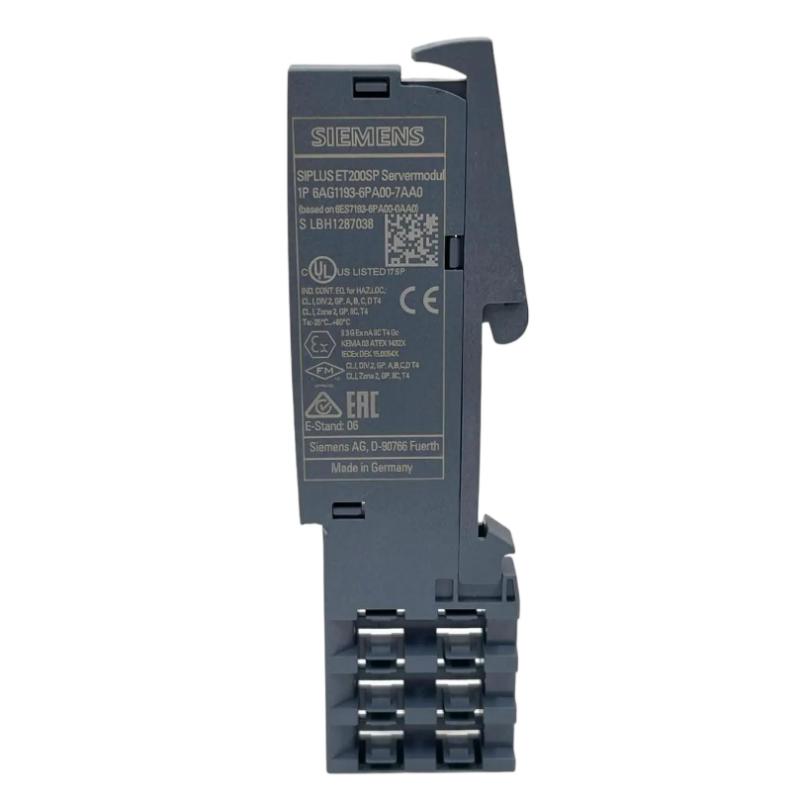

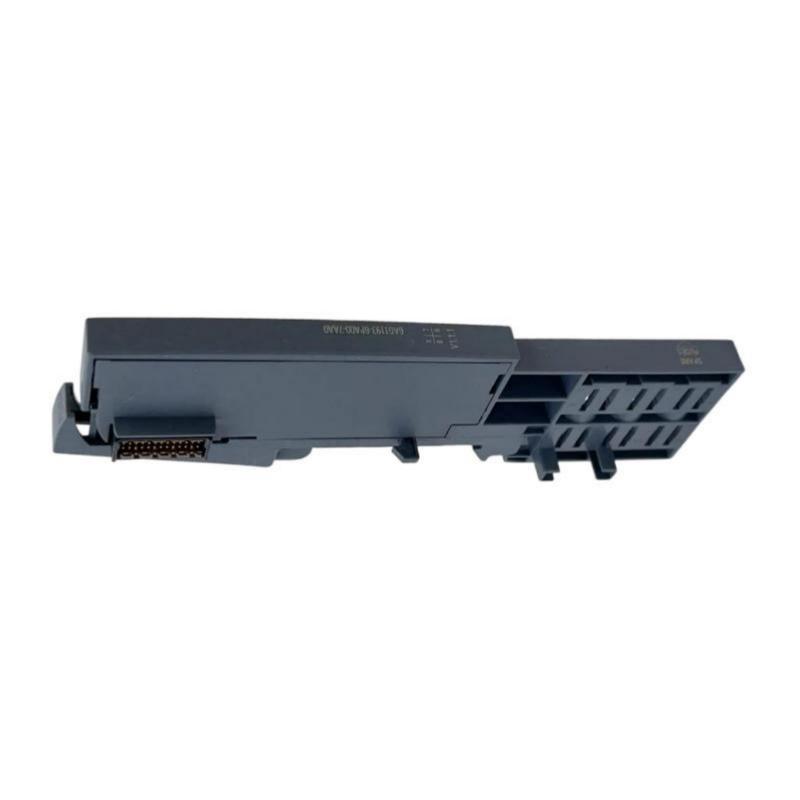

Siemens 6AG1193-6PA00-7AA0 Server Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1193-6PA00-7AA0 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Server Module |
| Standard Reference Model | 6ES7193-6PA00-0AA0 |
| Main Function | Completes the ET 200SP station structure at the end of the module assembly |
| Installation Method | DIN rail mounting |
| Compatible DIN Rail Types | 7.5 mm and 15 mm mounting rails |
| Maximum Current Consumption | 30 mA |
| Operating Temperature | -40 to +70°C |
| Maximum Installation Altitude | 5,000 m, subject to applicable temperature derating |
| Relative Humidity | Up to 100%, with condensation or frosting permitted under specified conditions; do not operate the module while wet |
| Conformal Coating | Yes, Class A |
| Pollution Protection | Type 1 |
| PCB Coating Class | Class 2, high-reliability coating |
| Compatible System | SIMATIC ET 200SP Distributed I/O System |
| Dimensions | 7 × 117 × 36 mm |
| Weight | 0.019 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1193-6PA00-7AA0?
The 6AG1193-6PA00-7AA0 is a SIPLUS ET 200SP Server Module, also known as a termination module. It is installed at the end of an ET 200SP station to complete the module assembly. Unlike standard digital or analog I/O modules, it is not designed to acquire or process field signals.
Q2: Does this module need to be used with an ET 200SP interface module?
Yes. The module is a system component of the ET 200SP distributed I/O platform and is normally used together with an interface module and other ET 200SP modules. It should be installed at the end of the station according to the system configuration requirements.
Q3: What is the difference between 6AG1193-6PA00-7AA0 and 6ES7193-6PA00-0AA0?
These are the corresponding SIPLUS and standard product versions. The 6AG1193-6PA00-7AA0 is the SIPLUS version based on the standard 6ES7193-6PA00-0AA0. It features conformal coating and an extended operating temperature range of -40 to +70°C, making it suitable for industrial applications with more demanding environmental conditions.
Q4: Does the 6AG1193-6PA00-7AA0 require separate parameter configuration?
Generally, no. Unlike CPUs or I/O modules, the Server Module does not require individual channel parameter settings. Its primary role is to complete the ET 200SP station assembly. The module arrangement and station structure should still be checked in the hardware configuration.
Q5: What should be considered when installing the 6AG1193-6PA00-7AA0?
Install the module on a compatible 7.5 mm or 15 mm DIN rail and position it at the end of the ET 200SP station as specified by the system design. Before installation, inspect the module interfaces and connection points for damage or foreign objects. Keep unused interfaces protected with the appropriate covers, and do not remove them unnecessarily during operation.
Q6: Can this module operate in high-temperature, humid, or chemically aggressive environments?
The SIPLUS version features conformal coating and supports an operating temperature range of -40 to +70°C. It is designed for specified extended environmental conditions. However, this does not mean it can withstand every corrosive atmosphere. Check the actual chemical exposure, humidity, condensation conditions and installation requirements before use.
Q7: How should I troubleshoot an ET 200SP station that fails to start?
First, check whether the Server Module is correctly installed at the end of the station. Inspect the connections between adjacent modules and confirm that the module arrangement matches the hardware configuration. Then check the interface module diagnostics, power supply status and bus connections. If the problem persists, test with a known-good compatible module to help identify the cause.
Q8: What should be checked when replacing the 6AG1193-6PA00-7AA0?
Before replacement, verify the complete order number and confirm that the replacement is an ET 200SP Server Module compatible with the existing system. Check the DIN rail type, module interface condition and station configuration. Disconnect the power supply and follow the applicable safety procedures before replacement. After installation, inspect the station diagnostics to confirm normal operation.
Siemens 6AG1193-6PA00-7AA0 Server Module is in stock. Please contact us for a quick quote and competitive pricing.
