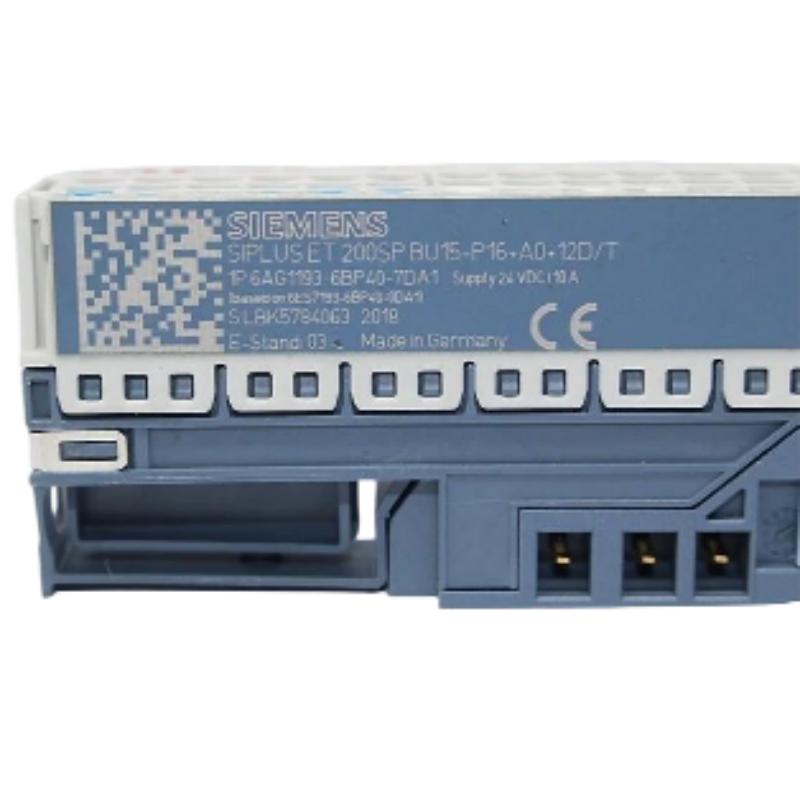

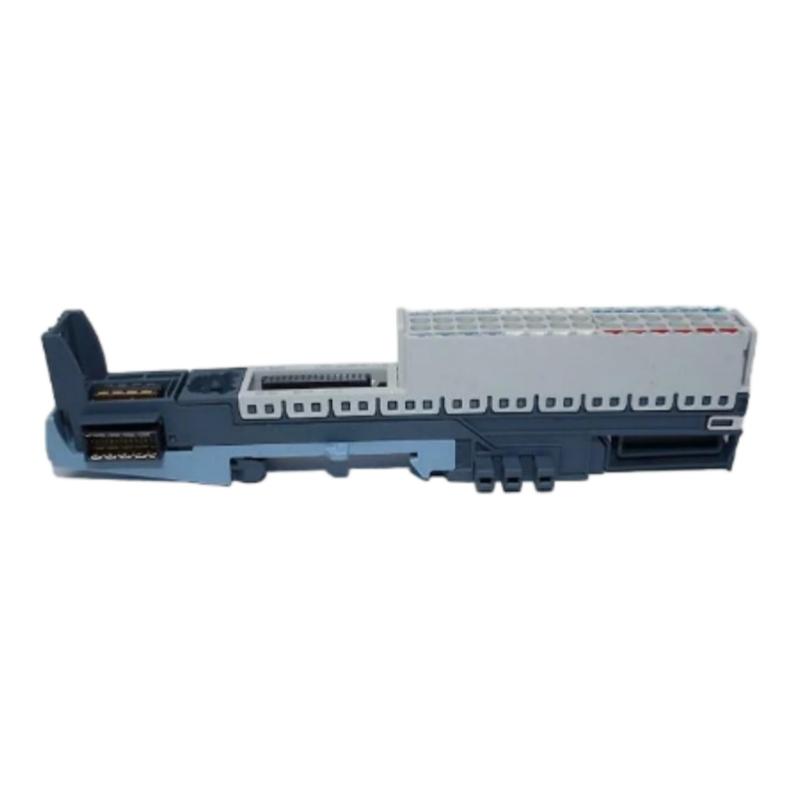

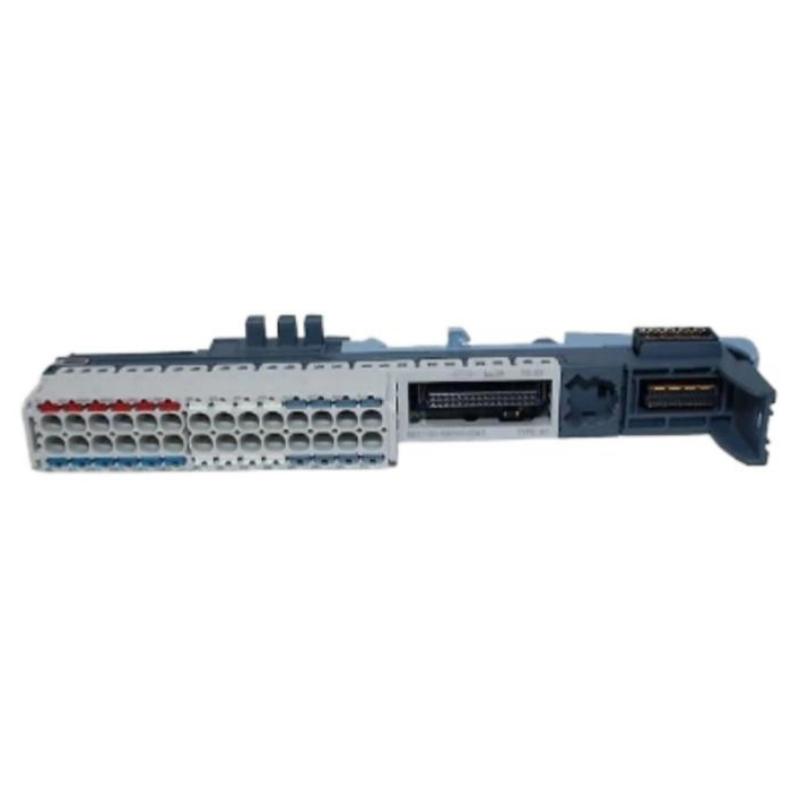

Siemens 6AG1193-6BP40-7DA1 Base Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1193-6BP40-7DA1 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Base Unit |
| Product Designation | BU15-P16+A0+12D/T |
| BaseUnit Type | A1 |
| Standard Reference Model | 6ES7193-6BP40-0DA1 |
| Function | Connects ET 200SP I/O modules and distributes electrical signals |
| Process Terminals | 16 |
| Additional Terminals | 2 × 5 internally bridged additional terminals |
| Load Group | For starting a new load group |
| Maximum Current Capacity | 10 A |
| Rated Supply Voltage | 24 V DC |
| External Protection | 24 V DC / 10 A miniature circuit breaker, Type B or C |
| Terminal Type | Push-in terminals |
| Temperature Detection | Integrated temperature acquisition |
| Internal Temperature Compensation | Yes |
| Potential Separation | Between backplane bus and supply voltage |
| Insulation Test Voltage | 707 V DC |
| Number of Slots | 1 |
| Operating Temperature | -40 to +70°C (horizontal installation) |
| Maximum Installation Altitude | 5,000 m, subject to temperature derating |
| Environmental Protection | Conformal coating, Class A |
| Chemical Resistance | Class 3C4, subject to specified conditions |
| Mechanical Resistance | Class 3S4, including sand and dust |
| Dimensions | 15 × 141 × 35 mm |
| Weight | 0.05 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1193-6BP40-7DA1 Base Unit?
The 6AG1193-6BP40-7DA1 is a SIPLUS ET 200SP BaseUnit designed to connect an ET 200SP I/O module to the station’s backplane bus and field wiring. It provides the electrical connection points required for signal transmission and power distribution.
Q2: How many terminals does the 6AG1193-6BP40-7DA1 provide?
This BaseUnit provides 16 process terminals for the connected I/O module, together with 10 additional terminals arranged in two groups of five. The additional terminals are internally bridged within their respective groups and provide extra wiring connection points.
Q3: What is the difference between the 6AG1193-6BP40-7DA1 and the 6AG1193-6BP40-7BA1?
Both models are SIPLUS ET 200SP A1 BaseUnits with 16 process terminals, integrated temperature acquisition and 2 × 5 additional terminals. The main difference is their load-group application: the 7DA1 is a light BaseUnit for starting a new load group, while the 7BA1 is a dark BaseUnit for continuing an existing load group.
Q4: Does the 6AG1193-6BP40-7DA1 support temperature measurement?
Yes. It features integrated temperature acquisition and internal temperature compensation. This function is particularly relevant when the connected I/O module uses thermocouple signals and requires temperature compensation for measurement accuracy.
Q5: What supply voltage and current capacity does this BaseUnit support?
The rated supply voltage is 24 V DC. Its maximum current-carrying capacity is 10 A, while the process terminals have a maximum current capacity of 2 A. The power supply lines should be protected by an appropriate 24 V DC, 10 A miniature circuit breaker with a Type B or C tripping characteristic.
Q6: Can the 6AG1193-6BP40-7DA1 operate in harsh industrial environments?
Yes. As a SIPLUS product, it is designed for extended environmental conditions. Its conformal coating helps protect electronic assemblies against environmental influences, and the specified operating temperature range is -40 to +70°C for horizontal installation. Application conditions and installation requirements should still be checked before commissioning.
Q7: What should be checked if an ET 200SP station reports an I/O communication or signal error?
First, check that the BaseUnit is correctly seated on the DIN rail and that the I/O module is securely installed. Then inspect the 24 V DC supply, terminal wiring, backplane bus connection and diagnostic indicators. Also verify that the selected BaseUnit type is compatible with the connected I/O module.
Q8: What should be considered when replacing the 6AG1193-6BP40-7DA1?
Confirm the complete order number and the required A1 BaseUnit configuration before replacement. Check that the replacement supports the same 16 process terminals, 2 × 5 additional terminals, temperature acquisition and new load-group function. Disconnect the power supply before removing or installing the unit, and verify all terminal assignments before restarting the system.
Siemens 6AG1193-6BP40-7DA1 Base Unit is in stock. Please contact us for a quick quote and competitive pricing.
