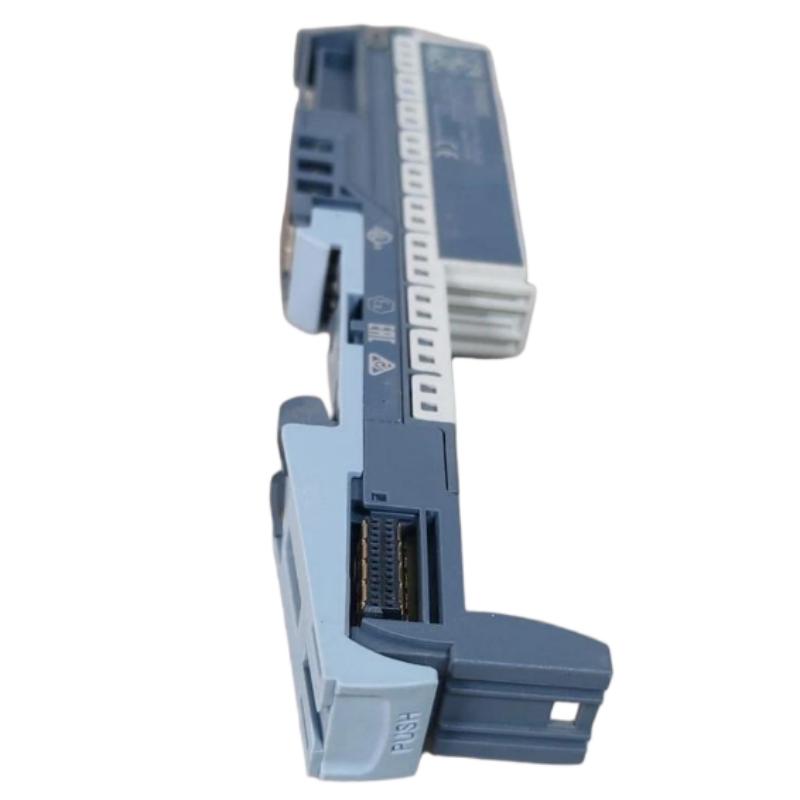

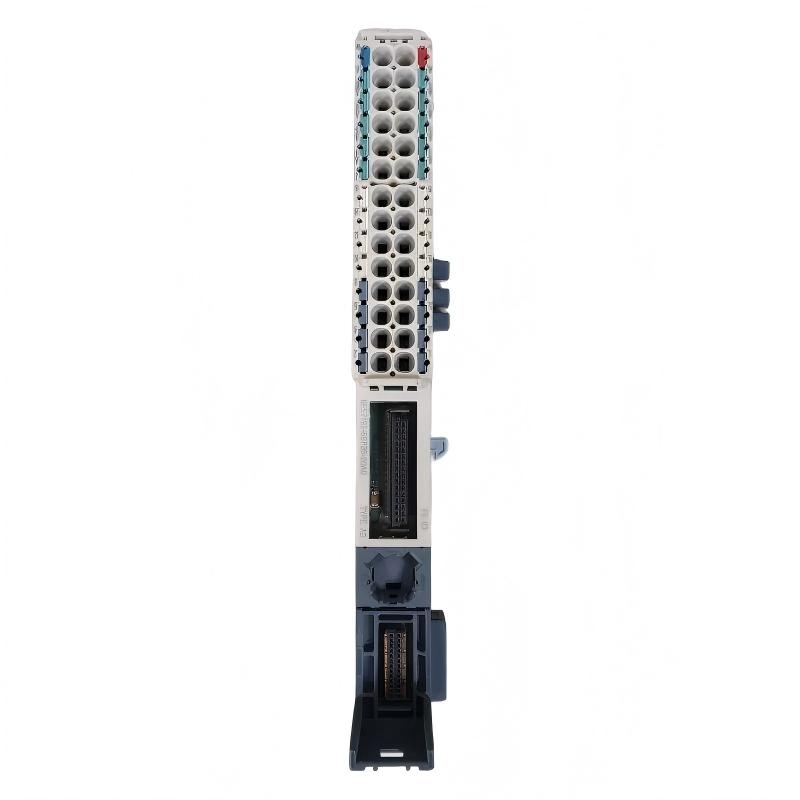

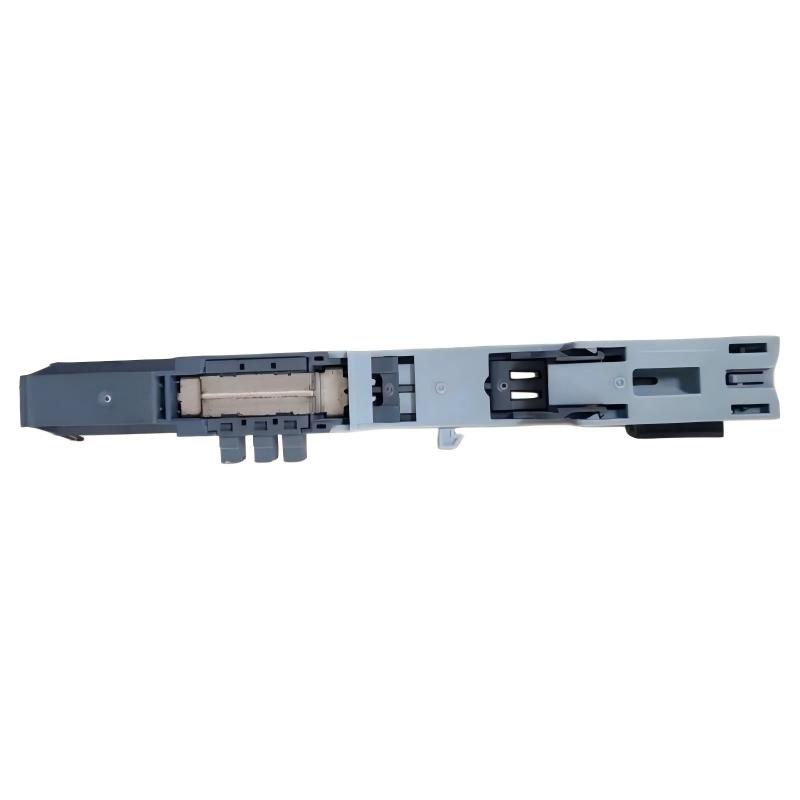

Siemens 6AG1193-6BP20-7DA0 Base Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6AG1193-6BP20-7DA0 |
| Product Name | SIPLUS ET 200SP BaseUnit |
| Product Type | BU Type A0 |
| Product Designation | BU15-P16+A10+2D |
| Base Model | 6ES7193-6BP20-0DA0 |
| Product Family | SIPLUS ET 200SP |
| Main Function | Provides mounting and electrical connections for ET 200SP I/O modules, field signals and auxiliary power distribution |
| Rated Supply Voltage | 24 V DC |
| Terminal Type | Push-in terminals |
| Number of Process Terminals | 16 |
| Number of AUX Terminals | 10 |
| AUX Terminal Configuration | Internally bridged for auxiliary potential distribution |
| Load Group Configuration | Light BaseUnit designed to start a new load group |
| External Supply Line Protection | Recommended 24 V DC / 10 A miniature circuit breaker with B or C tripping characteristic |
| Maximum Current Carrying Capacity | 10 A (up to 60°C, subject to operating conditions) |
| Maximum P1/P2 Bus Current | 10 A |
| Maximum AUX Bus Current | 10 A |
| Maximum Process Terminal Current | 2 A |
| Number of Slots | 1 |
| Potential Separation | Electrical separation between the backplane bus and supply voltage |
| Insulation Test Voltage | 707 V DC |
| Operating Temperature (Horizontal Installation) | -40 to +70°C |
| Maximum Installation Altitude | Up to 5,000 m, subject to applicable temperature derating |
| Environmental Protection | Conformal coating for demanding industrial environments |
| Mounting Method | Installation on the ET 200SP system rail |
| Dimensions | 15 × 141 × 35 mm |
| Weight | 0.05 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1193-6BP20-7DA0 BaseUnit?
A: The 6AG1193-6BP20-7DA0 is a SIPLUS ET 200SP BaseUnit designed to mount compatible I/O modules and provide electrical connections for field signals and auxiliary power distribution. It forms part of the physical and electrical structure of an ET 200SP distributed I/O station.
Q2: Which ET 200SP modules are compatible with this BaseUnit?
A: This model belongs to BU Type A0 and is intended for compatible ET 200SP I/O modules requiring this BaseUnit configuration. Before installation, check the module’s technical documentation to confirm the required BaseUnit type and terminal arrangement.
Q3: What is the difference between the 6AG1193-6BP20-7DA0 and the 6AG1193-6BP20-7BA0?
A: Both are SIPLUS ET 200SP BaseUnits with BU Type A0 and 16 process terminals plus 10 AUX terminals. The main difference is their load group function. The 7DA0 is a light BaseUnit designed to start a new load group, while the 7BA0 is a dark BaseUnit designed to continue an existing load group.
Q4: How many terminals does the 6AG1193-6BP20-7DA0 provide?
A: It provides 16 process terminals for I/O module connections and 10 AUX terminals for auxiliary potential distribution. The AUX terminals are internally bridged. Check the wiring diagram before connecting external circuits to ensure that the intended potentials are assigned correctly.
Q5: What is the maximum current capacity of this BaseUnit?
A: The maximum current-carrying capacity is 10 A under the specified conditions. The P1/P2 power bus and AUX bus support up to 10 A, while each process terminal has a maximum rating of 2 A. The 24 V DC supply line should have suitable external protection, such as a 10 A miniature circuit breaker with a B or C tripping characteristic.
Q6: Can the 6AG1193-6BP20-7DA0 operate in harsh industrial environments?
A: Yes. This SIPLUS model features conformal coating and an extended operating temperature range of -40 to +70°C under specified horizontal installation conditions. It is designed to withstand demanding industrial conditions, including exposure to humidity, dust, certain chemicals and industrial contaminants. Actual operating conditions must remain within Siemens’ specified limits.
Q7: What should I check if an I/O module does not work after installation?
A: Start by checking whether the I/O module is correctly seated and compatible with the BU Type A0 interface. Then inspect the 24 V DC supply, P1/P2 bus connections, AUX wiring and process terminal connections. If the electrical connections are correct, review the ET 200SP station diagnostics in the PLC engineering software for module configuration or communication errors.
Q8: What should be considered when replacing a faulty 6AG1193-6BP20-7DA0 BaseUnit?
A: Choose a replacement with the same BU Type A0 configuration, 16 process terminals and 10 AUX terminals. Most importantly, confirm that the replacement is a light BaseUnit intended to start a new load group. Before replacement, isolate the power supply, label the field wiring and verify the module compatibility and terminal assignments before restoring power.
