Siemens 6AG1193-6BP20-7BB1 Base Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6AG1193-6BP20-7BB1 |

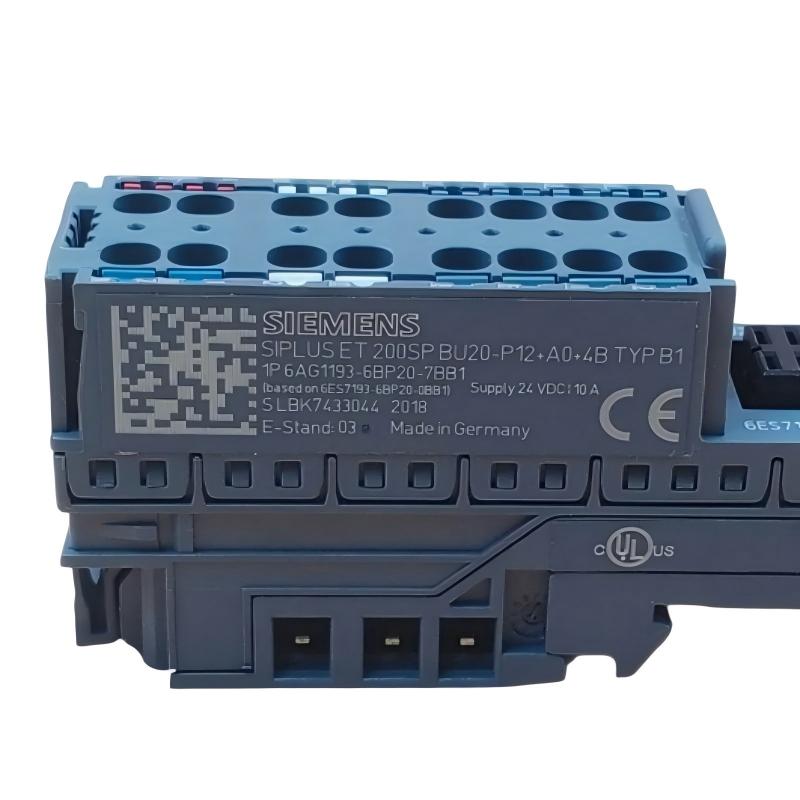

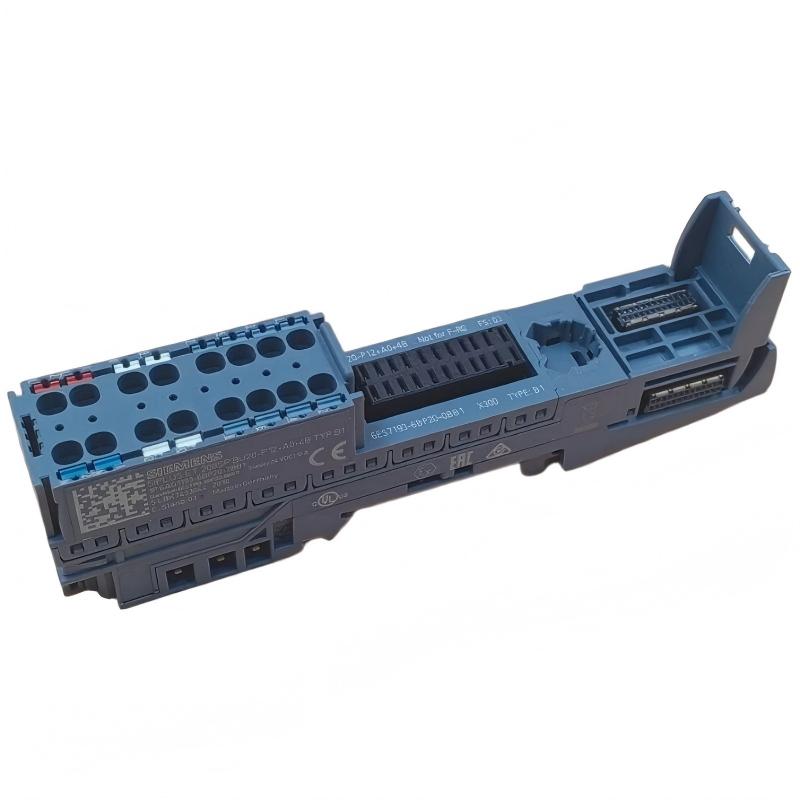

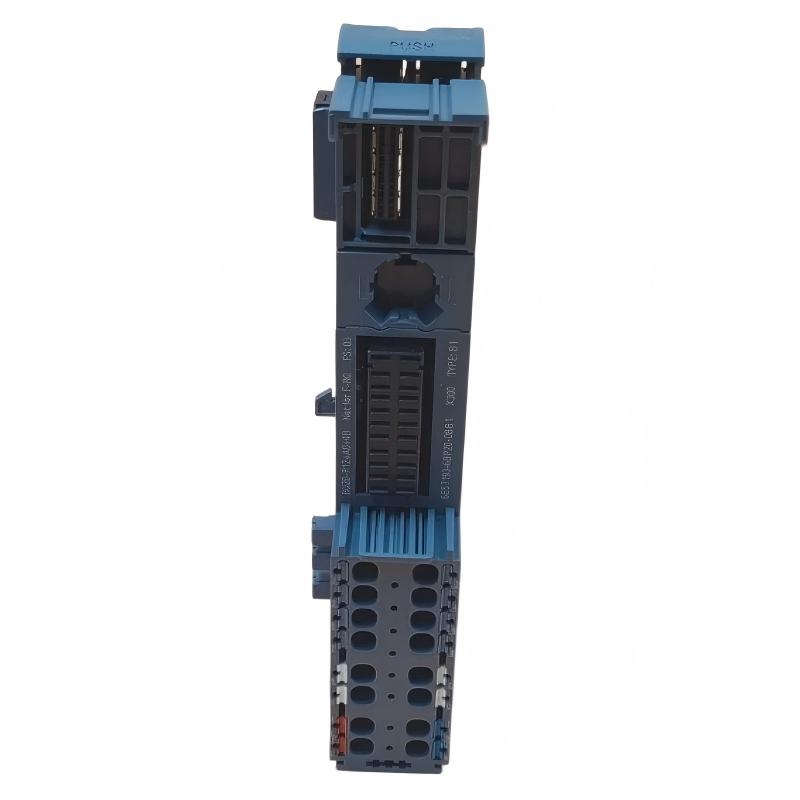

| Product Name | SIPLUS ET 200SP Base Unit |
| Product Type | BU Type B1 |
| Product Designation | BU20-P12+A0+4B |
| Base Model | 6ES7193-6BP20-0BB1 |
| Product Family | SIPLUS ET 200SP |
| Main Function | Provides mounting and field wiring connections for ET 200SP I/O modules |
| Rated DC Voltage | 24 V DC |
| Terminal Type | Push-in terminals |
| Number of Process Terminals | 12 |
| AUX Terminals | No separate AUX connection terminals; the internal AUX bus is bridged to the left |
| P1/P2 Power Bus | Supports 24 V power distribution |
| Maximum Current Carrying Capacity | 10 A (subject to installation conditions and ambient temperature) |
| Maximum Process Terminal Current | 5 A |
| Maximum P1/P2 Bus Current | 10 A |
| Potential Separation | Electrical separation between the backplane bus, supply voltage, process terminals and power bus |
| Insulation Test Voltage | 3,250 V DC |
| Automatic Coding | Supported |
| Number of Slots | 1 |
| Load Group Configuration | Dark BaseUnit for continuing an existing load group |
| Operating Temperature | -40 to +70°C (SIPLUS extended-temperature specification; subject to installation conditions) |
| Protective Coating | Conformal coating |
| Mounting Method | DIN rail mounting within the ET 200SP station |
| Dimensions | 20 × 117 × 35 mm |
| Weight | 0.048 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1193-6BP20-7BB1 Base Unit?
A: This product is a BaseUnit for the SIPLUS ET 200SP distributed I/O system. It provides the mounting interface for compatible I/O modules and establishes electrical connections between the modules, field devices, the backplane bus and the power system. It serves as a modular wiring interface in industrial automation applications.
Q2: How many process terminals does the 6AG1193-6BP20-7BB1 provide?
A: This model provides 12 process terminals for connecting field signals to the corresponding I/O module. Unlike the B0 version, the B1 BaseUnit does not provide separate AUX connection terminals. Its internal AUX bus is bridged to the left, so there are no dedicated AUX terminals for direct field wiring.
Q3: What is the difference between BU Type B1 and BU Type B0?
A: Both versions provide 12 process terminals and are designed to continue an existing load group. The main difference is the auxiliary terminal configuration. The B0 version, BU20-P12+A4+0B, provides four AUX terminals, while the B1 version, BU20-P12+A0+4B, does not have separate AUX connection terminals. The appropriate version should be selected according to the auxiliary potential distribution requirements of the installation.
Q4: What wiring technology does this BaseUnit use?
A: The 6AG1193-6BP20-7BB1 uses Push-in terminals. Compatible conductors can be inserted directly into the terminals, making field wiring faster and more convenient. During installation, check the conductor cross-section, conductor type and stripping length against Siemens’ wiring requirements to prevent poor contact or loose connections.
Q5: What is the current-carrying capacity of this product?
A: The maximum current-carrying capacity is 10 A. The P1/P2 power bus supports up to 10 A, while the process terminals have a maximum current rating of 5 A. In practical applications, current calculations should take the load, power distribution arrangement and ambient temperature into account. The rated limits of the individual terminals must not be exceeded.
Q6: Is the 6AG1193-6BP20-7BB1 suitable for high-temperature and harsh industrial environments?
A: It is designed for use in demanding industrial environments within its specified operating limits. This SIPLUS model features conformal coating and an extended temperature range, with a stated operating range of -40 to +70°C. Actual suitability also depends on installation orientation, operating conditions, humidity and exposure to environmental contaminants.
Q7: How should I troubleshoot an I/O module that does not operate correctly after installation?
A: First, check that the I/O module is properly seated and compatible with the BU Type B1 BaseUnit. Then inspect the 24 V DC supply, P1/P2 bus connections, process terminal wiring and field signal status. If the wiring and power supply are correct, use the PLC engineering software to review ET 200SP station diagnostics and identify possible module configuration errors, backplane bus problems or communication faults.
Q8: What should be considered when replacing a 6AG1193-6BP20-7BB1 BaseUnit?
A: Select the same model or a replacement that Siemens confirms is compatible. Check the 12-process-terminal configuration, the absence of separate AUX connection terminals and the internal AUX bus arrangement. Also confirm that the replacement can continue the existing load group. Before removal, isolate the relevant power supply and label all field wires. After installation, inspect the terminal connections, module configuration and system diagnostic status before returning the station to operation.
