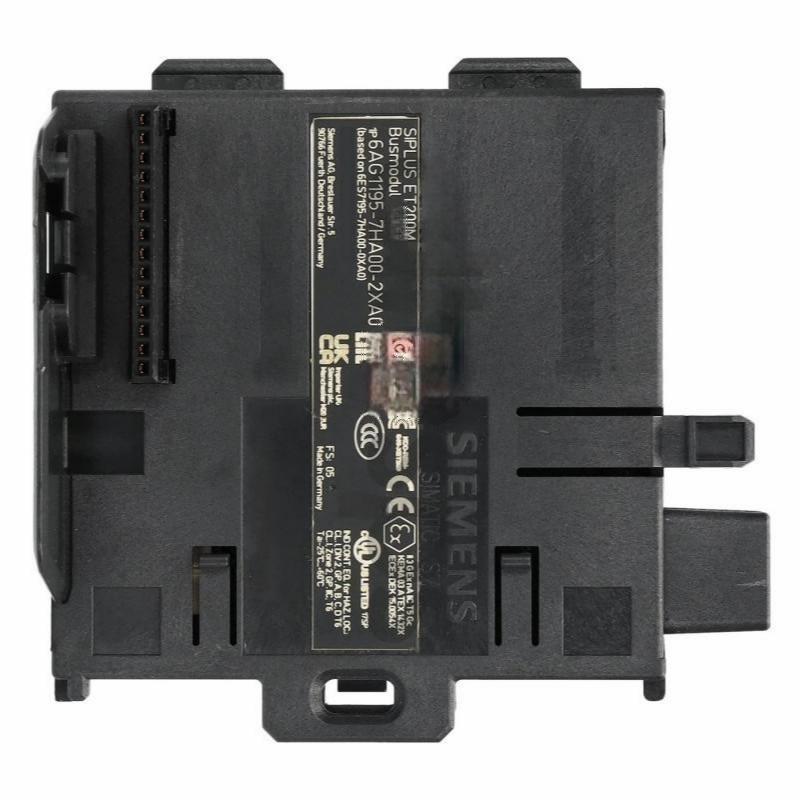

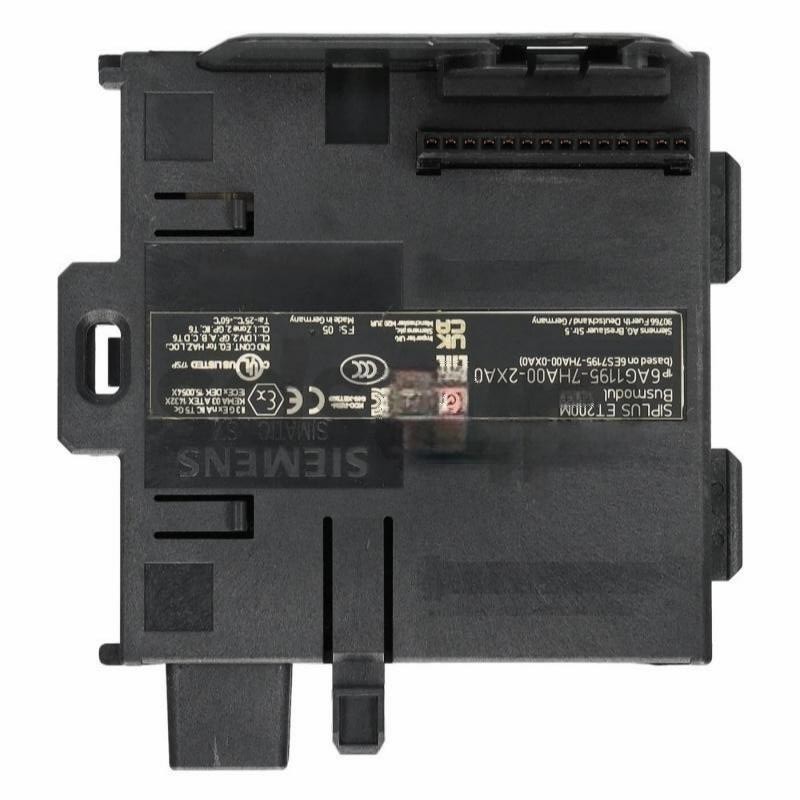

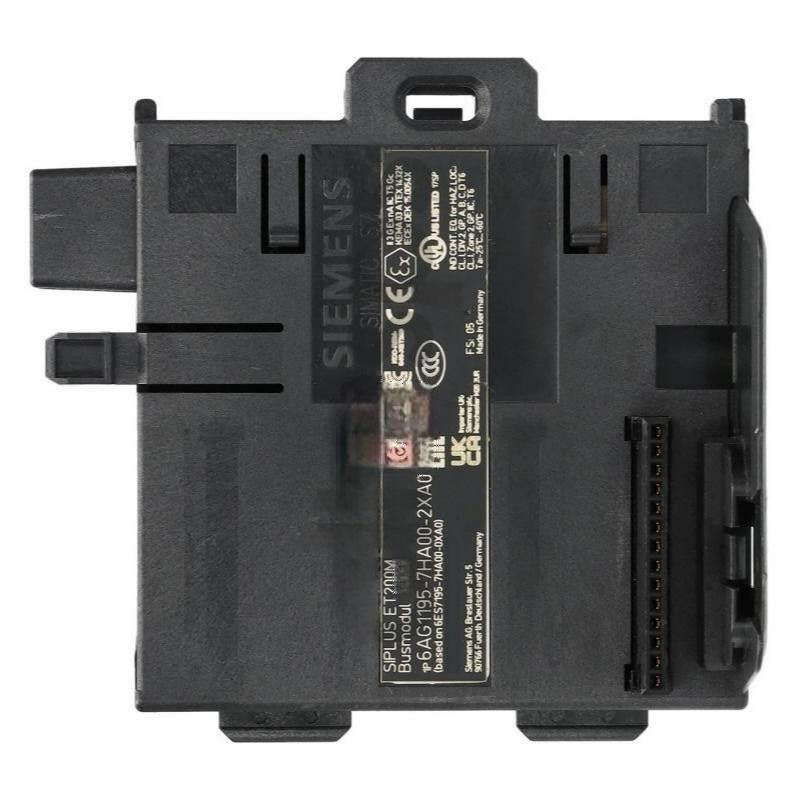

Siemens 6AG1195-7HA00-2XA0 Active Bus Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1195-7HA00-2XA0 |
| Product Series | SIPLUS ET 200M |
| Product Type | Active Bus Module |
| Product Designation | BM PS/IM |
| Standard Reference Model | 6ES7195-7HA00-0XA0 |
| Main Function | Provides mounting and bus connections for a power supply module (PS) and an IM 153 interface module |
| Module Configuration | 1 × PS + 1 × IM 153 |
| Number of Slots | 2 |
| Supported Function | Hot swapping during RUN mode |
| DC Input Voltage | 20.4–28.8 V DC |
| Maximum DC Input Current | 6 A |
| Installation Method | DIN rail mounting or direct mounting |
| Operating Temperature | -40 to +70°C |
| Startup Temperature | -25°C |
| Temperature Limit for Special Certifications | Up to +60°C for UL/cUL, ATEX and FM applications |
| Storage and Transportation Temperature | -40 to +70°C |
| Maximum Installation Altitude | 5,000 m, subject to temperature derating according to altitude |
| Relative Humidity | Up to 100% under specified conditions, including condensation or frosting; do not start the equipment while condensation is present |
| Protective Coating | SIPLUS conformal coating |
| Chemical Environmental Resistance | Protection against specified chemically active substances in industrial environments; excludes trichloroethylene |
| Mechanical Environmental Resistance | Protection against specified mechanically active substances, including sand and dust |
| Compatible System | SIMATIC ET 200M Distributed I/O System |
| Dimensions | 97 × 92 × 30 mm |
| Weight | 0.111 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1195-7HA00-2XA0 Active Bus Module?
The 6AG1195-7HA00-2XA0 is a SIPLUS ET 200M Active Bus Module designed to accommodate and connect one power supply module (PS) and one IM 153 interface module. It provides the necessary bus connections between modules and supports module replacement during system operation under specified conditions.
Q2: Does the 6AG1195-7HA00-2XA0 support hot swapping?
Yes. This module is designed for hot-swapping applications in ET 200M systems. Under compatible system configurations and operating conditions, supported modules can be replaced while the system is running. However, Siemens hot-swapping procedures must be followed. Not every ET 200M module supports live replacement.
Q3: Which modules can be installed on this Active Bus Module?
The BM PS/IM configuration supports one power supply module and one IM 153 interface module. It is intended for specific ET 200M system configurations. Before installation, verify compatibility between the power supply module, IM 153 model and Active Bus Module.
Q4: What is the difference between 6AG1195-7HA00-2XA0 and 6ES7195-7HA00-0XA0?
The 6AG1195-7HA00-2XA0 is the SIPLUS version based on the standard 6ES7195-7HA00-0XA0. Its main difference is its enhanced environmental resistance. The SIPLUS version features conformal coating and supports an extended operating temperature range of -40 to +70°C, making it suitable for industrial applications with demanding environmental conditions.
Q5: What are the power supply requirements for this module?
The module supports a DC input voltage range of 20.4–28.8 V DC, with a maximum input current of 6 A. When selecting the power supply, calculate the required capacity according to the connected power supply module and system load. Ensure that the input voltage remains within the specified operating range.
Q6: What should be checked if the ET 200M system cannot recognize the IM 153 interface module?
First, check whether the IM 153 is correctly installed on the Active Bus Module. Then inspect the bus connections, power supply module output and 24 V DC supply. Check the SF and BF diagnostic indicators on the IM 153 and review the PLC diagnostic buffer for module identification or communication errors.
Q7: Can the 6AG1195-7HA00-2XA0 operate in high-temperature, humid or chemically aggressive industrial environments?
Yes, it is designed for specified extended environmental conditions. This SIPLUS model features conformal coating and supports an operating temperature range of -40 to +70°C. It also provides protection against certain chemically and mechanically active environmental substances. However, stricter temperature limits apply to UL/cUL, ATEX and FM applications. For environments involving condensation, salt spray or corrosive gases, verify the applicable environmental ratings before installation.
Q8: What should be considered when replacing the 6AG1195-7HA00-2XA0?
Before replacement, verify the complete order number and confirm that the new module supports the existing PS/IM configuration and required hot-swapping functions. Check compatibility with the installed IM 153 and power supply module, as well as the bus connections and system configuration. If replacement is performed while the system is running, follow Siemens hot-swapping procedures strictly. Otherwise, shut down the system and disconnect the power supply before replacement.
Siemens 6AG1195-7HA00-2XA0 Active Bus Module is in stock. Please contact us for a quick quote and competitive pricing.
