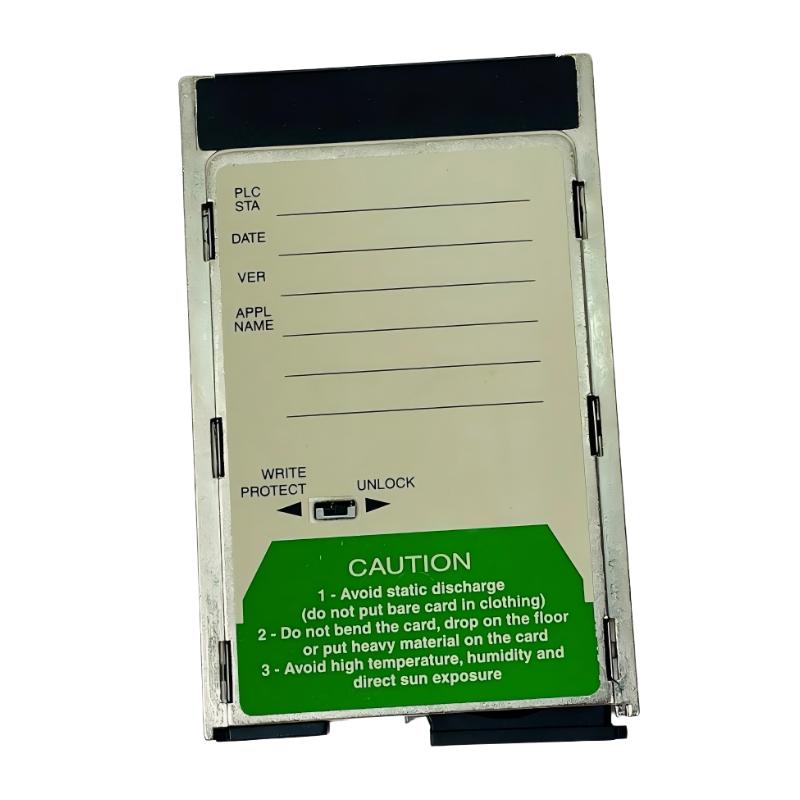

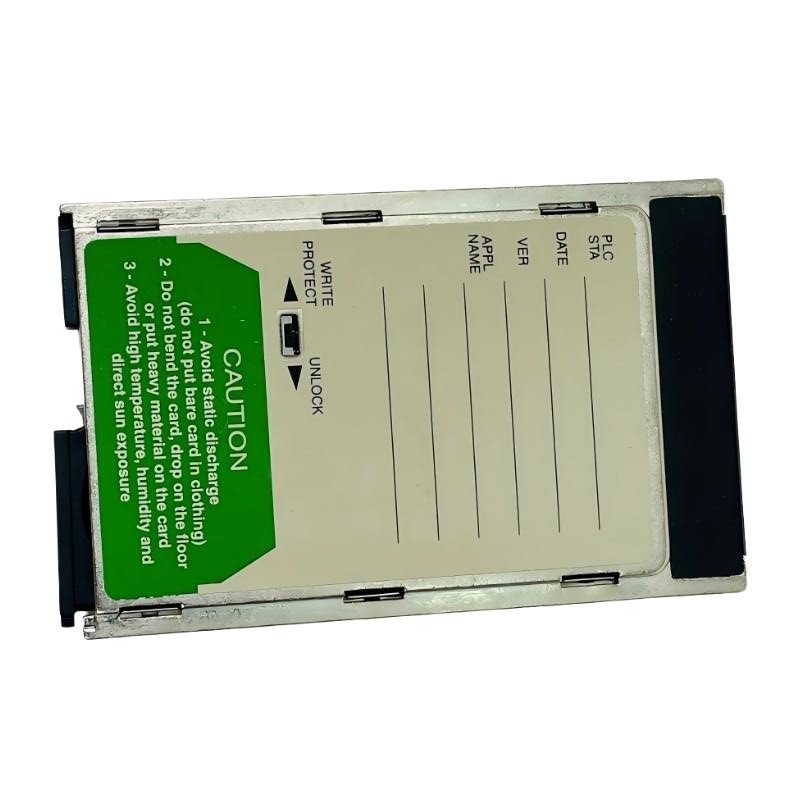

Schneider TSXMRPC003M SRAM Memory
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | TSXMRPC003M |
| Product Type | SRAM Memory Expansion Module |
| Product Series | Modicon Premium |
| Memory Type | SRAM (Static Random Access Memory) |
| Application Memory Capacity | 192–3072 KB |
| Data Memory Capacity | 2880–0 KB, depending on application memory allocation |
| Memory Configuration | Application and data storage space can be configured |
| Compatible Platform | Modicon Premium PLC |
| Compatible Processors | TSX570–TSX576, TSXPCI572/573 and TSX57C series |
| Installation Position | Slot 0 |
| Storage Function | PLC application program and data file storage |
| Online Program Modification | Supported under compatible system configurations |
| Application Protection | Application protection through the processor key switch |
| Dimensions | 130 × 90 × 30 mm |
| Weight | 0.076 kg |
| Product Status | Discontinued; standard service is scheduled to end on December 31, 2027 |
FAQ
Q1: What is the main function of the Schneider TSXMRPC003M SRAM Memory module?
The TSXMRPC003M is an SRAM memory expansion module designed for the Modicon Premium automation platform. It expands the PLC processor’s application memory and data storage capacity. It is suitable for industrial control systems that require additional program space or storage for application data.
Q2: What is the memory capacity of the TSXMRPC003M?
The module supports application memory capacities ranging from 192 KB to 3072 KB, while the available data memory ranges from 2880 KB to 0 KB. These capacities depend on the selected memory allocation. As more space is assigned to application programs, less space remains available for data storage.
Q3: Which PLC processors are compatible with the TSXMRPC003M?
The TSXMRPC003M is designed for the Schneider Electric Modicon Premium platform. Compatible processor families include TSX570 through TSX576, TSXPCI572/573 and the TSX57C series. Always verify the exact CPU model and hardware version before installation.
Q4: Where should the TSXMRPC003M be installed in the PLC system?
The TSXMRPC003M should be installed in the processor’s designated Slot 0 memory card location. Before installation, follow the equipment maintenance procedures, switch off the power as required and check that the slot and module connectors are clean and undamaged.
Q5: What are the advantages of using SRAM memory in the TSXMRPC003M?
SRAM provides fast read and write access with low access latency, making it suitable for storing PLC application programs and frequently accessed data. Unlike some non-volatile memory technologies, SRAM requires continuous power or an appropriate backup battery arrangement to retain stored information. The system’s memory retention requirements should therefore be checked during maintenance.
Q6: Does the TSXMRPC003M support online PLC program modification?
Yes, online program modification is supported under compatible system conditions. The application stored in SRAM can be modified online, depending on the Modicon Premium processor, programming software version and operating status. Back up the existing application before making changes to reduce the risk of data loss or production interruptions.
Q7: How can I troubleshoot a PLC that cannot recognize the TSXMRPC003M?
First, check that the module is correctly installed in Slot 0 and that the connector is secure. Verify processor compatibility and inspect the memory module for physical damage or poor contact. Use the PLC programming software to review CPU diagnostic information and confirm that the memory configuration is correct. If the problem persists, perform a cross-test with a known-compatible module.
Q8: What should I consider when replacing the TSXMRPC003M?
Before replacement, back up the PLC application and important data. Confirm that the replacement has the correct model designation, memory capacity and processor compatibility. After installation, verify that the CPU recognizes the memory module and check program execution, data file access and online modification functions. Since this model is discontinued, inspect the condition of any surplus or second-hand module and verify its memory retention performance before putting it into service.
Schneider TSXMRPC003M SRAM Memory is in stock. Please contact us for a quick quote and competitive pricing.
