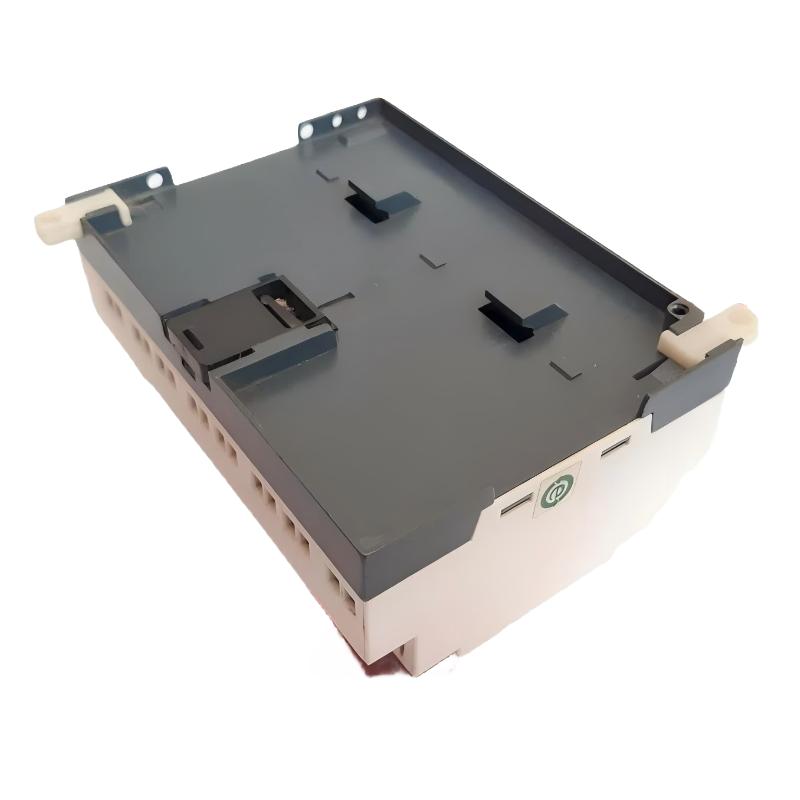

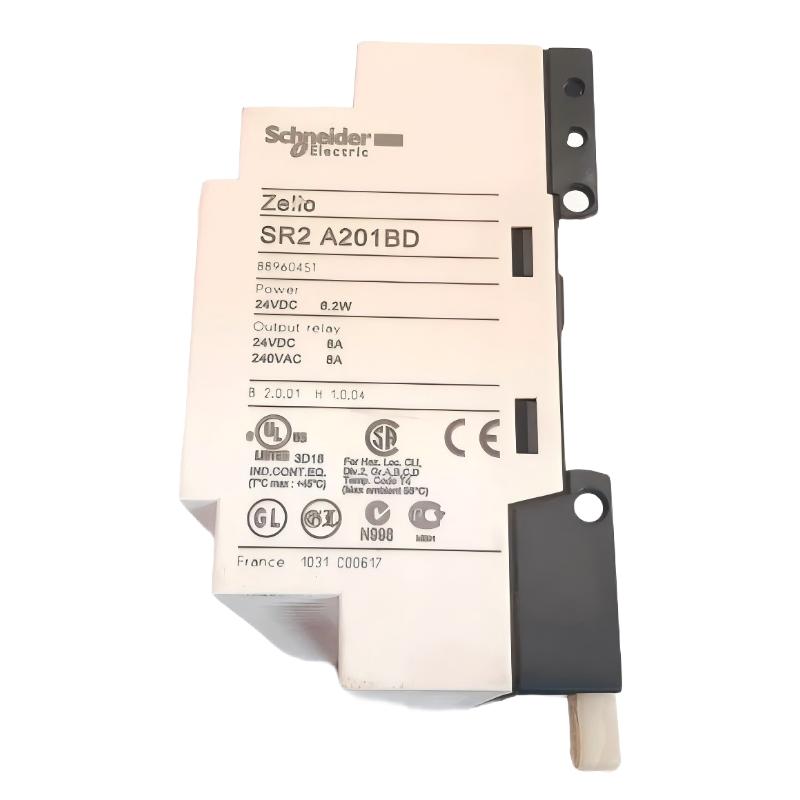

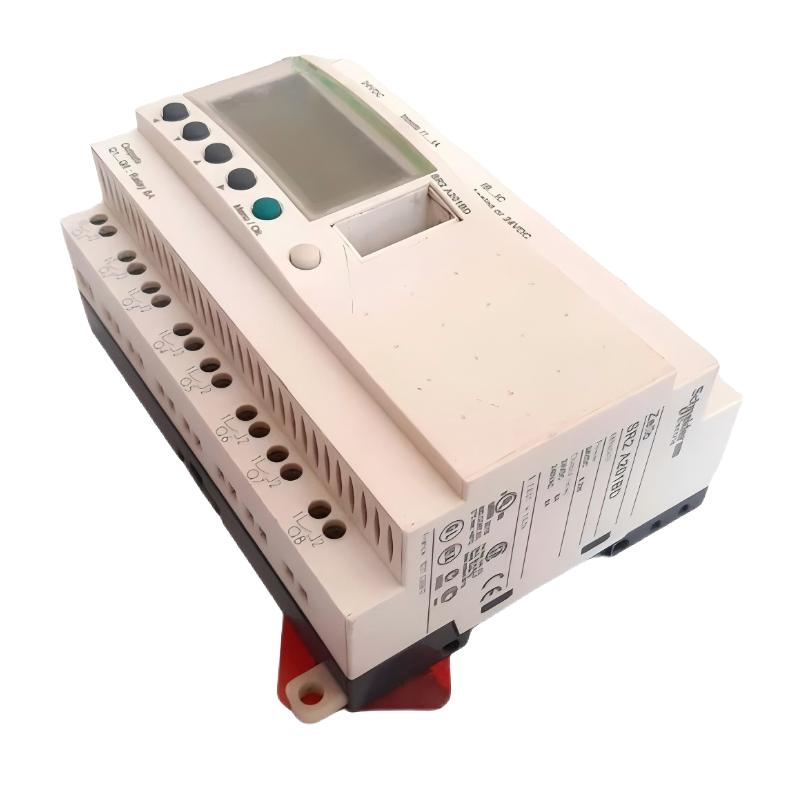

Schneider SR2A201BD Zelio Logic Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SR2A201BD |
| Product Type | Zelio Logic Compact Smart Relay |
| Product Series | Zelio Logic SR2/SR3 |
| Number of I/O Points | 20 |
| Digital Inputs | 12 |
| Analog Inputs | 2 |
| Analog Input Signal | 0–10 V / 0–24 V DC |
| Analog Input Resolution | 8 bits |
| Analog Input Accuracy | ±5% at 25°C |
| Digital Input Voltage | 24 V DC |
| Digital Input Type | Resistive, IEC/EN 61131-2 Type 1 |
| Digital Input Current | 4 mA |
| Input Compatibility | 3-wire PNP proximity sensors |
| Relay Outputs | 8 |
| Output Contact Type | Normally Open (NO) |
| Relay Output Voltage | 24–250 V AC / 5–30 V DC |
| Total Output Thermal Current | 8 A for all 8 outputs |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–30 V DC |
| Maximum Supply Current | 100 mA without extension |
| Power Dissipation | 6 W without extension |
| Display | Integrated LCD display |
| Real-Time Clock | Not included |
| Programming Languages | Ladder Logic (LD), Function Block Diagram (FBD) |
| Ladder Programming Capacity | Up to 240 lines |
| Cycle Time | 6–90 ms |
| Program Backup | Up to 10 years at 25°C |
| Reverse Polarity Protection | Yes |
| Mounting | 35 mm DIN rail or screw fixing |
| Protection Rating | IP20 at terminals, IP40 at front panel |
| Operating Temperature | -20 to +40°C |
| Dimensions | 124.6 × 90 × 59.5 mm |
| Weight | 0.38 kg |
FAQ
Q1: What is the main function of the Schneider SR2A201BD smart relay?
The SR2A201BD is a compact programmable logic controller designed for small-scale automation tasks. It processes digital and analog input signals according to a user-defined program and controls connected equipment through its relay outputs. Typical applications include pump control, lighting systems, ventilation, small machinery and basic process automation.
Q2: How many inputs and outputs does the SR2A201BD provide?
The SR2A201BD provides 20 I/O points in total: 12 digital inputs, 2 analog inputs and 8 relay outputs. The analog inputs can accept 0–10 V or 0–24 V DC signals, making the relay suitable for basic monitoring and control applications.
Q3: Which programming languages are supported by the SR2A201BD?
The Zelio Logic SR2A201BD supports Ladder Logic (LD) and Function Block Diagram (FBD) programming through the Zelio Soft 2 software environment. Users can create, test and transfer control programs using a compatible programming cable and computer.
Q4: Can the SR2A201BD connect directly to PNP proximity sensors?
Yes. Its digital inputs support three-wire PNP proximity sensors. Before wiring, check the sensor’s supply voltage, output type and wiring diagram. The input signal must remain within the relay’s specified electrical limits to ensure reliable detection.
Q5: What types of loads can the eight relay outputs control?
The eight normally open relay outputs can switch suitable AC and DC loads within their specified voltage and current ratings. They can be used to control contactor coils, indicator lamps, small motors through contactors and other industrial devices. For inductive loads, use appropriate suppression components to reduce contact wear and electrical interference.
Q6: Does the SR2A201BD have a built-in real-time clock?
No. The SR2A201BD version does not include a real-time clock. Applications requiring time-based scheduling or clock-dependent operations should use a compatible Zelio Logic model with an integrated clock or an appropriate external timing solution.
Q7: What should I check if the SR2A201BD does not respond to input signals?
First, verify that the 24 V DC supply is within the specified 19.2–30 V range. Then check the input wiring, sensor power supply, PNP/NPN compatibility and common terminal connections. Monitor the input status on the LCD display and use the programming software to check whether the program logic is processing the signal correctly.
Q8: What should be considered when replacing an SR2A201BD?
Before replacement, confirm the 24 V DC supply requirement, 12 digital inputs, 2 analog inputs, 8 relay outputs and programming compatibility. Also check the existing program, terminal wiring, output load ratings and installation arrangement. A replacement with a different I/O configuration or clock function may require program changes and wiring adjustments.
Schneider SR2A201BD Zelio Logic Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
