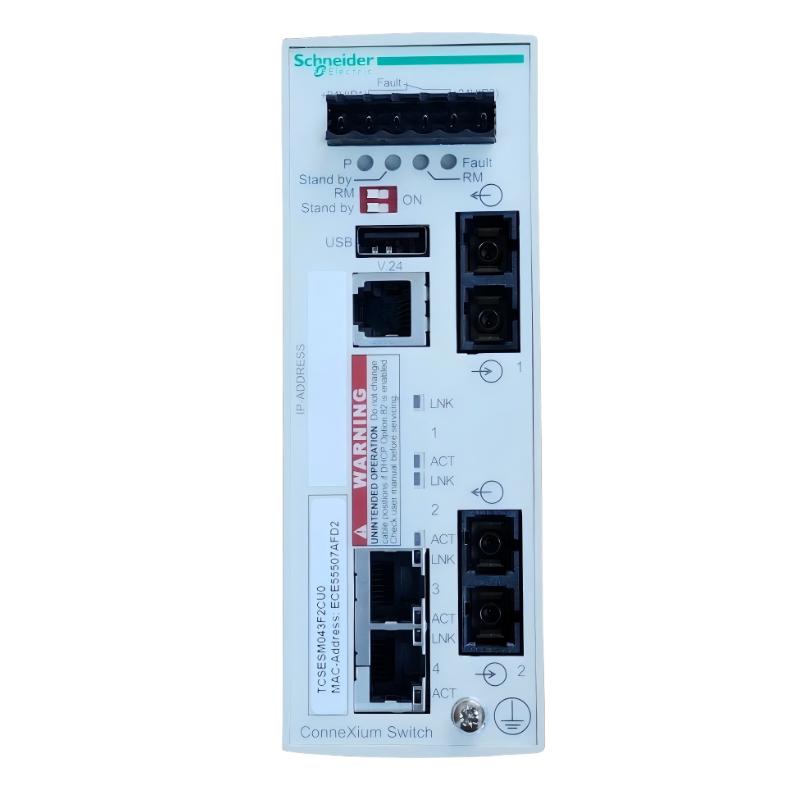

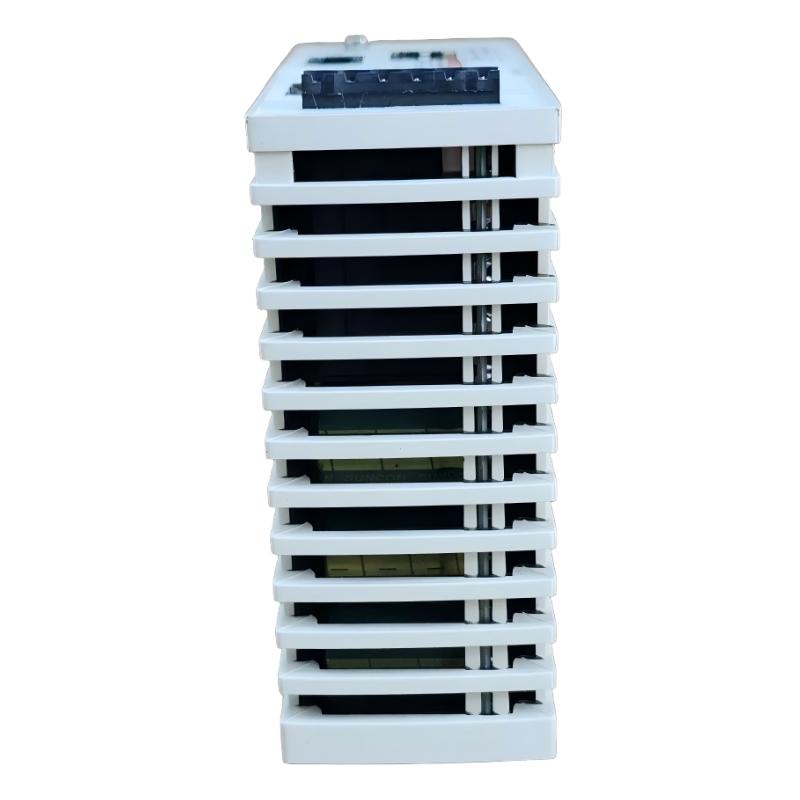

Schneider TCSESM043F2CU0 ConneXium Managed Switches
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | TCSESM043F2CU0 |
| Product Type | ConneXium Managed Ethernet Switch |
| Product Series | ConneXium |
| Communication Protocol | Ethernet TCP/IP |
| Copper Ports | 2 × 10/100BASE-TX RJ45 ports |
| Fiber Ports | 2 × 100BASE-FX multimode fiber ports, duplex SC connectors |
| Copper Cable Type | CAT5E shielded twisted-pair cable |
| Maximum Copper Transmission Distance | 100 m |
| Fiber Transmission Distance | Up to 4 km with 62.5/125 μm fiber; up to 5 km with 50/125 μm fiber |
| Network Management | Web-based management |
| Supported Protocols | SSH, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP, RSTP |
| Network Functions | VLAN, IGMP Snooping, multicast filtering, QoS, port monitoring and mirroring |
| Redundancy Functions | MRP, RSTP, redundant power inputs and ring coupling |
| Maximum Ring Switches | 50 |
| Power Supply | 9.6–60 V DC / 18–30 V AC |
| Rated Voltage | 24 V |
| Power Consumption | 7.7 W |
| Power Connection | Removable 6-pin terminal block |
| Redundant Power Supply | Supported |
| Alarm Output | 1 dry relay contact, maximum 1 A |
| Status Indicators | LED indicators for power, network and port status |
| Mounting | 35 mm DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +60°C |
| Relative Humidity | 10–95%, non-condensing |
| Dimensions | 131 × 111 × 47 mm |
| Weight | 0.4 kg |
| Certifications | CE, UL, RCM, GL |
Product Status: Schneider Electric has discontinued the TCSESM043F2CU0. The recommended replacement model is MCSESM063F2CU0. Please verify port configuration and application compatibility before selecting a replacement.
Schneider Electric Singapore+3
FAQ
Q1: What is the main function of the Schneider TCSESM043F2CU0 managed switch?
The TCSESM043F2CU0 is an industrial managed Ethernet switch designed to connect PLCs, DCS controllers, HMIs, industrial computers and other Ethernet-based automation equipment. It provides managed network communication, traffic control and network redundancy for industrial applications.
Q2: What communication ports does the TCSESM043F2CU0 provide?
This switch provides two 10/100BASE-TX RJ45 copper ports and two 100BASE-FX multimode fiber ports with duplex SC connectors. This combination allows it to connect both copper-based industrial devices and fiber-optic network segments.
Q3: Does the TCSESM043F2CU0 support network redundancy?
Yes. The switch supports MRP (Media Redundancy Protocol) and RSTP (Rapid Spanning Tree Protocol). These functions help maintain network communication when a link or network path fails. They are particularly useful in industrial Ethernet ring networks where communication continuity is important.
Q4: What is the maximum transmission distance of the fiber ports?
The maximum fiber transmission distance depends on the fiber type. It can reach approximately 4 km with 62.5/125 μm multimode fiber and 5 km with 50/125 μm multimode fiber. Actual performance also depends on cable quality, connectors and network conditions.
Q5: Can the TCSESM043F2CU0 be managed remotely?
Yes. The switch supports web-based management and several network management protocols, including SNMP, SSH, HTTP and HTTPS. Administrators can configure network parameters, monitor port status, manage VLANs and diagnose communication issues.
Q6: Does this switch support a redundant power supply?
Yes. The TCSESM043F2CU0 supports redundant power inputs. Connecting two independent power sources can help reduce the risk of communication interruptions caused by a single power supply failure. The power supply must remain within the specified voltage range.
Q7: What should I check if a PLC cannot communicate through the TCSESM043F2CU0?
First, check the power supply and confirm that the switch’s power indicators are operating normally. Then inspect the Ethernet cable, fiber connections, port LEDs and network configuration. Verify the PLC’s IP address, subnet settings, VLAN configuration and port status. For fiber connections, also check the fiber type, connector condition and transmission distance.
Q8: Can the TCSESM043F2CU0 be directly replaced with the MCSESM063F2CU0?
The MCSESM063F2CU0 is listed as a recommended replacement, but direct substitution should not be assumed. Before installation, compare the number and type of ports, fiber specifications, power requirements, mounting arrangement and network configuration. Confirm that the replacement meets the requirements of the existing PLC or DCS network.
Schneider TCSESM043F2CU0 ConneXium Managed Switches is in stock. Please contact us for a quick quote and competitive pricing.
