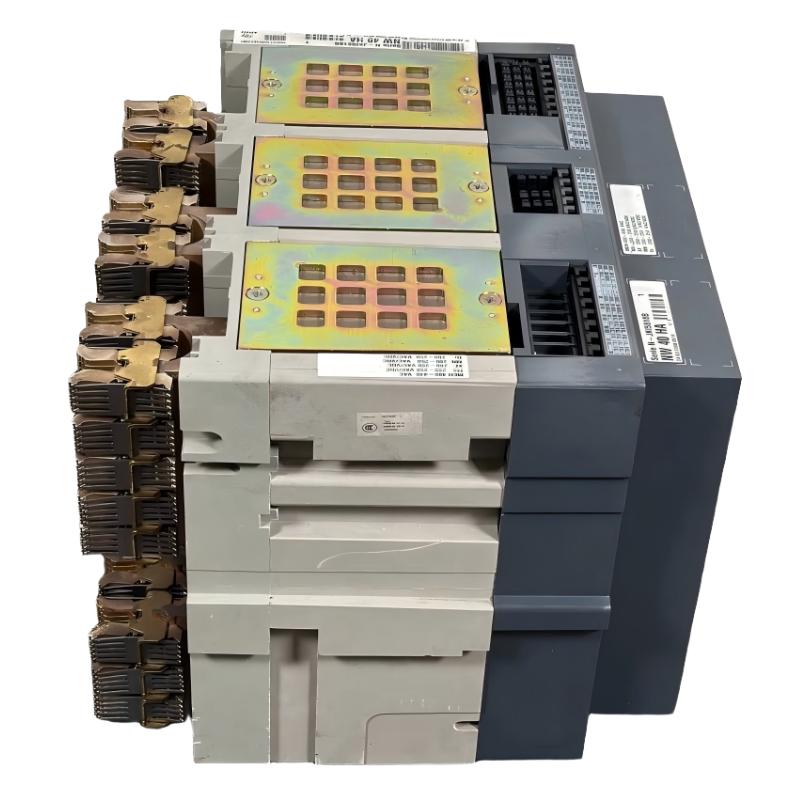

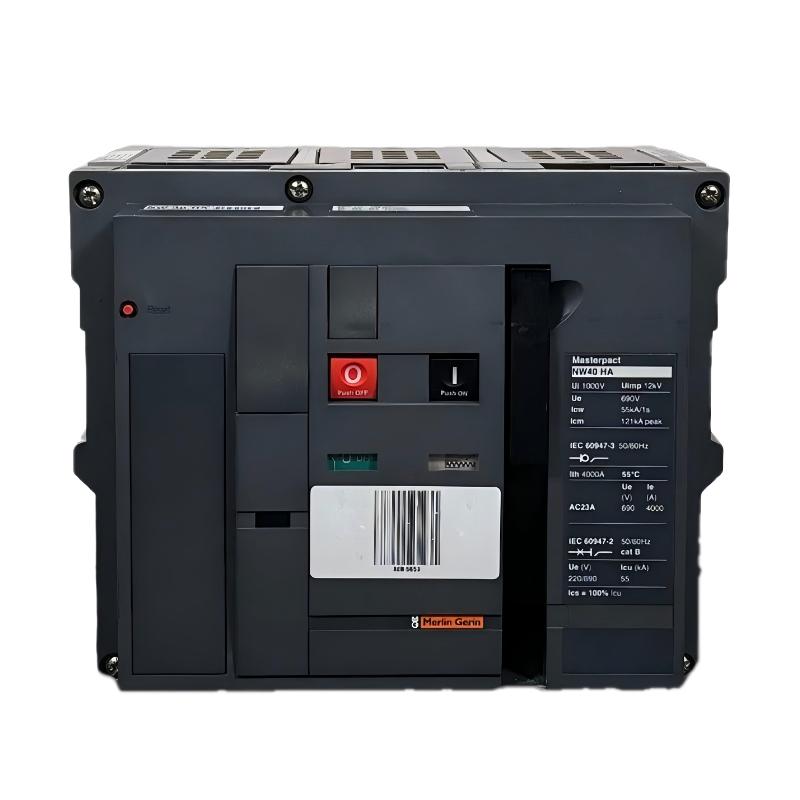

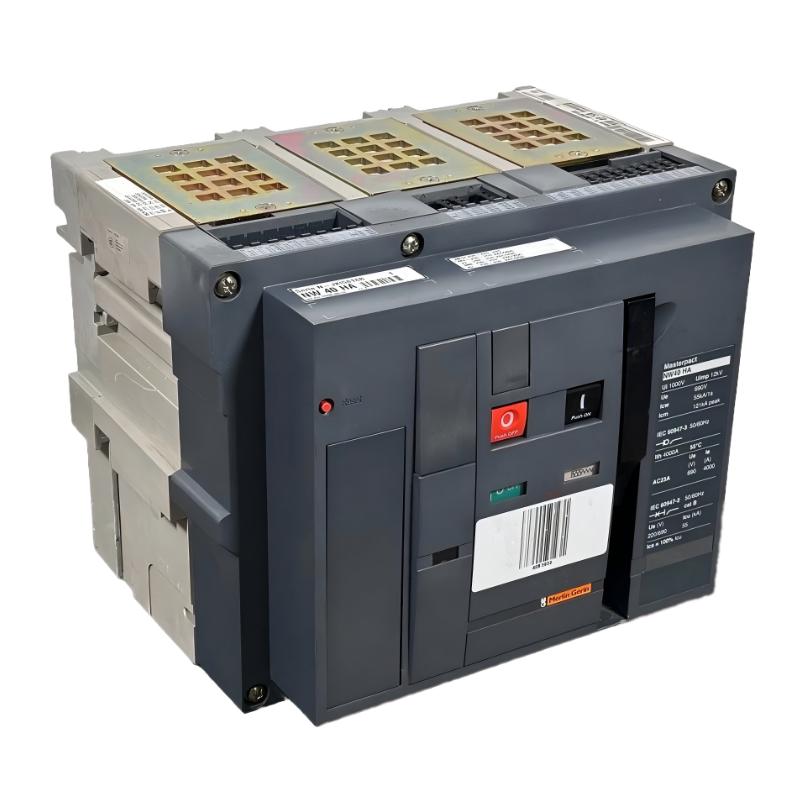

Schneider NW40HA Contactor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | NW40HA |
| Product Series | MasterPact NW |
| Product Type | High-Current Switch Disconnector |
| Product Name | MasterPact NW40HA |
| Rated Operational Current | 4000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Insulation Voltage | 1000 V AC |
| Rated Impulse Withstand Voltage | 12 kV |
| Rated Short-Circuit Making Capacity (Icm) | 143 kA (220–690 V AC) |
| Number of Poles | 4P (Four-Pole) |
| Power Supply Type | AC |
| Rated Frequency | 50/60 Hz |
| Isolation Function | Supported, compliant with IEC 60947-3 |
| Breaking Capacity Class | HA |
| Operating Method | Push-button operation |
| Mounting Type | Fixed mounting |
| Maximum Operating Frequency | 10 operations/hour |
| Connection Spacing | 150 mm |
| Pollution Degree | 4 |
| Applicable Standards | IEC 60947-3, IEC 60664-1 |
| Dimensions | 537 × 352 × 297 mm |
| Weight | 80 kg |
FAQ
Q1: What is the main function of the Schneider NW40HA?
The NW40HA belongs to Schneider Electric’s MasterPact NW series. It is a high-current switch disconnector designed for switching and electrical isolation in low-voltage distribution systems. Typical applications include large industrial installations, power distribution cabinets and high-current electrical circuits. It provides circuit isolation under specified operating conditions.
Q2: What are the rated current and voltage of the NW40HA?
The NW40HA has a rated operational current of 4000 A and a rated operational voltage of up to 690 V AC. It is designed for 50/60 Hz AC power distribution systems. Before installation, confirm that the system voltage, operating current and distribution design are compatible with the device ratings.
Q3: Is the NW40HA a circuit breaker, contactor or switch disconnector?
The NW40HA is a switch disconnector, not a conventional contactor. Its primary purpose is to connect, disconnect and isolate electrical circuits. It should not be treated as a circuit breaker with complete automatic overload and short-circuit protection. Appropriate protective devices must be provided separately in the electrical system.
Q4: What is the purpose of the four-pole design of the NW40HA?
The four-pole (4P) configuration allows the device to switch three-phase conductors and the neutral conductor simultaneously. This is useful in distribution systems where both the three-phase supply and neutral line need to be isolated. The actual wiring arrangement must follow the electrical system design and applicable local regulations.
Q5: What is the short-circuit making capacity of the NW40HA?
The rated short-circuit making capacity (Icm) is 143 kA within the specified voltage range of 220–690 V AC. This value represents the peak short-circuit current that the device can make under specified conditions. It does not mean that the device can independently provide short-circuit protection or continuously interrupt short-circuit current.
Q6: Does the NW40HA provide an electrical isolation function?
Yes. The device complies with the isolation requirements of IEC 60947-3 and can be used to isolate power distribution circuits. It includes contact position indication but does not have a visible break design. Before maintenance, always follow site safety procedures, including disconnecting the power supply, verifying the absence of voltage and applying grounding where required.
Q7: What should be checked when installing and commissioning the NW40HA?
Before installation, confirm that the four-pole configuration, rated current, operating voltage and fixed mounting arrangement match the distribution cabinet design. During wiring, inspect the main circuit terminals, busbar connections, connection spacing and specified tightening requirements. During commissioning, check the operating mechanism, contact position indicators and mechanical interlocking functions to ensure reliable switching operation.
Q8: What should be considered when replacing the Schneider NW40HA?
Replacement selection should not be based on the 4000 A current rating alone. Verify the number of poles, rated voltage, short-circuit making capacity, insulation ratings, mounting method, busbar connection dimensions and operating mechanism configuration. The NW40HA is not necessarily interchangeable with a conventional contactor or other MasterPact models. Confirm complete electrical and mechanical compatibility before replacement.
