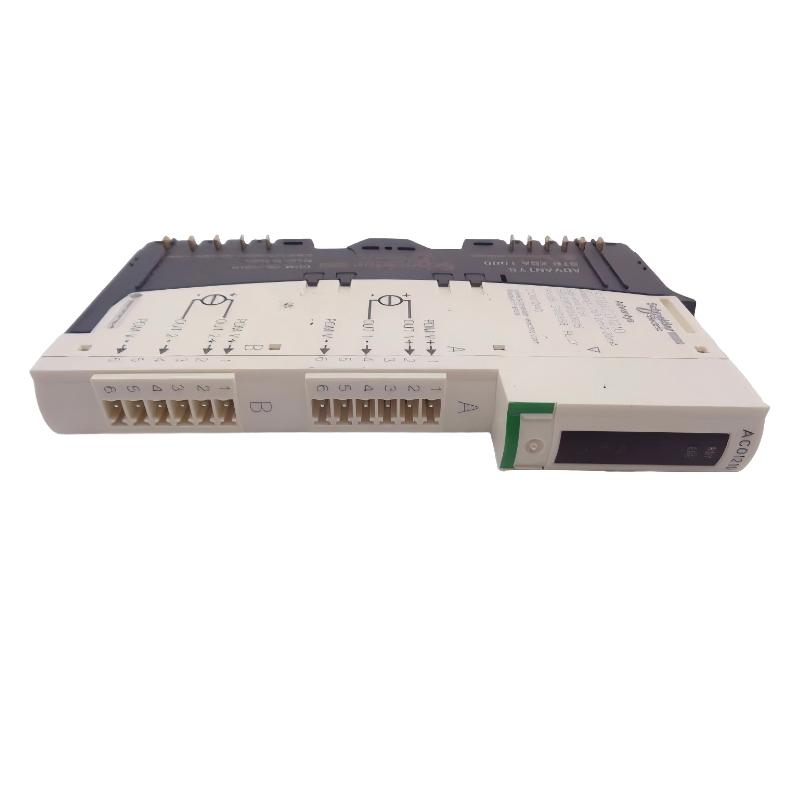

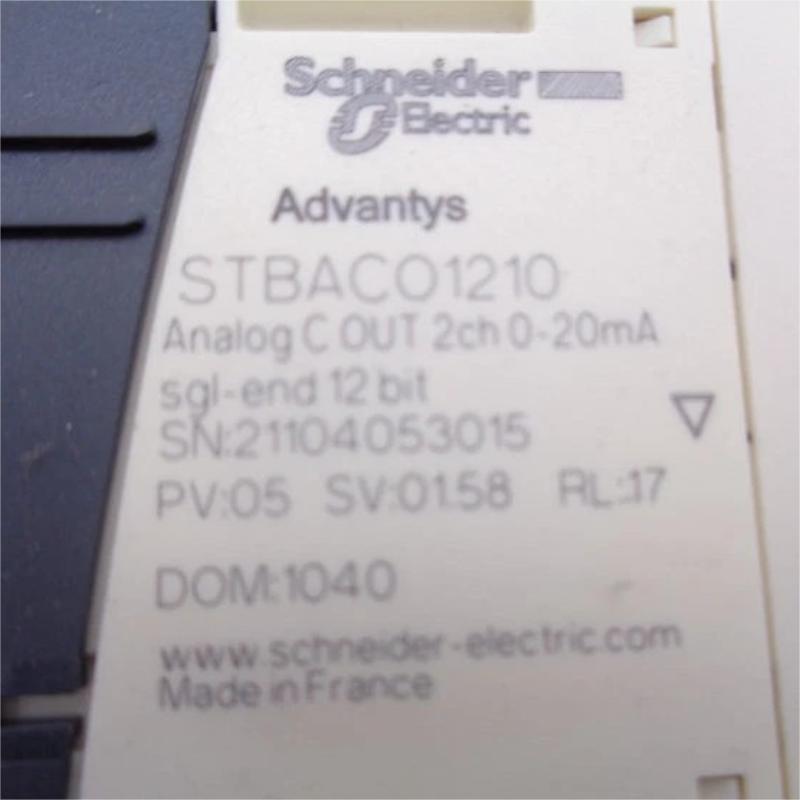

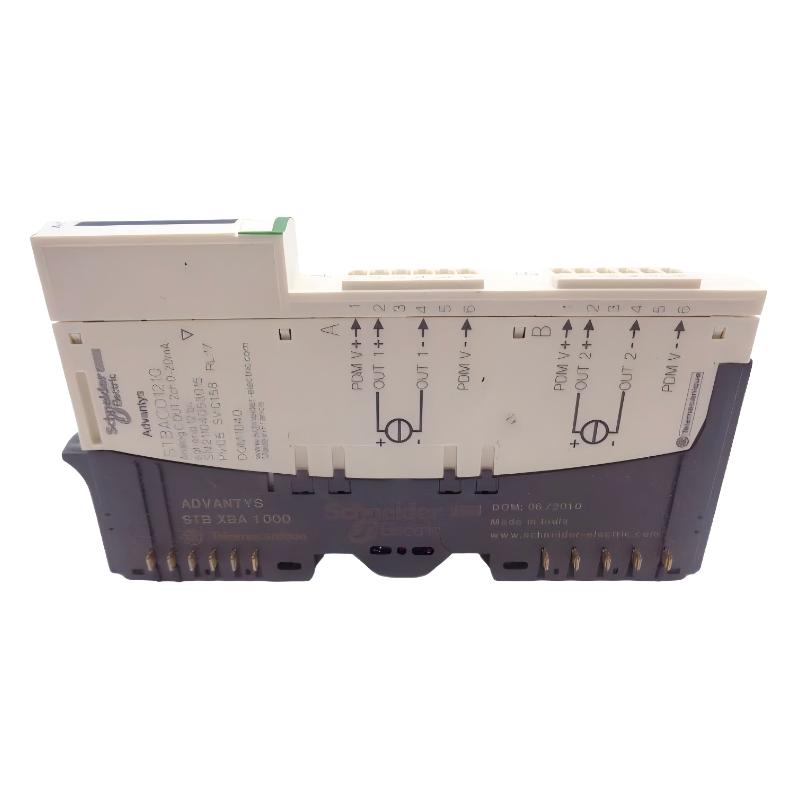

Schneider STBACO1210K Standard Analog Output Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | STBACO1210K |
| Product Type | Standard Analog Output Kit |
| Product Series | Modicon STB Distributed I/O |
| Analog Output Channels | 2 |
| Analog Output Signal | 0–20 mA |
| Analog Output Resolution | 12 bits |
| Maximum Output Current | 20 mA per channel |
| Response Time | 3 ms |
| Update Time | 25 ms |
| Conversion Time | 900 ms at ±0.1% of final value |
| Integral Linearity | ±0.1% FS |
| Differential Linearity | Monotonic |
| Absolute Accuracy Error | ±0.5% of full scale per °C |
| Temperature Drift | ±0.01%/°C |
| Output Protection | Short-circuit protection |
| Channel-to-Logic Bus Isolation | 1500 V for 1 minute |
| Channel-to-Actuator Bus Isolation | 30 V |
| Rated Supply Voltage | 24 V DC |
| Power Supply | Via power distribution module |
| Logic Bus Current Consumption | 40 mA at 5 V DC |
| Hot Swapping | Supported with standard NIMs |
| Cold Swapping | Supported |
| Fallback Mode | State 0 for basic NIMs; user-configurable for standard NIMs |
| Data Format | EN 61131-2 / IEC 61131-2 |
| Kit Composition | STBACO1210 module, STBXBA1000 mounting base, STBXTS1100 6-terminal screw connector, STBXTS2100 6-terminal spring-clamp connector |
| Compatible Mounting Base | STBXBA1000 |
| Compatible Power Distribution Modules | STBPDT3100 / STBPDT3105 |
| Status Indicators | Green RDY LED, red ERR LED |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +60°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | Up to 95% at 60°C, non-condensing |
| Mounting | Modicon STB island mounting system |
| Dimensions | 128.3 × 70 × 13.9 mm |
| Weight | 0.117 kg |
FAQ
Q1: What is the main function of the Schneider STBACO1210K?
The STBACO1210K is a two-channel analog output kit designed for the Schneider Electric Modicon STB distributed I/O system. It converts digital commands from a controller into 0–20 mA analog signals for field devices such as control valve positioners, current-driven actuators and other process control equipment.
Q2: How many analog output channels does the STBACO1210K provide?
The module provides two independent 0–20 mA analog output channels with 12-bit resolution. Each channel can deliver a current command according to the output value configured in the control program.
Q3: Which field devices can be connected to the STBACO1210K?
Typical applications include current-controlled valve positioners, actuators, signal converters and other industrial devices that accept a 0–20 mA control signal. Before connecting a field device, check its input range, load requirements and wiring configuration.
Q4: Which components are included in the STBACO1210K kit?
The kit includes the STBACO1210 analog output module, STBXBA1000 mounting base, STBXTS1100 six-terminal screw connector and STBXTS2100 six-terminal spring-clamp connector. These components provide the mounting and field wiring interfaces required for installation.
Q5: Is the STBACO1210K compatible with other Modicon STB components?
Yes. It is designed for the Modicon STB distributed I/O platform and is compatible with the STBXBA1000 mounting base and STBPDT3100/STBPDT3105 power distribution modules. The complete island configuration must also include a compatible network interface module and the appropriate power distribution arrangement.
Q6: What happens to the analog outputs if communication with the controller is interrupted?
The STBACO1210K supports configurable fallback behavior. Basic NIM configurations use a zero output state, while standard NIM configurations allow the fallback state to be configured by the user. The actual output response depends on the network interface module and the island configuration.
Q7: What should I check if the analog output current is incorrect or unstable?
First, check the module’s RDY and ERR indicators. Then verify the controller output value, channel addressing, terminal wiring, field-device input range and power supply connections. Inspect the load circuit for short circuits or wiring faults. If the current remains unstable, test the channel with a suitable loop calibrator or current meter.
Q8: What should be considered when replacing the STBACO1210K?
Confirm that the replacement supports two 0–20 mA output channels, 12-bit resolution and the required distributed I/O configuration. Check the mounting base, connector arrangement, power distribution, output wiring and fallback settings before installation. A replacement from a different product platform may require hardware changes and control-system reconfiguration.
