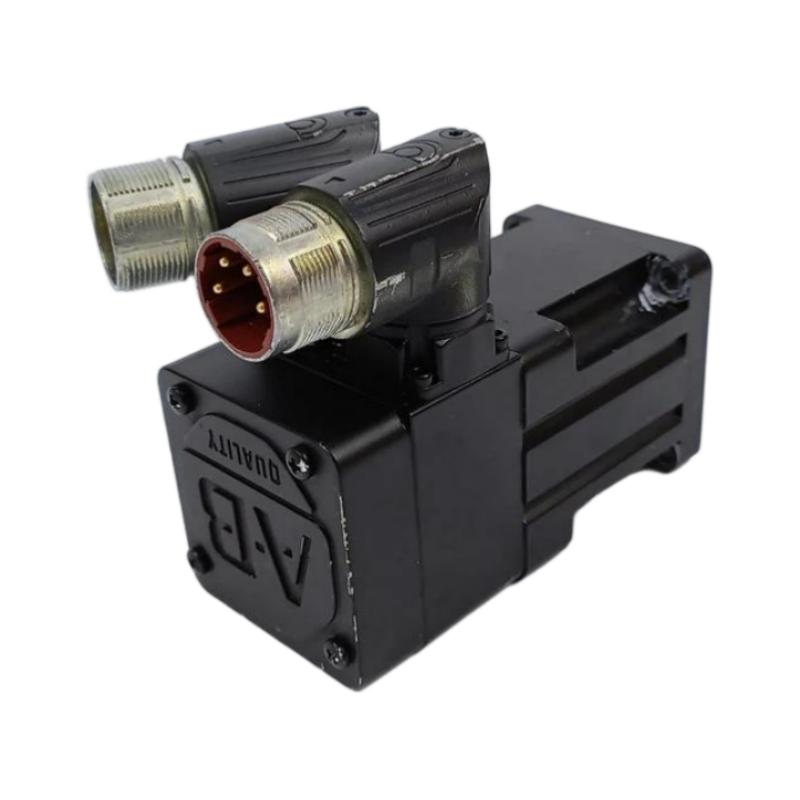

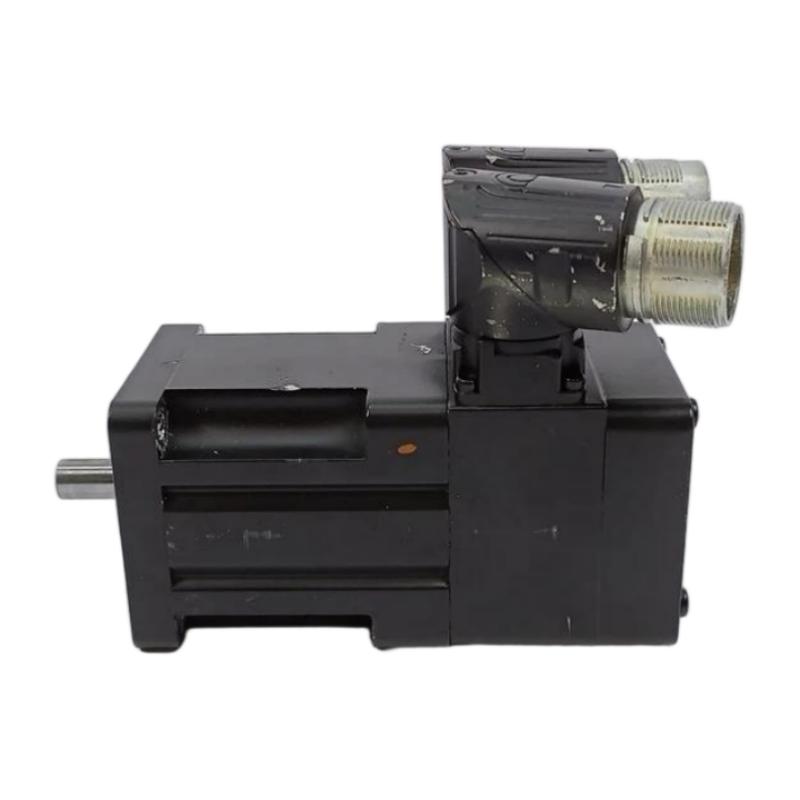

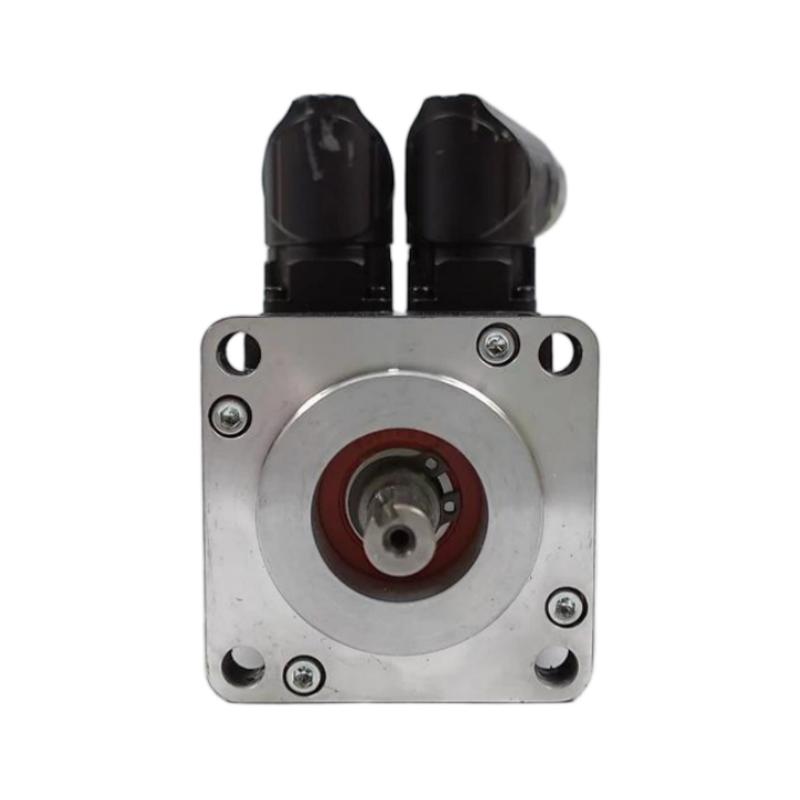

Allen-Bradley MPL-B320P-SJ74AA Low-Inertia Servo Motor
The Allen-Bradley MPL-B320P-SJ74AA is a low-inertia brushless AC servo motor from Rockwell Automation’s MP-Series MPL family. Designed for precision motion control in industrial automation, it combines a 5000 RPM rated speed, a single-turn high-resolution encoder, a keyed shaft, and an integrated 24 V DC holding brake. Its rotatable SpeedTEC DIN connector also provides flexibility for installation and cable routing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | MPL-B320P-SJ74AA |
| Product Type | Low-inertia brushless AC rotary servo motor |
| Product Series | MP-Series MPL |
| Voltage Class | 460 V AC |
| Frame Size | 100 mm (3.94 in.) |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Rated Power | Approximately 1.5 kW |
| Continuous Stall Torque | Approximately 3.05 Nm |
| Peak Torque | Approximately 7.91 Nm |
| Feedback Device | Single-turn high-resolution encoder |
| Feedback Resolution | 1024 Sin/Cos cycles per revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed shaft extension |
| Holding Brake | Integrated 24 V DC brake |
| Connector | SpeedTEC DIN, right-angle, 180° rotatable |
| Mounting | IEC metric flange, Type FF free mounting holes |
| Shaft Seal | Not included as standard |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Storage Temperature | -30–70°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions | 100 mm frame size and 50.8 mm magnet stack length; confirm overall dimensions using the model-specific mechanical drawing |
| Weight | Approximately 3.7 kg (8.2 lb); confirm against the product documentation for the supplied unit |
| UPC | 820919980527 |
FAQ
Q1: What is the Allen-Bradley MPL-B320P-SJ74AA?
It is a low-inertia brushless AC servo motor designed for precise position, speed, and torque control in automated machinery.
Q2: What is the rated speed of this motor?
The rated speed is 5000 RPM. The final operating range depends on the compatible servo drive and the application requirements.
Q3: Does the MPL-B320P-SJ74AA include a holding brake?
Yes. This model includes an integrated 24 V DC holding brake, which can help hold a load when the motor is not actively driving it. The brake is intended for holding rather than routine dynamic stopping.
Q4: What feedback system does it use?
It uses a single-turn high-resolution encoder with Hiperface feedback and 1024 Sin/Cos cycles per revolution for motion feedback.
Q5: What type of shaft does this model have?
It features a keyed shaft extension, which provides a mechanical connection for compatible couplings and driven equipment.
Q6: Which connector is used on this servo motor?
It uses a right-angle SpeedTEC DIN connector that can rotate through 180 degrees, allowing more flexible cable routing in compact machine installations.
Q7: What are the dimensions and weight of the MPL-B320P-SJ74AA?
The motor has a 100 mm frame and a 50.8 mm magnet stack. Its listed weight is approximately 3.7 kg, although supplier listings can differ. For installation or replacement, use the model-specific mechanical drawing to verify the complete dimensions and mounting clearances.
Q8: What should be checked before replacing this motor?
Verify the complete part number, servo-drive compatibility, voltage class, encoder feedback, keyed shaft dimensions, connector and cable compatibility, mounting arrangement, and 24 V DC brake requirements. Confirm the nameplate and mechanical drawing before installation and commissioning.
Allen-Bradley MPL-B320P-SJ74AA Low-Inertia Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
