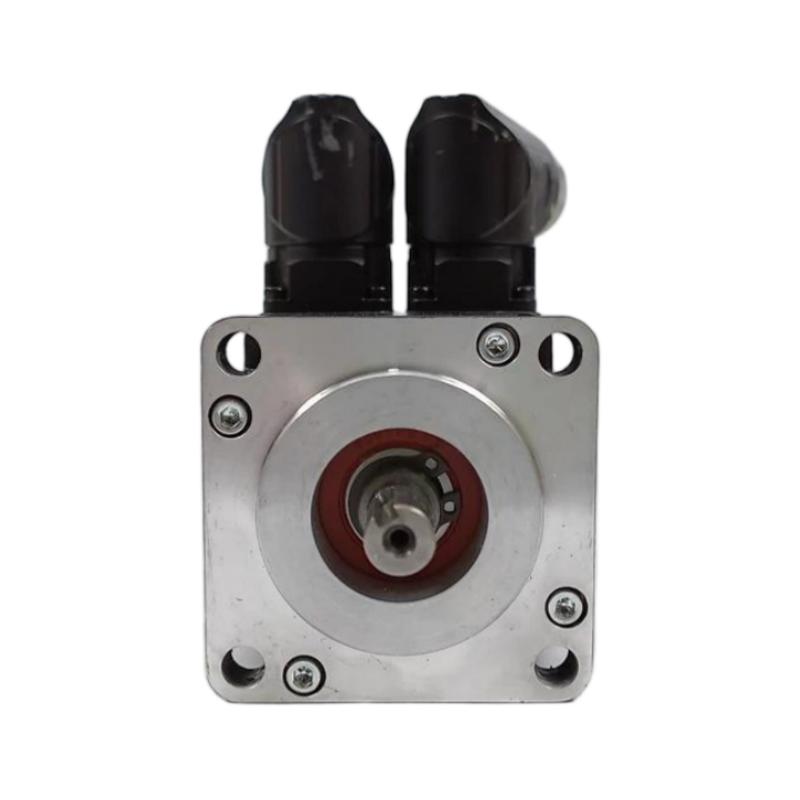

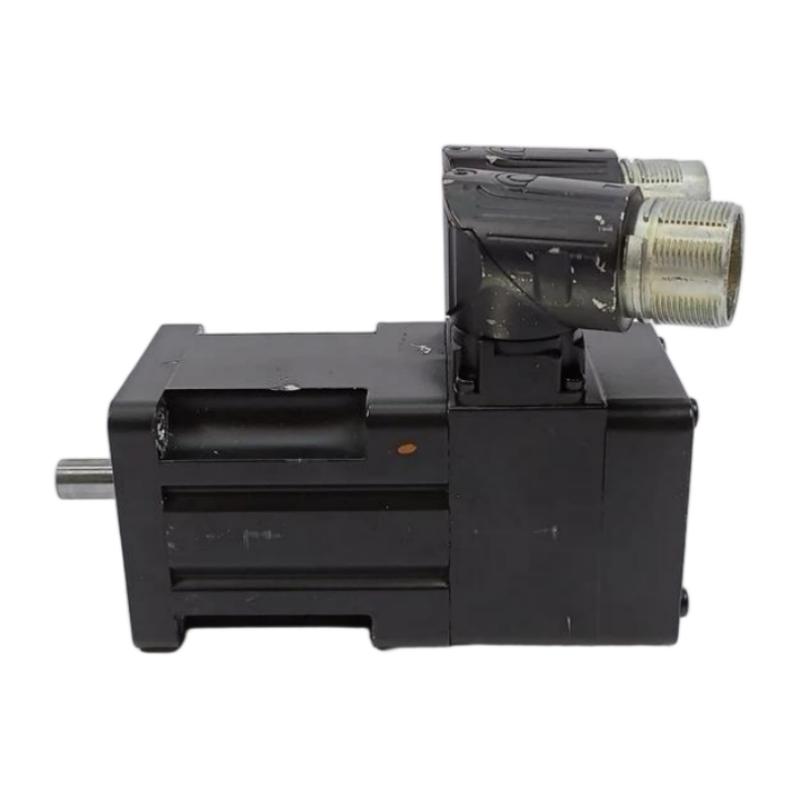

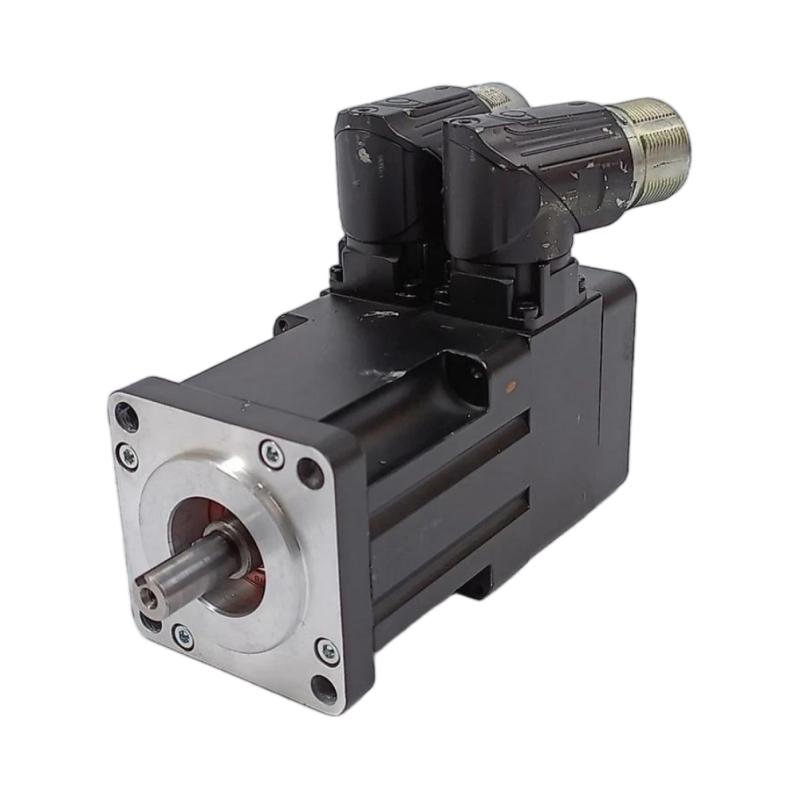

Allen-Bradley MPL-B320P-RK72AA Low-Inertia AC Servo Motor
Technical Specifications
The Allen-Bradley MPL-B320P-RK72AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. Designed for industrial automation and precision motion control, it features resolver feedback, a keyless shaft extension, and a right-angle SpeedTEC DIN connector. With a 100 mm frame and a 50.8 mm magnet stack, it is suitable for automated machinery requiring accurate positioning and responsive rotary motion. The motor does not include an integrated holding brake. <Cite refs={[“turn781871search0″,”turn781871search4”]}/>
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-RK72AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Permanent-Magnet Rotary Servo Motor |
| Voltage Class | 400 V class |
| Armature Voltage | 460 V |
| Product Voltage Rating | 480 V AC |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 5,000 RPM |
| Rated Power | Approximately 1.5 kW |
| Continuous Stall Torque | Approximately 3.05 Nm |
| Peak Torque | Approximately 7.91 Nm |
| Feedback Type | Resolver |
| Frame Size | 100 mm (3.94 in.) |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Shaft Type | Keyless Shaft Extension |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Holding Brake | No integrated brake |
| Mounting Type | IEC Metric Flange |
| Mounting Holes | Free Mounting Holes, Type FF |
| Shaft Seal | No standard shaft seal |
| Protection Rating | IP50 without shaft seal; higher protection may depend on optional sealing and compatible connectors |
| Operating Temperature | Confirm the permitted range in the manufacturer’s installation documentation |
| Dimensions | Approx. 306 × 100 × 100 mm as a preliminary reference; confirm the complete mechanical envelope using the manufacturer’s drawing |
| Approximate Weight | 3.7 kg |
| UPC | 820919980497 |
| Lifecycle Status | Active Mature |
<Cite refs={[“turn781871search0″,”turn781871search3″,”turn781871search12”]}/>
FAQ
Q1: What is the Allen-Bradley MPL-B320P-RK72AA used for?
A1: This servo motor is designed for industrial automation applications that require precise positioning, controlled acceleration, and consistent rotational speed. Common uses include packaging machinery, material handling systems, automated assembly equipment, and production lines.
Q2: What is the maximum speed of the MPL-B320P-RK72AA?
A2: The motor has a maximum speed of 5,000 RPM. The actual operating speed and performance depend on the compatible servo drive, load conditions, and application requirements.
Q3: Does the MPL-B320P-RK72AA have an integrated holding brake?
A3: No. This model does not include an integrated holding brake. Applications that require the shaft to remain stationary when power is removed may need an external holding mechanism or a suitable braking solution.
Q4: What type of feedback does this servo motor use?
A4: The MPL-B320P-RK72AA uses resolver feedback to provide rotor position information to a compatible servo drive. This enables closed-loop motor control for speed and positioning applications.
Q5: What is the difference between the MPL-B320P-RK72AA and MPL-B320P-RJ72AA?
A5: The primary difference is the shaft configuration. The RK72AA uses a keyless shaft extension, while the RJ72AA uses a keyed shaft extension. Both models use resolver feedback and do not include an integrated brake. Confirm the mechanical coupling requirements before choosing between them.
Q6: Which connector is used on the MPL-B320P-RK72AA?
A6: The motor uses a right-angle SpeedTEC DIN connector that can rotate through 180 degrees. Check the connector and mating cable configuration when planning installation or replacing an existing motor.
Q7: What are the dimensions and weight of the MPL-B320P-RK72AA?
A7: The motor has a 100 mm frame size and a 50.8 mm magnet stack length, with a listed weight of approximately 3.7 kg. The overall dimensions should be verified against the manufacturer’s mechanical drawing before installation, especially when matching an existing mounting space or coupling.
Q8: What should be checked before replacing the MPL-B320P-RK72AA?
A8: Verify the full catalog number, voltage rating, speed requirements, resolver compatibility, keyless shaft dimensions, connector orientation, mounting arrangement, and brake requirements. The replacement motor must also be compatible with the existing servo drive and machine load.
