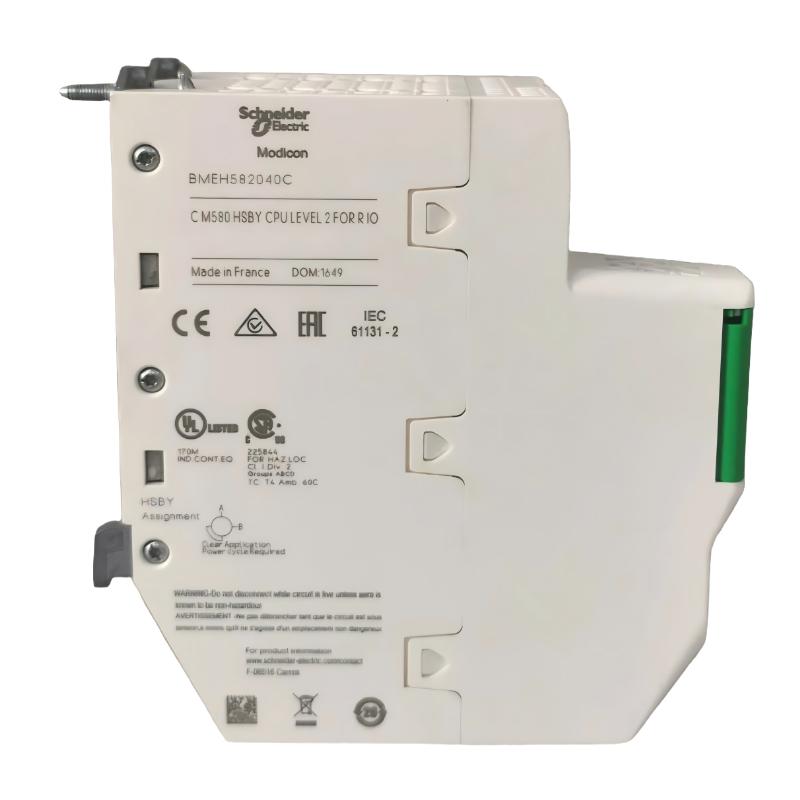

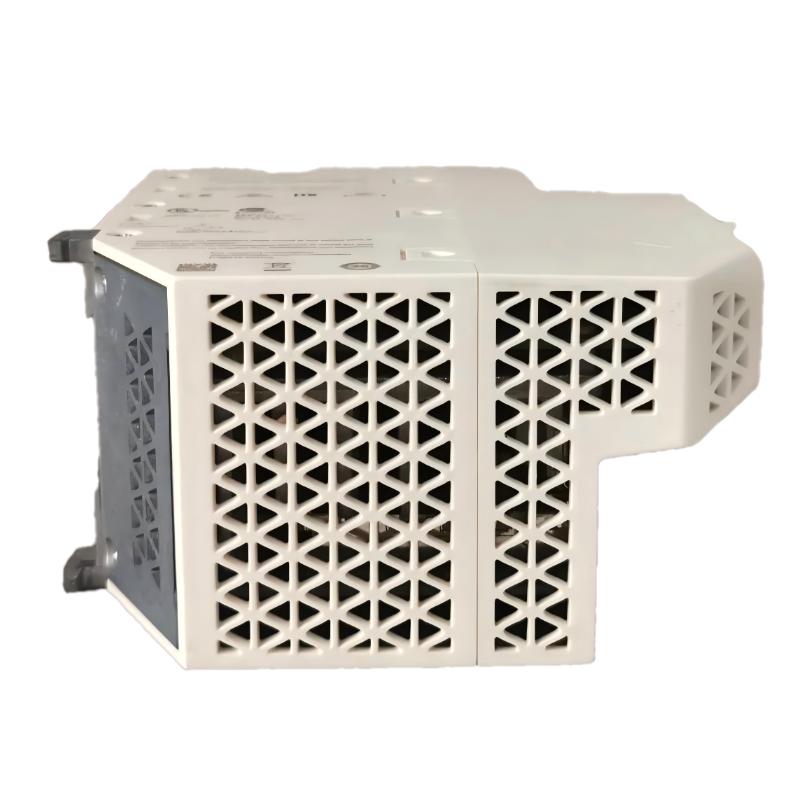

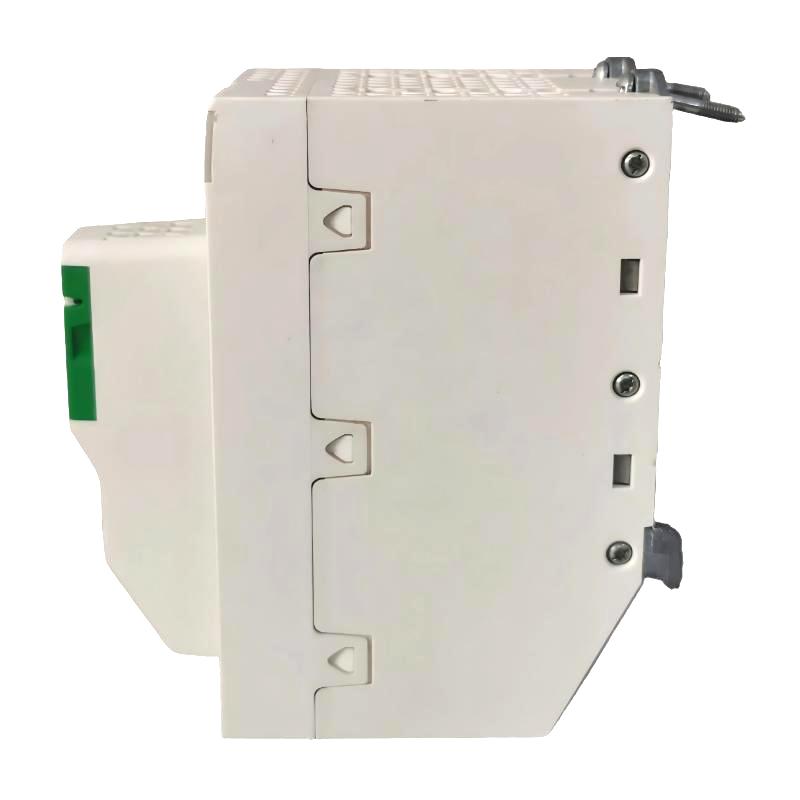

Schneider BMEH582040C Redundant Processor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Product Model | BMEH582040C |
| Product Name | Redundant Processor Module |
| Product Series | Modicon M580 |
| Product Type | Hot Standby Redundant Processor Module |
| Processor Level | Level 2 – Remote |
| Main Function | PLC redundancy control, process control, and remote I/O management |
| Redundancy Mode | HSBY Hot Standby |
| Protective Treatment | Conformal coating on printed circuit board |
| Program Memory | 8 MB RAM |
| Data Memory | 768 KB RAM |
| System Memory | 10 KB RAM |
| Extended Flash Memory | 4 GB |
| Local Discrete I/O Capacity | Up to 8,192 points |
| Local Analog I/O Capacity | Up to 2,048 points |
| Remote I/O Stations | Up to 8 X80 remote I/O stations |
| Distributed Device Capacity | Up to 64 devices |
| Ethernet Communication Module Capacity | Up to 2 Ethernet communication modules |
| AS-Interface Module Capacity | Up to 16 AS-Interface modules |
| Communication Interfaces | 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, 1 Ethernet HSBY redundancy port, 1 Mini-B USB port |
| Communication Services | RIO Scanner, DIO Scanner |
| Instruction Processing Speed | Approximately 30 Kinst/ms for mixed logic operations; 40 Kinst/ms for Boolean operations |
| Power Supply | Supplied through the rack backplane |
| Current Consumption | 270 mA at 24 V DC |
| Mean Time Between Failures (MTBF) | Approximately 650,000 hours |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Product Certifications | CE, UL, CSA, RCM, EAC, etc.; confirm the exact markings on the product label and certification documents |
| Dimensions | 134.6 × 130.3 × 64.6 mm |
| Weight | 0.849 kg |
FAQ
Q1: What is the main function of the Schneider BMEH582040C Redundant Processor Module?
The BMEH582040C is a redundant processor module for the Modicon M580 automation platform. It executes control programs and manages industrial processes, equipment, and I/O devices. It supports an HSBY Hot Standby architecture, allowing a standby processor to take over control tasks if the primary processor fails. This helps improve system availability and operational continuity.
Q2: How does the HSBY Hot Standby redundancy function work?
HSBY (Hot Standby) uses two compatible processors configured as a primary and a standby unit. During normal operation, the primary processor executes the control application, while the standby processor remains synchronized and monitors the primary unit. If the system detects a primary processor failure, the standby unit can take over control. Actual switchover performance depends on the system configuration, network condition, and application design.
Q3: Which communication interfaces are available on the BMEH582040C?
The module provides one Ethernet TCP/IP service port, two Ethernet TCP/IP device network ports, one Ethernet HSBY redundancy port, and one Mini-B USB port. These interfaces support device communication, engineering access, and data synchronization between redundant processors. Each port should be assigned according to the M580 network architecture.
Q4: What are the program and data memory capacities of this processor?
The BMEH582040C is specified with 8 MB of program RAM, 768 KB of data RAM, 10 KB of system RAM, and 4 GB of extended flash memory. Program memory stores the control application, while data memory supports operating variables and process data. Flash memory provides additional data storage. Actual available capacity depends on the application structure and system configuration.
Q5: How many remote I/O stations can the BMEH582040C support?
The module supports up to eight X80 remote I/O stations and can manage up to 64 distributed devices. It provides RIO Scanner and DIO Scanner communication services, making it suitable for automation systems with multiple remote control cabinets, field I/O devices, and distributed equipment.
Q6: How should I troubleshoot an ERR indication or communication failure?
Start by checking the processor status indicators, including RUN, ERR, ETH MS, ETH NS, and HSBY. Then inspect the rack power supply, Ethernet connections, network configuration, IP addresses, and communication link between the primary and standby processors. If the fault involves remote I/O, also check the remote adapters, network switches, and communication cables. EcoStruxure Control Expert diagnostic information can help identify the source of the problem.
Q7: What is the purpose of the conformal coating on the BMEH582040C?
The conformal coating protects the printed circuit board and electronic components against environmental factors such as moisture, dust, salt mist, and certain corrosive gases. It improves the module’s resistance to demanding industrial environments. However, conformal coating does not make the module waterproof or suitable for operation outside its specified environmental limits. Proper cabinet protection and installation conditions are still required.
Q8: What should be checked when replacing a BMEH582040C processor module?
Before replacement, verify the processor model, firmware version, M580 system configuration, and redundancy compatibility. In a Hot Standby system, also check the hardware status of both processors, application versions, network parameters, and synchronization status. After installation, follow Schneider Electric’s maintenance procedures to complete hardware identification, application loading, communication checks, and primary-to-standby switchover testing before returning the system to production.
Schneider BMEH582040C Redundant Processor Module is in stock. Please contact us for a quick quote and competitive pricing.
